The SunGold Power 2000W DC 12V Pure Sine Wave Inverter With Charger Turns a 12V Battery Bank Into 2000 Watts of Clean 120V Power
The SunGold Power 2000W DC 12V Pure Sine Wave Inverter With Charger is a low-frequency LFP Series unit that puts three jobs in one case: a 2000W pure sine wave inverter, a 70A battery charger and an automatic AC transfer switch. It runs from a 12V battery bank, accepts 120VAC from the grid or a generator, and supplies 120VAC to your loads.
It is built for RVs, trailers, motorhomes, truck campers, cabins and home backup circuits where a 12V bank is already in place. A 6000W surge rating, a GFCI outlet, an LCD display and an included remote control make it a practical center for a small backup or off-grid system.
SunGold Power 2000W DC 12V Pure Sine Wave Inverter With Charger Features
2000W Continuous With a 300% Surge
The inverter delivers 2000W continuously and 6000W for up to 20 seconds, three times its rating. SunGold rates it to start a 2HP electric motor. That reserve helps with pumps, compressors and power tools that pull a burst of current at start-up.
Built-In 70A Multi-Stage Charger
When grid or generator power is connected, the power factor corrected charger refills the bank at up to 70A ±5A. A linear switch sets the maximum anywhere from 0% to 100%, which helps when the bank is small. Nine battery type settings cover gel, AGM, sealed lead acid, lithium and LiFePO4 profiles, and position 0 turns the charger off.
Automatic Transfer With a Generator Delay
If AC input fails or drifts out of range, the transfer switch moves your loads to battery power, with a typical transfer time of 10ms or less. When qualified AC returns, a 15-second delay gives a generator time to settle before the loads move back. That keeps relays from chattering on unstable power.
AC or Battery Priority
By default the inverter favors AC. Incoming power charges the battery and passes through to the loads. Set SW5 to battery priority and the inverter runs loads from the bank until it reaches the low battery alarm point, then switches to AC, recharges and returns to battery once the bank is full. SunGold designed this mode for solar or wind systems that keep utility power as backup.
Automatic Generator Start
The inverter can signal a generator to start when battery voltage runs low, then shut it off once charging is finished. The generator needs its own auto start function, and the start relay carries up to 16A.
Power Saver Mode
Idle consumption is 28W with power saver off and 13W with it on. In power saver mode the inverter pulses its output to look for a load and wakes up when something above 25W turns on. That saves battery when the system sits unused.
Protections and a Coated Circuit Board
Built-in protections cover AC input over and under voltage, low and high battery voltage, over temperature, overload, short circuit and backfeed. The PCB has a conformal coating that makes it water, rust and dust resistant, though the unit is not splash proof.
Real-World Applications
RVs and motorhomes. Run a microwave, blender or coffee maker from the house battery, then recharge from shore power or a generator through the same unit.
Trailers and truck campers. Add 120V outlets to a 12V system without buying a separate charger and transfer switch.
Home backup circuits. Keep lights, electronics or a home office running during an outage, with the inverter taking over automatically when the grid drops.
Workshops and job sites. Power drills, saws, grinders and other tools that fit within 2000W, with surge headroom for start-up.
How It Compares to Common Alternatives
Versus the 3000W 12V model. The 3000W version adds 1000W of output, a 9000W surge, a 3HP motor rating and a 90A charger. It weighs 49 lb against 41.9 lb for this model, in the same 22 x 9.1 x 7.5 inch footprint.
Versus a modified sine wave inverter. Pure sine wave output gives clean power for sensitive electronics and for appliances such as microwaves that can run poorly on a stepped waveform.
Versus separate components. One unit replaces an inverter, a battery charger and a transfer switch, with one display, one remote and one set of DC cables to the bank.
Is This 12V Inverter Charger the Right Fit
Battery bank. Requires a 12V bank. The inverter starts at 10.0Vdc and restarts on its own once the battery recovers to 13Vdc after a low voltage shutdown.
AC source. Accepts 120VAC grid or generator power, with an input range of 90 to 135VAC or 100 to 135VAC set by SW2.
Cabling. SunGold lists AWG1/0 as the minimum DC cable for a 3 meter run on this model. Keep the bank close to the inverter.
Location. Install it somewhere dry, clean, cool and ventilated, with at least 30cm (11.81 inches) of clearance for airflow.

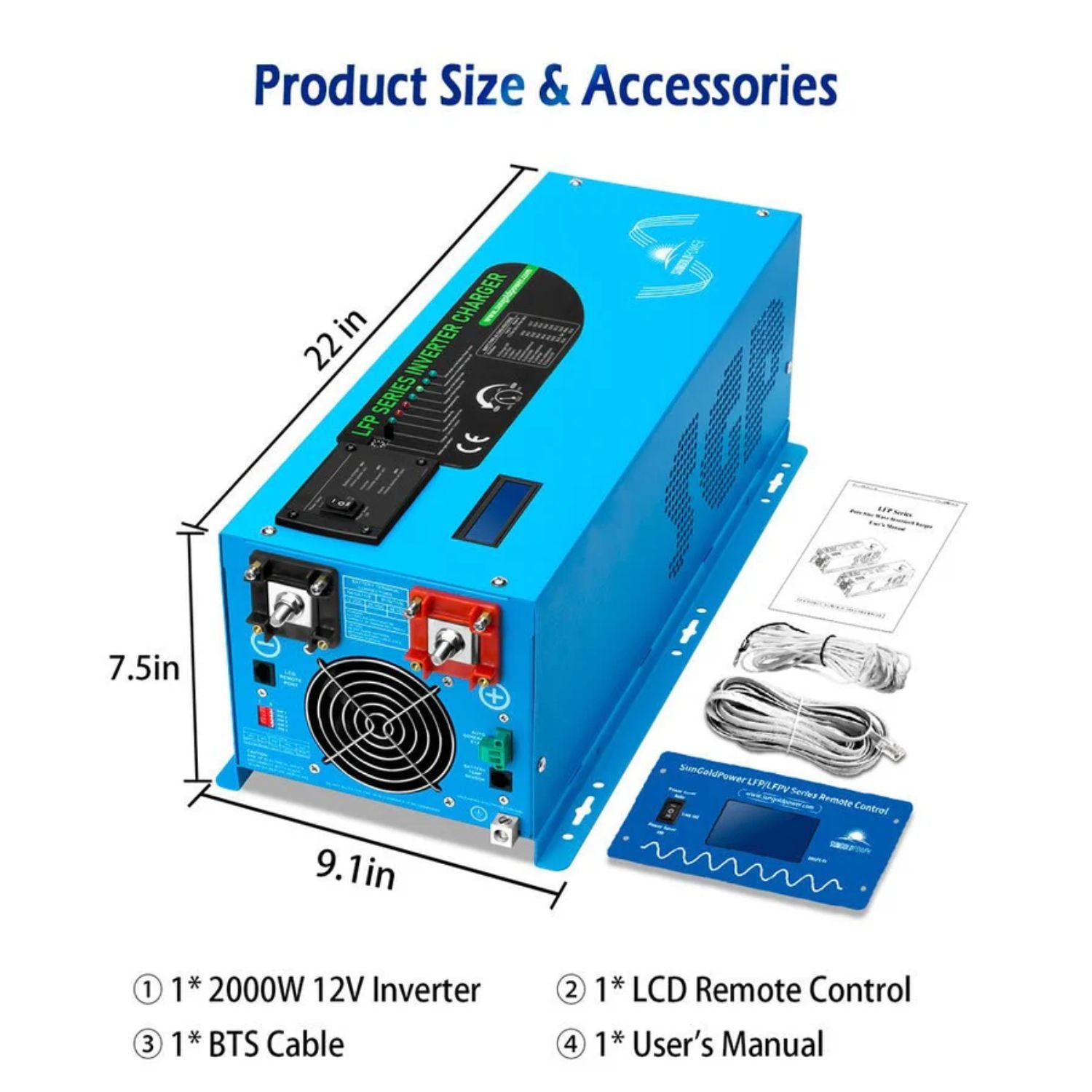

Size. 22 x 9.1 x 7.5 inches and 41.9 lb, for wall mounting.
This may be a good fit if
You already run a 12V battery bank
Your loads stay within 2000W continuous
You want charging and transfer in one unit
You want a GFCI outlet on the inverter
Common Questions
What Is the Standby Current Draw?
SunGold lists the standby current at 2A for this 12V model. Idle consumption is 28W with power saver off and 13W with power saver on.
What Wire Size Should Be Used for the Chassis Ground?
SunGold's answer for this model is AWG1/0 wire. The manual's general minimum is AWG 8 copper between the ground terminal and the earth ground or vehicle chassis, so AWG1/0 meets it.
What Happens in Battery Priority When the Battery Runs Down?
The inverter switches to AC and charges the battery. Once the battery is recharged, it switches back to inverting from the battery.
What Can a 2000W Inverter Run?
Household appliances such as blenders, microwaves and coffee makers, plus power tools and electronics. Keep the total running load within 2000W and allow for the start-up surge of motor loads.
Does It Work With Lithium Batteries?
Yes. It can charge LiFePO4 and other lithium batteries. Check your battery's charge and cutoff voltages against the inverter's battery type settings before you choose one.
What's Included
1 x 2000W 12V Low Frequency Pure Sine Inverter (LFP2K12V120VSG)
1 x English Manual
1 x Remote Control
1 x BTS Cable
Clean 120V Power and Charging in One 12V Unit
The SunGold Power 2000W DC 12V Pure Sine Wave Inverter With Charger gives a 12V system 2000W of pure sine wave output, a 70A charger and automatic transfer in one wall-mounted unit. At Outbound Power, we help customers match inverters, battery banks and generators for RVs, cabins and home backup. If you have questions, our team is happy to help.
SunGold Power 2000W DC 12V Pure Sine Wave Inverter With Charger Specifications
Model
LFP2K12V120VSG
Inverter Output
Continuous Output Power
2000W
Surge Rating
6000W (20 seconds)
Capable of Starting Electric Motor
2HP
AC Output Voltage
120VAC
Output Frequency
50Hz or 60Hz (set by SW4)
Output Waveform
Pure sine wave (bypass mode)
Typical Transfer Time
10ms (max)
Nominal Efficiency
>88%
Line Mode Efficiency
>95%
Outlet
GFCI socket
DC Input
Nominal Input Voltage
12.0Vdc
Minimum Start Voltage
10.0Vdc
Low Battery Alarm
10.5Vdc to 11.0Vdc
Low Battery Trip
10.0Vdc to 10.5Vdc (select by SW1)
High Voltage Alarm
16.0Vdc
Low Battery Voltage Restart
13Vdc
Idle Consumption
28W
Power Saver Mode Idle Consumption
13W
AC Charger
AC Input Voltage
120VAC
AC Input Range (Grid or Generator)
90V to 135VAC / 100V to 135VAC (select by SW2)
Charger Rate
70A ±5A
Adjustable Charge Current
Off, 0% to 100%
Battery Type Settings
9
Charging
3-step intelligent battery charger
Over Charge Protection Shutdown
15.7V
Charger Breaker Rating
20A
Bypass Breaker Rating
30A
General
Display
LCD
Remote Control
Included
Battery Temperature Sensor
BTS cable included
Mounting
Wall mount
Working Temperature
-10°C to 40°C
Unit Weight
41.9 lb
Unit Size
22 x 9.1 x 7.5 in
Shipping Weight
50.3 lb
Shipping Size
26.8 x 13.4 x 13 in
Standard Warranty
1 Year
SunGold Power LFP2K12V120VSG Manual
SunGold Power LFP2K12V120VSG Data Sheet
