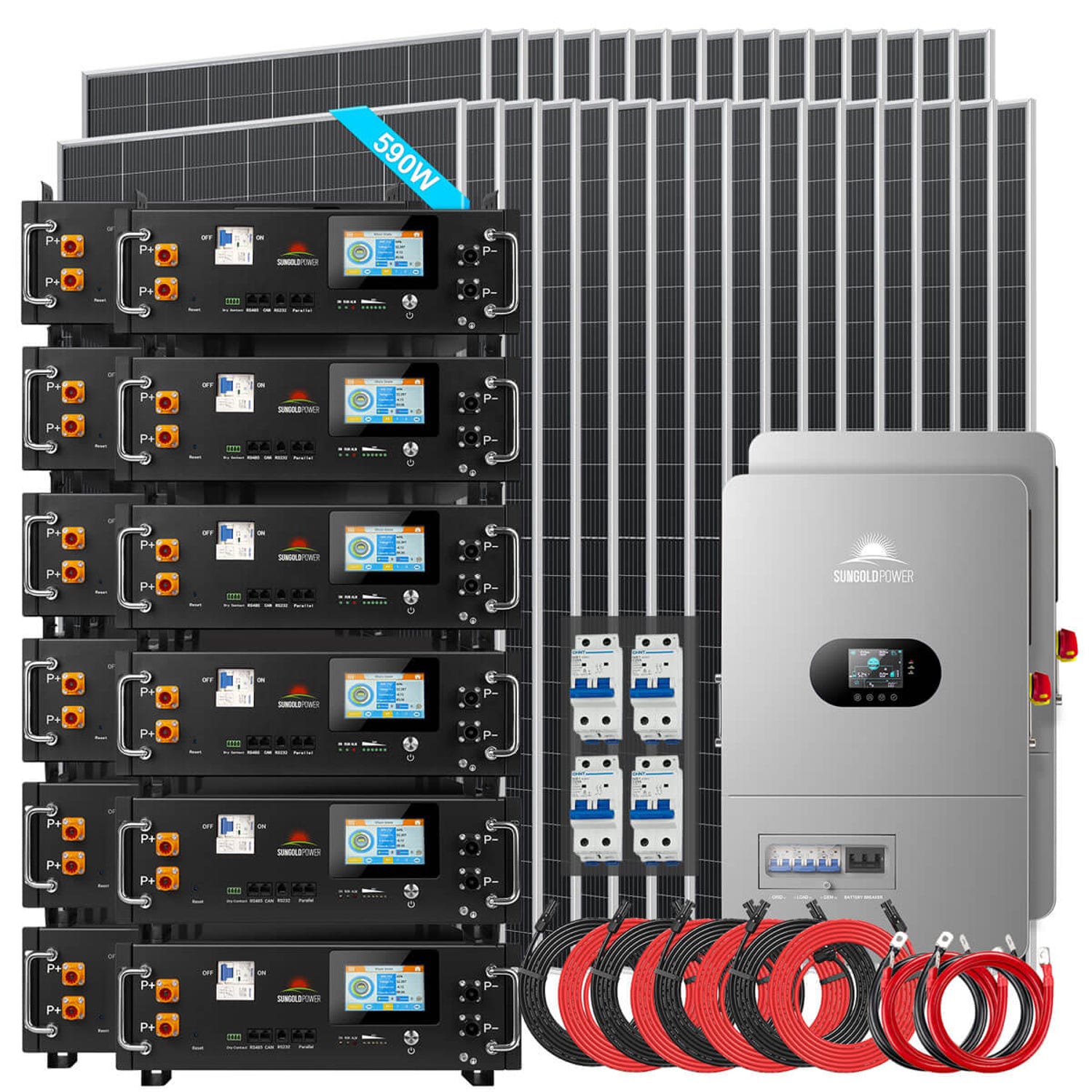

The SunGold Power 24kW 48VDC Off-Grid Solar Kit Runs Large Remote Homes on 18290W of Bifacial Solar and More Than 61kWh of LiFePO4 Storage
This off-grid kit pairs two 12000W 48V split-phase all-in-one inverters with 31 x 590W bifacial N-type solar panels and a large LiFePO4 battery bank. Choose 12 x CoreX 5 Pro server rack batteries for 61.44kWh (FR-24K60CP) or 4 x PowerMax 314 Outdoor batteries for 64.28kWh (FR-24K64PM).
It contains nearly everything you need to bring off-grid solar power and storage to large remote homes and off-grid residences. The two inverters run in parallel to power most 120V and 240V home appliances, and SunGold lists WiFi remote monitoring and auto generator start.
SunGold Power 24kW 48VDC Off-Grid Solar Kit Features

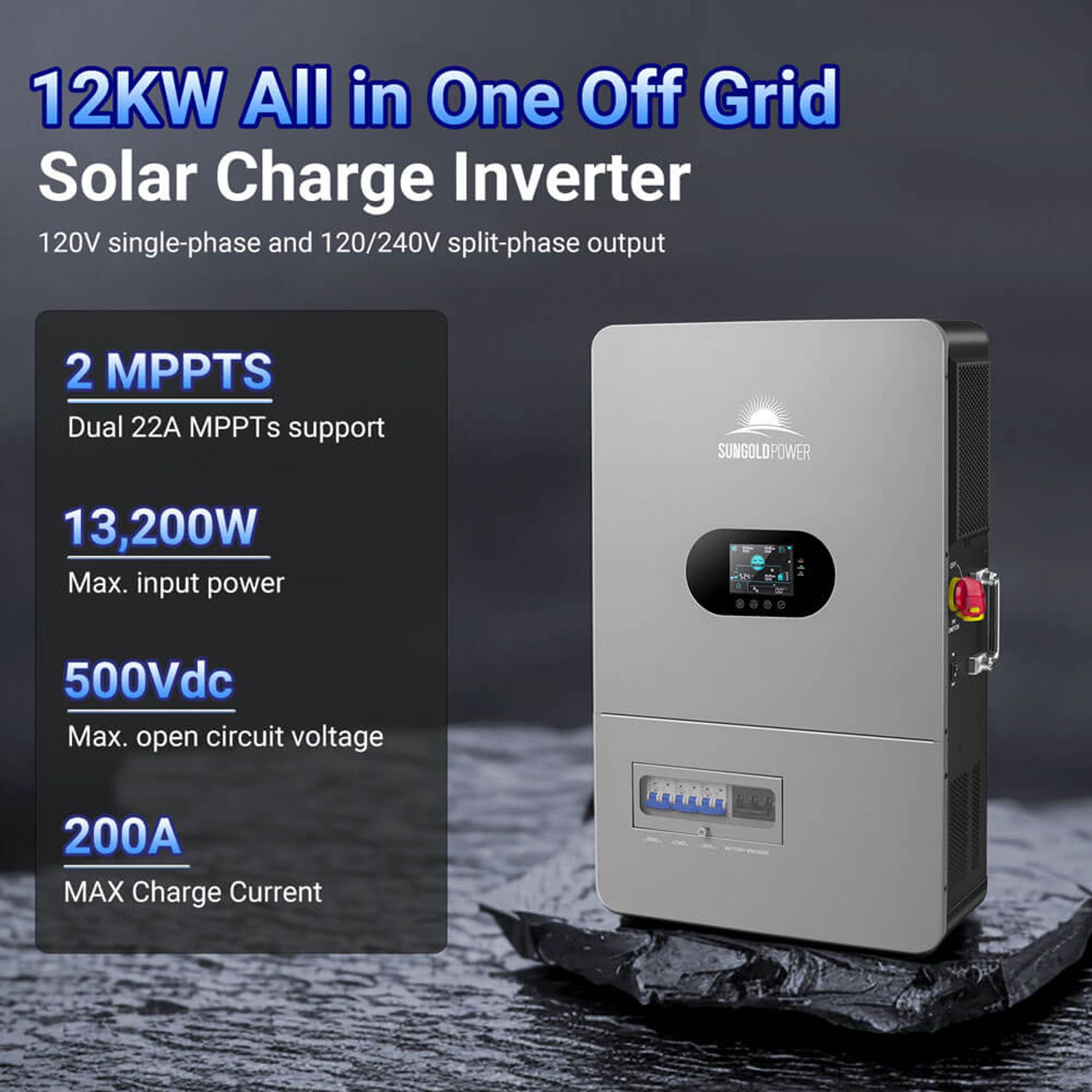

Two 12000W Inverters Working in Parallel
Each FR12K-B inverter is rated 12000W with a 24000W peak and a 6HP motor load capacity, at 120/240V split phase or 120V single phase. Two units in parallel give the kit its 24kW rating, and up to 6 FR12K-B units can run together for 72000W if you expand later.
Four MPPT Inputs for 31 Bifacial Panels
Each inverter has 2 MPPT inputs rated 22A and 6600W each, with a 500Vdc maximum open-circuit voltage and 99.9% tracking efficiency. The 31 panels wire as four strings of 8, 8, 8 and 7, one per MPPT, each through its own 25A PV breaker.

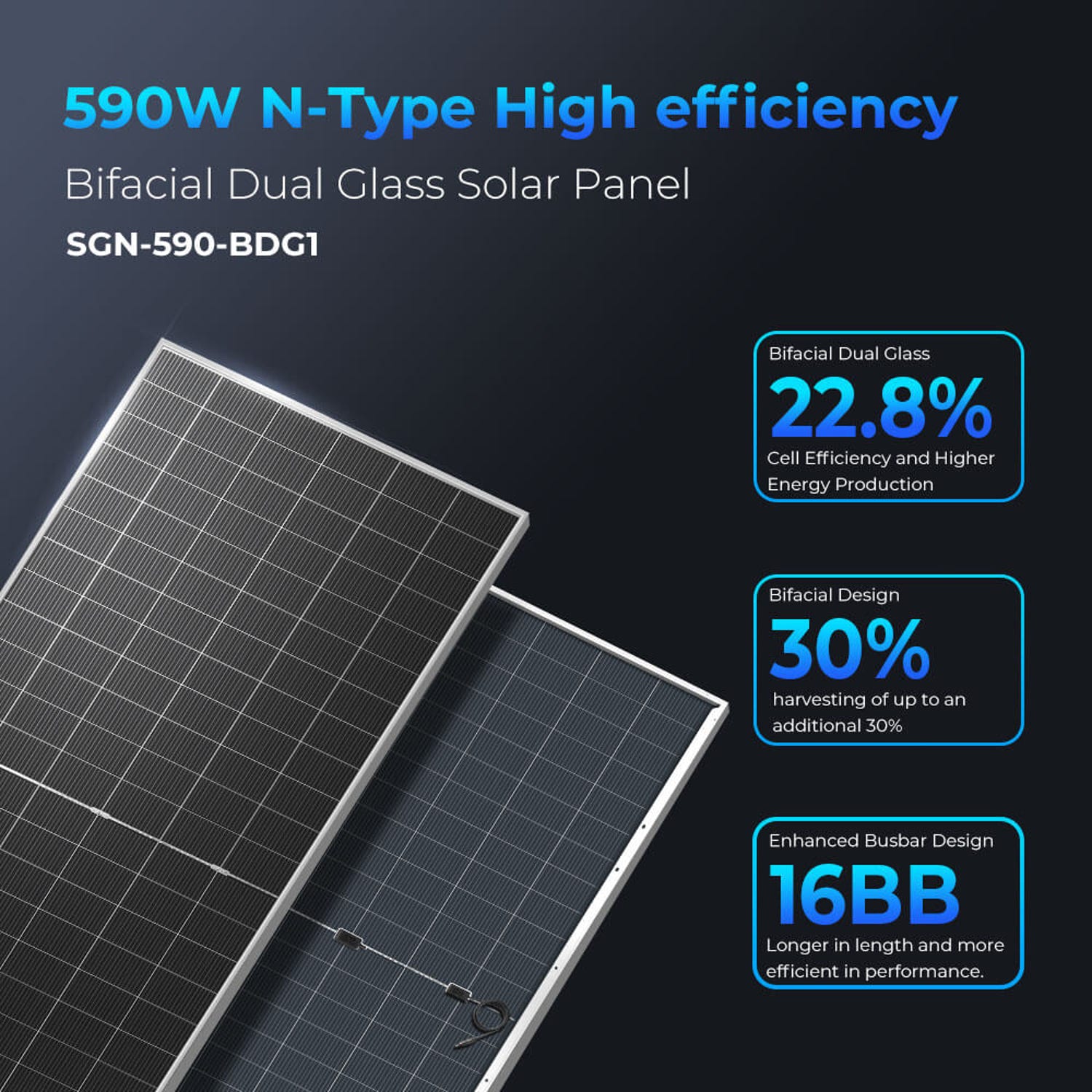

590W Bifacial N-Type Dual Glass Panels
The SGN-590-BDG1 panels have 22.8% module efficiency, and SunGold says the rear side can add up to 30% more energy. They are UL 61730 certified by ETL and CEC Listed, rated for 5400 Pa snow load, 2400 Pa wind load and a 40mm hailstone test, and carry a 30-year linear power warranty.

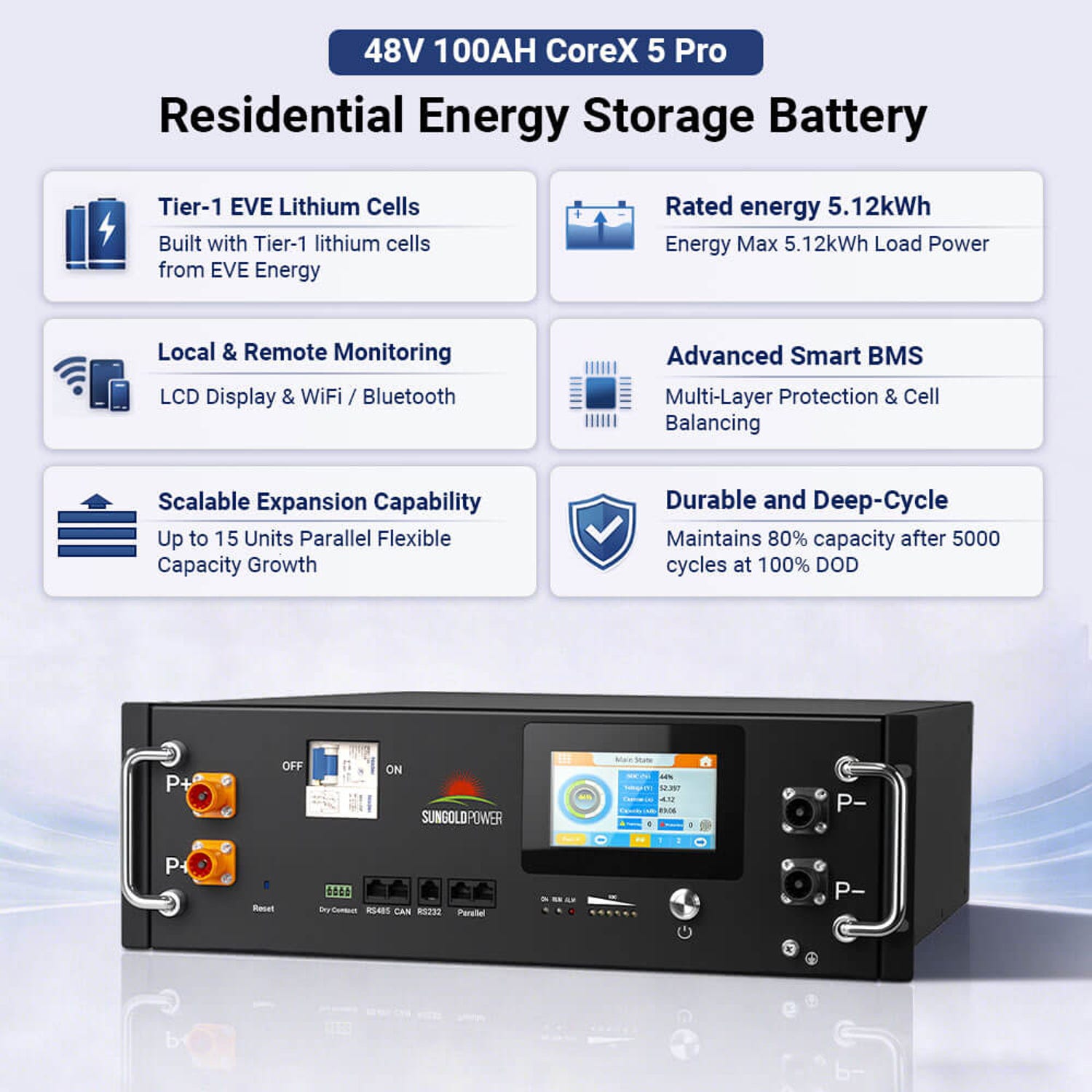

Server Rack CoreX 5 Pro Battery Bank
The FR-24K60CP option uses 12 CoreX 5 Pro batteries of 5.12kWh each, built with Tier-1 EVE lithium cells. SunGold rates them to keep 80% of capacity after 5000 cycles at 100% DOD, and each has an LCD, WiFi and Bluetooth monitoring and a 10-year warranty.

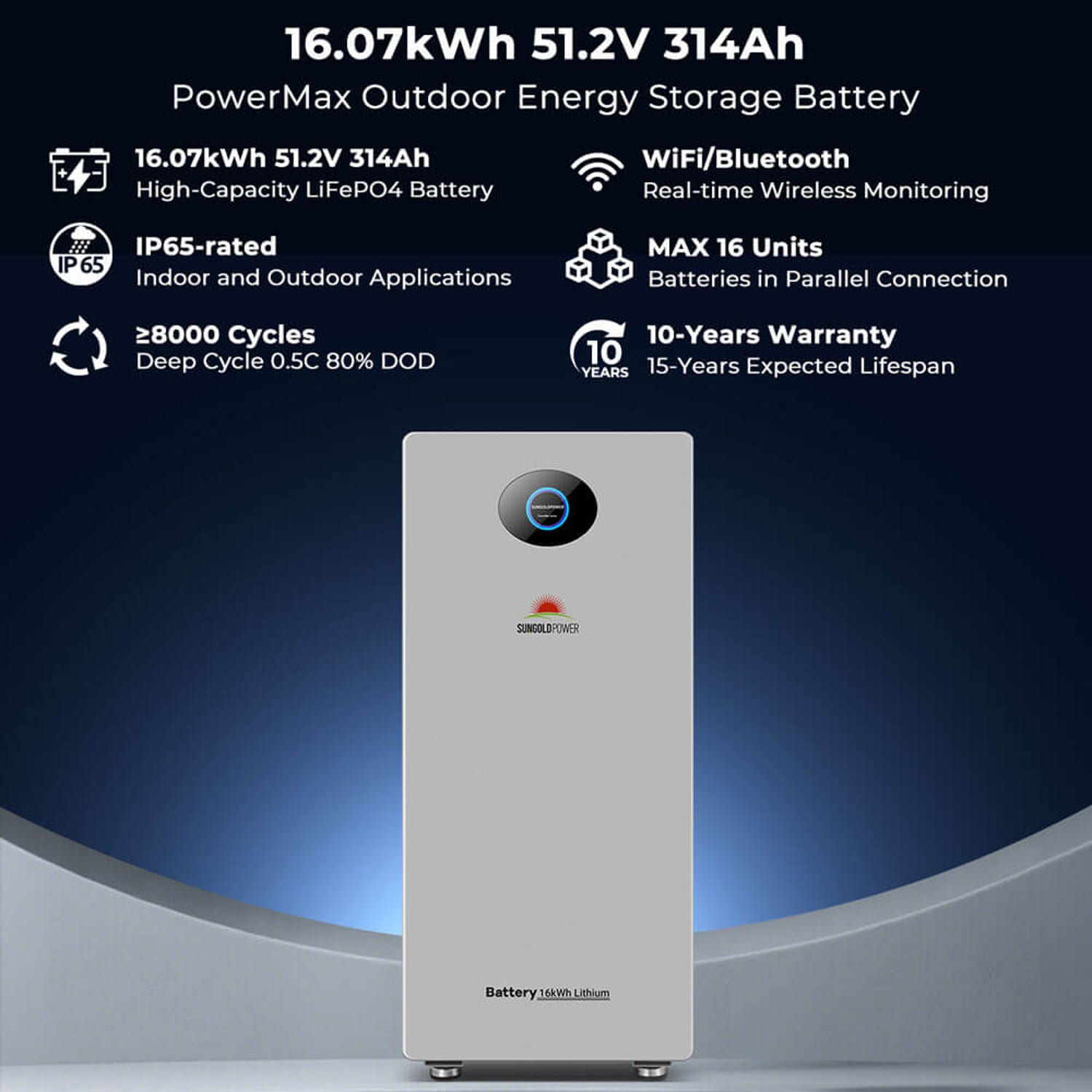

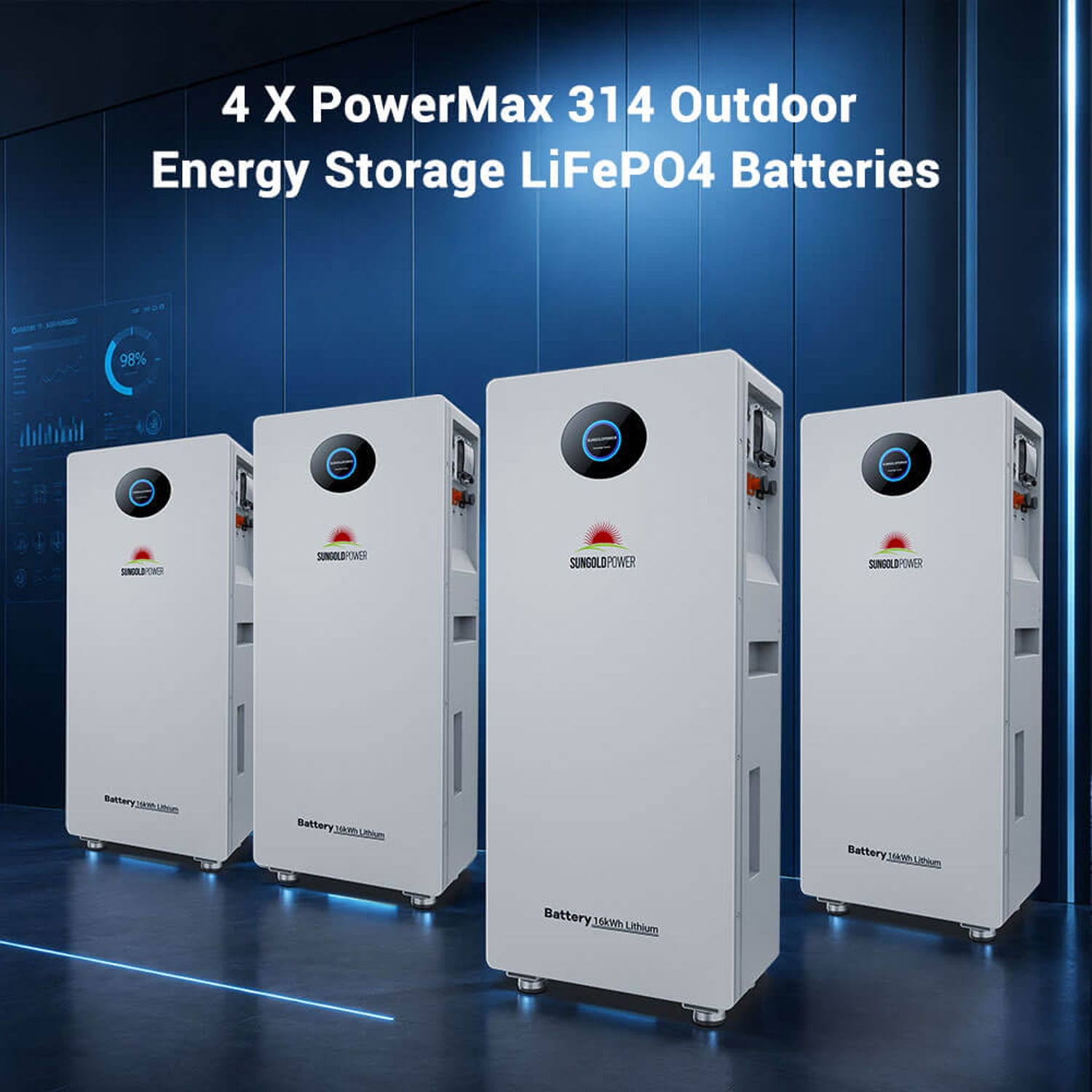

Outdoor-Rated PowerMax Battery Bank
The FR-24K64PM option uses 4 PowerMax 314 Outdoor batteries of 16.07kWh each, with 15.42kWh usable per battery. They are IP65 rated for indoor or outdoor installation, rated for 8000 cycles at 80% DOD, certified to UL 1973 and tested to UL 9540A.
Generator Support and Rapid Shutdown
Each inverter charges at up to 200A from solar or 120A from a generator or the grid. Its independent generator port can also serve as a second load output. SunGold states the built-in PV rapid shutdown system complies with 2017 and 2020 NEC 690.12 when used with APsmart RSD units at the modules.
Real-World Applications
Large remote homes. Run a full household with 120V and 240V circuits away from the grid.
Off-grid residences with high daily use. Store more than 61kWh for evenings and cloudy days.
Generator-backed properties. Let a generator charge the batteries during long stretches of poor weather.
Practical Comparison
CoreX 5 Pro Bank Versus PowerMax Outdoor Bank
The CoreX 5 Pro option uses 12 server rack batteries of 94.8 lb each, rated IP20 for indoor installation, with 12 battery brackets included. The PowerMax option stores slightly more, 64.28kWh, in just 4 batteries of 271 lb each. They are IP65 rated for indoor or outdoor use, so there are fewer units to wire and the bank can sit outside.
SunGold Power 24kW Off-Grid Kit Versus a Single 12kW Kit
A single 12000W inverter caps continuous output at 12kW. This kit doubles the inverter capacity, uses four MPPT inputs instead of two, and pairs them with a battery bank sized for a larger home.
Buyer Guidance
Busbars and Mounting Not in the Kit List
The system layout joins both inverters to the battery bank through a 600A busbar that is not included, and the kit list names no busbars. Racking for the 31 panels is not included either. Plan these parts with your installer.
Installation Requirements

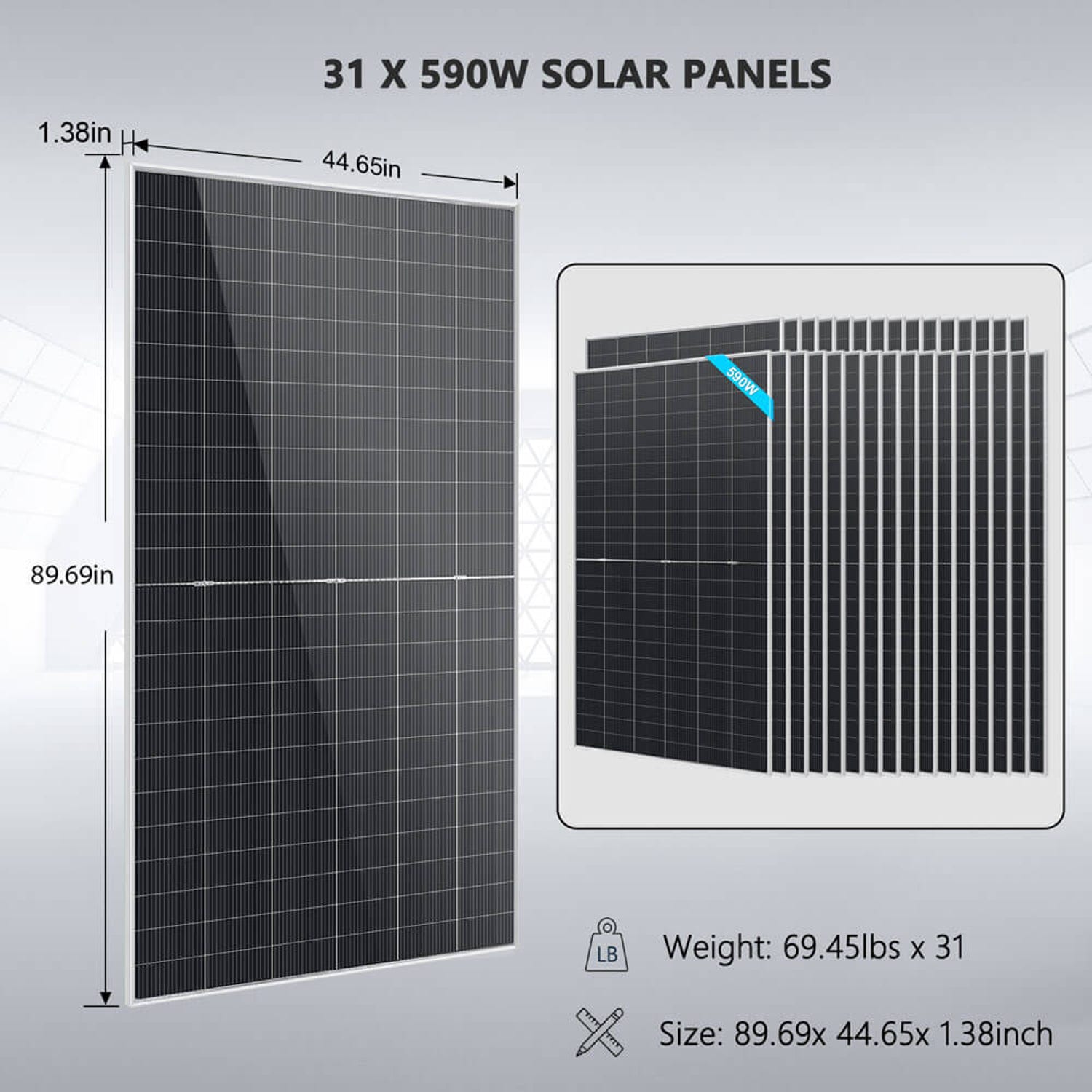

The FR12K-B inverters are IP20 rated for indoor use only, at 61.73 lbs and 28.48 x 17.64 x 5.91 inches each. Each 590W panel measures 89.69 x 44.65 inches, so the array needs a large roof or ground area. A qualified electrician should install the system.
This May Be A Good Fit If
- You need more than 12kW of 120/240V off-grid power
- You want 61kWh or more of LiFePO4 storage
- You have space for 31 large solar panels
- You prefer indoor server rack or outdoor-rated batteries
Common Questions
What Is the Difference Between FR-24K60CP and FR-24K64PM?
FR-24K60CP has 12 CoreX 5 Pro server rack batteries (61.44kWh) with 12 battery brackets. FR-24K64PM has 4 PowerMax 314 Outdoor batteries (64.28kWh). The inverters, panels, PV cables, battery cables and breakers are the same.
Can the PowerMax Batteries Go Outdoors?
Yes. PowerMax 314 Outdoor batteries are IP65 rated for indoor and outdoor use. The inverters must stay indoors.
Can I Add More Batteries Later?
Yes. CoreX 5 batteries support up to 15 units in parallel, and PowerMax batteries up to 16.
What's Included

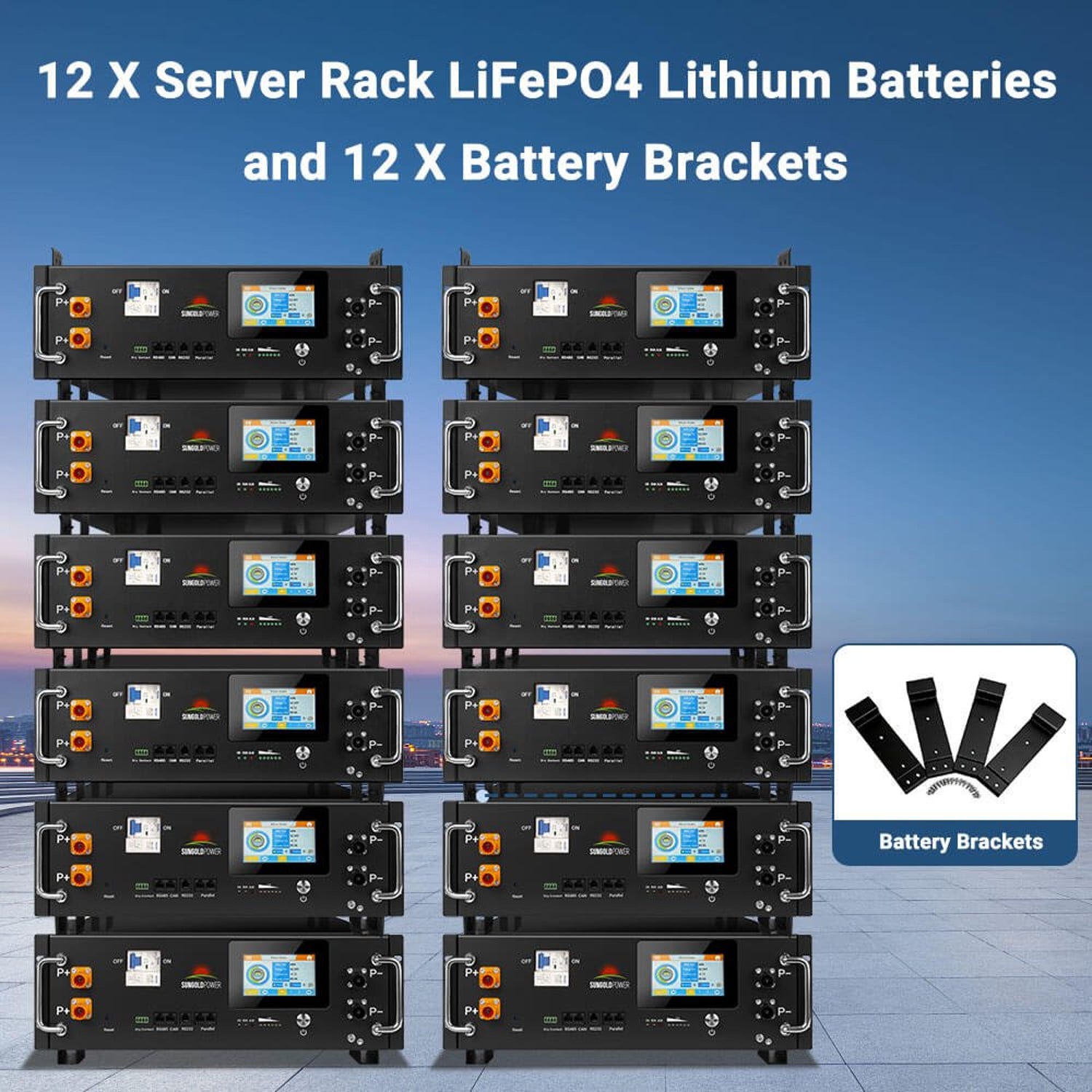

12 x CoreX 5 Pro (61.44kWh)
- 2 x 12000W 48V 120V/240V AC Output Inverter
- 12 x 100Ah CoreX 5 Pro Server Rack 51.2V Lithium Batteries
- 31 x 590W Bifacial N-Type Monocrystalline Solar Panels
- 12 x Battery Brackets for Batteries
- 4 x 50 Feet (10 AWG) Solar Extension Cables for Inverter PV Input
- 2 x 4/0 AWG Battery Cables
- 4 x 25A PV Breakers

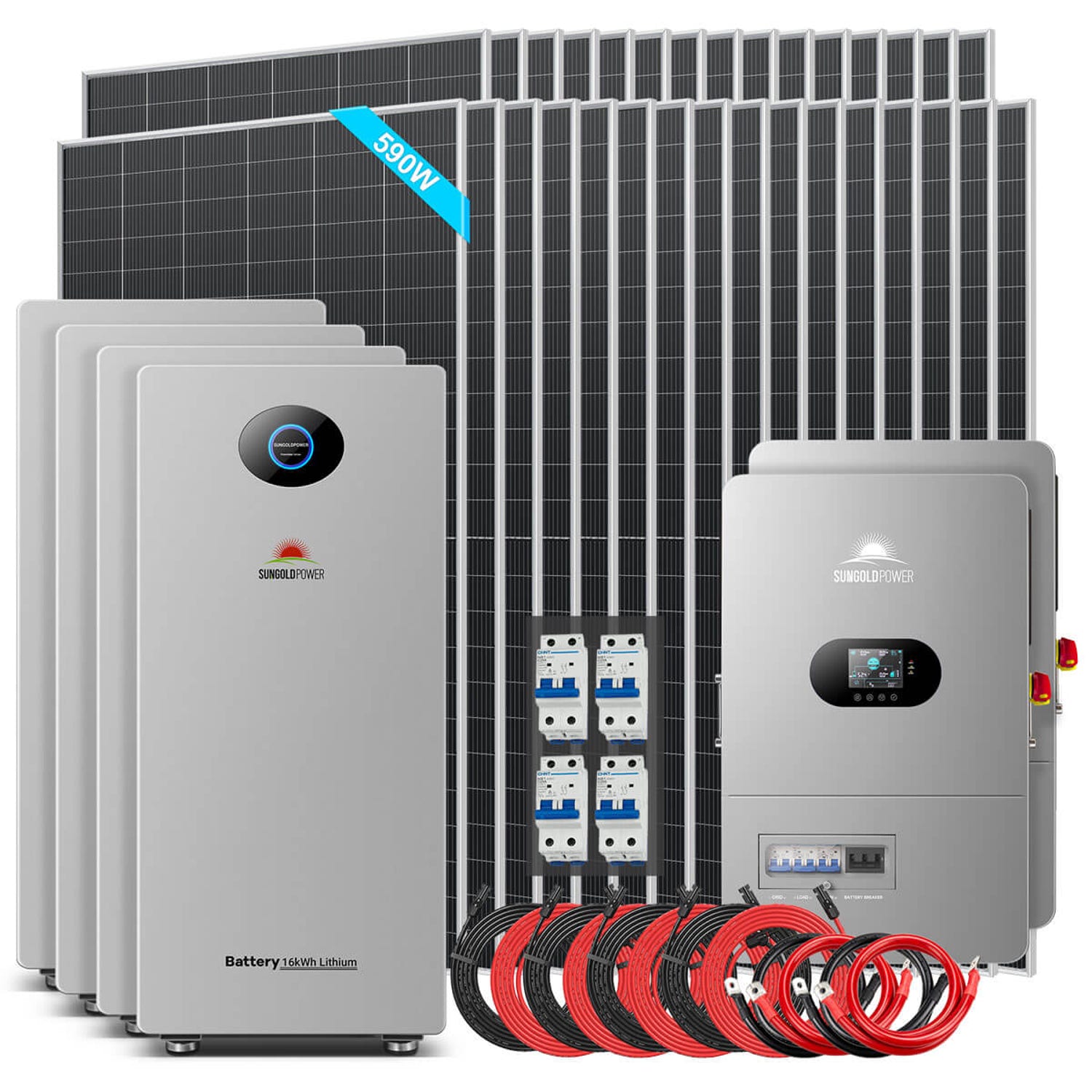

4 x PowerMax 314 Outdoor (64.28kWh)
- 2 x 12000W 48V 120V/240V AC Output Inverter
- 4 x 314Ah PowerMax 51.2V Outdoor Energy Storage Batteries
- 31 x 590W Bifacial N-Type Monocrystalline Solar Panels
- 4 x 50 Feet (10 AWG) Solar Extension Cables for Inverter PV Input
- 2 x 4/0 AWG Battery Cables
- 4 x 25A PV Breakers
Whole-Home Off-Grid Power at Scale
The SunGold Power 24kW 48VDC Off-Grid Solar Kit combines two 12000W split-phase inverters, 18290W of 590W bifacial solar and a 61.44kWh CoreX 5 Pro or 64.28kWh PowerMax battery bank. At Outbound Power, we help customers size large off-grid systems and plan the parts around them. If you have questions, our team is happy to help.
SunGold Power 24kW 48VDC Off-Grid Solar Kit Specifications
|
| Kit Summary |
| Kit Models |
FR-24K60CP (12 x CoreX 5 Pro) / FR-24K64PM (4 x PowerMax 314 Outdoor) |
| Inverters |
2 x FR12K-B 12000W 48V split-phase off-grid inverters in parallel |
| Solar Array |
31 x 590W SGN-590-BDG1 bifacial panels (18290W), 4 strings (8, 8, 8, 7) |
| Battery Bank |
61.44kWh (FR-24K60CP) or 64.28kWh (FR-24K64PM) |
| Inverter (FR12K-B, Per Unit) |
| Rated Output Power |
12000W |
| Max. Peak Power |
24000W |
| Rated Output Voltage |
120/240VAC (single-phase/split-phase) |
| Load Motor Capacity |
6HP |
| Rated Frequency |
50/60Hz |
| Output Wave |
Pure sine wave |
| Switching Time |
10ms (typical) |
| Parallel Number |
6 |
| Battery Type |
Lithium-ion, lead-acid, user-defined |
| Rated Battery Voltage |
48Vdc (40-60Vdc) |
| Max. PV Charging Current |
200A |
| Max. Grid/Generator Charging Current |
120A |
| Max. Hybrid Charging Current |
200A |
| MPPT Channels |
2 |
| Max. PV Input Power |
6600W + 6600W |
| Max. Input Current |
22A / 22A |
| Max. Open-Circuit Voltage |
500Vdc |
| MPPT Operating Voltage Range |
125-425Vdc |
| Grid/Generator Input Voltage Range |
90-140Vac |
| Bypass Overload Phase Current |
63A |
| MPPT Tracking Efficiency |
99.9% |
| Max. Battery Inverter Efficiency |
92% |
| Dimensions |
28.48 x 17.64 x 5.91 in (723.4 x 448 x 150 mm) |
| Weight |
61.73 lbs (28 kg) |
| Protection Level |
IP20, indoor use only |
| Ambient Temperature |
14-131°F, derated above 113°F |
| Noise |
<60dB |
| Communication |
RS485, CAN, USB, dry contact; WiFi logger included |
| Battery (CoreX 5 Pro Server Rack, Per Unit) |
| Battery Type |
Lithium iron phosphate (1P16S) |
| Rated Voltage |
51.2V |
| Rated Capacity |
100Ah |
| Rated Energy |
5.12kWh |
| Voltage Range |
43.2-56.8V |
| Standard Charge / Discharge Current |
50A |
| Max. Charge / Discharge Current |
95A / 100A |
| Cycle Life |
80% capacity after 5000 cycles at 100% DOD |
| Max. Batteries in Parallel |
15 |
| Operating Temperature |
Charge 39.2-131°F; discharge -4-131°F |
| Dimensions |
22.08 x 17.64 x 5.91 in |
| Weight |
94.8 lbs |
| IP Rating |
IP20 |
| Monitoring |
LCD, WiFi, Bluetooth; CAN/RS485 communication |
| Warranty |
10 years |
| Battery (PowerMax 314 Outdoor, Per Unit) |
| Battery Type |
LFP (LiFePO4) |
| Rated Voltage |
51.2V |
| Rated Capacity |
314Ah |
| Rated Energy |
16.07kWh |
| Usable Energy |
15.42kWh |
| Max. Depth of Discharge |
>96% |
| Rated DC Power |
7.68kW |
| Max. Charge / Discharge Current |
190A / 190A |
| Cycle Life |
8000 cycles (80% DOD, 0.5C, 25°C) |
| Max. Batteries in Parallel |
16 |
| Communication |
CAN, RS485, USB, WiFi, Bluetooth |
| Enclosure Rating |
IP65, indoor and outdoor |
| Charging Temperature |
32-131°F (0-55°C) |
| Discharging Temperature |
14-131°F (-10-55°C) |
| Dimensions |
41.26 x 18.11 x 10.67 in (1048 x 460 x 271 mm) |
| Weight |
271 lbs (123 kg) |
| Certifications |
UL1973, UL9540A |
| Solar Panel (SGN-590-BDG1, Per Panel) |
| Maximum Power (STC) |
590W |
| Module Efficiency |
22.8% |
| Open Circuit Voltage (Voc) |
52.35V |
| Short Circuit Current (Isc) |
13.90A |
| Maximum Power Voltage / Current |
44.40V / 13.29A |
| Bifaciality |
80±10% |
| Cells |
144 N-type monocrystalline |
| Dimensions |
89.69 x 44.65 x 1.38 in (2278 x 1134 x 35 mm) |
| Weight |
69.45 lbs (31.5 kg) |
| Mechanical Loading |
5400 Pa front, 2400 Pa rear |
| Hailstone Test |
40mm |
| Junction Box |
IP68 rated (3 diodes) |
| Certifications |
UL 61730 (certified by ETL), CEC Listed |
| Warranty |
12-year product quality and process; 30-year linear power |
