The SunGold Power 25A PV Breaker Adds 25 Amp, 500V DC Protection to Your Solar Wiring

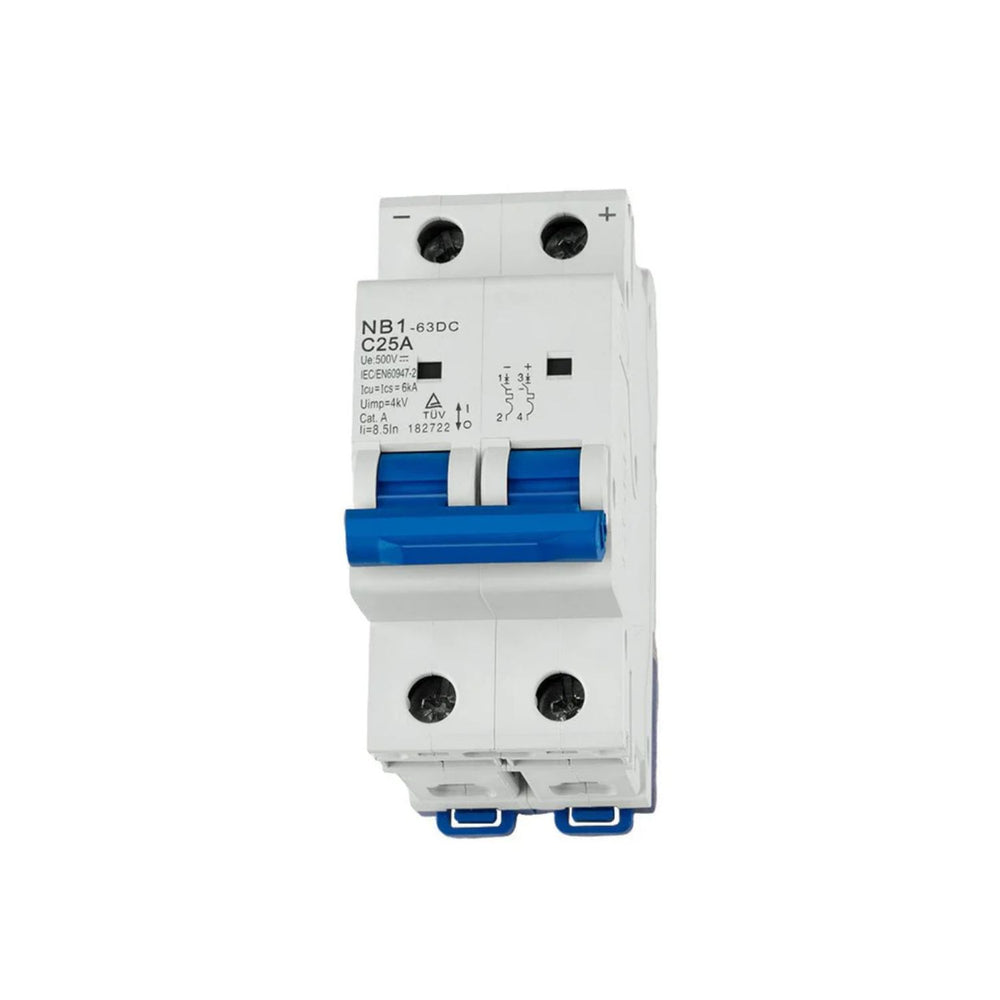

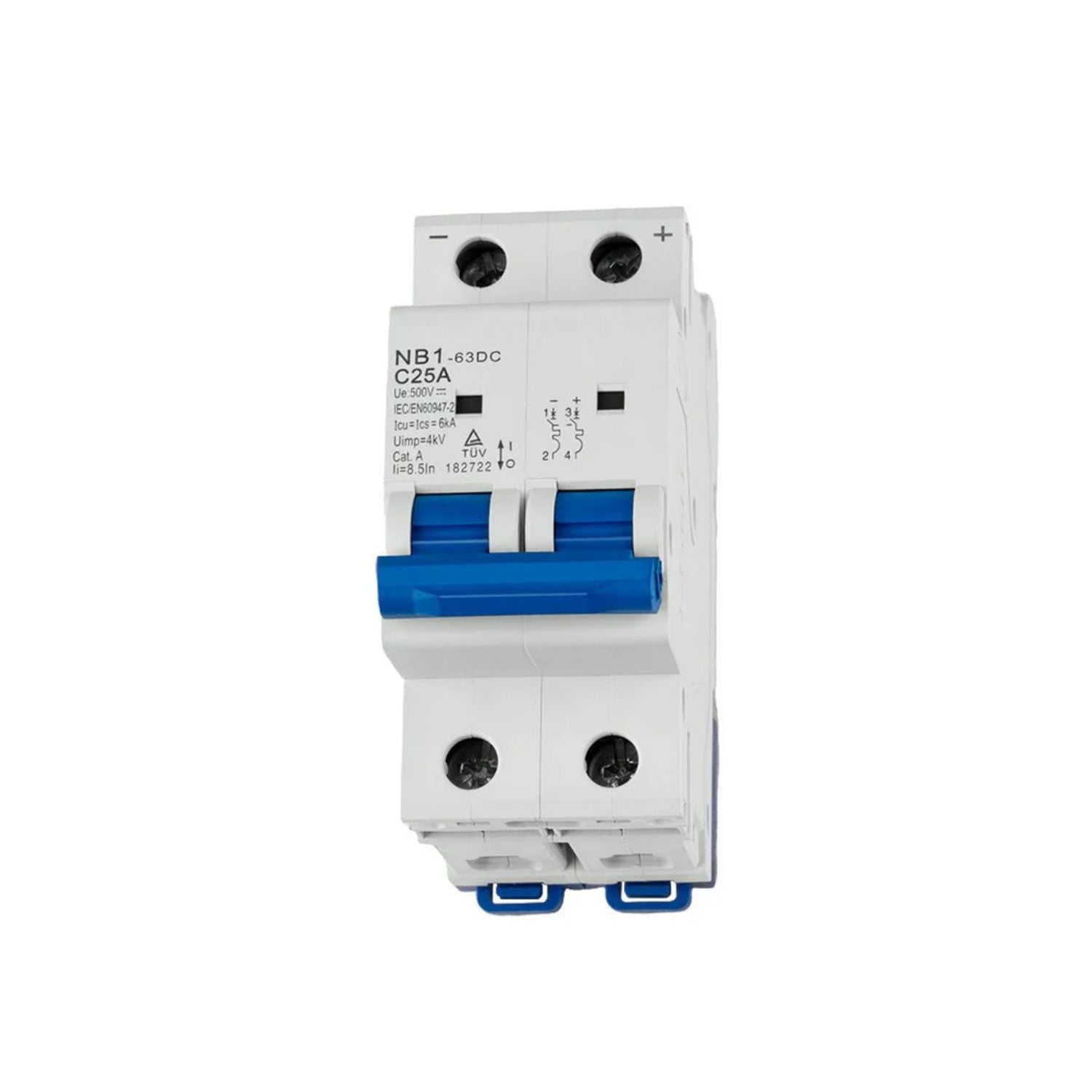

The SunGold Power 25A PV Breaker is a two-pole (2P) DC circuit breaker rated at 25 amps and 500V. SunGold makes it for solar systems, where it protects the DC wiring on the PV side.
It is for DIY builders and installers who need overcurrent protection and an off switch for a solar input circuit, such as the run between an array and a charge controller or inverter.
SunGold Power 25A PV Breaker Features
25 Amp Rating
The breaker is rated at 25 amps. Choose it for PV circuits whose current and wire size suit a 25 amp breaker.
500V DC Rating
SunGold rates it at 500V, so it can sit on DC solar circuits up to that voltage.
Two-Pole Design
The 2P design switches two poles together with one handle.
Made for Solar Systems
SunGold lists it as a DC breaker for solar systems. It is meant for PV wiring, not household AC circuits.
Real-World Applications
PV input protection. Protect the wiring between an array and a charge controller or inverter.
Array shutoff for service. Switch off a PV circuit before you work on panels or equipment.
Off-grid and backup solar. Add DC protection to a home, cabin or shop system.
How It Compares to Common Alternatives
Versus an AC breaker. This is a DC breaker rated for 500V and made for solar systems. Use a DC-rated part on PV wiring.
Versus an inline fuse. A fuse must be replaced after it blows. A breaker can be switched back on and also works as a disconnect.
Versus a higher-amp breaker. Pick the amp rating that suits your PV circuit and wire. A breaker rated far above the wire will not protect it.
Is This PV Breaker the Right Fit
-
Current. Rated at 25 amps.
-
Voltage. Rated at 500V for DC solar circuits.
-
Poles. A 2P (two-pole) breaker.
-
Fit. SunGold does not list the dimensions or mounting style. Check your enclosure before you install.
This may be a good fit if
- Your PV circuit calls for a 25 amp breaker
- Your array runs at 500V DC or less
- You want a two-pole DC breaker for solar
Common Questions
What Does 2P Mean?
It means the breaker has two poles that switch together.
What Voltage Is It Rated For?
It is rated at 500V.
Where Does It Go in a Solar System?
On the DC side, in the PV wiring between your array and your charge controller or inverter.
What's Included
- 1 x SunGold Power 25A PV Breaker
Simple DC Protection for Solar Circuits
The SunGold Power 25A PV Breaker gives a solar circuit 25 amp, 500V DC protection in a two-pole breaker. At Outbound Power, we help customers plan arrays, wiring and breakers for their solar systems. If you have questions, our team is happy to help.
SunGold Power 25A PV Breaker Specifications
|
| Brand |
SunGold Power |
| Model |
NB1-C25A |
| Product Type |
DC Circuit Breaker (PV) |
| Rated Current |
25A |
| Rated Voltage |
500V |
| Poles |
2P |
| Application |
Solar system |
