The SunGold Power 4000W DC 12V Split Phase Pure Sine Wave Inverter With Charger Supplies Both 120V and 240V Power From a 12V Battery Bank
The SunGold Power 4000W DC 12V Split Phase Pure Sine Wave Inverter With Charger is a low-frequency LFP Series inverter, battery charger and AC auto-transfer switch in one unit. It takes 240VAC from the grid or a generator, charges a 12V battery bank at up to 120A, and outputs 120VAC and 240VAC pure sine wave power.
Because it produces two hot legs, it can feed a small home or business with a 240V panel in place, as well as RV systems, trailers and boats. SunGold positions it for off-grid systems and emergency backup where a 12V bank is already in use.

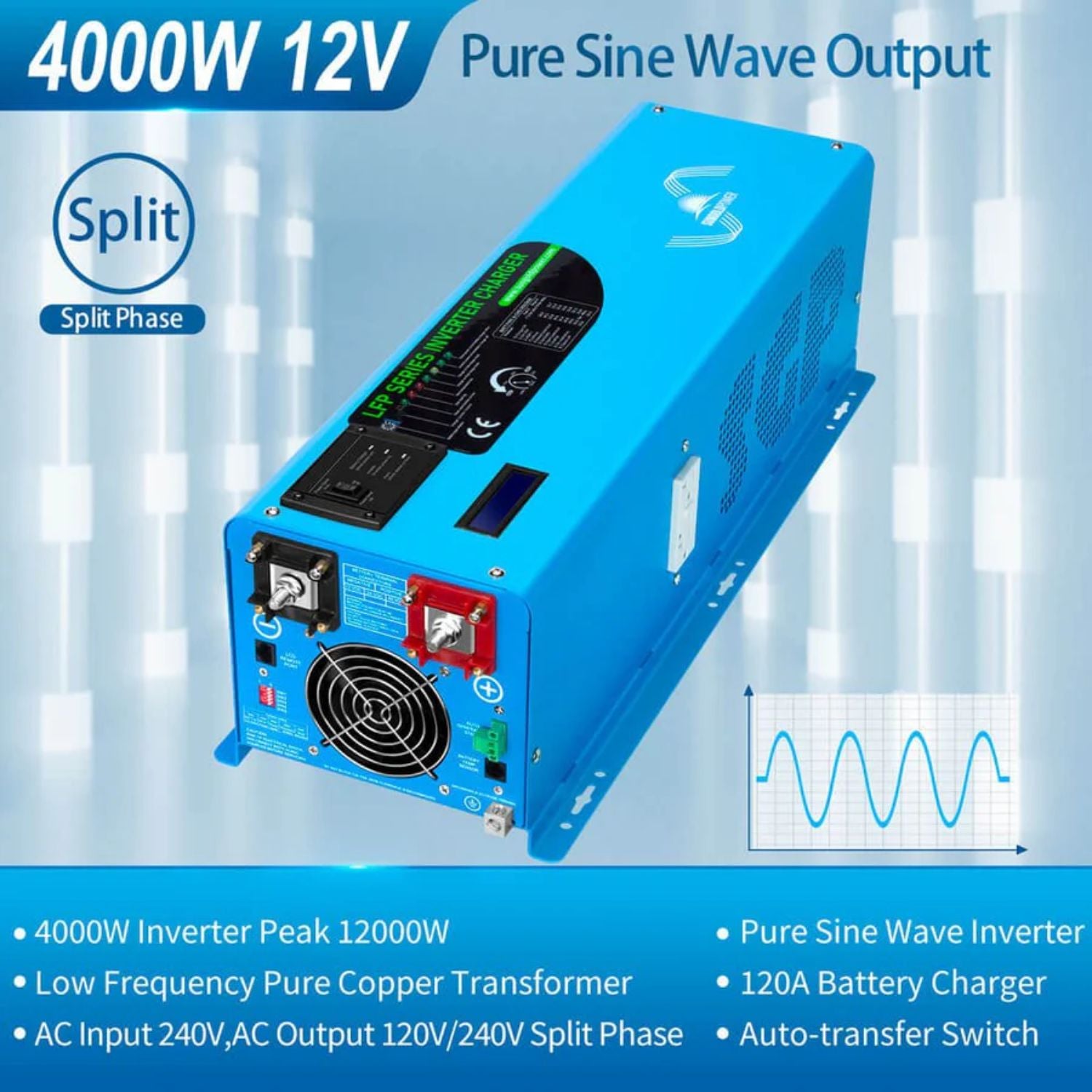

SunGold Power 4000W DC 12V Split Phase Pure Sine Wave Inverter With Charger Features
Split Phase 120V and 240V Output
The inverter delivers 4000W of continuous output as 120V and 240V split phase power. That lets one unit run 240V appliances and standard 120V circuits from the same 12V battery bank.
12000W Surge for Motor Loads
Surge capacity reaches 12000W for 20 seconds, three times the continuous rating. SunGold rates the 4KW models to start a 4HP electric motor, which helps with pumps and other inductive loads.
120A Charger Fed by 240V
The PFC charger refills the 12V bank at 120A ±5A from a 240V source. SW2 sets the accepted AC input to a wide 140 to 270VAC range for loads that tolerate it, or a narrow 184 to 253VAC range for sensitive electronics. A linear switch adjusts charge current from 0% to 100%.

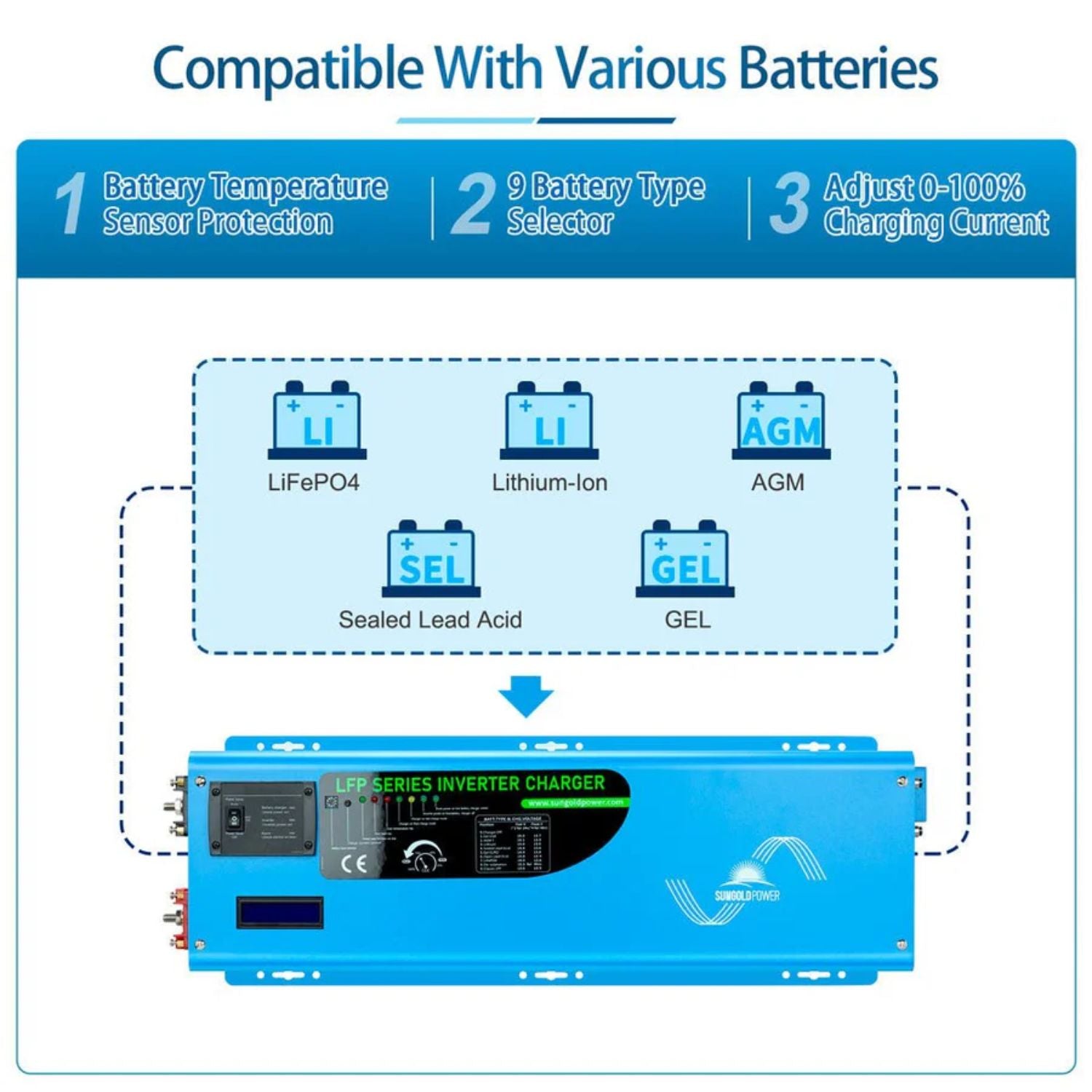

Nine Battery Type Settings
The battery type selector covers gel, AGM, sealed lead acid, lithium and LiFePO4 profiles, plus a de-sulphation cycle for flat lead acid batteries. Position 0 disables charging when another source handles the bank.
Generator-Friendly Transfer
When AC fails, loads move to battery power with a typical transfer time of 10ms or less. When AC returns, the inverter waits 15 seconds and locks onto the generator's output before it transfers back. It can also start a generator with auto start capability when the battery runs low.

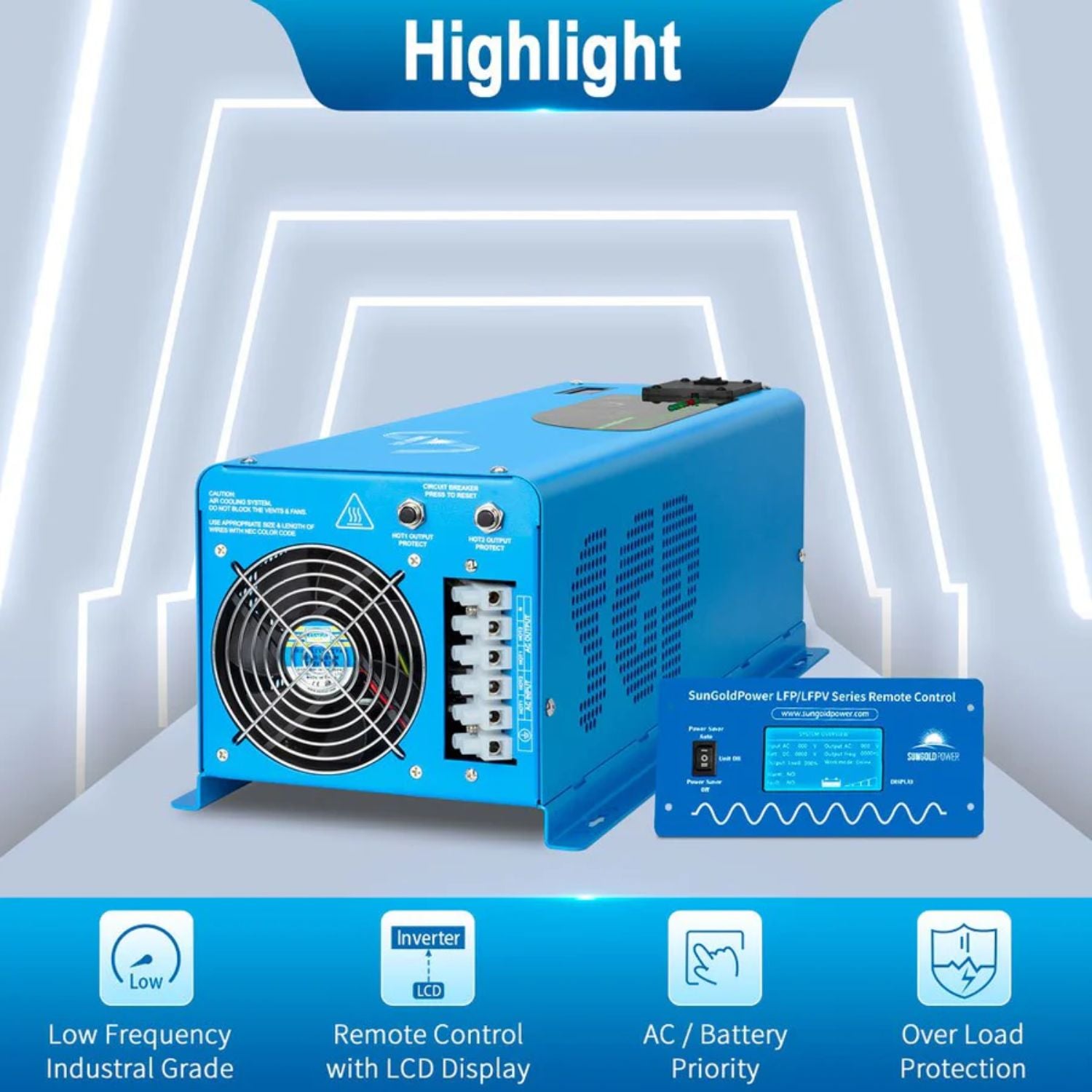

Two Cooling Fans and Low Idle Draw
This 4KW 12V model uses two controlled DC fans that speed up with temperature, charge current and load. At idle the inverter draws 45W, or 18W in power saver mode.
Real-World Applications
Small homes with a 240V panel. Feed both legs of a panel from a 12V battery bank during outages or off-grid.
Shops and small businesses. Run 240V equipment and 120V circuits from one inverter, with the generator as a charging source.
RV systems, trailers and boats. Add 240V capability to a 12V platform that already has a large house bank.
Emergency backup supply. Keep key loads running and recharge the bank when grid power returns.
How It Compares to Common Alternatives
Versus a 120V-only inverter. A single phase 120V inverter cannot feed 240V circuits. This model supplies both 120V and 240V from one 12V bank, so a split phase panel can stay in use.
Versus a 24V split phase system. SunGold's manual lists a 50A ±5A charger for 4000W 24V models, compared with 120A ±5A on this 12V model, so this unit refills a 12V bank at a higher current.
Versus grid-tie or stacked systems. This is a stand-alone inverter. It cannot be stacked and cannot share a grid with other inverters such as Enphase micro inverters.
Is This Split Phase Inverter Charger the Right Fit
AC input. Requires 240VAC input. The AC input needs two hot lines and a ground, and the input neutral must never be connected to the output neutral.
Battery bank. Requires a 12V bank. The inverter starts at 10.0Vdc and restarts at 13Vdc after a low voltage shutdown.
Leg loading. When wired for 120V output on one hot line, that line can carry at most half the rated capacity.
Expansion. Units cannot be stacked for more power.
Size. 25.6 x 9.1 x 7.5 inches and 58.9 lb.
This may be a good fit if
You need 120V and 240V from a 12V bank
Your home or shop has a 240V panel
Your charging source supplies 240VAC
Your loads stay within 4000W
Common Questions
Will the Charger Work on 120V Input?
No. The AC input is 240V. The AC output is 120V and 240V, and the battery voltage is 12V.
Can It Work With Enphase Micro Inverters on the Same Grid?
No. It cannot work with other inverters on the same grid, and it cannot be stacked.
What Is the Idle Wattage?
The inverter draws 18W in power saver mode and 45W with power saver off.
Does This Unit Have a Warranty?
Yes. SunGold states that the warranty on this model is 12 months.

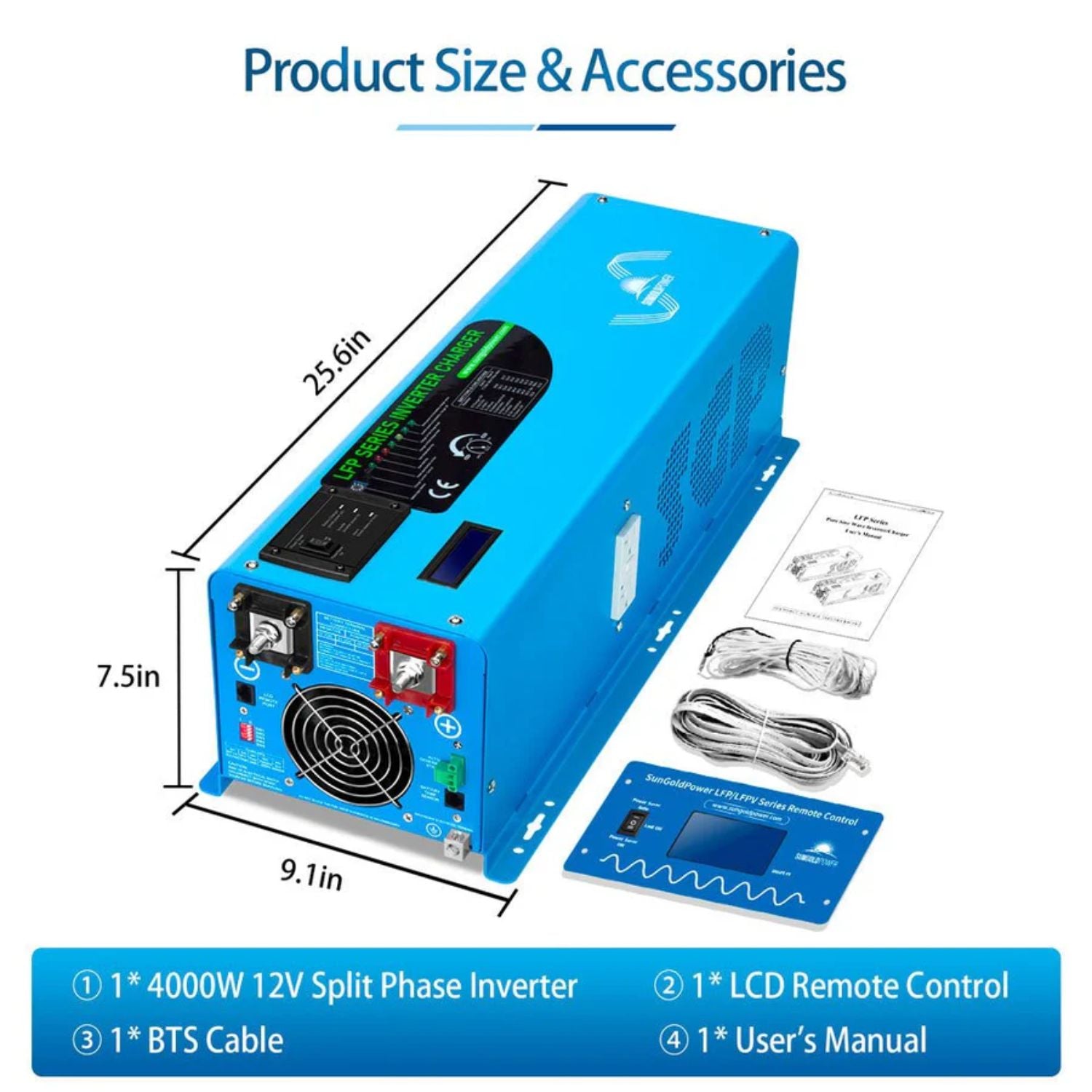

What's Included
1 x 4000W 12V Low Frequency Pure Sine Inverter (LFP4K12V240VSP)
1 x English Manual
1 x Remote Control
1 x BTS Cable
240V Capability for 12V Systems
The SunGold Power 4000W DC 12V Split Phase Pure Sine Wave Inverter With Charger turns a 12V battery bank into 120V and 240V split phase power, with a 120A charger and automatic transfer built in. At Outbound Power, we help customers plan split phase backup and off-grid systems around the batteries they already have. If you have questions, our team is happy to help.
SunGold Power 4000W DC 12V Split Phase Pure Sine Wave Inverter With Charger Specifications
Model
LFP4K12V240VSP
Inverter Output
Continuous Output Power
4000W
Surge Rating
12000W (20 seconds)
Capable of Starting Electric Motor
4HP
AC Output Voltage
120V and 240V (split phase)
Output Frequency
60Hz
Output Waveform
Pure sine wave (bypass mode)
Typical Transfer Time
10ms (max)
Nominal Efficiency
>88%
Line Mode Efficiency
>95%
DC Input
Nominal Input Voltage
12.0Vdc
Minimum Start Voltage
10.0Vdc
Low Battery Alarm
10.5Vdc to 11.0Vdc
Low Battery Trip
10.0Vdc to 10.5Vdc (select by SW1)
High Voltage Alarm
16.0Vdc
Low Battery Voltage Restart
13Vdc
Idle Consumption
45W
Power Saver Mode Idle Consumption
18W
AC Charger
AC Input Voltage
240V
AC Input Range (Grid or Generator)
140V to 270VAC / 184V to 253VAC (select by SW2)
Charger Rate
120A ±5A
Adjustable Charge Current
Off, 0% to 100%
Battery Type Settings
9
Charging
3-step intelligent battery charger
Over Charge Protection Shutdown
15.7V
General
Display
LCD
Remote Control
Included
Battery Temperature Sensor
BTS cable included
Cooling
Two controlled DC fans
Mounting
Wall mount
Working Temperature
-10°C to 40°C
Unit Weight
58.9 lb
Unit Size
25.6 x 9.1 x 7.5 in
Shipping Weight
67.9 lb
Shipping Size
30.3 x 13.4 x 12.8 in
Warranty
12 months
SunGold Power LFP4K12V240VSP Manual
SunGold Power LFP4K12V240VSP Data Sheet
