SunGold Power 415 Watt Monocrystalline Black PERC Solar Panels | 32 Panels

SunGold Power 415 Watt Monocrystalline Black PERC Solar Panels Bring 21.25% Efficiency to Every Module on a 32-Panel Pallet

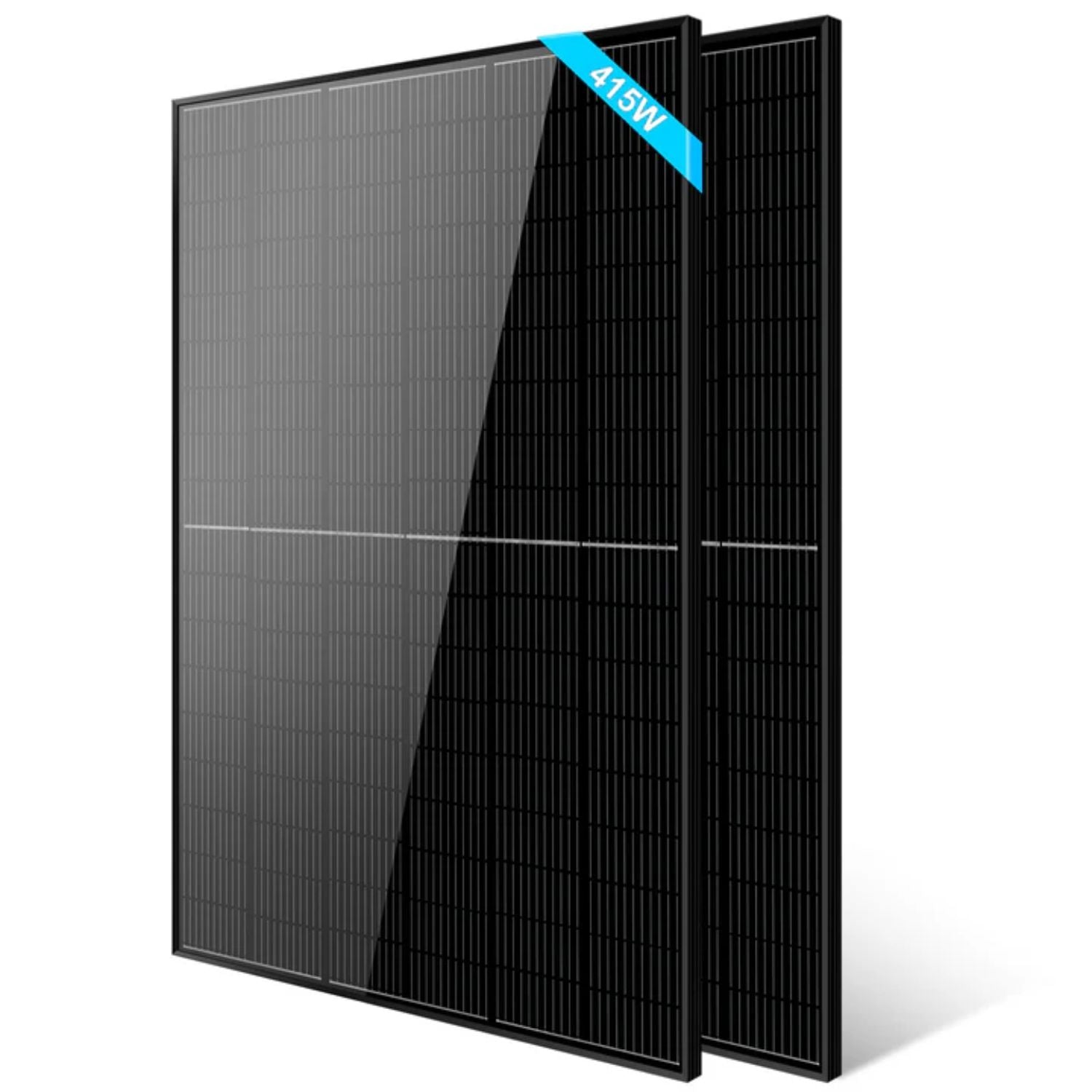

Each pallet carries 32 SunGold Power SG415WM panels rated at 415W apiece. The panels are monocrystalline PERC modules with 108 half-cells and a black finish, and they are UL 61730 certified and CEC Listed.

This pallet is aimed at homeowners, installers and businesses planning a full array who want a mid-size panel with strong output per square foot. Each panel measures 67.80 x 44.65 x 1.38 inches and weighs 48.06 pounds, and the full pallet ships as one freight load.

SunGold Power 415 Watt Monocrystalline Black PERC Solar Panels Features

108 Half-Cell Layout

The panel uses 108 mono half-cells measuring 182 x 91mm, arranged 6 x 18. SunGold says half-cell wiring improves output and raises shade tolerance, which helps on roofs with chimneys, vents or nearby trees.

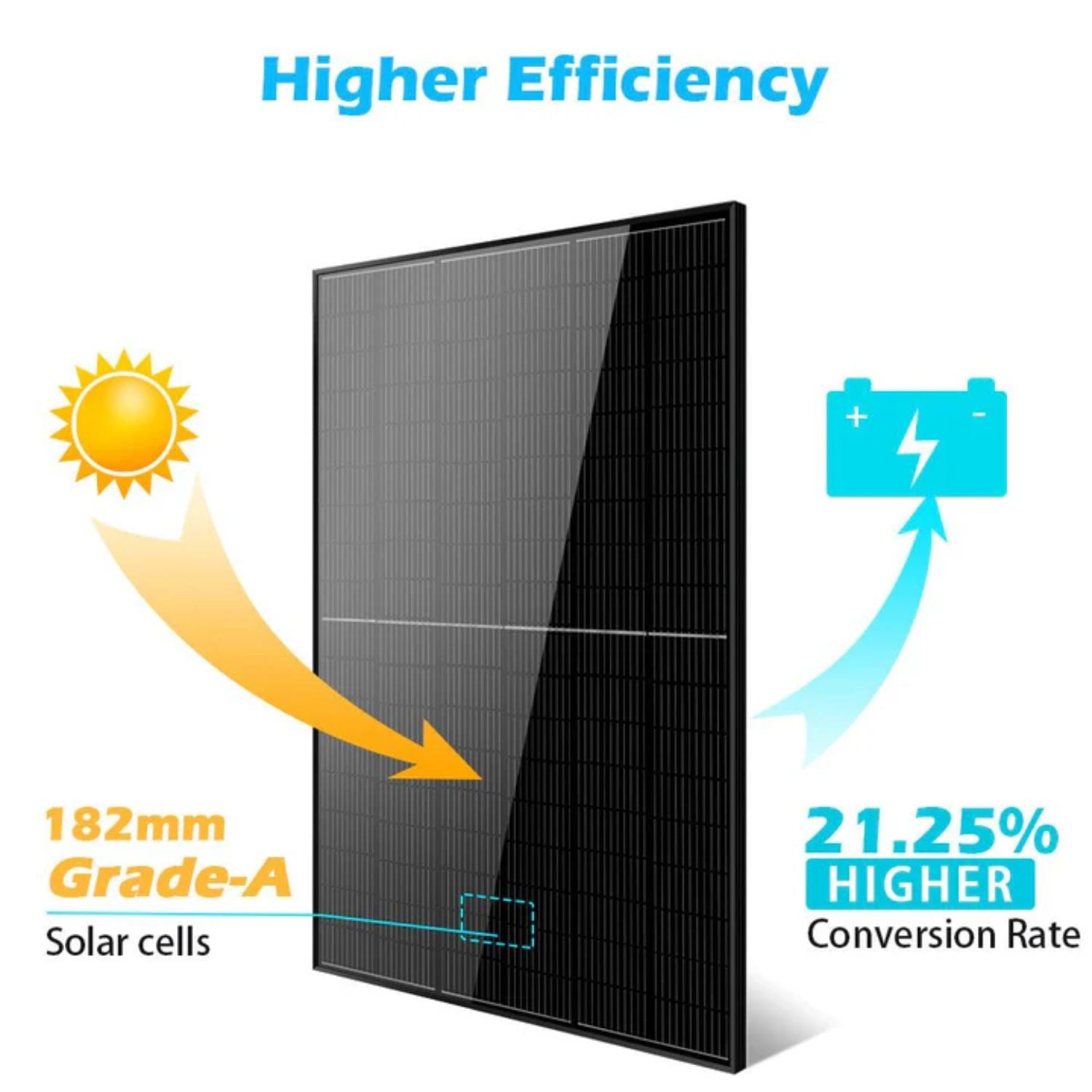

21.25% Module Efficiency

SunGold rates the module at 21.25% efficiency. Higher efficiency gets more watts out of the same mounting area, so you can reach your target array size with less roof space.

Electrical Ratings for String Design

At standard test conditions, each panel delivers 31.11V and 13.34A at maximum power, with a 38.32V open-circuit voltage and 14.09A short-circuit current. The 1500V maximum system voltage and 20A series fuse rating give installers room to plan long series strings.

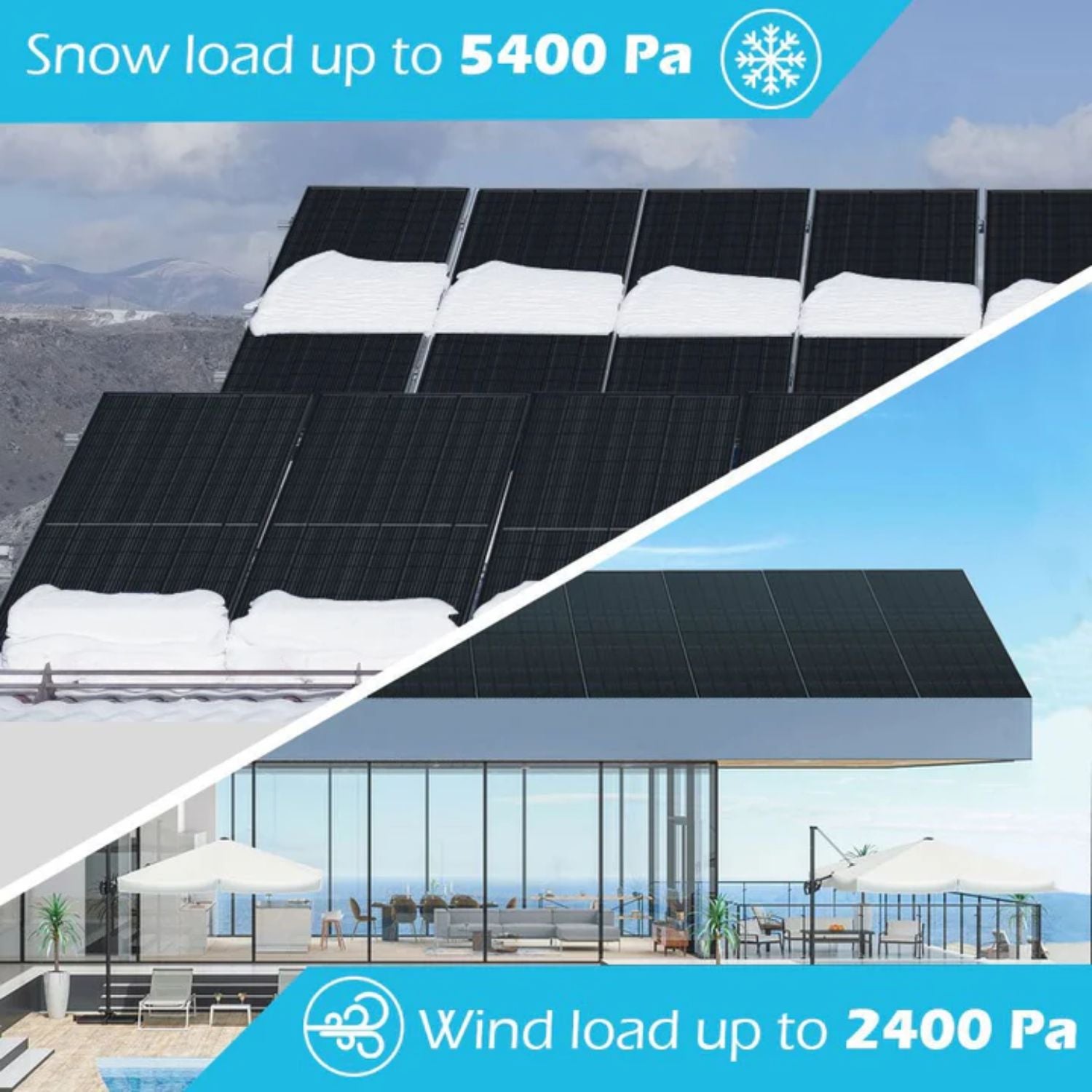

Built for Snow and Wind

The panel passed a 5400 Pa load test for heavy snow and a 2400 Pa test for wind pressure. It uses 3.2mm tempered glass and an anodized aluminum alloy frame that resists corrosion and damage.

Waterproof IP68 Junction Box

The junction box and connectors are IP68 rated, fully dust-tight and able to work after temporary immersion in water up to 1m deep.

Temperature Performance

The power temperature coefficient is -0.35%/℃, and the nominal module operating temperature is 45℃ ±2℃. These figures show how much output drops as the cells heat up, which helps you estimate summer production.

Quality Testing and Certification

Every module goes through 100% EL testing, and SunGold sorts modules by current when packing to reduce mismatch loss. SunGold is an ISO 9001, ISO 14001 and ISO 45001 certified supplier, and the panels carry UL 61730, CEC, CE and TUV certifications.

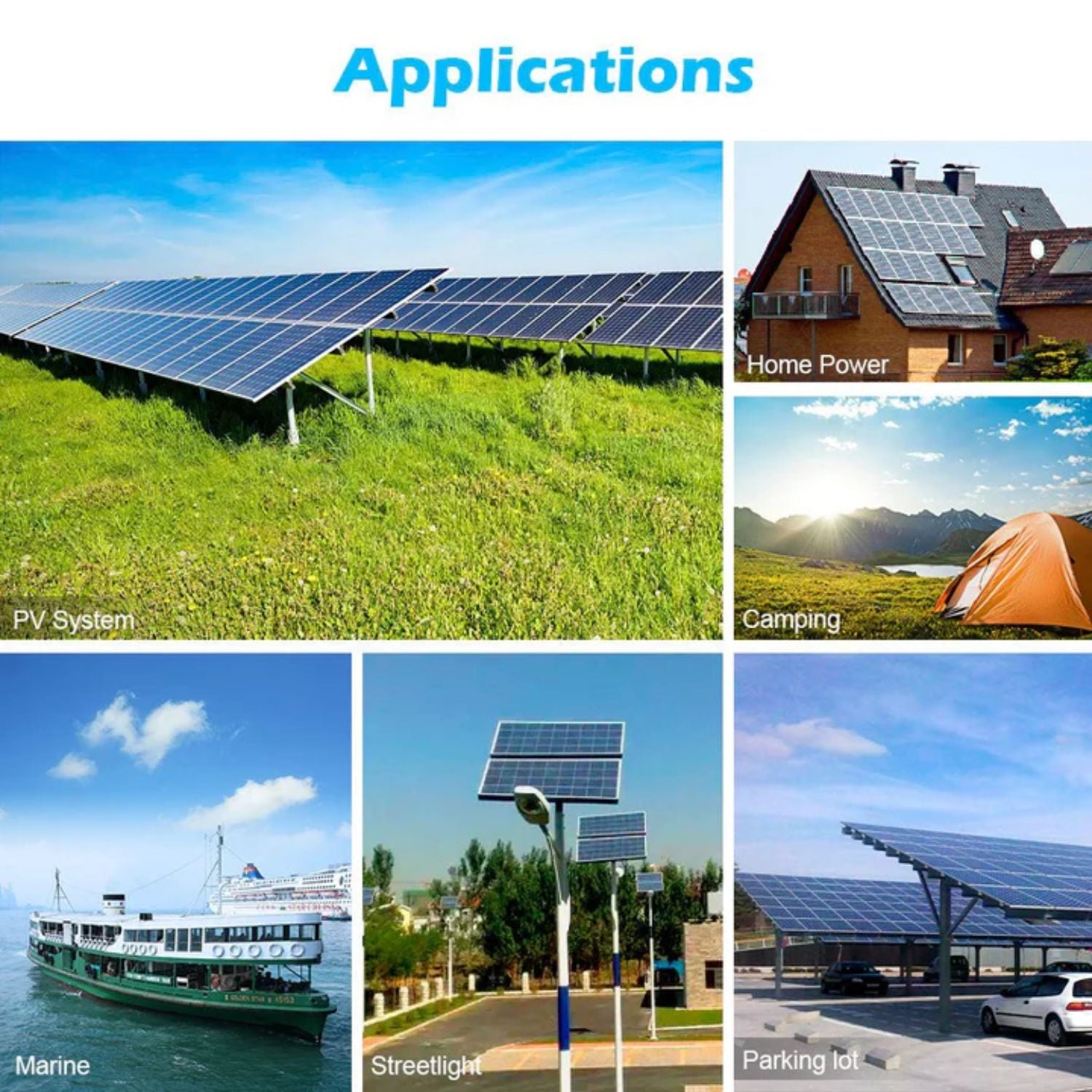

Real-World Applications

Residential rooftops. Build a grid-tied array that lowers your power bill, with panels that share the same ratings from end to end.

Hybrid systems with storage. Charge a battery bank during the day and run loads from stored energy at night.

Complete off-grid houses. Supply a full off-grid home with one pallet of matched panels.

Commercial buildings. Cover large flat or pitched roofs with a consistent panel layout.

RVs, tiny houses and marine builds. Divide the pallet across several smaller projects that need dependable, waterproof panels.

How It Compares to Common Alternatives

Versus buying single panels. A pallet puts 32 identical SG415WM panels in one shipment. Every string shares the same voltage and current ratings, which keeps design and wiring simple.

Versus black-on-black panels. These panels are black, but SunGold notes they are not black-on-black, which uses black frames and black backsheets. If roof appearance is your top concern, ask our team about black-on-black models.

Versus full-cell panels. SunGold says the half-cell design improves power output and shade tolerance compared with conventional cell wiring.

Is This Solar Panel Pallet the Right Fit

• Freight. The packed pallet weighs 1678.8 lbs and measures 70.9 x 48 x 51.2 inches. You will need a way to receive and unload it.
• Inverter input. Each panel has a 38.32V open-circuit voltage and 14.09A short-circuit current. Confirm your inverter or controller can handle the strings you plan.
• Fusing. The maximum series fuse rating is 20A.
• Look. The panels are black but not black-on-black.

This may be a good fit if

• You are building a full residential or commercial array
• You want 415W panels with 21.25% efficiency
• You need UL 61730 certified, CEC Listed panels
• You want 32 matching panels from one shipment

Common Questions

Is This Solar Panel Waterproof?

Yes. The IP68 junction box and connectors keep working after temporary immersion in water up to 1m deep.

Are These Black-on-Black Solar Panels?

No. They are black solar panels, but not black-on-black. SunGold offers separate black-on-black models for buyers who want an all-black frame and backsheet.

What Output Warranty Do the Panels Carry?

SunGold provides output warranties of 95% at 5 years, 90% at 10 years and 80% at 25 years, plus a 12-year material and workmanship warranty.

What Systems Do These Panels Work With?

They work in off-grid, on-grid and hybrid solar systems, with or without batteries.

What's Included

• 32 x SunGold Power 415W Mono Black PERC Solar Panel (SG415WM)

Efficient Panels for a Full-Size Array

The SunGold Power 415 Watt Monocrystalline Black PERC Solar Panels put 32 matched, 21.25% efficient modules on one pallet, backed by UL 61730 certification, CEC listing and a 25-year output warranty. At Outbound Power, we help customers plan panel layouts, match strings to inverters and size complete solar systems. If you have questions, our team is happy to help.

SunGold Power SG415WM Pallet Data Sheet

SunGold Power SG415WM Pallet UL 61730 Certificate
