The SunGold Power 415 Watt Monocrystalline Black Solar Panel Gives Mid-Size Roofs 108 Half-Cut PERC Cells and Lower Heat Loss
The SunGold Power 415 Watt Monocrystalline Black Solar Panel (model SG415WM) is a half-cut mono PERC module rated at 415W, with 108 cells and a 21.3% module efficiency. It measures 67.80 x 44.65 x 1.38 inches, weighs 48.06 lbs and is UL 61730 and CEC listed.

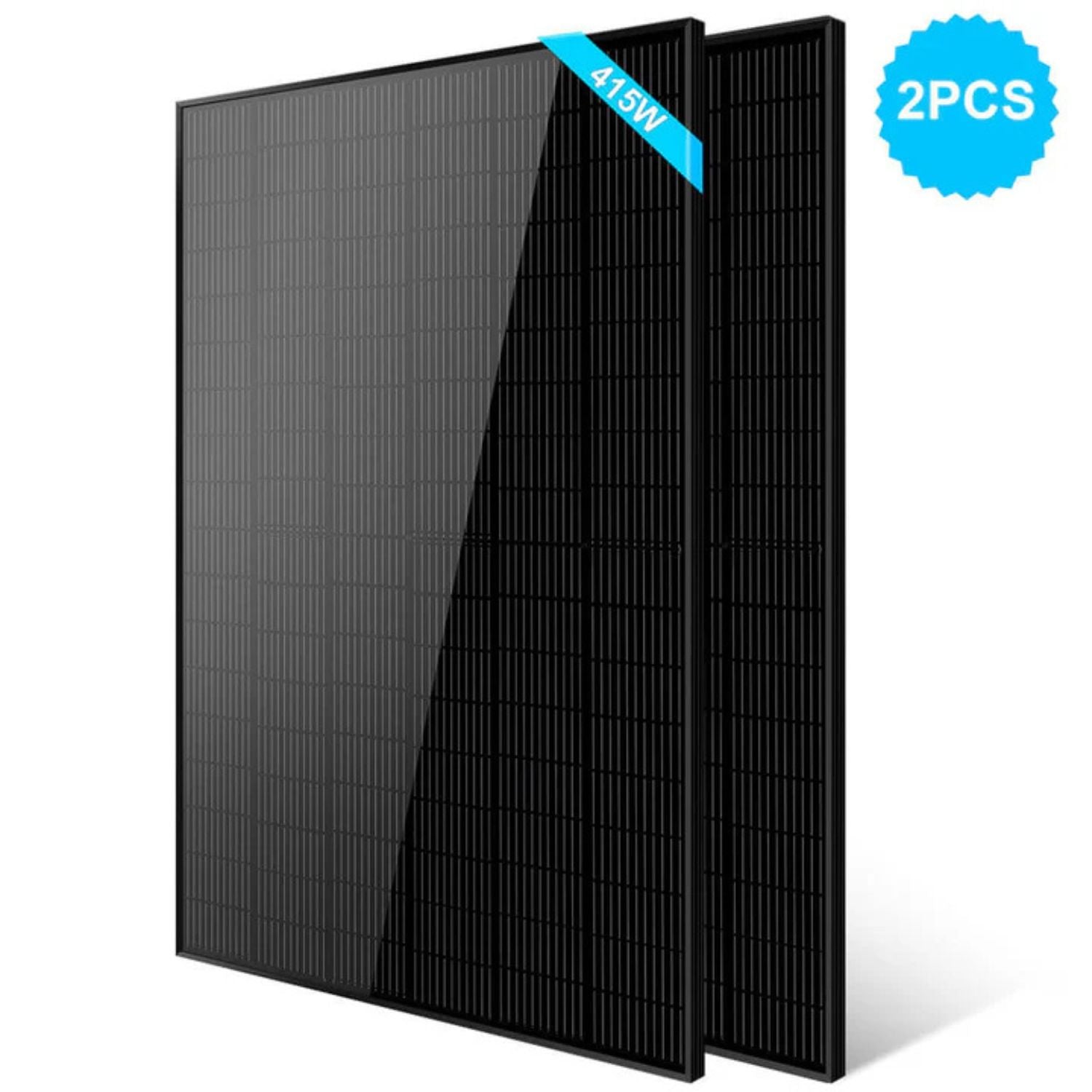

It is built for off-grid, grid-tied and hybrid systems on household roofs, tiny houses, RVs, boats and commercial buildings. In SunGold's black panel line it sits between the 370W and 500W models in size and output. We sell it in packs of 2 to 20 identical panels, in steps of two.


SunGold Power 415 Watt Monocrystalline Black Solar Panel Features
108 Half-Cut PERC Cells
The module uses 108 mono half-cut cells (182 x 91mm) in a 6 x 18 layout. SunGold says the half-cell wiring raises shade tolerance and improves power output, so partial shade costs you less.

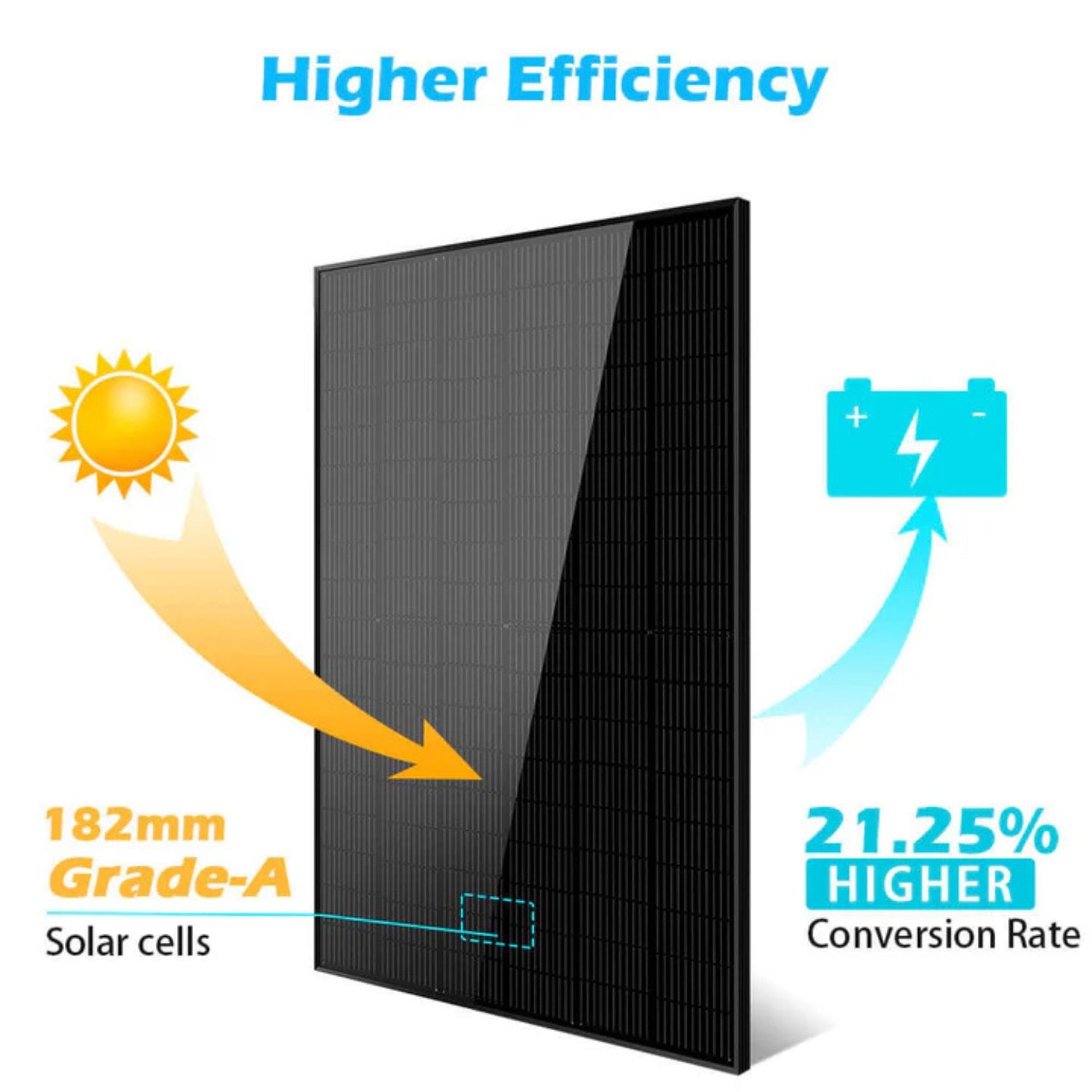

21.3% Efficiency From a Mid-Size Module
At standard test conditions the panel produces 415W at 31.11V and 13.34A, with a ±3% production tolerance. Its 21.3% efficiency means more output from the same roof area than many traditional panels.
Lower Heat Loss
The temperature coefficient of Pmax is -0.35%/°C, and the NMOT is 45°C ±2°C. A smaller coefficient means less power is lost as the panel heats up on summer days.

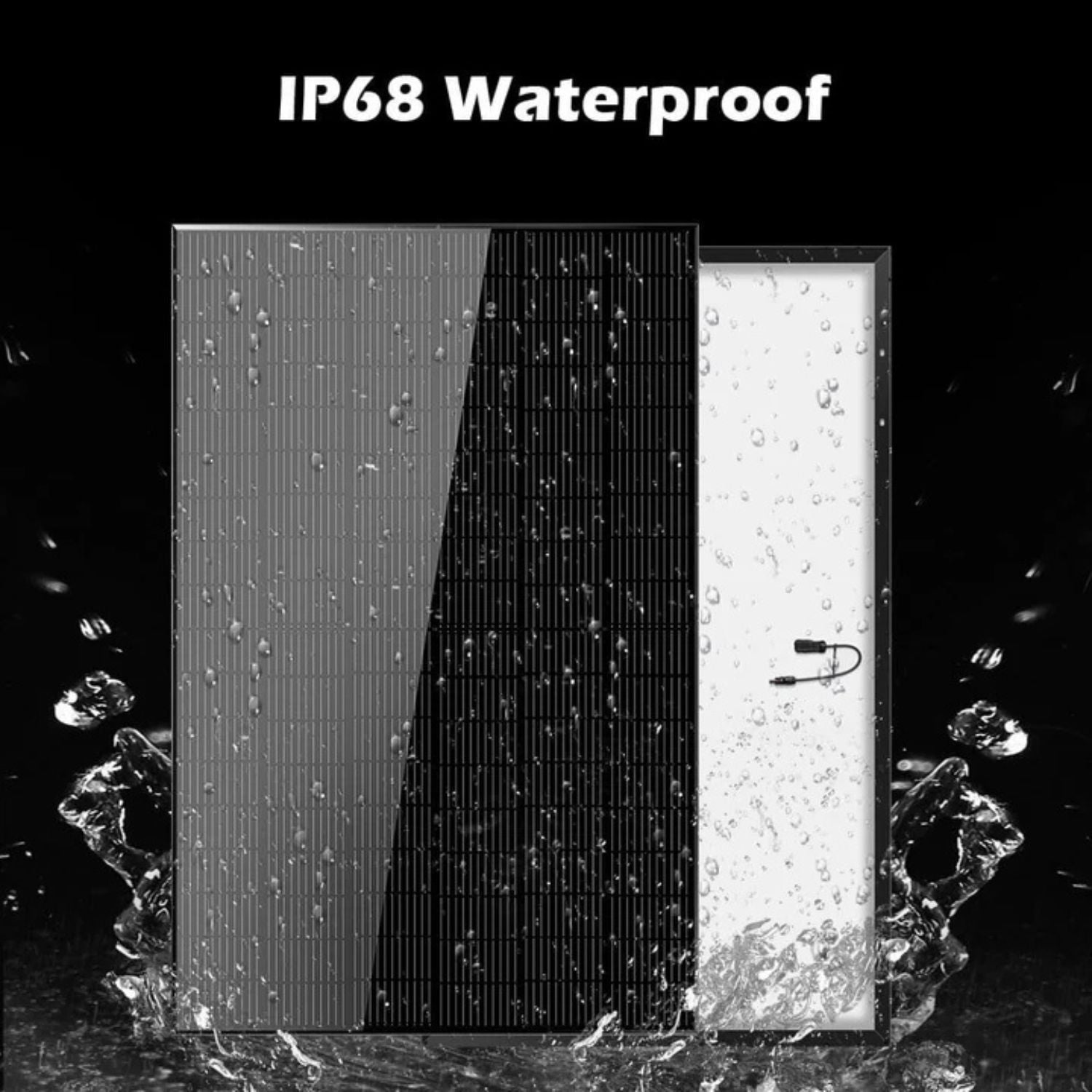

IP68 Connections Rated for Temporary Immersion
The junction box and connectors are IP68 rated. They are fully protected from dust and keep working after temporary immersion in water up to 1m deep.

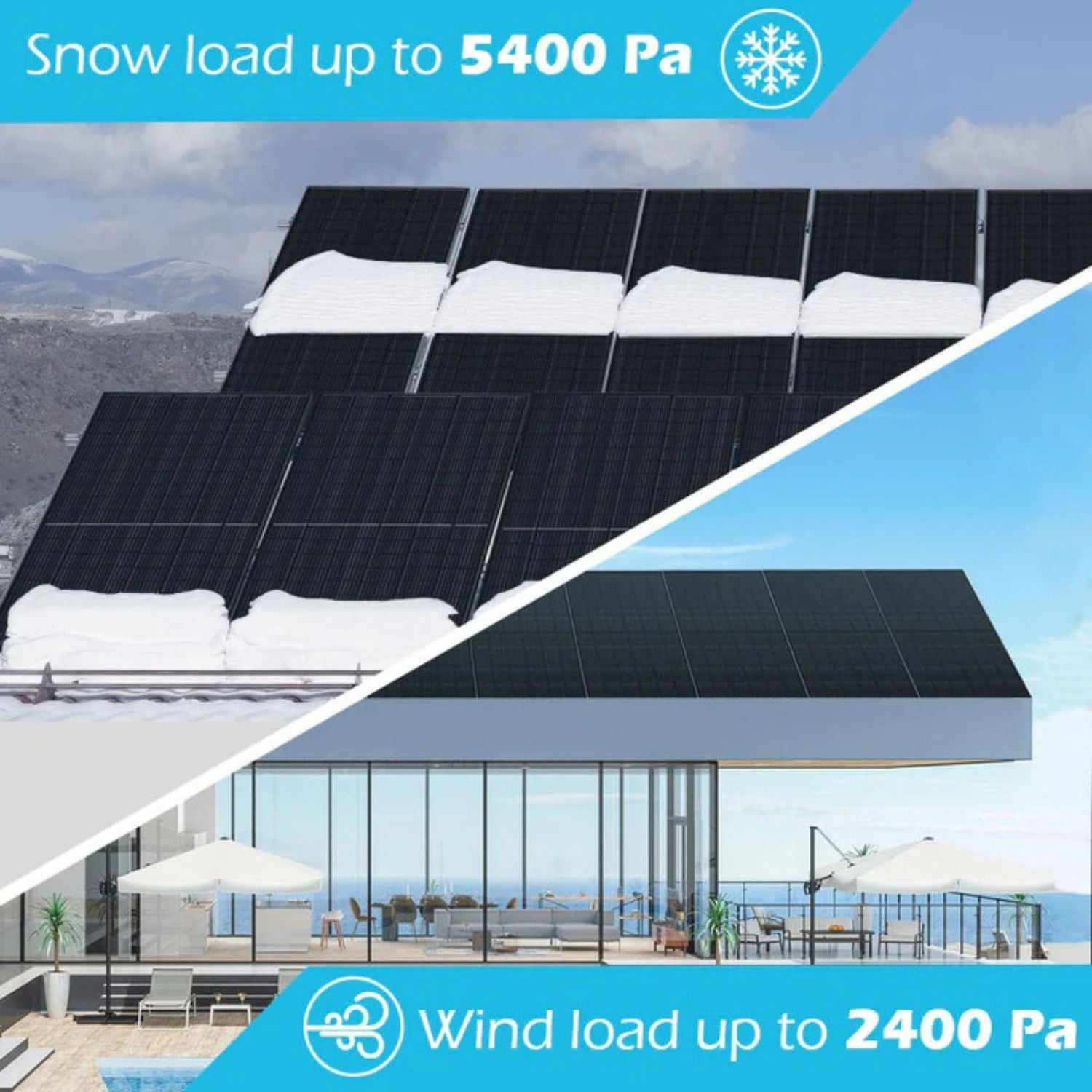

Snow and Wind Load Ratings
The panel passed a 5400 Pa load test for heavy snow and a 2400 Pa test for wind pressure. It has a 3.2mm tempered glass front and an anodized aluminum alloy frame with drainage openings that reduce damage from freezing water.
Works in Every System Type
Use it in a grid-tied system to reduce power bills, in a hybrid system with battery storage or in a complete off-grid house. It is rated for a 1500V maximum system voltage.
12-Year Workmanship and 25-Year Output Warranty
SunGold backs the panel with a 12-year material and workmanship warranty. Output warranties run 5 years at 95%, 10 years at 90% and 25 years at 80%.

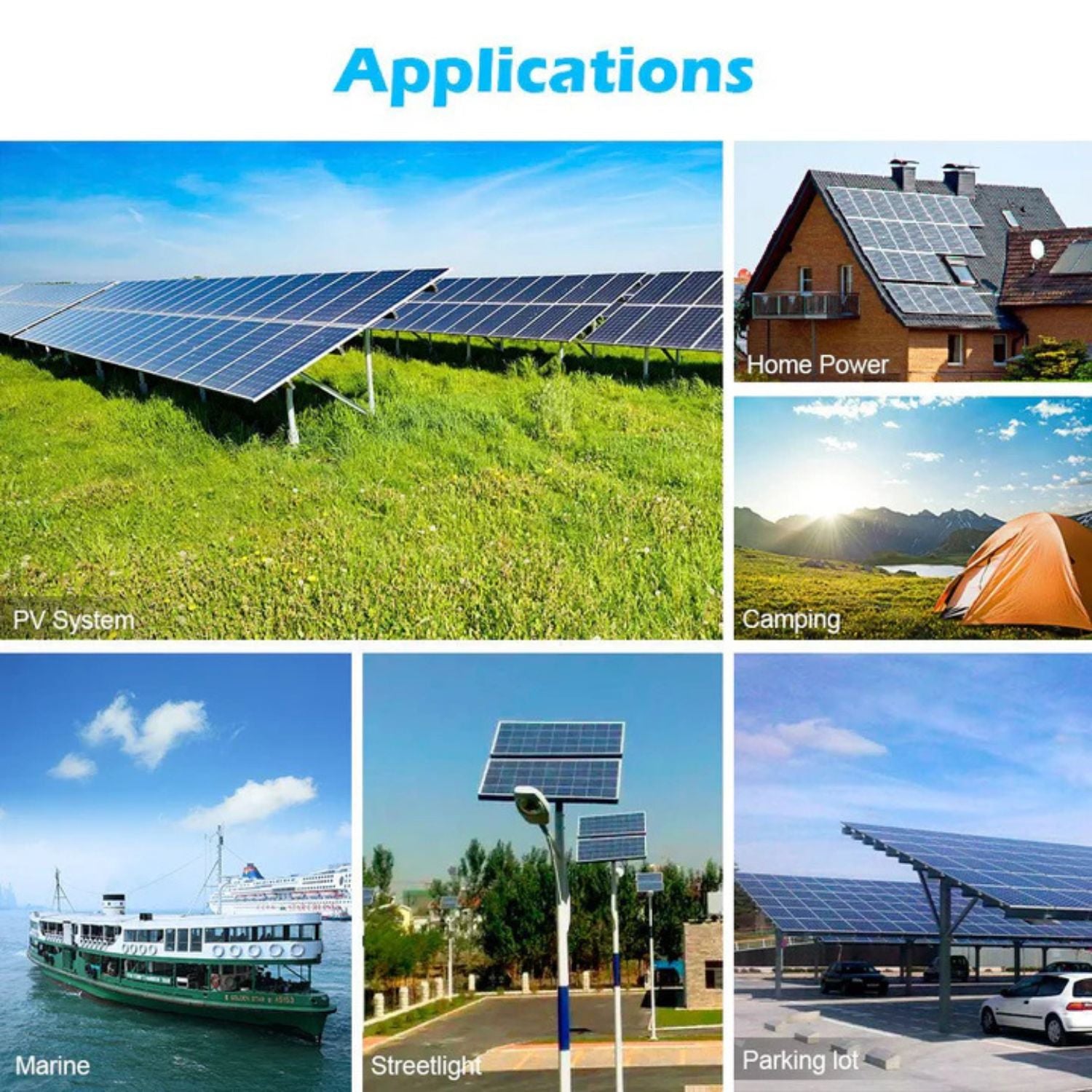

Real-World Applications
Grid-tied homes. Add 415W panels to a home roof and cut monthly power bills.
Off-grid houses. Charge a battery bank and power a complete off-grid home.
Tiny houses and RVs. Put more watts on a small roof than a 370W panel provides, in a module that is 67.80 inches long.
Commercial buildings. Cover a commercial roof with UL 61730 and CEC listed modules.
How It Compares to Common Alternatives
Versus the SunGold 370W black panel. The SG370WM is shorter at 63.23 inches and lighter at 41.8 lbs, with 20.31% efficiency. The 415W model adds output per panel and reaches 21.3% with 108 cells instead of 120.
Versus the SunGold 500W black panel. The SG500WM has 132 cells and measures 82.44 inches long at 56.2 lbs. The 415W model is easier to fit on a mid-size roof face.
Versus black-on-black panels. This is a black panel, but it is not black-on-black with a black frame and black backsheet. SunGold offers black-on-black models separately.
Is This Mid-Size Black Solar Panel the Right Fit
-

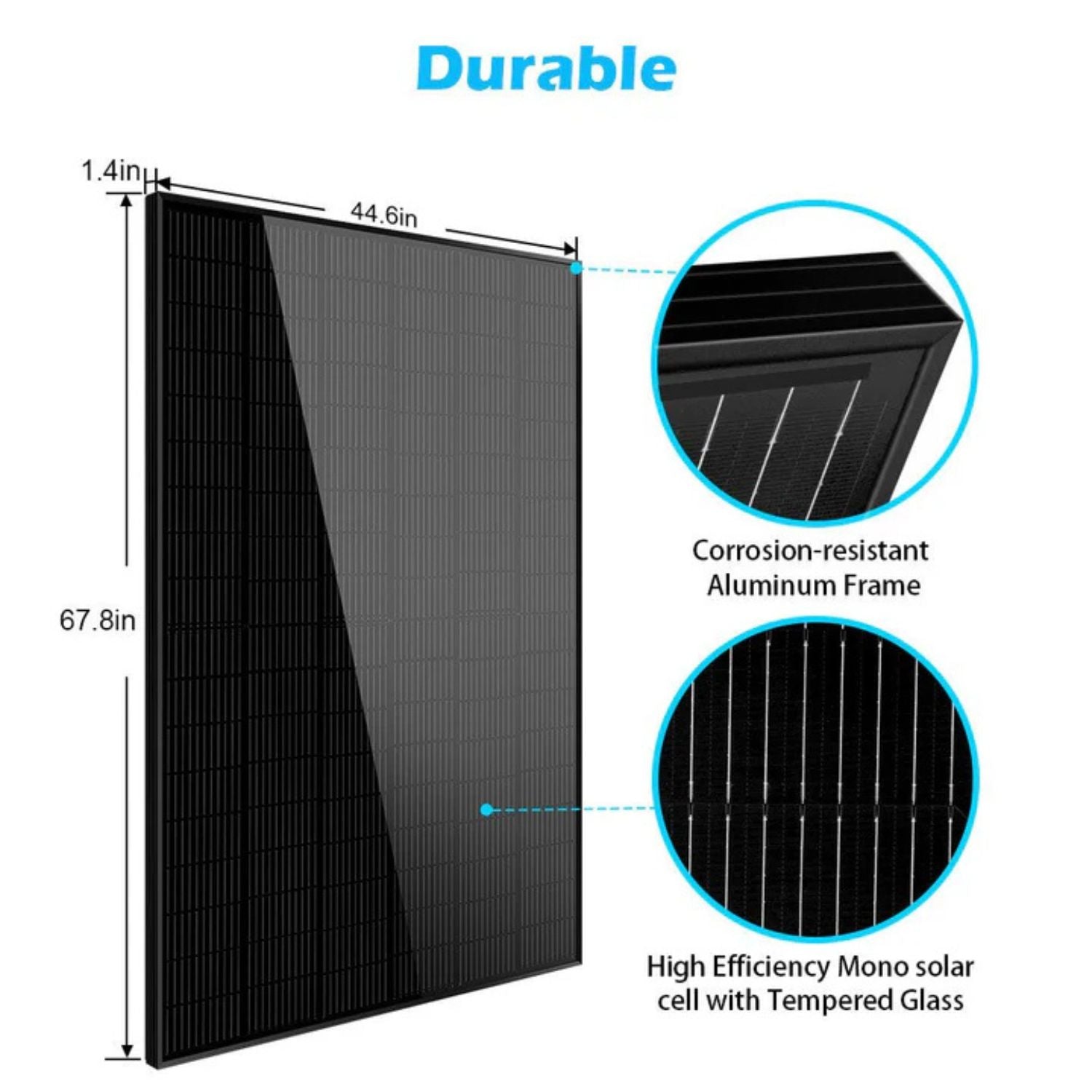

Size. Each panel is 67.80 x 44.65 x 1.38 inches and 48.06 lbs.
-
Voltage. Open circuit voltage is 38.32V per panel, with a 1500V maximum system voltage.
-
Current. Short circuit current is 14.09A, with a 20A maximum series fuse rating.
-
Appearance. Black panel, not black-on-black.
This may be a good fit if
- You want more watts per panel than a 370W module
- You are building a grid-tied, hybrid or off-grid system
- Your roof sees heavy snow or strong wind
- You need UL 61730 and CEC listed panels
Common Questions
Is the 415W Panel Black-on-Black?
No. It is a black solar panel, but it doesn't have both a black frame and a black backsheet. If an all-black look matters, ask us about SunGold's black-on-black models.
How Well Is the Panel Sealed Against Water?
Very well. The IP68 junction box and connectors are fully protected from dust and work normally after temporary immersion in water up to 1m deep.
How Does It Handle Hot Weather?
It operates up to 185°F (85°C), and its -0.35%/°C Pmax temperature coefficient keeps heat losses modest.
What Fuse Rating Does Each String Need?
The maximum series fuse rating is 20A per panel. Size string fusing to that rating and your inverter or combiner instructions.
What's Included

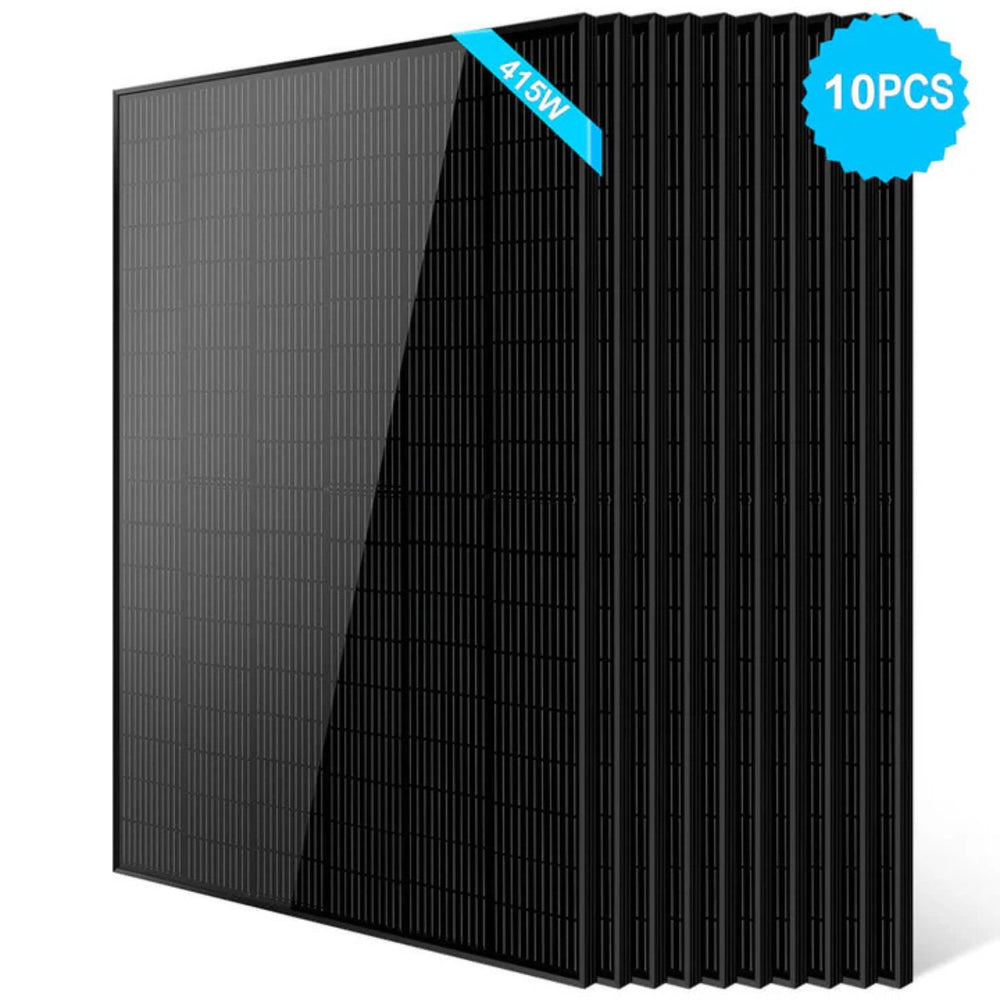

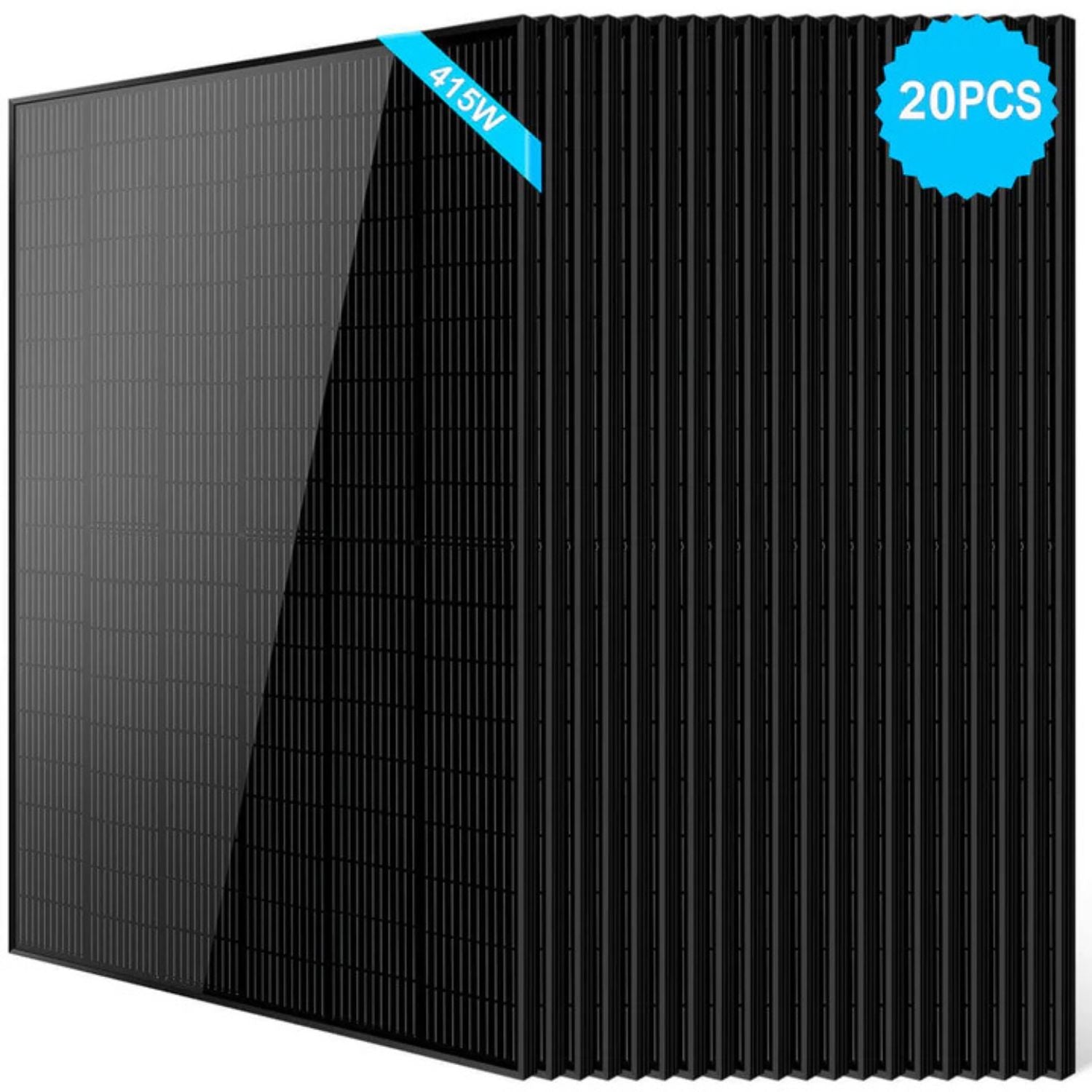

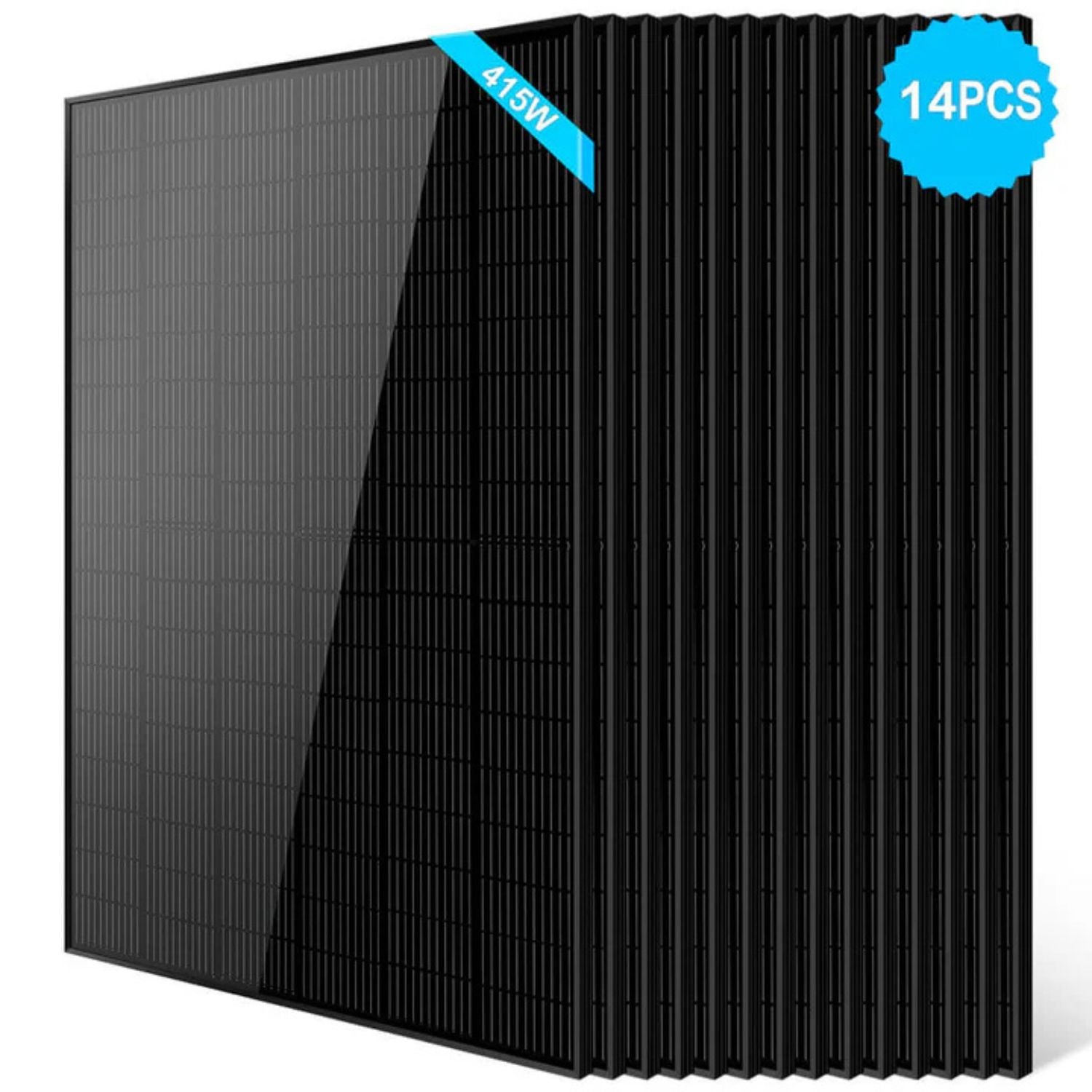

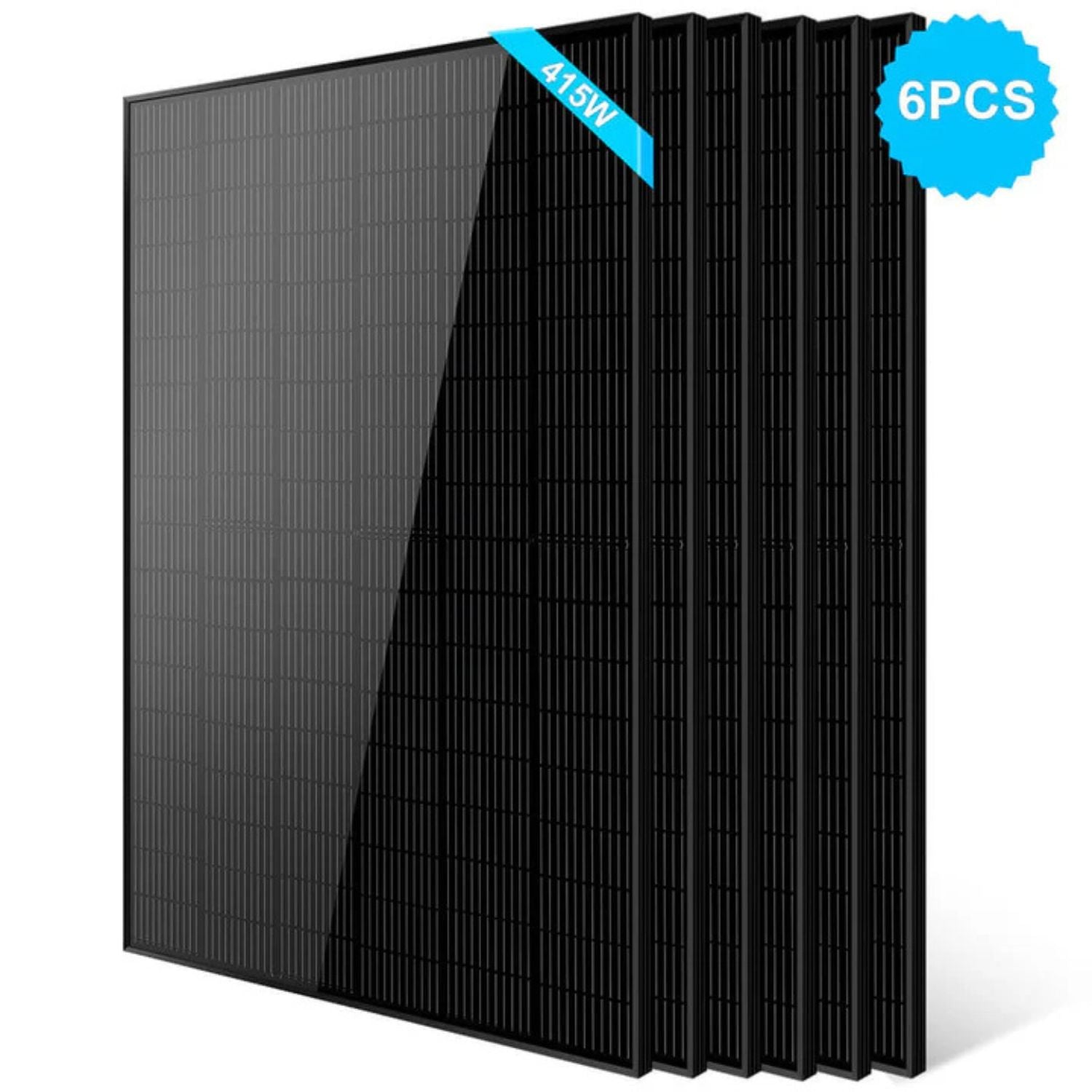

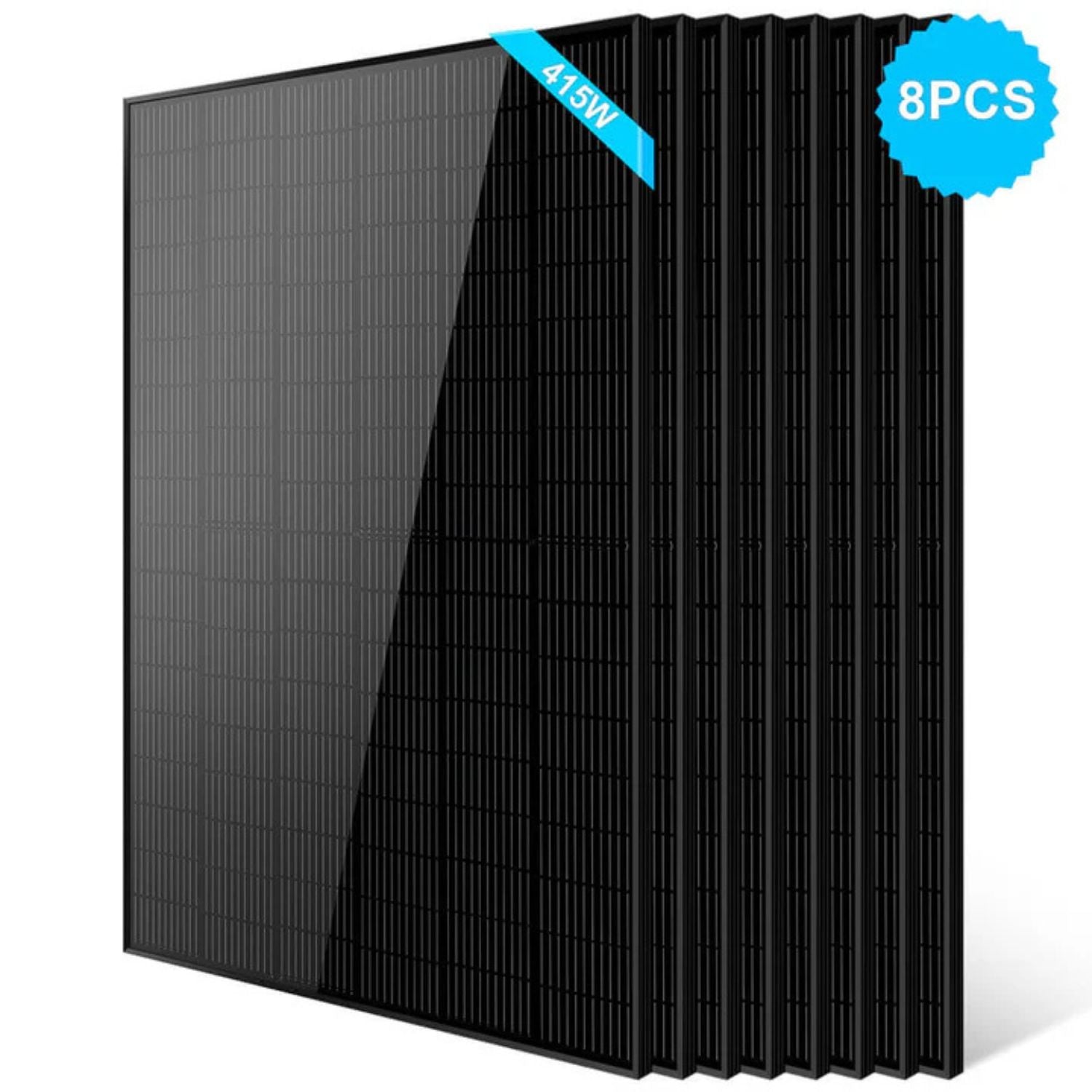

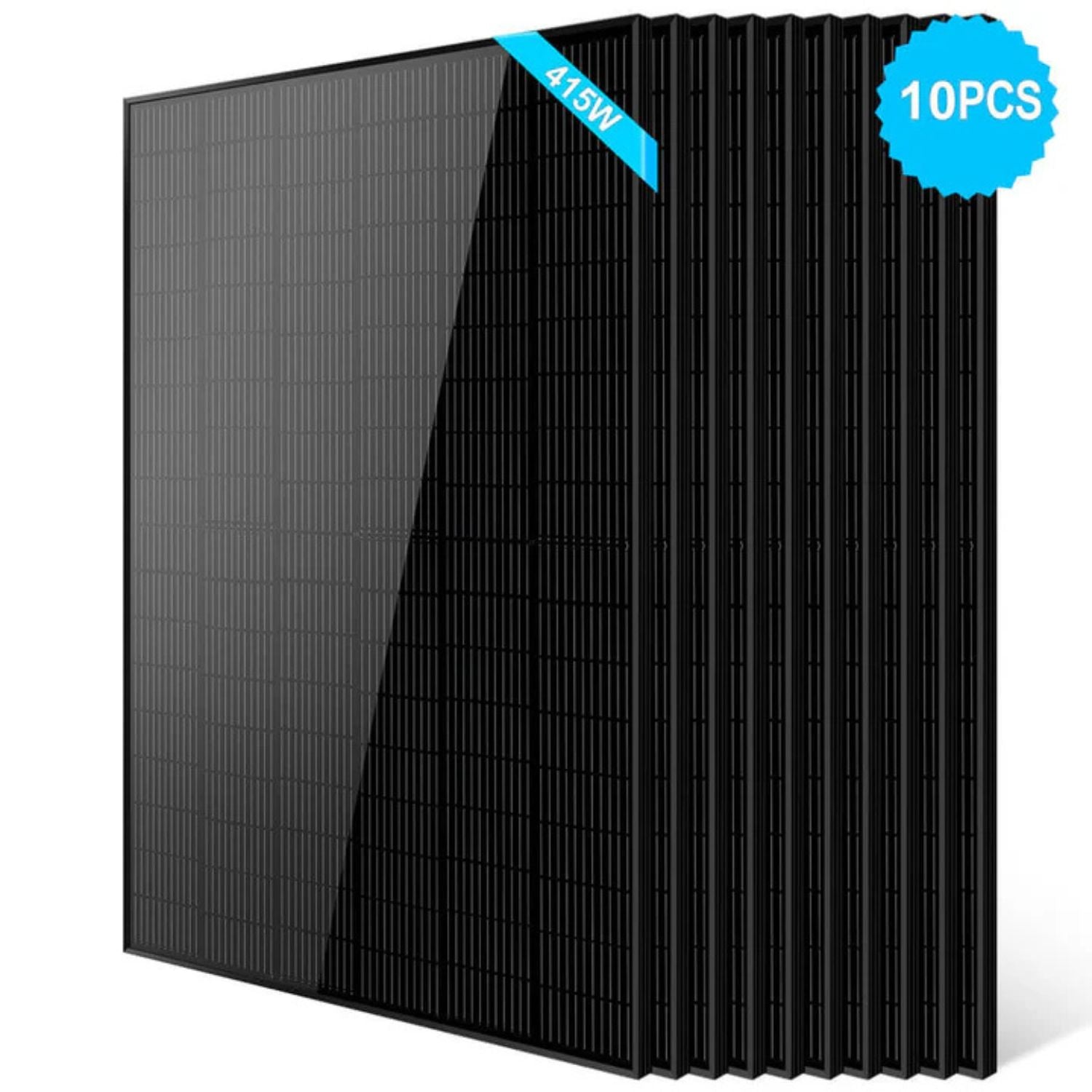

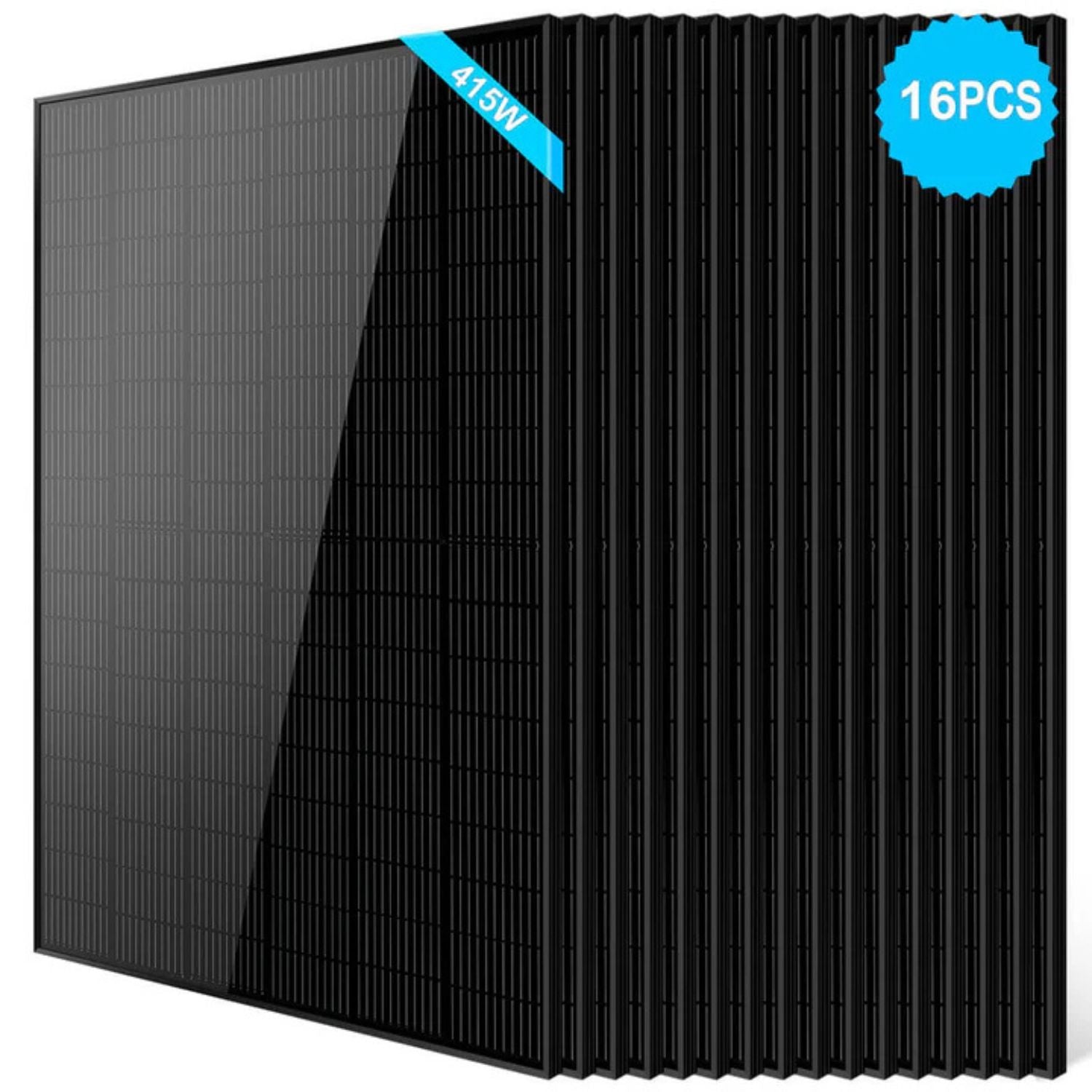

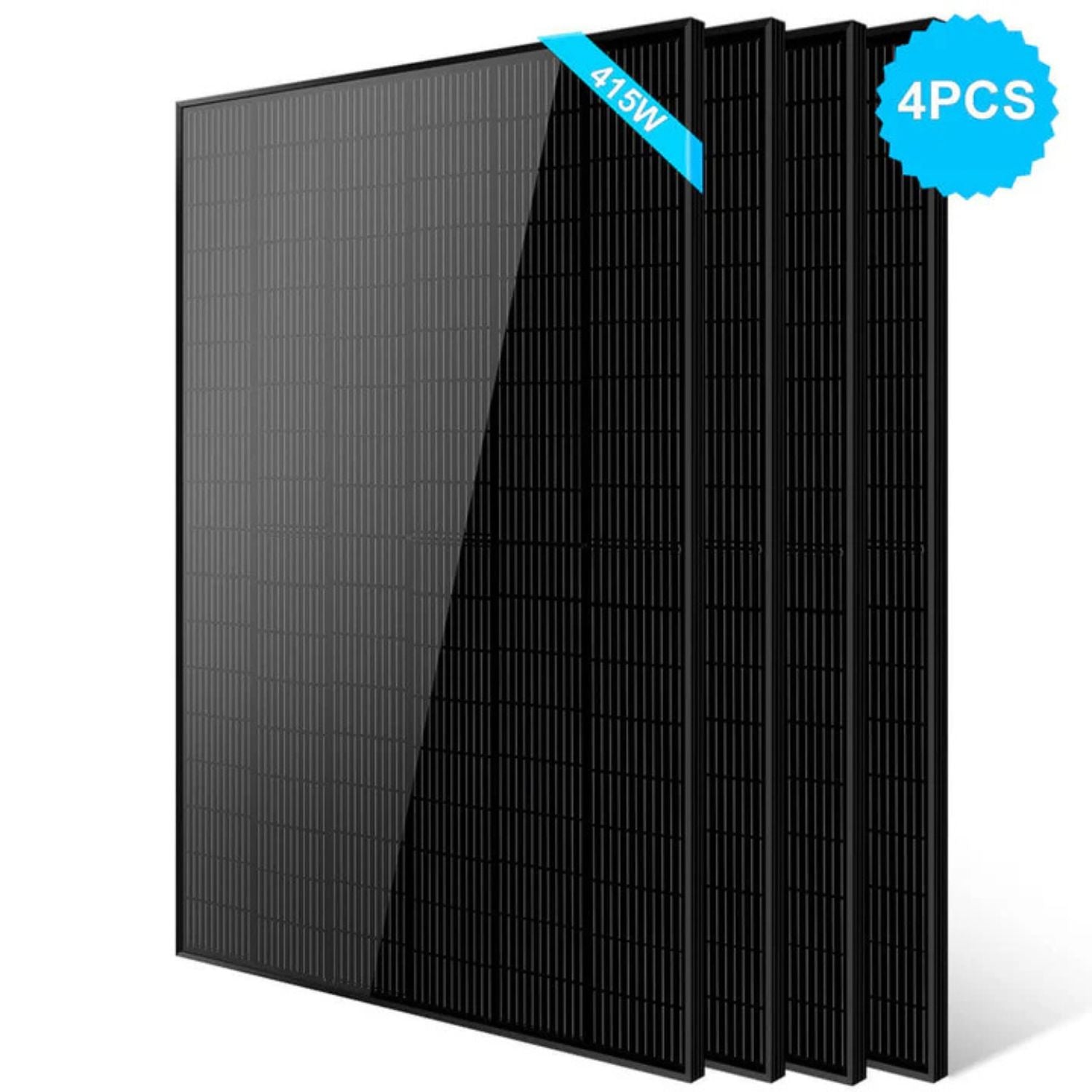

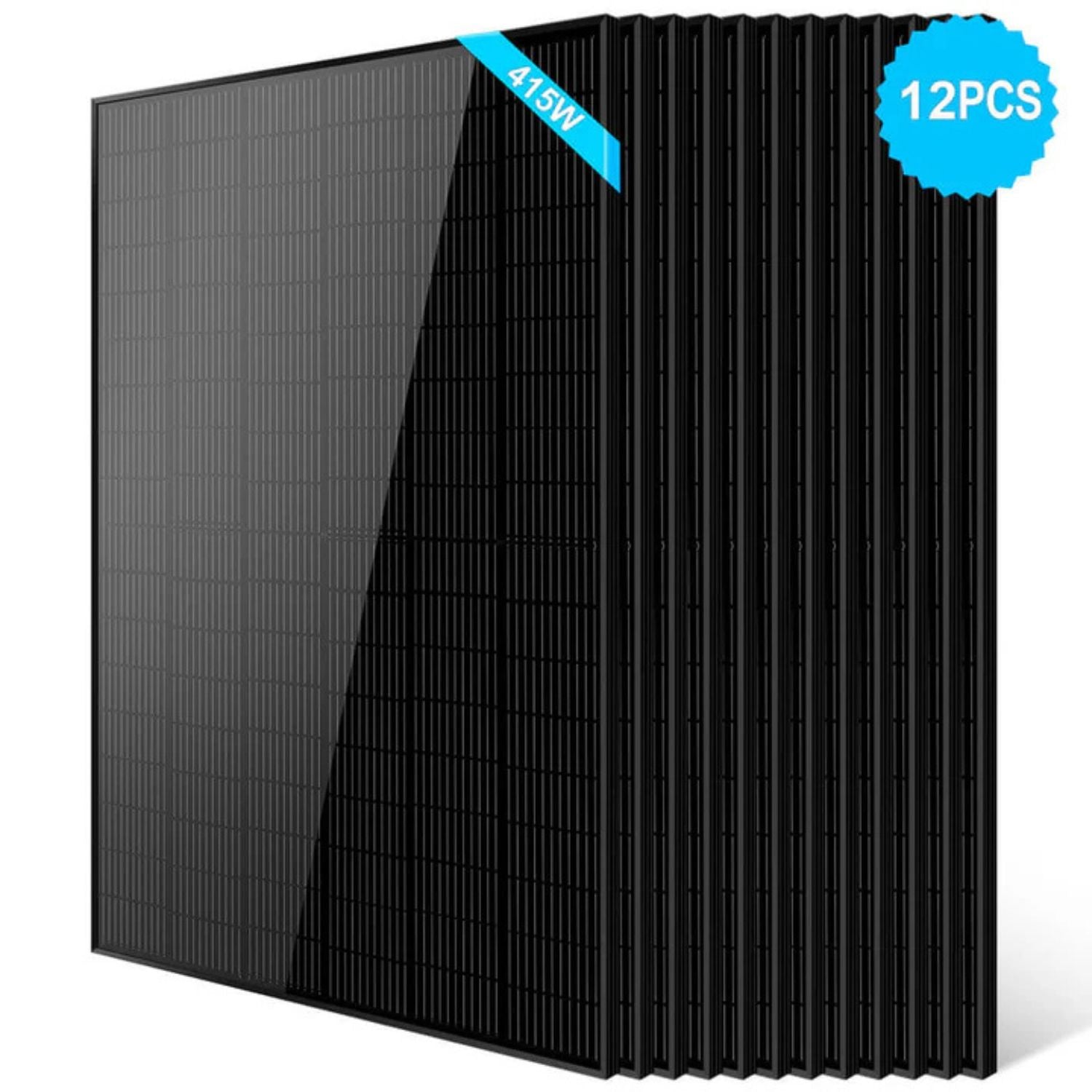

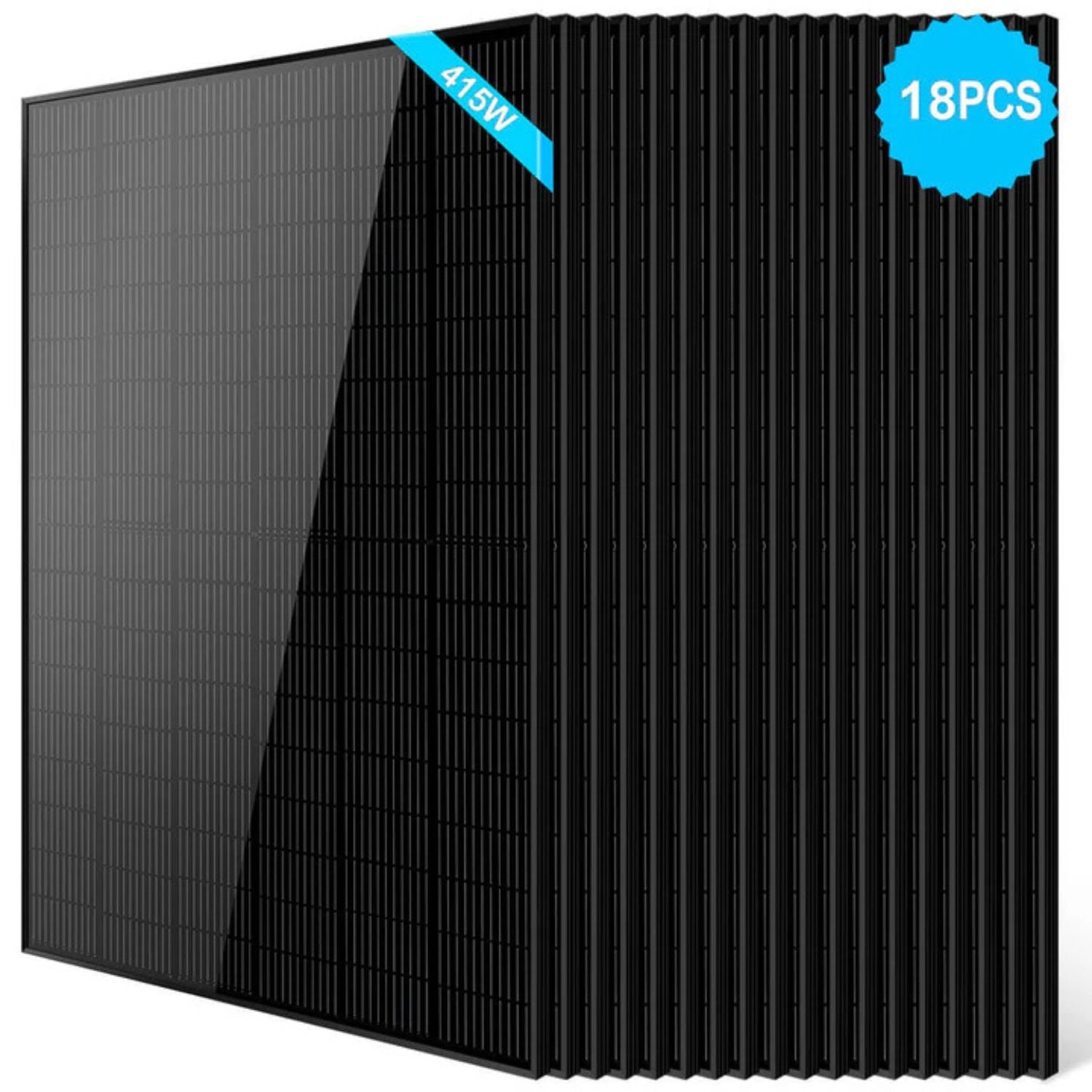

- 2, 4, 6, 8, 10, 12, 14, 16, 18 or 20 x SunGold Power 415 Watt Monocrystalline Black Solar Panel (SG415WM), Based on the Pack Size Selected
A Mid-Size Black Panel for Grid-Tied and Off-Grid Roofs
The SunGold Power 415 Watt Monocrystalline Black Solar Panel pairs 21.3% efficiency with half-cut PERC cells, IP68 connections and snow and wind load ratings in a 67.80-inch module. At Outbound Power, we help customers size arrays and choose string layouts for grid-tied, hybrid and off-grid homes. If you have questions, our team is happy to help.
SunGold Power 415W Mono Black Solar Panel Specifications
|
| Electrical Characteristics (STC) |
| Model |
SG415WM |
| Maximum Power (Pmax) |
415W |
| Power Tolerance |
±3% |
| Maximum Power Voltage (Vmp) |
31.11V |
| Maximum Power Current (Imp) |
13.34A |
| Open Circuit Voltage (Voc) |
38.32V |
| Short Circuit Current (Isc) |
14.09A |
| Module Efficiency |
21.3% |
| Maximum System Voltage |
1500VDC |
| Maximum Series Fuse Rating |
20A |
| Test Conditions |
1000 W/m², AM1.5, 25°C cell temperature |
| Temperature Characteristics |
| NMOT |
45°C ±2°C |
| Temperature Coefficient of Pmax |
-0.35%/°C |
| Temperature Coefficient of Voc |
-0.27%/°C |
| Temperature Coefficient of Isc |
0.048%/°C |
| Operating Temperature Range |
-40°F to 185°F (-40°C to 85°C) |
| Maximum Permissible Module Temperature (T28 max) |
185°F (85°C) |
| Mechanical Characteristics |
| Cell Type |
Mono PERC half-cut, 182 x 91mm |
| Number of Cells |
108 (6 x 18) |
| Dimensions |
67.80 x 44.65 x 1.38 in (1722 x 1134 x 35mm) |
| Weight |
48.06 lbs |
| Front Cover |
3.2mm tempered glass |
| Frame |
Anodized aluminum alloy |
| Junction Box and Connectors |
IP68 rated |
| Output Cables |
12 AWG (4mm²), 1 ft (300mm) per cable |
| Snow Load |
5400Pa |
| Wind Resistance |
2400Pa |
| Safety and Certification |
| Module Fire Performance |
Type 4 according to ANSI/UL 61730 |
| Safety Class |
Class II |
| Certifications |
UL 61730, CEC listed, CE, TUV |
| Warranty |
| Performance Warranty |
5 years 95% output, 10 years 90% output, 25 years 80% output |
| Material and Workmanship Warranty |
12 years |
| Packaging |
| Package Weight (2 Panels) |
100.5 lbs |
| Pack Options |
2, 4, 6, 8, 10, 12, 14, 16, 18 or 20 panels |
SunGold Power SG415WM Data Sheet
SunGold Power SG415WM UL 61730 Certificate
