The SunGold Power 5.12kWh Powerwall LiFePO4 Lithium Battery Mounts on Your Wall and Grows to 63 Units for Home and Business Energy Storage
The SunGold Power 5.12kWh Powerwall LiFePO4 Lithium Battery is a 51.2V, 100Ah wall-mounted battery (model SG48100M) for 48V energy storage systems. It comes with a wall bracket, expansion bolts and cables, and it has an LCD display on the front so you can check battery status at a glance.
It suits homeowners who want to store solar energy and raise their self-consumption, as well as small commercial and industrial systems. The battery is UL1973 certified, rated for 7000 or more cycles, and can be paralleled with up to 63 units for 322.56kWh of total capacity.
SunGold Power 5.12kWh Powerwall LiFePO4 Lithium Battery Features

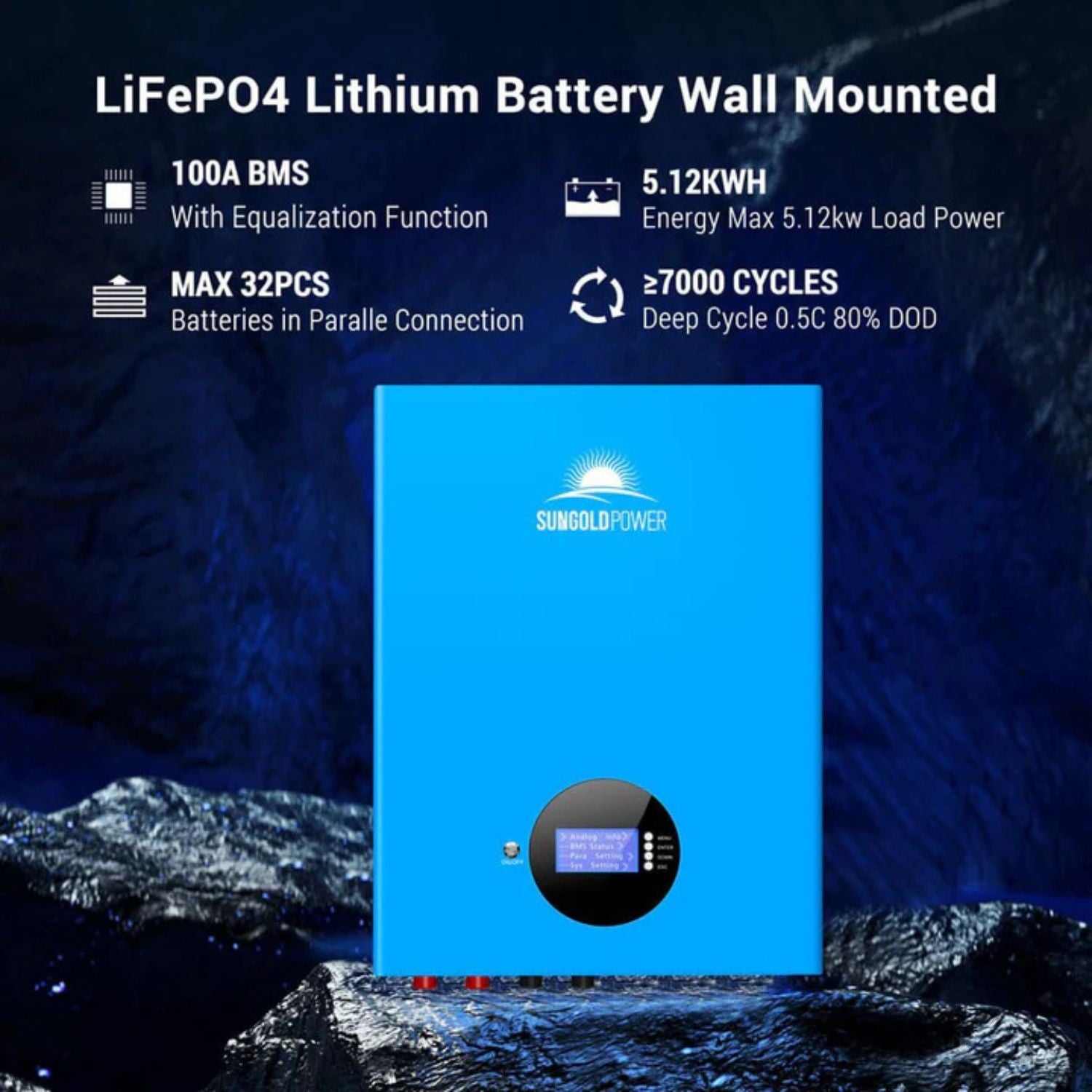

Wall-Mounted Design
The battery hangs on the included wall bracket with M10 expansion bolts. Keeping storage on the wall leaves the floor clear around your system.
7000+ Cycles and 15-Year Design Life
The pack is rated for at least 7000 cycles at 80% depth of discharge, with a 15-year design life. SunGold backs it with a 10-year warranty.
Intelligent BMS
The BMS monitors cell voltage, current and temperature. It protects against overcharge, deep discharge, overloading, overheating and short circuits, which helps extend battery life. A 20A charging current limit function is built in.

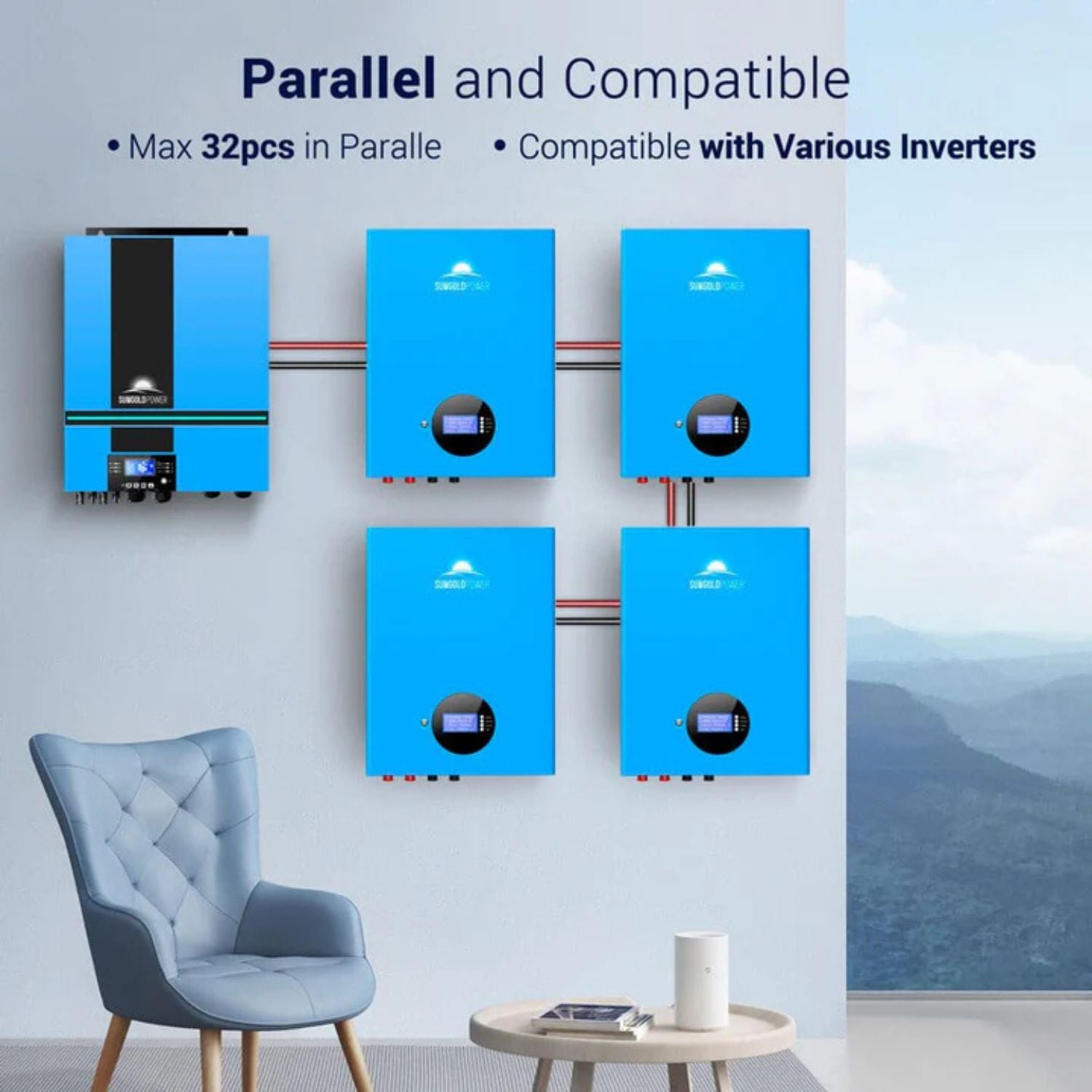

Scale Up to 63 Batteries
The modular design lets you start with one battery and add more later. Up to 63 batteries can run in parallel, each set to its own address with DIP switches, for up to 322.56kWh.
RS232, RS485 and CAN Communication
The battery supports multiple protocols over RS232, RS485 and CAN. SunGold lists compatibility with most inverters on the market, such as Growatt, Deye, SunGoldPower, Luxpower, Victron Energy, Schneider, Phocos and SMK.
LCD Smart Display
An English smart display on the front panel shows battery information. RUN, ALM and SOC indicator lights show running status, alarms and state of charge.
Real-World Applications
Home solar self-consumption. Store daytime solar energy and use it in the evening instead of drawing from the grid.
Backup power. Keep essential circuits running through outages with a compatible hybrid or off-grid inverter.
Small business storage. Add batteries over time for small commercial and industrial energy storage.
Off-grid homes. Build a 48V battery bank one 5.12kWh unit at a time.
How It Compares to Common Alternatives
Versus a server rack battery. A rack battery needs a rack or cabinet. This battery mounts directly on a wall with the bracket in the box, which suits installs where floor space is tight.
Versus one large battery. Several 5.12kWh units let you match capacity to your needs and add more in 5.12kWh steps, up to 63 units.

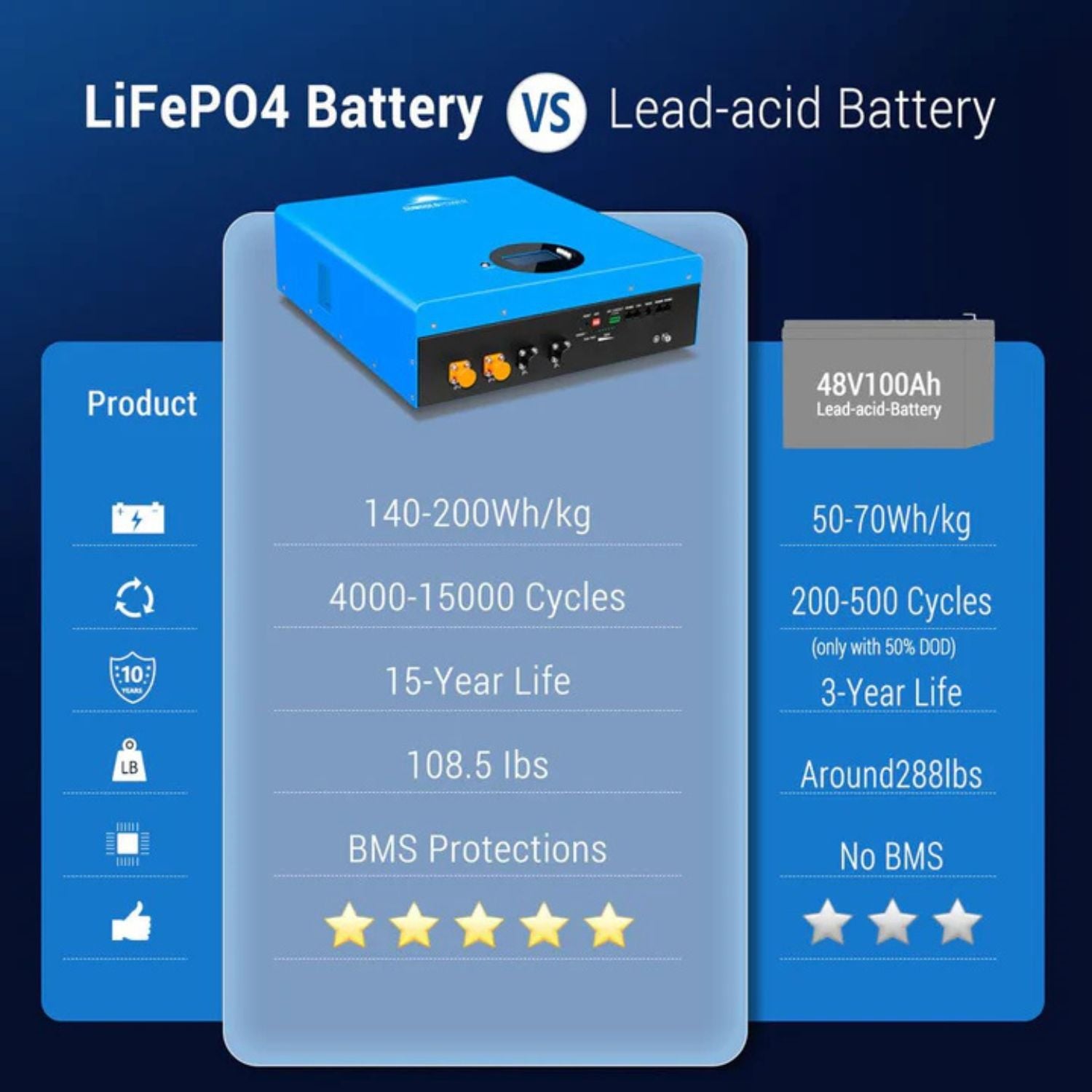

Versus a lead-acid battery bank. This battery adds a built-in BMS, inverter communication and an LCD display, and it is rated for at least 7000 cycles.
Is This Wall-Mounted Battery the Right Fit
-
Inverter. Requires a 48V inverter or charger. For battery communication, the inverter needs a compatible CAN or RS485 protocol.
-
Location. The battery box is IP20 rated. Keep it out of rain and direct sunlight, and away from heat sources.
-
Wall. The wall must support about 114.6lbs per battery.
-
Temperature. Charging from 32°F to 113°F, discharging from -4°F to 140°F.
-
Batteries. Do not mix new and old batteries, or other battery types, in the same bank.
This may be a good fit if
- You want battery storage on the wall
- You use a 48V hybrid or off-grid inverter
- You want UL1973 certified storage
- You plan to expand over time
Common Questions
How Many Batteries Can I Connect in Parallel?
Up to 63. Each battery gets a unique hardware address set with its DIP switches, from 1 to 63.
What State of Charge Range Should I Use?
The battery can work from 0 to 100%, but SunGold recommends 20% to 95% for daily use.
How Should I Store the Battery?
Store it at 20% to 40% state of charge in a clean, dry, ventilated room, raised at least 100MM off the ground. Charge it every 3 months at 0.2 to 0.5C for 30 to 60 minutes.
What Wakes the Battery From Sleep?
Connect a charger with an output above 48V, press the button for 3 seconds, or connect the communication line and open the host software.
What's Included
1 x Battery
- 1 x SG48100M 5.12kWh LiFePO4 Battery
- 1 x Set of Positive and Negative Output Cables (Red and Black, 1500mm)
- 1 x RS485 Cascade Communication Cable (1.5m)
- 1 x Wall Bracket With M10 Expansion Bolts
- 4 x M6 x 12 Composite Bolts
- 1 x Dry Contact Terminal
- 1 x Product Manual
- 1 x Certificate

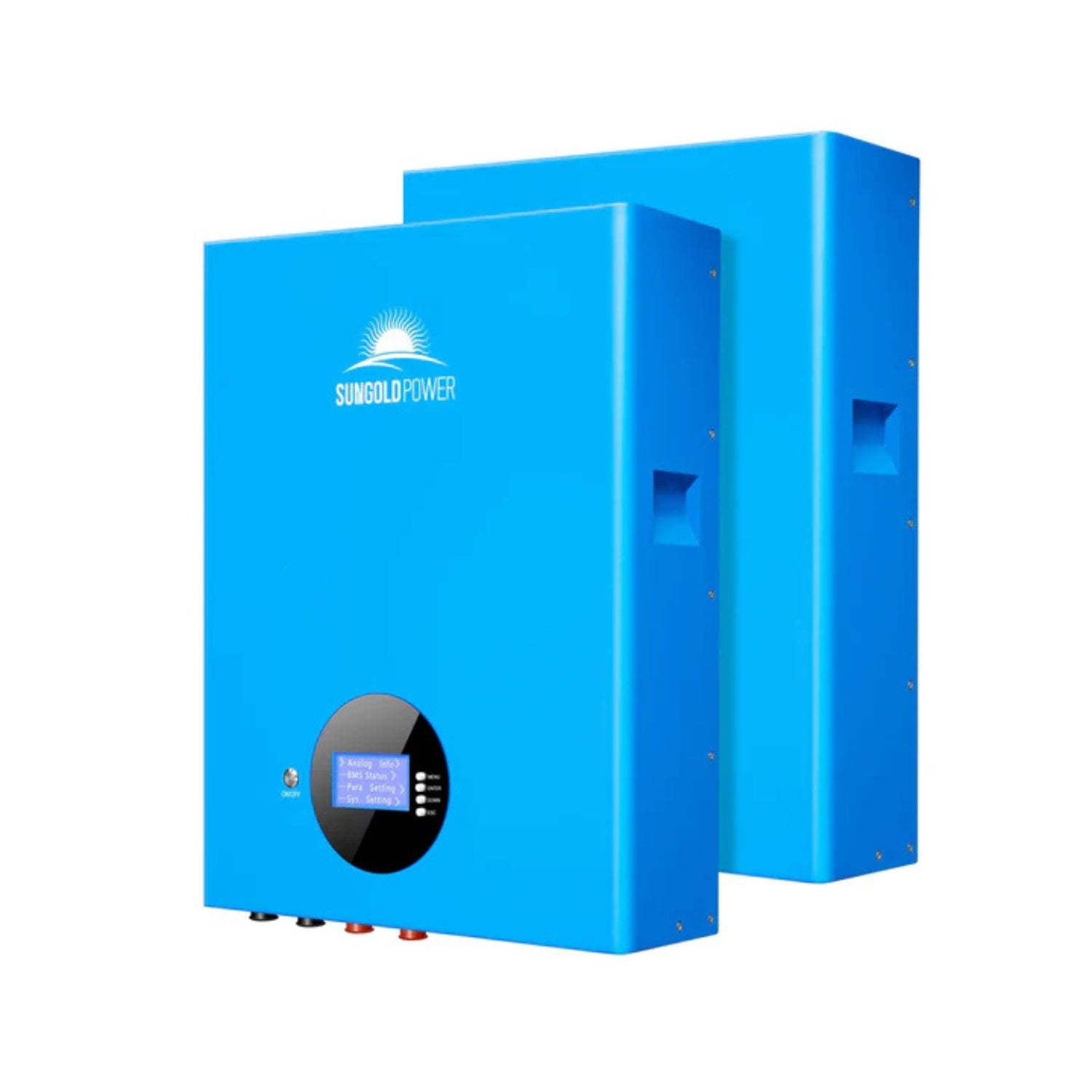

2 x Batteries
- 2 x SG48100M 5.12kWh LiFePO4 Batteries, each with the full kit listed above

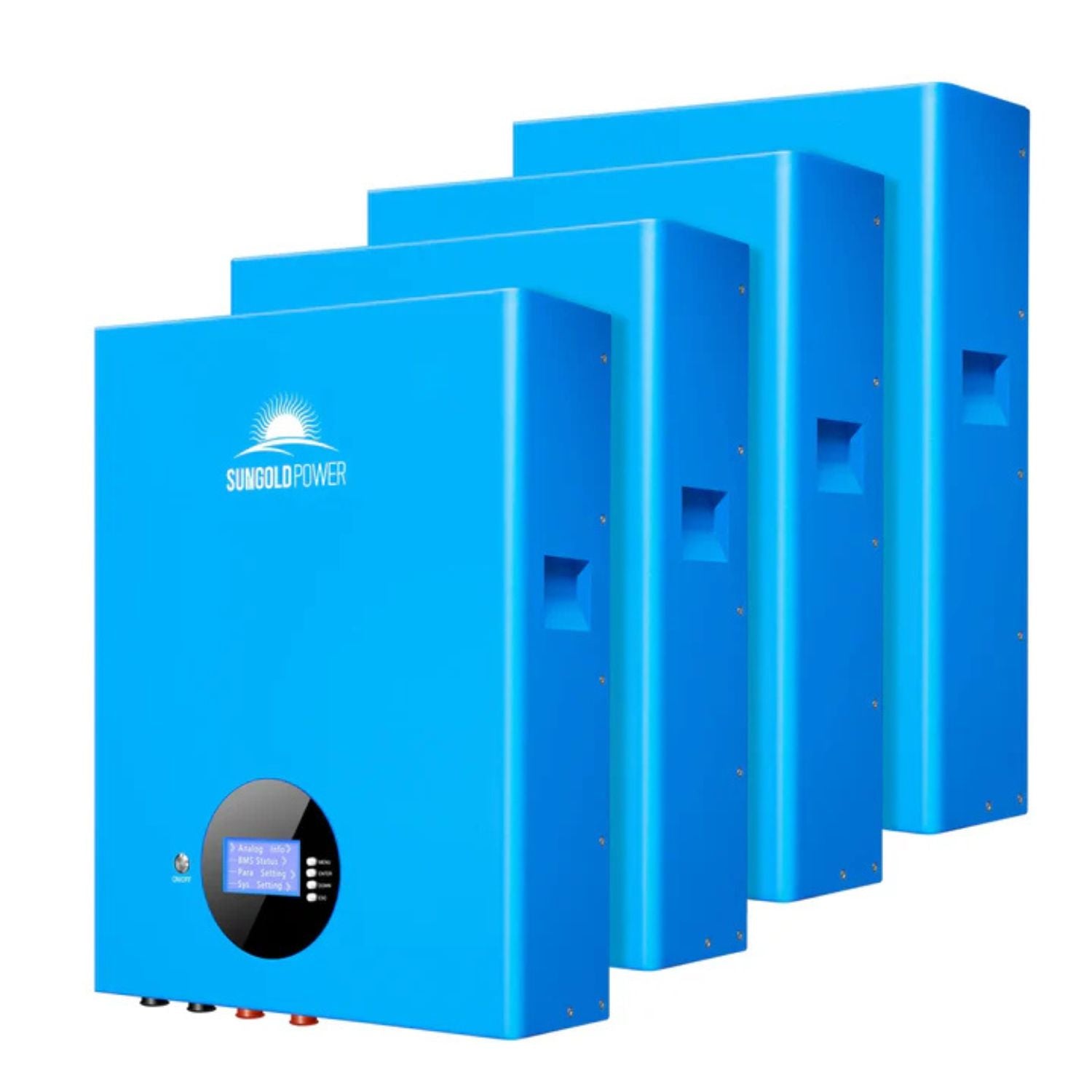

4 x Batteries
- 4 x SG48100M 5.12kWh LiFePO4 Batteries, each with the full kit listed above
Wall-Mounted Storage That Grows With You
The SunGold Power 5.12kWh Powerwall LiFePO4 Lithium Battery gives a 48V system UL1973 certified storage on the wall, with 7000+ rated cycles and room to grow to 63 units. At Outbound Power, we help customers size battery banks and inverters for home solar and backup power. If you have questions, our team is happy to help.
SunGold Power 5.12KWH Powerwall LiFePO4 Lithium Battery Specifications
|
| Electrical Characteristics |
| Battery Model |
SG48100M |
| Chemistry |
Lithium iron phosphate battery |
| Nominal Voltage |
51.2V |
| Rated Capacity |
100Ah |
| Nominal Energy |
5.12kWh |
| Recommended Charging Voltage |
54.5V |
| Charging Limited Voltage |
57.6V |
| Maximum Cut-Off Voltage for Charging |
57.6V |
| Discharge Cut-Off Voltage |
43.2V |
| Charge Cut-Off Current |
5A |
| Standard Charge / Discharge Current |
50A |
| Maximum Continuous Charge / Discharge Current |
100A |
| Charging Current Limit Function |
Current limit 20A |
| SOC Working Range |
0~100% (recommended 20%~95%) |
| Cycle Life |
≥7000 (80% DOD) |
| Calendar Life |
≥15 years |
| Communication and Expansion |
| Communication Mode |
RS232 / RS485 / CAN |
| Communication Protocol |
Supports multiple protocols |
| Parallel Function |
Supports up to 63 batteries in parallel (322.56kWh) |
| Display Function |
English smart display (LCD) |
| Operating Conditions |
| Operating Temperature |
Battery charging 32°F~113°F, battery discharging -4°F~140°F |
| Storage Temperature |
14°F~113°F |
| Relative Humidity of Working Environment |
≤95% |
| Thermal Management |
Natural heat dissipation |
| IP Protection Class |
IP20 battery box |
| Flammability Rating |
Plastic parts UL94 V-0 |
| Shipping SOC |
45-55% |
| Mechanical Characteristics |
| Installation |
Wall-mounted (bracket included) |

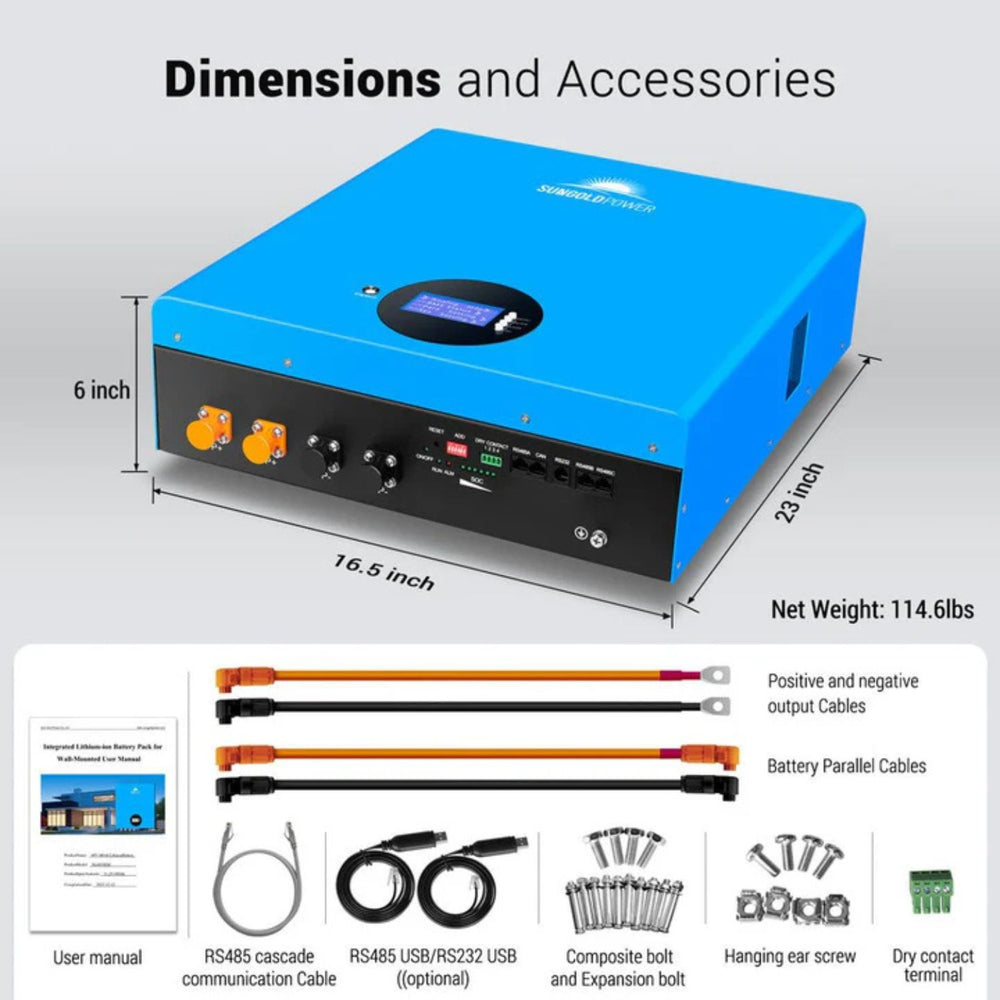

| Unit Dimensions (L x W x H) |
23 x 16.5 x 6 inch |
| Unit Weight |
114.6lbs |
| Certification and Warranty |
| Certificates |
UL1973, CE, UN38.3 |
| Warranty |
10 years |
