SunGold Power 500 Watt Monocrystalline Black PERC Solar Panels Let You Build a Large Black-Frame Array With Fewer Modules
A full pallet of the SunGold Power SG500WM holds 32 black-frame monocrystalline PERC panels, each rated 500W. Every panel carries 132 half-cells, reaches 21.05% module efficiency, and is UL 61730 certified and CEC Listed.
The 500W rating is for buyers who want big output from each module, such as homeowners covering a whole roof, ranch and farm owners building ground mounts, and installers handling commercial jobs. The black frame helps keep the finished array clean-looking on the roof.
SunGold Power 500 Watt Monocrystalline Black PERC Solar Panels Features
132 Half-Cells With a Black Frame
The panel uses 132 mono half-cells measuring 182 x 91mm in a 6 x 22 layout. SunGold says half-cell technology raises shade tolerance and improves output, thanks to its wiring and the higher cell count.
500W per Panel at 21.05% Efficiency
With 500W per module and 21.05% efficiency, you reach a target array size with fewer panels, fewer connections and fewer mounting points than you would with smaller modules.
Higher Voltage per Panel
Each panel produces 37.60V and 13.30A at maximum power, with a 44.36V open-circuit voltage. Higher voltage per module means fewer panels are needed to reach a given string voltage, and the 1500V system rating gives room for long strings.
Snow and Wind Load Rated

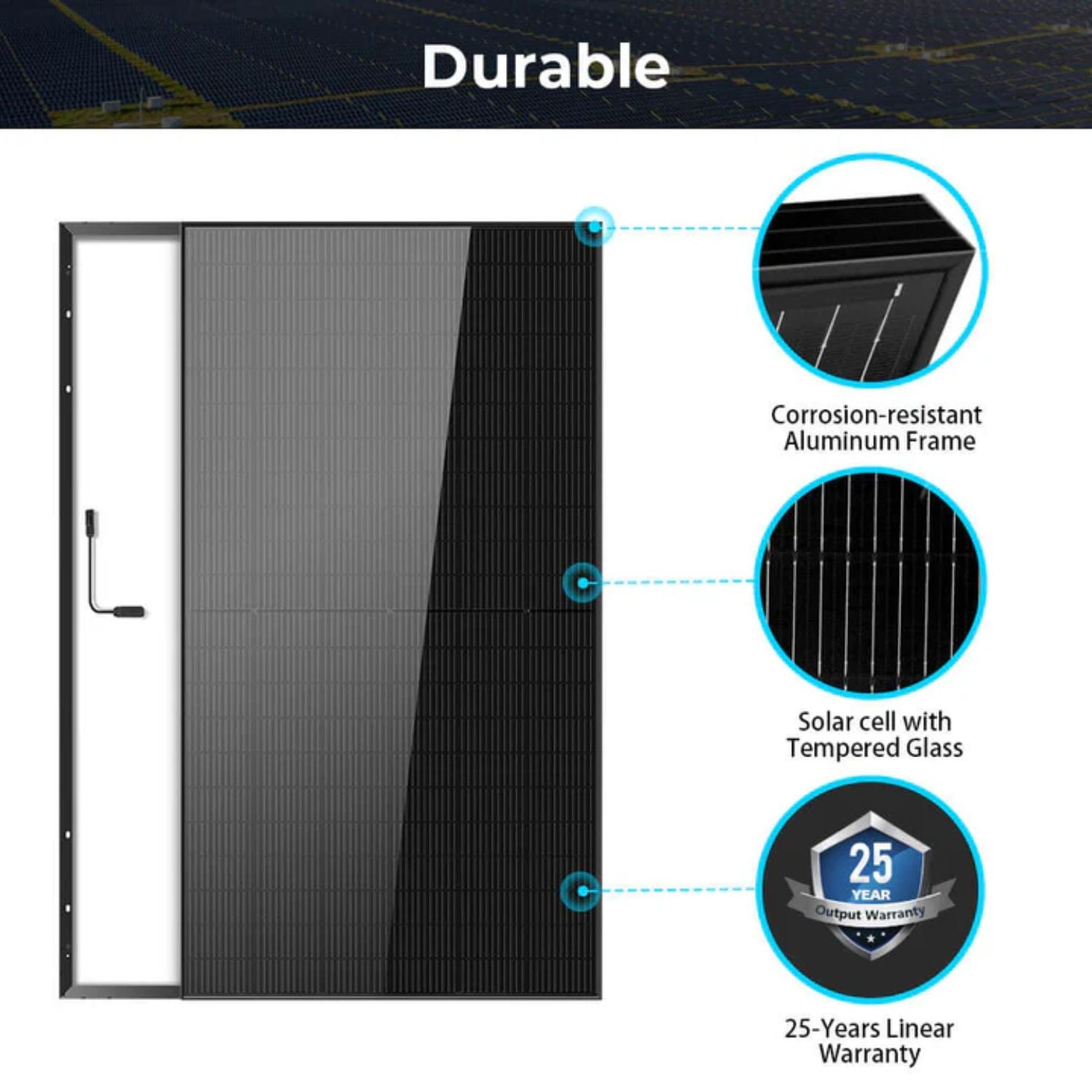

The module passed a 5400 Pa load test for heavy snow and a 2400 Pa test for wind pressure. A 3.2mm tempered glass front sits in an anodized aluminum alloy frame that withstands corrosion and damage.
IP68 Junction Box and Connectors
The junction box and connectors are IP68 rated. They are dust-tight and keep working after temporary immersion in water up to 1m deep.
Tested and Sorted at the Factory
Every module goes through 100% EL testing, and SunGold sorts and packs modules by current to reduce mismatch loss. SunGold is an ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certified supplier.
Real-World Applications
Whole-roof residential systems. Cover a home roof with black-frame panels to reduce power bills or store energy in batteries.
Ground mounts for farms and ranches. Large 500W modules keep the rack count down on open land.
Commercial buildings. Fit high-output panels across a commercial roof from one shipment.
Off-grid and hybrid homes. Pair the pallet with an inverter and battery bank for a complete off-grid or hybrid system.
How It Compares to Common Alternatives
Versus smaller panels. Building the same array from lower-wattage modules takes more panels, more racking and more wiring. At 500W each, the SG500WM keeps the parts count down.
Versus single-panel orders. A pallet delivers 32 matching panels in one shipment, so every string uses identical electrical ratings and the same black frame.
Versus full-cell panels. SunGold says the half-cell design gives higher shade tolerance and better output than conventional wiring.
Is This Solar Panel Pallet the Right Fit
-
Freight. The packed pallet weighs 2006.2 lbs and measures 85.0 x 48.0 x 52.0 inches. Plan for freight delivery and unloading.
-
Panel size. Each panel is 82.44 x 44.65 x 1.38 inches and weighs 56.2 lbs. Make sure your roof layout and racking fit this length.
-
String voltage. With a 44.36V open-circuit voltage per panel, check each string against your inverter or controller's PV input limit.
-
Fusing. The maximum series fuse rating is 20A.
This may be a good fit if
- You want 500W modules to reduce panel count
- You prefer a black-frame look
- You are covering a large roof or ground mount
- You need UL 61730 certified, CEC Listed panels
Common Questions
Can These Panels Get Wet?
Yes. The panels are waterproof, with an IP68 junction box and connectors.
How Much Energy Does a 500W Panel Produce Daily?
Daily output depends on the peak sun hours at your location. On average, one 500W panel produces between 2 and 3 kWh per day.
How Big Is Each Panel?
Each panel measures 82.44 x 44.65 x 1.38 inches (2094 x 1134 x 35 mm) and weighs 56.2 lbs.
What Warranty Do These Panels Have?
SunGold offers a 12-year material and workmanship warranty and output warranties of 95% at 5 years, 90% at 10 years and 80% at 25 years.
What's Included
- 32 x SunGold Power 500W Mono Black PERC Solar Panel (SG500WM)
Big Output From Every Module
The SunGold Power 500 Watt Monocrystalline Black PERC Solar Panels put 32 black-frame, 500W modules on one pallet, with 21.05% efficiency and a 25-year output warranty. At Outbound Power, we help customers lay out arrays, plan strings and match panels to inverters. If you have questions, our team is happy to help.
SunGold Power 500W Mono Black PERC Solar Panel Full Pallet Specifications
|
| Electrical Characteristics (STC) |
| Model |
SG500WM |
| Maximum Power (Pmax) |
500W |
| Power Tolerance |
±3% |
| Maximum Power Voltage (Vmp) |
37.60V |
| Maximum Power Current (Imp) |
13.30A |
| Open Circuit Voltage (Voc) |
44.36V |
| Short Circuit Current (Isc) |
14.09A |
| Module Efficiency |
21.05% |
| Maximum System Voltage |
1500V DC |
| Maximum Series Fuse Rating |
20A |
| Temperature Characteristics |
| NMOT |
46℃ ±2℃ |
| Temperature Coefficient of Pmax |
-0.36%/℃ |
| Temperature Coefficient of Voc |
-0.28%/℃ |
| Temperature Coefficient of Isc |
0.048%/℃ |
| Operating Temperature Range |
-40℉ to 185℉ (-40℃ to +85℃) |
| Maximum Permissible Module Temperature (T28 max) |
185℉ (85℃) |
| Mechanical Characteristics |
| Cell Type |
Mono 182 x 91mm half-cell PERC |
| Number of Cells |
132 (6 x 22) |
| Panel Dimensions |
82.44 x 44.65 x 1.38 in (2094 x 1134 x 35 mm) |
| Panel Weight |
56.2 lbs (25.5 kg) |
| Front Cover |
3.2mm tempered glass |
| Frame |
Anodized aluminum alloy |
| Junction Box |
IP68 rated |
| Output Cables |
12 AWG (4mm²), 1ft per cable (300mm) |
| Load Tests |
5400 Pa snow load, 2400 Pa wind load |
| Pallet |
| Panels per Pallet |
32 |
| Packed Pallet Weight |
2006.2 lbs |
| Packed Pallet Dimensions |
85.0 x 48.0 x 52.0 in |
| Certifications and Warranty |
| Certifications |
UL 61730, CEC Listed, CE, TUV |
| Module Fire Performance |
Type 4 according to ANSI/UL 61730 |
| Safety Class |
Class II |
| Output Warranty |
5 years 95%, 10 years 90%, 25 years 80% |
| Material and Workmanship Warranty |
12 years |
SunGold Power SG500WM Pallet Data Sheet
SunGold Power SG500WM Pallet UL 61730 Certificate
