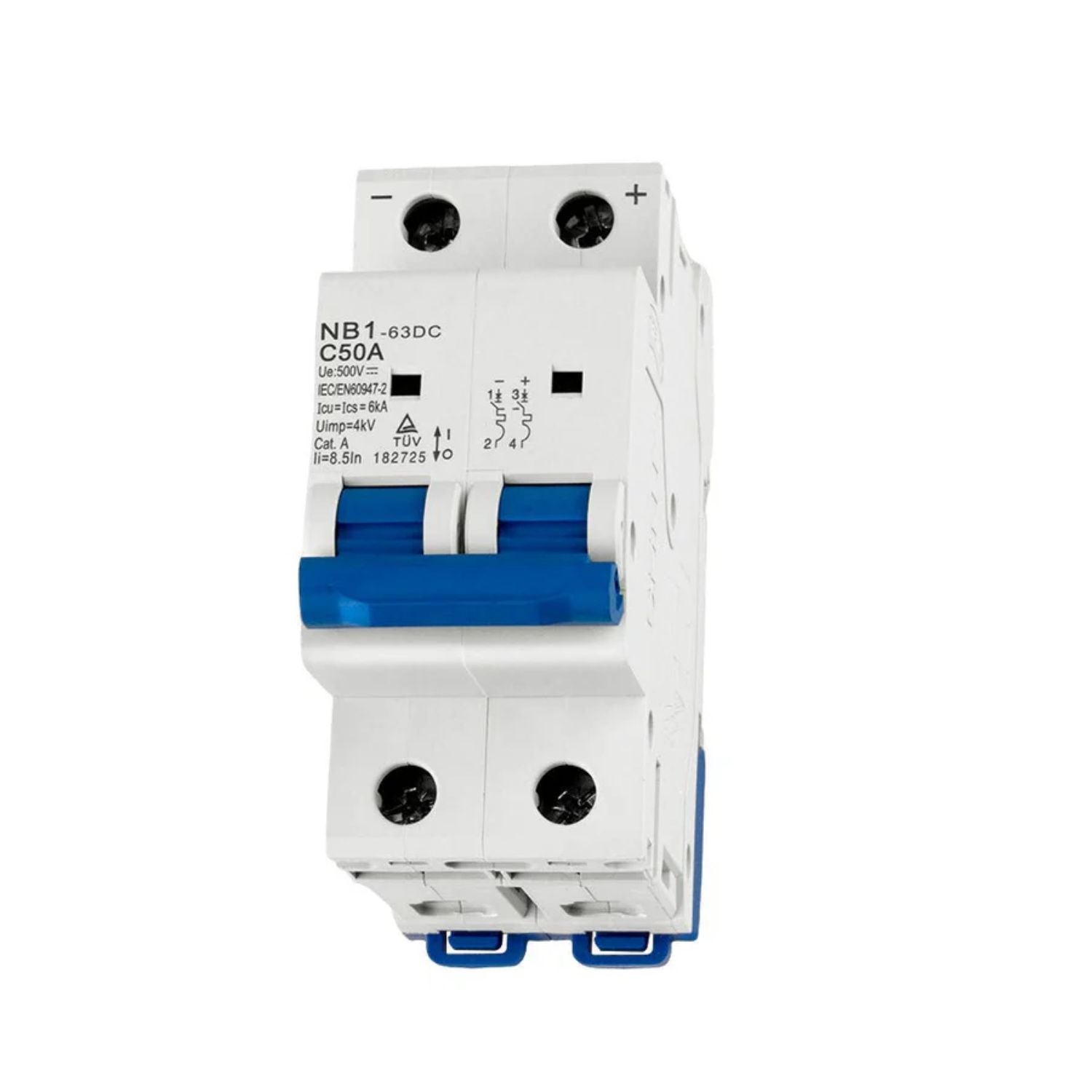

The SunGold Power 50A PV Breaker Protects Higher-Current Solar Circuits With a 2P, 500V DC Design
The SunGold Power 50A PV Breaker is a two-pole (2P) DC circuit breaker rated at 50 amps and 500V. SunGold makes it for solar systems, to protect and switch the DC wiring that carries power from the array.
It suits installers and DIY builders whose PV circuits carry more current than a smaller breaker covers, and who want a way to shut off that circuit for service.
SunGold Power 50A PV Breaker Features
50 Amp Rating
The breaker is rated at 50 amps, for PV circuits whose current and wire size call for that rating.
500V DC Rating
SunGold rates it at 500V, which covers DC solar circuits up to that voltage.
Two-Pole Design
The 2P design switches two poles together with one handle.
Made for Solar Systems
SunGold lists it as a DC breaker for solar systems. It belongs on PV wiring, not on household AC circuits.
Real-World Applications
Larger PV inputs. Protect the wiring from an array to a charge controller or inverter input.
Service shutoff. Switch off a PV circuit before you work on panels or equipment.
Home and cabin solar. Add DC protection to off-grid or backup systems.
How It Compares to Common Alternatives
Versus an AC breaker. This breaker is DC-rated at 500V and made for solar systems. PV wiring needs a DC-rated part.
Versus an inline fuse. A fuse must be replaced after it blows. A breaker can be switched back on and also works as a disconnect.
Versus a lower-amp breaker. A smaller breaker suits lighter PV circuits. Size the breaker to your circuit current and wire gauge.
Is This PV Breaker the Right Fit
-
Current. Rated at 50 amps.
-
Voltage. Rated at 500V for DC solar circuits.
-
Poles. A 2P (two-pole) breaker.
-
Fit. SunGold does not list the dimensions or mounting style. Check your enclosure before you install.
This may be a good fit if
- Your PV circuit calls for a 50 amp breaker
- Your array runs at 500V DC or less
- You want a two-pole DC breaker for solar
Common Questions
What Does 2P Mean?
The breaker has two poles that switch together.
What Voltage Is It Rated For?
It is rated at 500V.
Can I Use It on AC Circuits?
SunGold lists it as a DC breaker for solar systems. Use it on DC PV wiring.
What's Included
- 1 x SunGold Power 50A PV Breaker
DC Protection for Bigger Solar Circuits
The SunGold Power 50A PV Breaker gives a solar circuit 50 amp, 500V DC protection in a two-pole breaker. At Outbound Power, we help customers plan arrays, wiring and breakers for their solar systems. If you have questions, our team is happy to help.
SunGold Power 50A PV Breaker Specifications
|
| Brand |
SunGold Power |
| Model |
NB1-C50A |
| Product Type |
DC Circuit Breaker (PV) |
| Rated Current |
50A |
| Rated Voltage |
500V |
| Poles |
2P |
| Application |
Solar system |
