The SunGold Power 6.5kW 48VDC Off-Grid Solar Kit Runs 120/240V Loads From 2700W of Solar and Four Self-Heating 12V Batteries
The SunGold Power 6.5kW 48VDC Off-Grid Solar Kit (SGK-65PRO) is SunGold's complete off-grid kit built on a 6500W 48V split phase inverter. Six 450W monocrystalline PERC panels supply the solar, and four 12V 200Ah LiFePO4 batteries with Bluetooth form a 10.24kWh bank.
It suits off-grid homes, cabins and shops that need 240V circuits and batteries that can warm themselves in cold weather. A 160A DC breaker, a 25A PV breaker, a 1/0 AWG cable set and Z-brackets for all six panels complete the package.
SunGold Power 6.5kW 48VDC Off-Grid Solar Kit Features

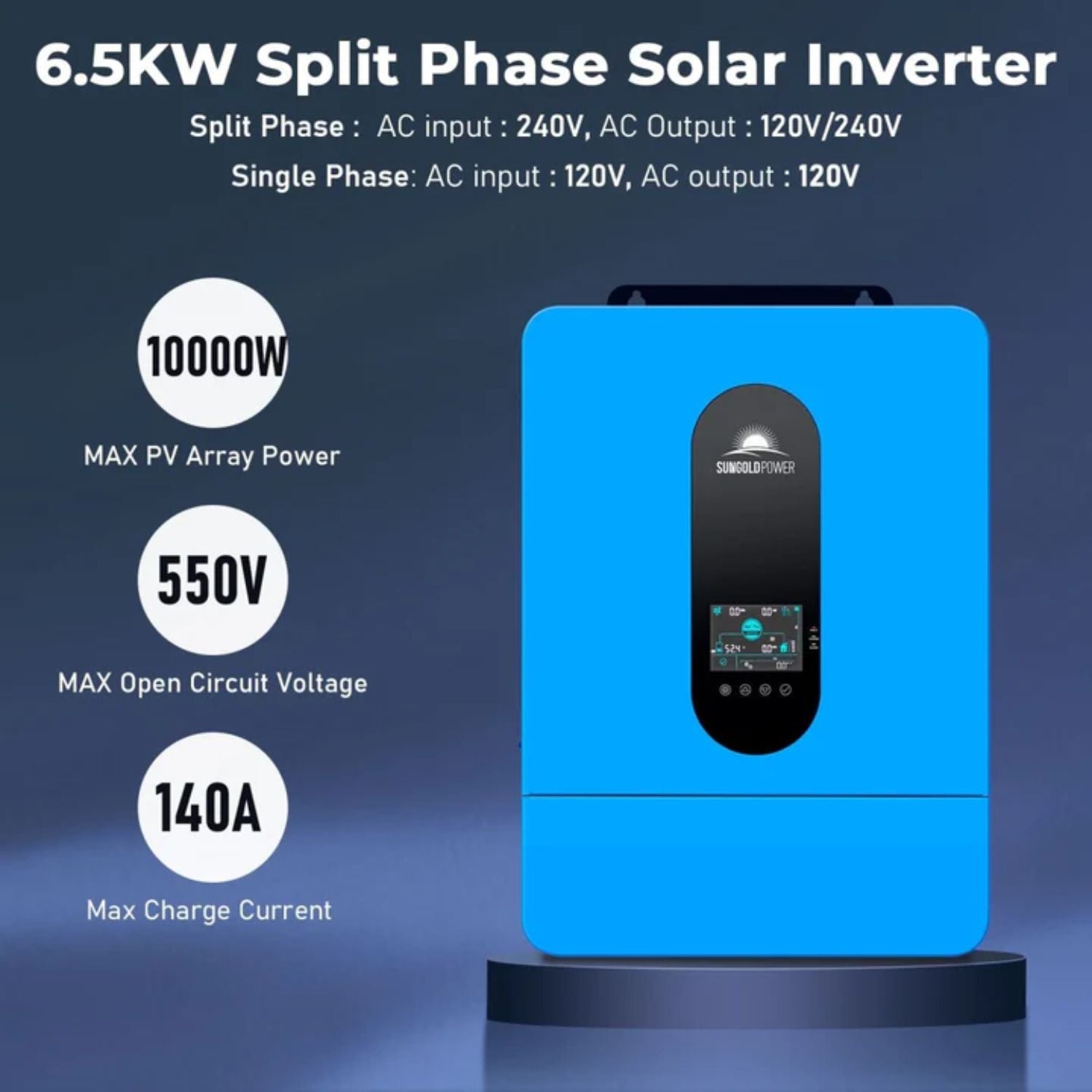

6500W Split Phase Inverter
The SPH6548P supplies 6500W of rated output with a 13000VA peak, as 120/240V split phase or 120V single phase. Switching takes a typical 10ms.
Two MPPT Inputs With Room to Grow
Each of the two MPPT controllers accepts up to 5000W at up to 550V open circuit. The 2700W array uses part of that, so you can add panels later without changing inverters.

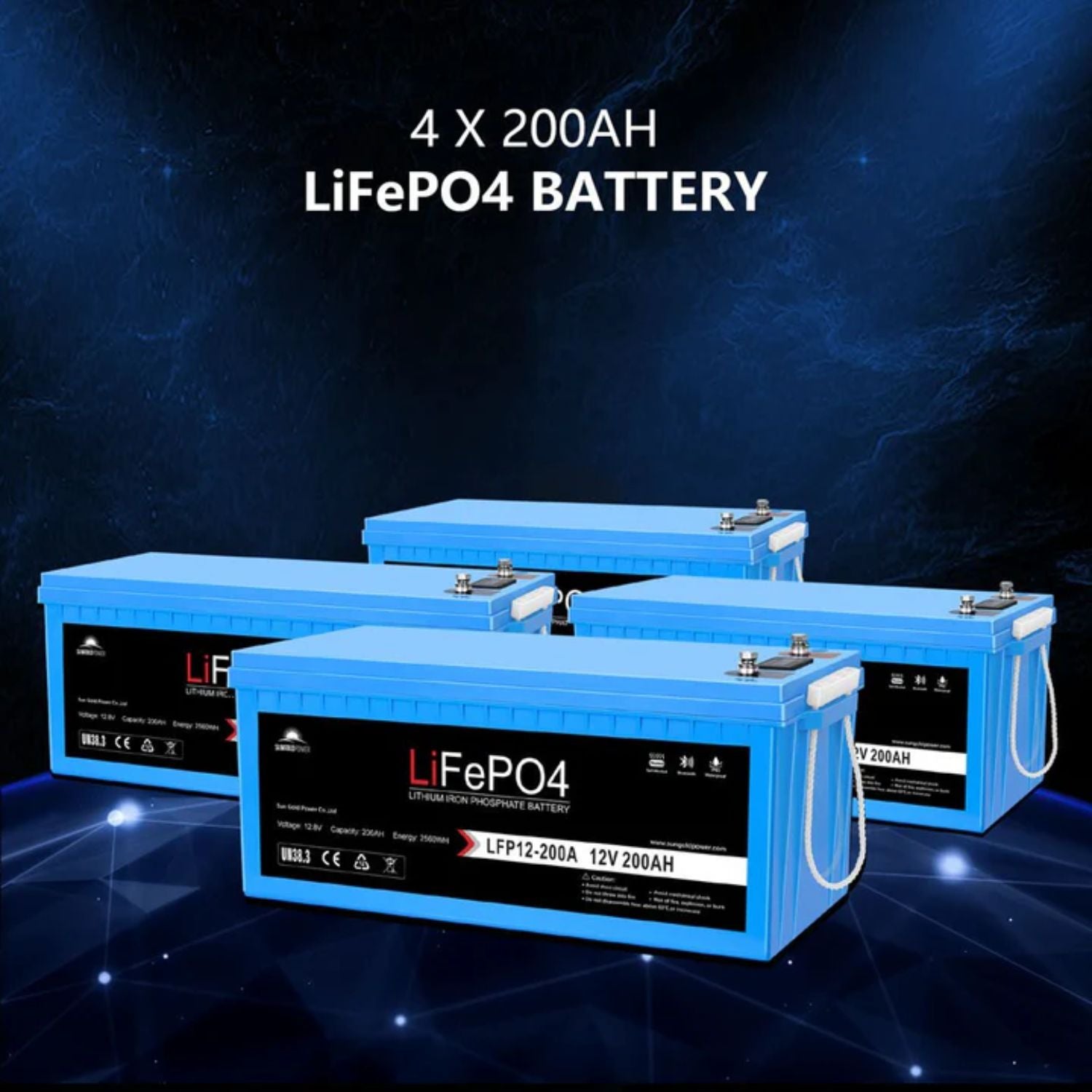

12V 200Ah Batteries Wired for 48V
Four 12V 200Ah batteries in series make the 48V bank. Each one stores 2560Wh, has a built-in 200A BMS and is rated IP65. SunGold rates the cells for 4000+ deep cycles.

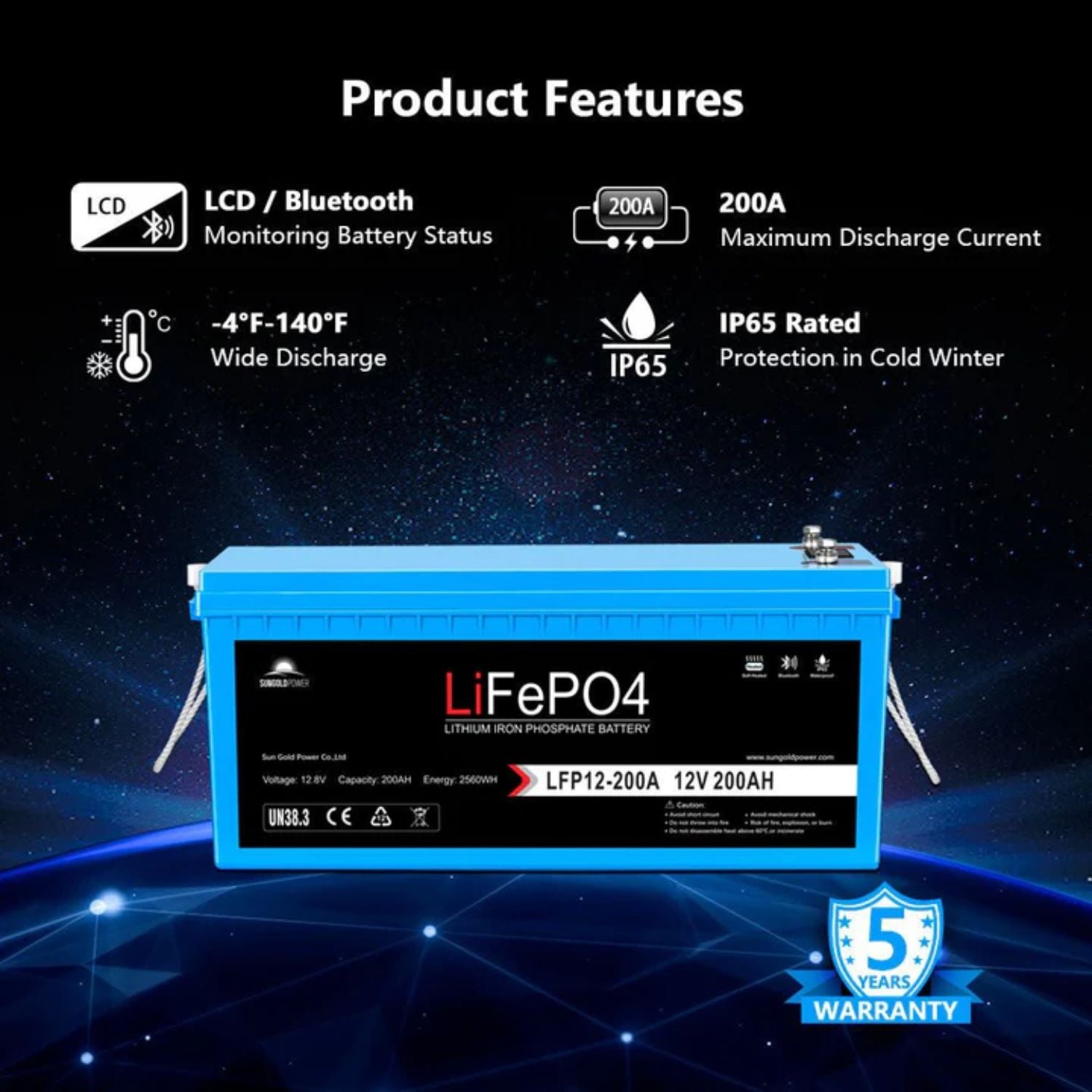

Self-Heating and Bluetooth on Each Battery
Each battery warms itself below 33.8°F (1°C) and stops at 42.8°F (6°C). An LCD shows voltage and state of charge, and Bluetooth sends battery data to the SGP Battery app on iOS or Android.

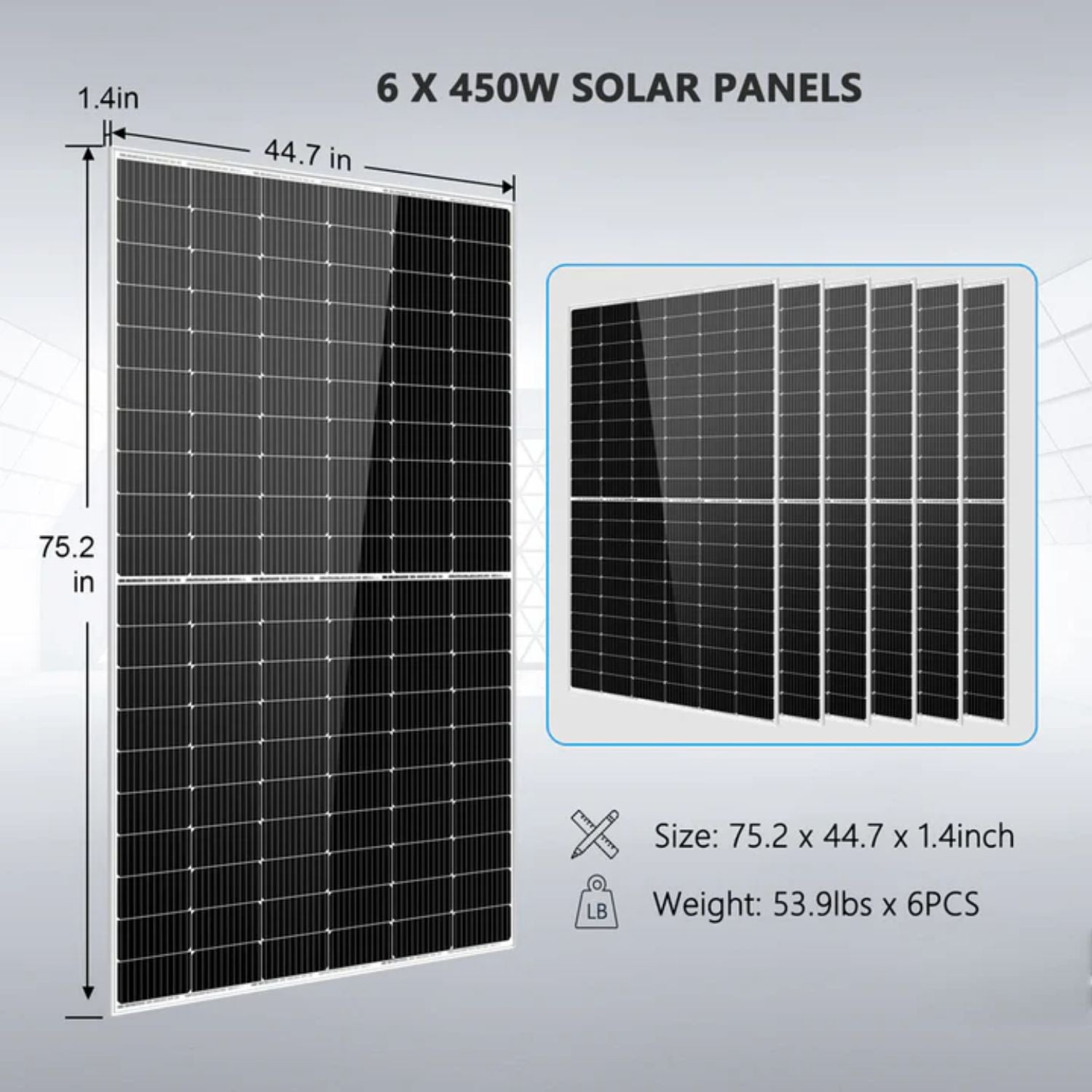

Six 450W PERC Panels
The SG450WM panels reach 20.79% module efficiency with 120 PERC cells, IP68 junction boxes and anodized aluminum frames.
80A Generator Charging, 140A Combined
Grid or generator power charges at up to 80A, and solar plus AC charging together reach 140A.
Room for Six Inverters in Parallel
Up to six units can run in parallel for up to 39KW, in single phase, split phase or 208V three phase.
Real-World Applications
Cabins used through winter. Self-heating batteries keep the bank ready to charge through winter.
Off-grid homes with 240V loads. Feed a split phase panel for 120V outlets and 240V circuits.
Shops and barns. Run 240V equipment and lighting from solar, with a generator as backup charging.
Future expansion. Add panels to the spare MPPT capacity, or add inverters in parallel.
How It Compares to Common Alternatives
Versus one large 48V battery. This bank uses four 12V batteries, each with its own Bluetooth, LCD and self-heating. A series bank does need matched, evenly charged batteries.
Versus pairing two 120V inverters. The 6500W inverter covers 240V circuits on its own, without a second unit.
Versus generator-only power. Solar and batteries carry the daily load, and the generator becomes a charging source at up to 80A.
Is This Solar Kit the Right Fit
-
Battery matching. SunGold says to fully charge each battery separately before connecting them, with no more than 0.1V difference, and not to mix new and old batteries.
-
Series limit. Up to four 12V batteries can be connected in series, which this kit already uses.
-
Indoor install. The inverter is rated IP20, for indoor use only.
-
PV wiring. Each MPPT input takes up to 18A and needs its own independent array.
-
Space. The inverter is 23.0 x 16.1 x 5.23 inches. Each battery is 19.7 x 9.4 x 9.1 inches.
This may be a good fit if
- You need 120V and 240V circuits
- You install in a cold climate
- You want Bluetooth on every battery
- You may add solar panels later
Common Questions
How Are the Four Batteries Connected?
In series, to make a 48V bank. SunGold limits series connections to 58.4V, which allows up to four 12V batteries.
Can the Batteries Charge in Cold Weather?
Charging is rated from -4°F to 113°F, and self-heating turns on below 33.8°F.
Can Two Inverters Share One Array?
No. In a parallel system each inverter, and each of its two PV inputs, needs its own independent array. All paralleled inverters connect to the same battery bank.
Is Wi-Fi Monitoring Included?
Wi-Fi is an optional external module for the inverter and is not in the kit list. Each battery has Bluetooth.

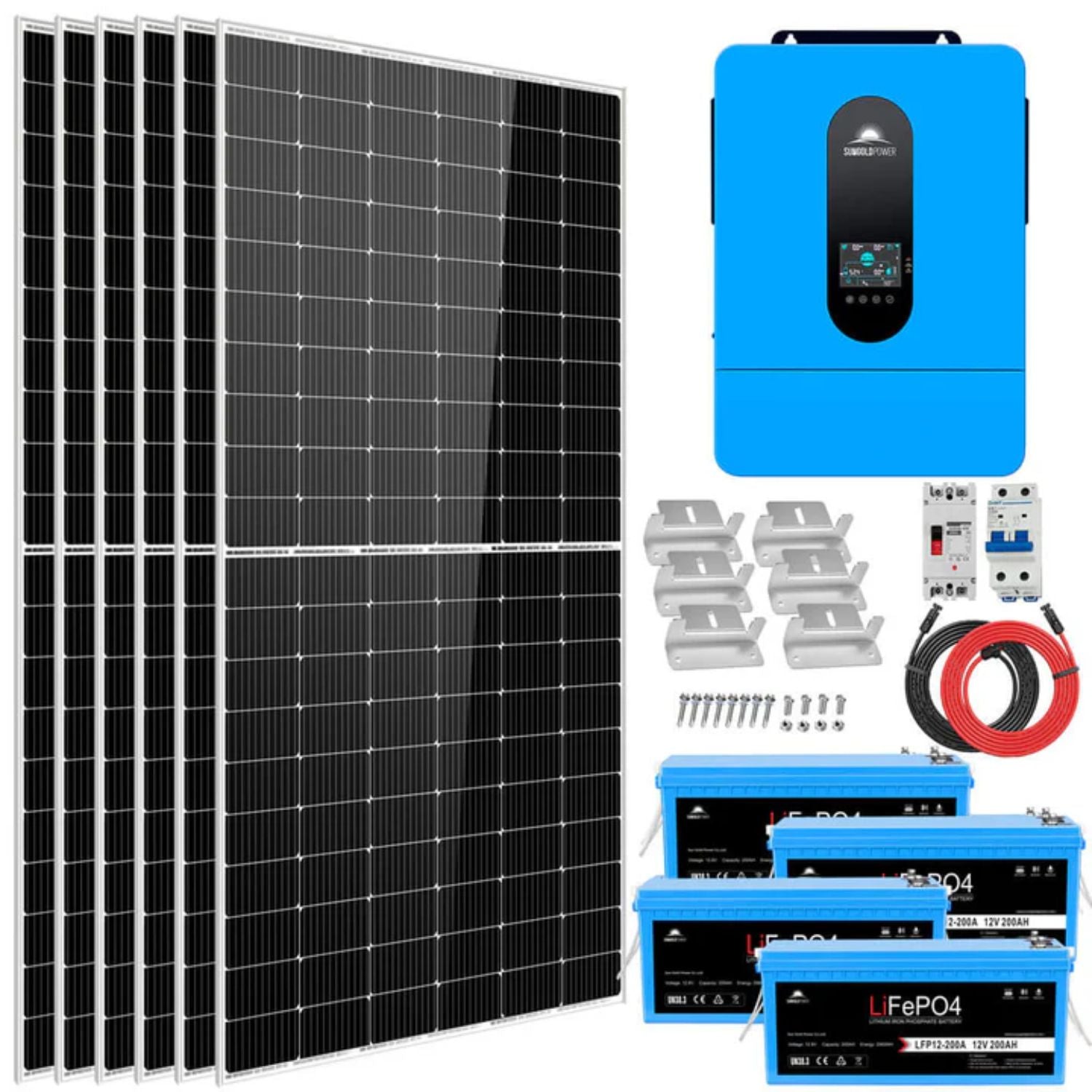

What's Included
- 1 x 6500W 48V DC 120V/240V AC Output Inverter
- 6 x 450W Monocrystalline Solar Panels
- 4 x 200Ah LiFePO4 Batteries With Bluetooth
- 6 x Sets of Mounting Z-Brackets
- 1 x 50 Feet Solar Extension Cables (Inverter PV Input)
- 1 x 160A DC Breaker
- 1 x 25A PV Breaker
- 1 Set x 1/0 AWG Cable (Breaker to Inverter Connection)
Split Phase Power With Cold-Ready Batteries
The SunGold Power 6.5kW 48VDC Off-Grid Solar Kit pairs 6500W of 120/240V power with 2700W of solar and a 10.24kWh bank of self-heating 12V batteries. At Outbound Power, we help customers plan split phase systems for homes, cabins and shops. If you have questions, our team is happy to help.
SunGold Power 6.5kW 48VDC Off-Grid Solar Kit (SGK-65PRO) Specifications
|
| Kit Summary |
| Kit Model |
SGK-65PRO |
| Inverter |
6500W 48V split phase solar inverter, 120/240Vac (SPH6548P) |
| Battery Bank |
4 x 12V 200Ah LiFePO4 batteries in series (10.24kWh total) |
| Solar Array |
6 x 450W monocrystalline panels (2700W total) |
| System Voltage |
48V DC |
| AC Output |
120/240Vac split phase or 120Vac single phase |
| Certifications |
Inverter UL 1741 by ETL for Off Grid Solar System; panels UL61730/CE/TUV |
| Inverter (SPH6548P) |
| Rated Output Power |
6500W |
| Max Peak Power |
13000VA |
| Rated Output Voltage |
120/240Vac (split phase/single phase) |
| Rated AC Frequency |
50/60Hz |
| Output Wave |
Pure sine wave |
| Switch Time |
10ms (typical) |
| Rated Battery Voltage |
48Vdc |
| Battery Voltage Range |
40Vdc-60Vdc |
| Battery Types |
Lithium-ion, lead-acid, user-defined |
| Max Mains/Generator Charging Current |
80A |
| Max Mixed Charge Current |
140A |
| MPPT Channels |
2 |
| Max PV Input Power |
5000W + 5000W |
| Max PV Input Current |
18A/18A |
| Max PV Open Circuit Voltage |
550Vdc + 550Vdc |
| MPPT Operating Voltage Range |
150Vdc-450Vdc |
| MPPT Tracking Efficiency |
99.9% |
| Max Battery Inverter Efficiency |
93% |
| Mains/Generator Input Range |
65VAC-140VAC |
| Bypass Overload Current |
40A |
| Parallel Operation |
Up to 6 units |
| Interfaces |
RS485/CAN/USB/dry contact |
| External Modules |
Wi-Fi/GPRS (optional) |
| Protection Level |
IP20, for indoor use only |
| Operating Temperature |
14-131°F, derating above 113°F (-10~55°C, derating above 45°C) |
| Noise |
<60dB |
| Dimensions |
23.0 x 16.1 x 5.23 inch (584.6 x 410 x 133mm) |
| Weight |
41.7lb (18.9kg) |
| Certification |
UL 1741 by ETL for Off Grid Solar System |
| Batteries (12V 200Ah LiFePO4, Each) |
| Nominal Voltage |
12.8V |
| Capacity |
200Ah |
| Energy |
2560Wh |
| Built-In BMS |
200A |
| Max Continuous Charge Current |
150A |
| Peak Discharge Current |
245A (15s) |
| Recommended Charge/Discharge Current |
100A |
| Voltage Window |
10.8-14.6V |
| Series Connection |
Up to four 12V batteries (58.4V max) |
| Cycle Life |
≥4000 (0.2C, 77°F, 80% DOD) |
| Operating Temperature |
Charge -4°F to 113°F, discharge -4°F to 131°F |
| Self-Heating |
On below 33.8°F (1°C), off at 42.8°F (6°C) |
| Monitoring |
LCD and Bluetooth (SGP Battery app) |
| IP Rating |
IP65 |
| Dimensions |
19.7 x 9.4 x 9.1 inch |
| Weight |
48.5LB |
| Solar Panels (SG450WM, Each) |
| Peak Power |
450W |
| Cells |
120 (6 x 20) PERC monocrystalline |
| Open Circuit Voltage (Voc) |
41.72V |
| Max Power Voltage (Vmp) |
34.2V |
| Max Power Current (Imp) |
13.16A |
| Short Circuit Current (Isc) |
13.82A |
| Module Efficiency |
20.79% |
| Max System Voltage |
1500V |
| Junction Box |
IP68 |
| Dimensions |
75.16 x 44.65 x 1.38 inch (1909 x 1134 x 35mm) |
| Weight |
54lbs (24.5kg) |
| Certifications |
UL61730, CE, TUV |
