The SunGold Power 60 Amp MPPT Solar Charge Controller Brings 250V PV Input and Bluetooth Monitoring to Mid-Size Solar Systems

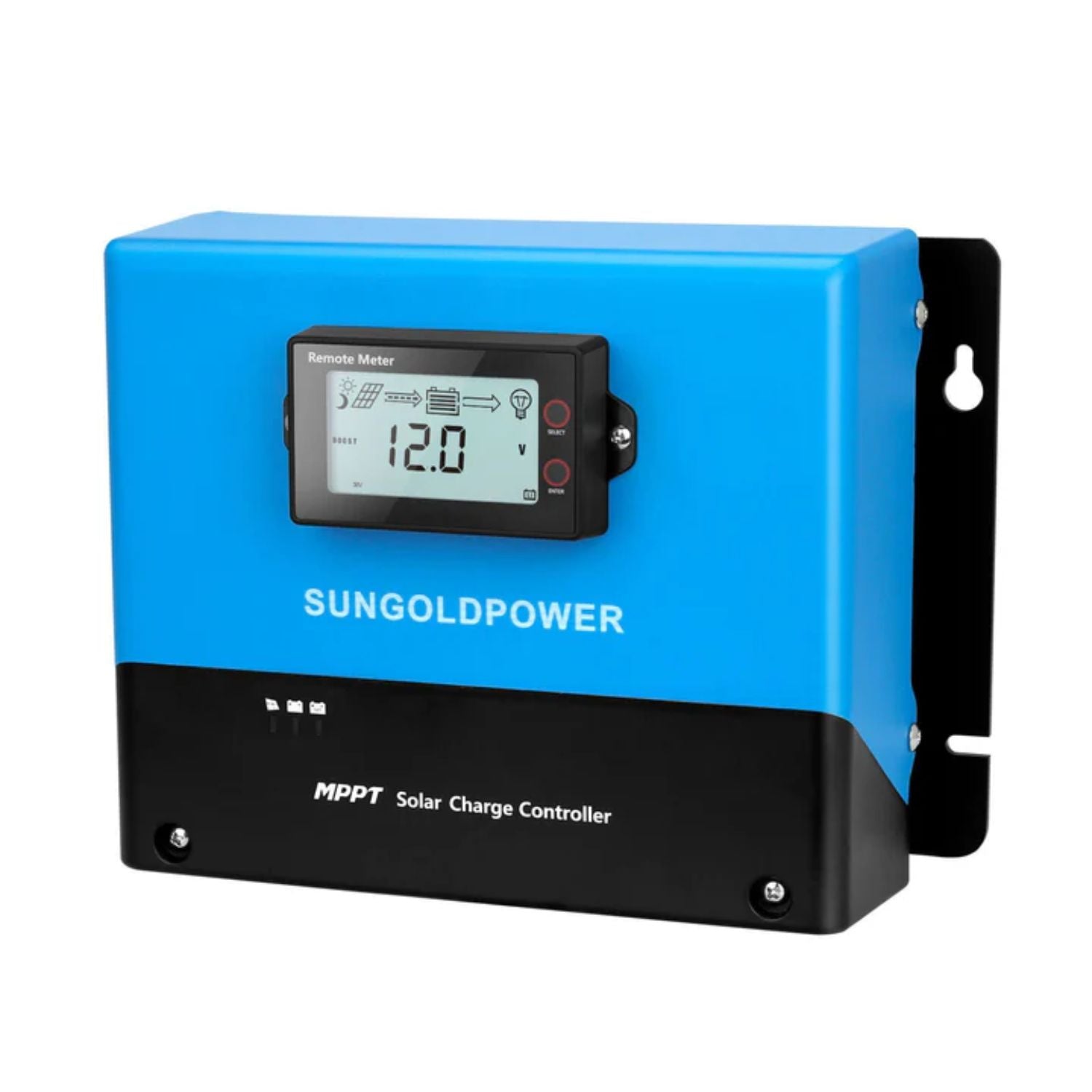

The SunGold Power 60 Amp MPPT Solar Charge Controller (model SGC482560A) charges battery banks from solar at up to 60A. It accepts up to 250V of open-circuit voltage from the array, handles up to 3200W of solar on a 48V system, and tracks the maximum power point at better than 99% efficiency.
This controller fits cabins, small homes, workshops, vans, RVs and boats with mid-size arrays. It supports 12V, 24V, 36V and 48V systems, so it can stay in place if you move to a higher battery voltage later.
SunGold Power 60 Amp MPPT Solar Charge Controller Features
60A Charging From 12V to 48V
Rated charge current is 60A, adjustable from 0 to 60A. Maximum solar input is 800W at 12V, 1600W at 24V and 3200W at 48V. If the array produces more than the controller can use, current-limited charging holds it at the rated current.
High-Voltage Solar Input
The PV input accepts up to 250V open-circuit, and the MPPT range runs from 2V above battery voltage up to 180V. Higher string voltage lets you wire panels in series, with a maximum PV input current of 40A.
99% MPPT Tracking
PowerCatcher tracking responds quickly to changes in sunlight and temperature. Tracking efficiency is above 99%, as high as 99.9%, and charging conversion efficiency reaches up to 98%.
Battery Presets and Custom Settings
Choose open, gel or sealed lead-acid, lithium iron phosphate at 12V, 24V, 36V or 48V, or a self-defined profile. Lead-acid profiles get temperature compensation from an optional battery temperature sensor, and lithium profiles skip it automatically.
LCD Screen and Phone App
The standard LCD shows system information, customizable parameters and error codes. A built-in Bluetooth 4.0 BLE module links to the Solar APP for real-time monitoring and settings from your phone.
Parallel Charging Through the LCD
To add charging capacity, run several controllers in parallel on one battery bank, each with its own solar array. Parallel mode and the unit address, from 00 to 99, are set right from the LCD buttons.
Built-In Protection
The controller protects against battery overcharge and over-discharge, PV reverse polarity, reverse charging at night, internal overtemperature and charge overcurrent. It also cuts the PV input if array voltage runs too high.
Real-World Applications
Cabins and tiny homes. Charge a 24V or 48V battery bank from a mid-size roof or ground array.
Vans, RVs and boats. Charge 12V or 24V house batteries from up to 800W or 1600W of solar.
Workshops and outbuildings. Run a stand-alone system with app monitoring and a programmable relay.
Growing systems. Add a second controller and array in parallel when you need more charging.
How It Compares to Common Alternatives
Versus PWM controllers. A PWM controller cannot keep the array at its maximum power point. SunGold says MPPT charging improves energy use by about 15% to 20%.
Versus the 70A version. SunGold's 70A model in this series handles 3680W at 48V. The 60A model handles 3200W at 48V.
Versus the 150V version. The 150V model in this series has a lower PV voltage limit and an MPPT range of up to 120V. The 250V model lets you build longer series strings.
Is This Solar Charge Controller the Right Fit
-
Battery bank. Supports 12V, 24V, 36V and 48V systems within a 9V to 64V battery range.
-
Solar array. Keep string open-circuit voltage at or below 250V and input current at or below 40A.
-
Location. The IP32 enclosure is for indoor use. Leave at least 150mm of clearance above and below for cooling.
-
Wiring. Use up to 7 AWG at the PV terminals and 5 AWG battery cable, and fit a fuse or breaker on each side. The battery terminals have no reverse polarity protection.
-

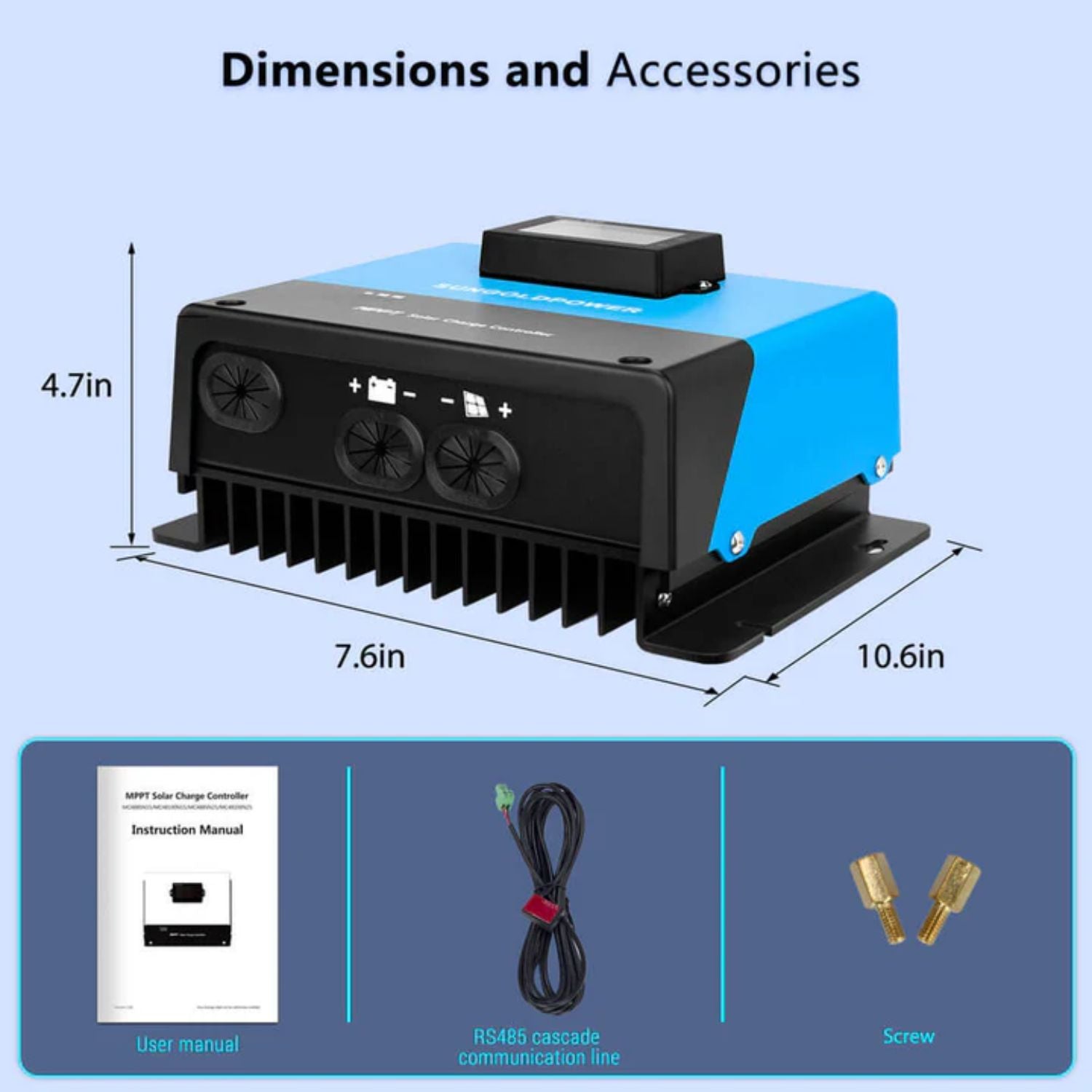

Size. It measures 266 x 194 x 119 mm and weighs 3.6 kg.
This may be a good fit if
- Your array is up to 3200W on a 48V system
- You want to wire panels in high-voltage strings
- You want phone monitoring over Bluetooth
- You use lithium or lead-acid batteries
Common Questions
What Battery Voltages Does It Support?
It supports 12V, 24V, 36V and 48V systems and can identify the system voltage automatically. A manual change to system voltage takes effect after a restart.
Can I Use It With Lithium Batteries?
Yes. It has lithium iron phosphate presets and a self-defined profile, and the lithium charge mode can help reactivate a battery after its BMS cuts off for overcharge.
Do I Need a Separate Monitor?
No. The LCD is standard, and the built-in Bluetooth module connects to the Solar APP on Android and iOS.
Where Should I Mount the Controller?
Mount it indoors in a well-ventilated spot away from direct sunlight and water, with at least 150mm of open space above and below.
What's Included
- 1 x SunGold Power 60 Amp MPPT Solar Charge Controller (SGC482560A)
Efficient Charging for Mid-Size Arrays
The SunGold Power 60 Amp MPPT Solar Charge Controller gives 12V to 48V systems 60A of MPPT charging, 250V PV input, an LCD and Bluetooth monitoring in one compact unit. At Outbound Power, we help customers size arrays, batteries and charge controllers for off-grid and mobile systems. If you have questions, our team is happy to help.
SunGold Power 60 Amp MPPT Solar Charge Controller Specifications
|
| General |
| Model |
SGC482560A |
| System Voltage |
12V/24V/36V/48V (automatic identification) |
| Rated Charge Current |
60A |
| Settable Charge Current |
0-60A |
| Battery Voltage Range |
9V~64V |
| Self-Consumption (No-Load Loss) |
0.54W |
| Solar Input |
| Maximum PV Open-Circuit Voltage |
250V |
| MPPT Voltage Range |
Battery voltage +2V to 180V |
| Maximum PV Input Current |
40A |
| Maximum PV Input Power |
800W (12V), 1600W (24V), 3200W (48V) |
| Efficiency |
| MPPT Tracking Efficiency |
>99% |
| Charging Conversion Efficiency |
Up to 98% |
| Battery Management |
| Battery Types |
Open lead-acid (FLD), colloidal/gel lead-acid (GEL), sealed lead-acid (SLD), lithium (LI, lithium iron phosphate by default), self-defined (USE) |
| Temperature Compensation |
-3mV/℃/2V (default, lead-acid); none for lithium |
| Battery Temperature Sampling |
External sensor input (25℃ default without sensor) |
| Battery Voltage Sampling |
Voltage compensation wire input |
| Communication and Control |
| Communication |
TTL / isolated RS485 (Modbus), baud rate 9600 |
| Bluetooth |
Built-in Bluetooth 4.0 BLE module |
| App |
Solar APP (Android and iOS) |
| Display |
LCD (standard) |
| Programmable Relay |
DPST, 10A/250VAC, 10A/30VDC |
| Parallel Operation |
Supported via RS485, address 00~99 set on the LCD |
| Protection |
| Protection Functions |
Battery overcharge, battery over-discharge, PV reverse polarity, reverse charge at night, controller overtemperature, charge overcurrent, PV overvoltage cutoff |
| Battery Reverse Polarity Protection |
Not provided |
| Protection Grade |
IP32 |
| Physical and Environmental |
| Operating Temperature |
-35℃ to +65℃ (no derating within 40℃) |
| Elevation |
≤3000m |
| Dimensions |
266 x 194 x 119 mm (10.5 x 7.6 x 4.7 in) |
| Mounting Hole Spacing |
246 x 118 mm |
| Weight |
3.6 kg (7.9 lb) |
| Maximum PV Wire Size |
10mm² / 7 AWG |
| Battery Wire Size |
15mm² / 5 AWG |
| Terminal Wire Range |
20-2 AWG |
