The SunGold Power 6kW 24VDC Off-Grid Solar Kit Runs 120V and 240V Appliances From a 24V Lithium Bank and 2220W of Solar
The SunGold Power 6kW 24VDC Off-Grid Solar Kit (SGK-PRO62) pairs a 6000W low-frequency split phase inverter charger with six 370W mono black panels, a separate 100A MPPT solar charge controller and four 24V 100Ah LiFePO4 batteries. Wired in parallel, the batteries store 10.24kWh at 24V, and the inverter delivers both 120V and 240V output.
SunGold built this package for mid-sized off-grid homes and remote cabins that run on a 24V battery bank. Mounting brackets, a PV breaker, a 300A DC breaker, a 400A busbar and the main cable sets are part of the kit, so the core hardware arrives together.
SunGold Power 6kW 24VDC Off-Grid Solar Kit Features

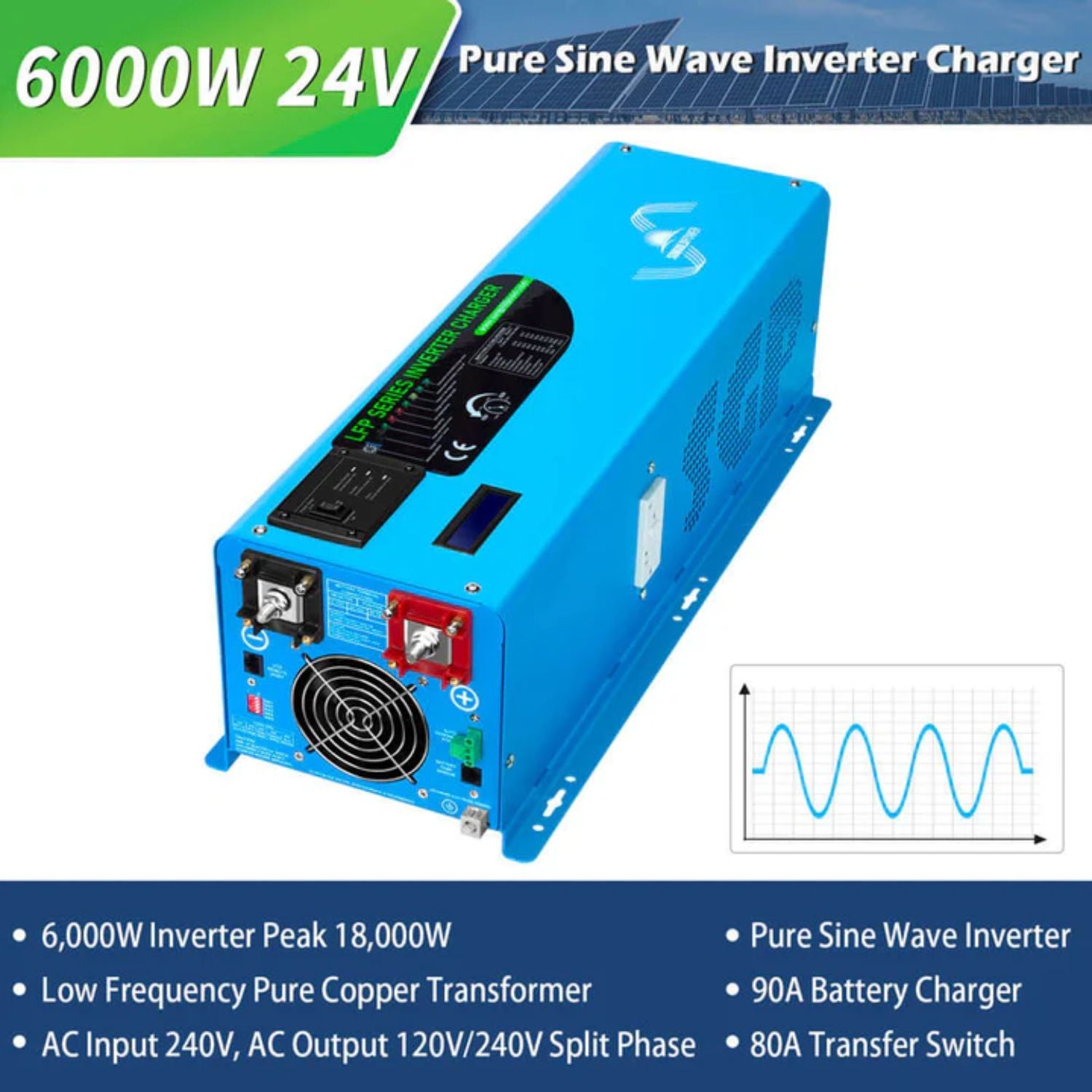

6000W Low-Frequency Split Phase Inverter
The LFP6K24V240VSP combines a 6000W pure sine wave inverter, a battery charger and an AC auto-transfer switch in one unit. It is rated for an 18000W surge for 20 seconds, which gives motor loads room to start. Each 120V leg carries up to 3000W, and 240V loads can use the full 6000W.

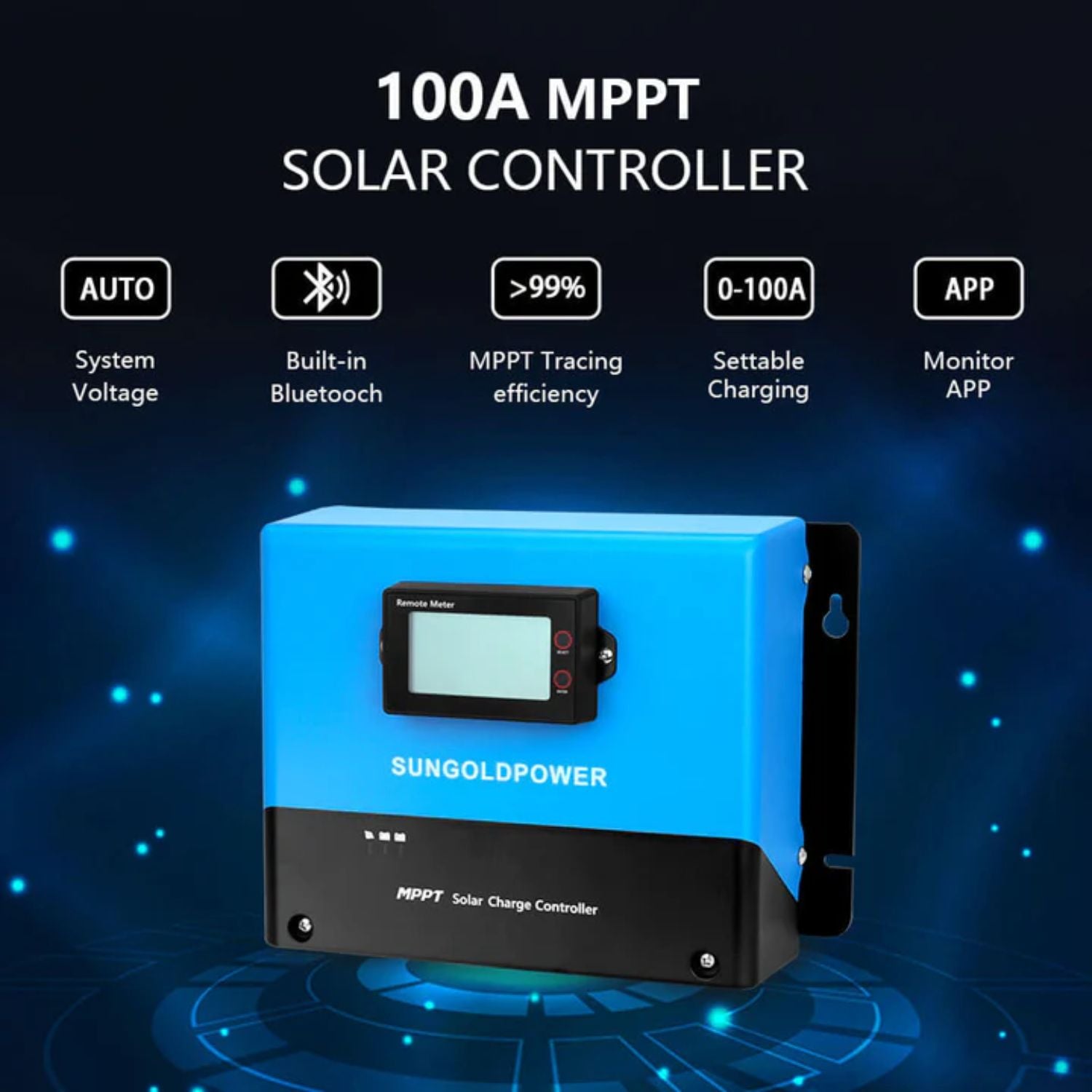

Dedicated 100A MPPT Charge Controller
Solar charging runs through the SGC4825100A controller, not the inverter. On a 24V system it accepts up to 2640W of panels and up to 250V open circuit. The six panels run as one series string, so the 2220W array fits inside that limit. A built-in Bluetooth module lets you check charging from a phone app.

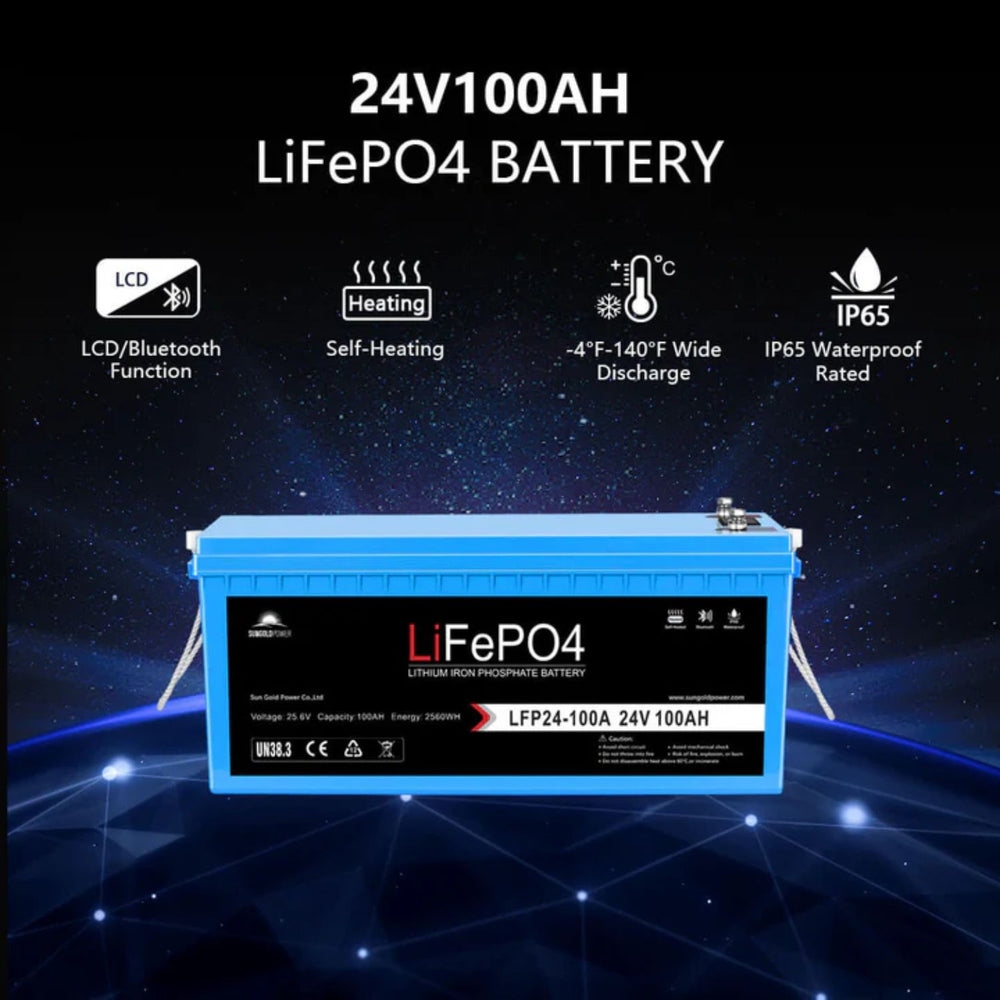

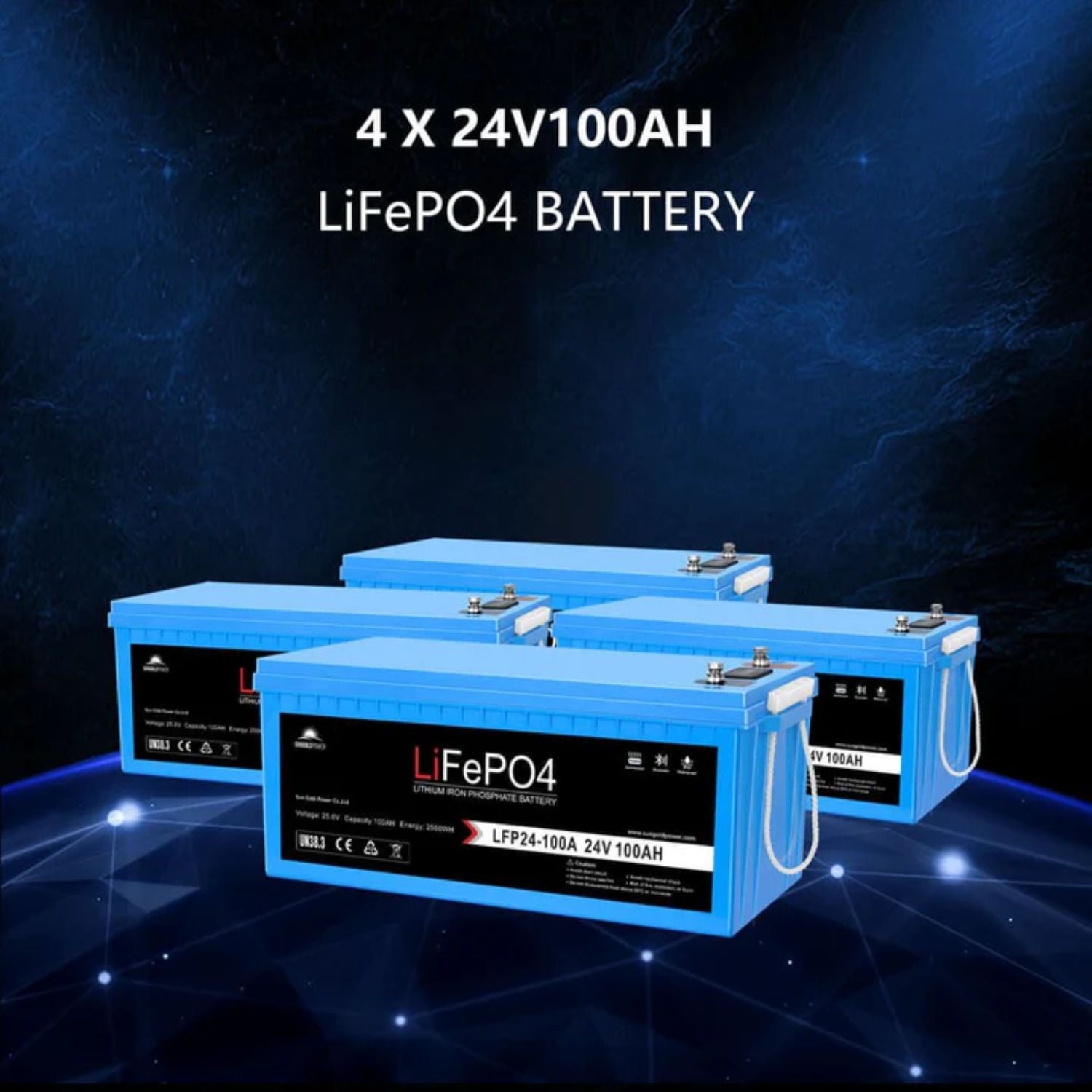

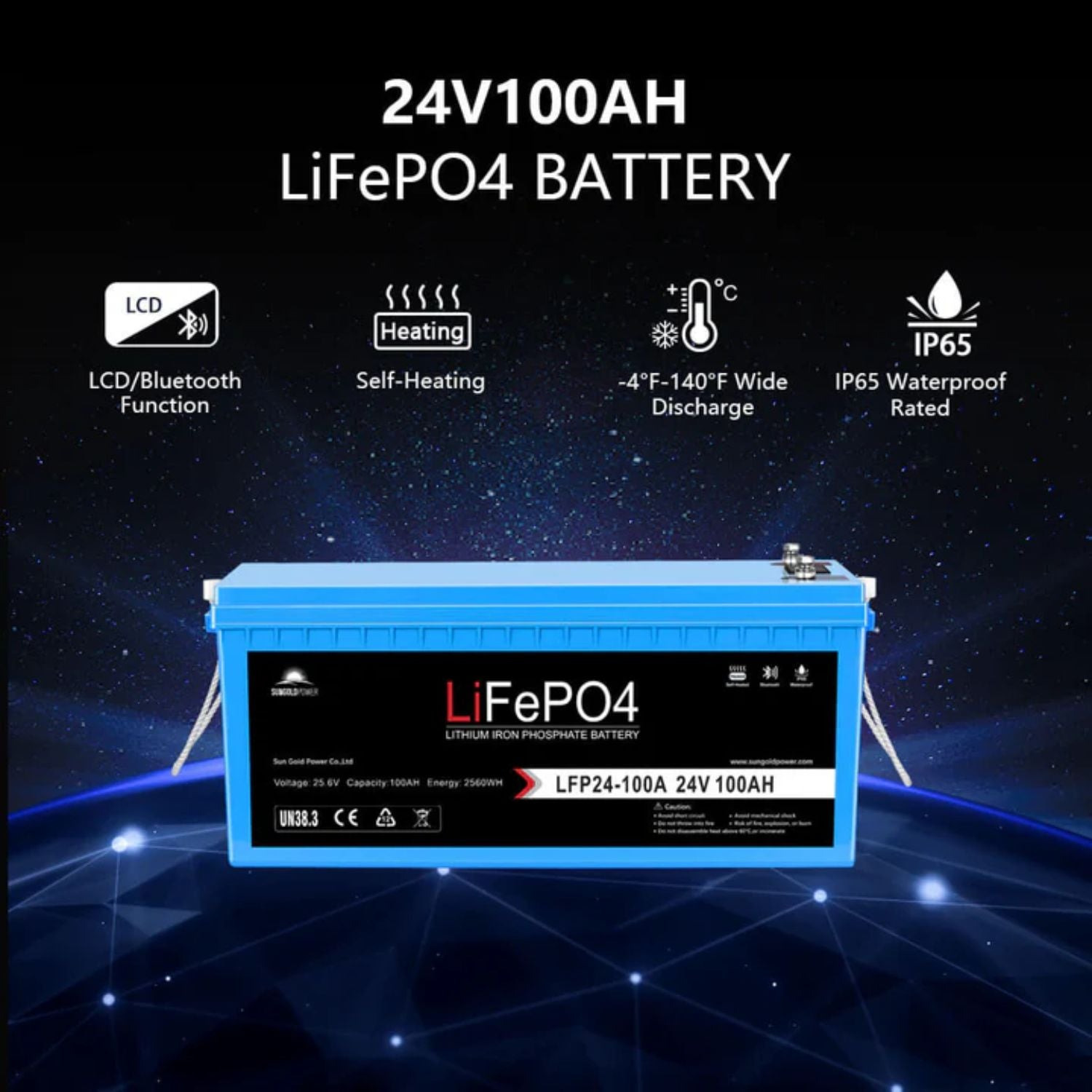

Four Self-Heating 24V Lithium Batteries
Each 25.6V 100Ah battery holds 2560Wh and has a 100A BMS, an LCD and Bluetooth monitoring. Below 33.8°F the batteries warm themselves and stop heating at 42.8°F, so they stay ready to charge in cold weather. The cases are IP65 rated, and each battery is rated for at least 4000 cycles at 80% depth of discharge.

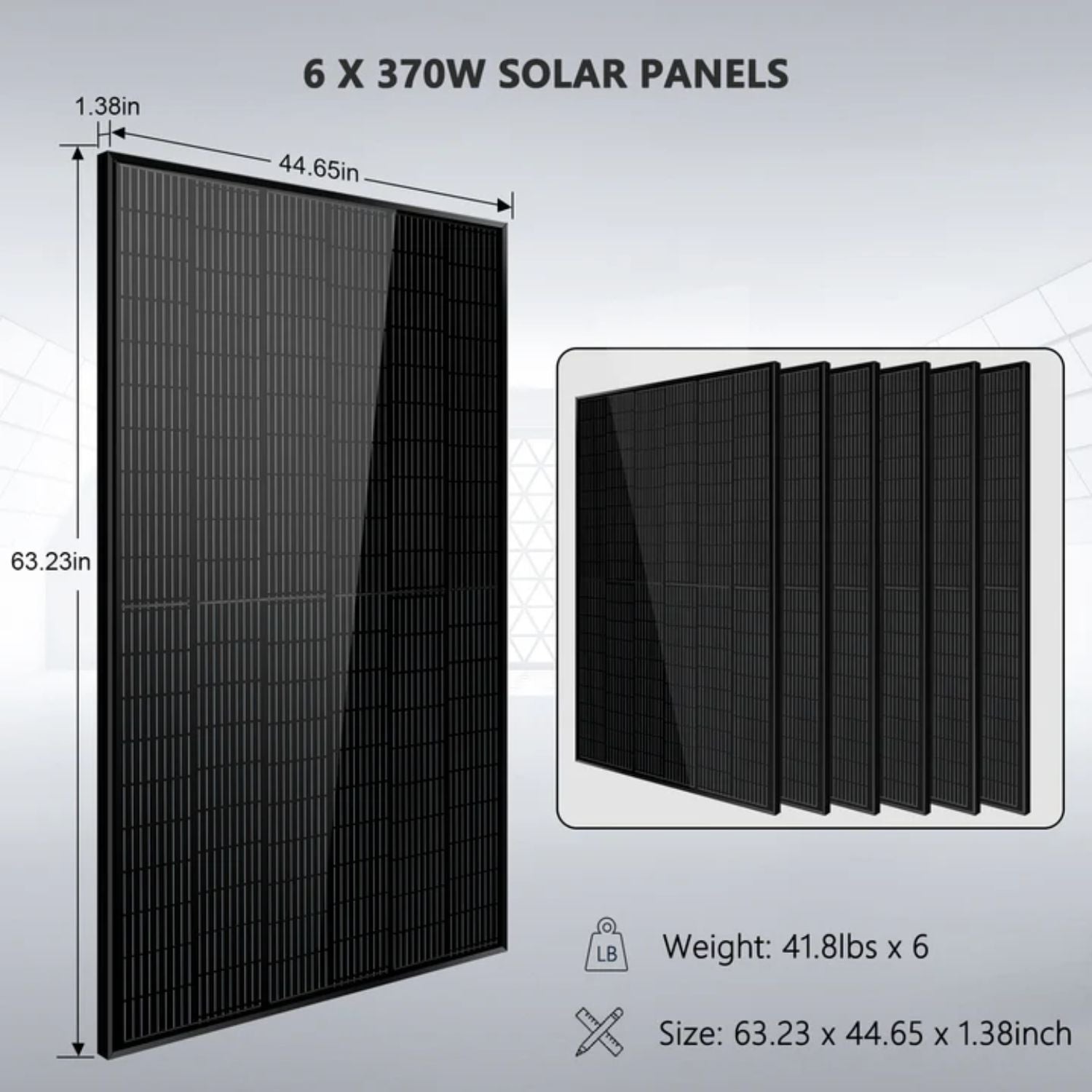

Mono Black 370W Panels
The SG370WM panels use 182mm mono half-cells in an all-black design, with 20.31% module efficiency. IP68 junction boxes and load ratings of 5400Pa for snow and 2400Pa for wind suit year-round outdoor mounting.
90A Charging From Grid or Generator
The built-in three-stage charger refills the bank at up to 90A from a 240V grid or generator input. You can set the charge current from off to 100% and pick from nine battery type settings.
Automatic Generator Start
The inverter can start a generator when battery voltage runs low and shut it off once charging is finished. It runs in AC priority by default, and a switch sets battery priority if you would rather use stored solar first.
Real-World Applications
Remote cabins. Run lights, outlets and a 240V appliance from solar and stored lithium power.
Mid-sized off-grid homes. Feed a 120/240V panel from a 24V battery bank with 10.24kWh of storage.
Generator-backed sites. Let auto generator start top up the batteries after a run of cloudy days.
Cold-weather locations. Self-heating batteries help the bank accept a charge through winter.
How It Compares to Common Alternatives
Versus an all-in-one solar inverter. Here the inverter and solar controller are separate units. The low-frequency inverter handles AC loads and charging, while the MPPT controller handles the panels on its own.
Versus a 48V kit. We also carry a 48V version of this kit. This 24V version suits sites that already run 24V equipment or prefer a 24V bank.
Versus lead-acid storage. These LiFePO4 batteries add a built-in BMS, Bluetooth monitoring and self-heating, with no watering or equalizing to manage.
Is This Solar Kit the Right Fit
-
Battery voltage. The inverter and batteries are built for a 24V system.
-
AC input. The charger needs a 240V grid or generator input.
-
Solar headroom. On 24V the controller takes up to 2640W, so a much larger array would need a second controller in parallel.
-
Battery cables. Plan to supply the short cables from each battery to the busbar, sized for your site.
-
Space. The inverter measures 25.6 x 9.1 x 7.5 inches and weighs 76.7 pounds.
This may be a good fit if
- You want 120V and 240V output from a 24V system
- You have a generator for backup charging
- Your site sees freezing temperatures
- You prefer a separate inverter and solar controller
Common Questions
Does the Inverter Provide Both 120V and 240V?
Yes. Split phase output gives you two 120V legs. Each leg carries up to 3000W, and a 240V load can draw the full 6000W.
How Do the Panels Connect?
The six panels run in series through the 25A PV breaker to the 100A MPPT controller, which charges the battery bank. The inverter then draws from the batteries through the 300A breaker.
Will the Batteries Charge in Freezing Weather?
Each battery has a self-heating function that turns on below 33.8°F and turns off at 42.8°F, which helps it accept a charge in cold conditions.
Can I Watch the System From My Phone?
Yes. The MPPT controller and each battery have Bluetooth, so you can check solar charging and battery status from a mobile app.
What's Included
- 1 x 6000 Watt 24V DC 120V/240V Inverter/Charger
- 6 x 370 Watt Monocrystalline Solar Panels
- 4 x 24V 100Ah LiFePO4 Battery With Bluetooth
- 1 x 100A MPPT Solar Charge Controller
- 1 Set x 50 Feet Solar Extension Cables (Inverter PV Input)
- 1 Set x Cable Between Battery and MPPT Controller
- 6 x Sets of Mounting Z-Brackets
- 1 x 300A DC Breaker
- 1 x 25A PV Breaker
- 2 Sets x 2/0 AWG Cables (Breaker to Battery or Inverter Connection)
- 1 Set x 400A Busbar
A Complete 24V System With Split Phase Output
The SunGold Power 6kW 24VDC Off-Grid Solar Kit brings together a 6000W split phase inverter, 2220W of solar, a 100A MPPT controller and 10.24kWh of self-heating lithium storage on one 24V system. At Outbound Power, we help customers size arrays, battery banks and inverters for cabins and off-grid homes. If you have questions, our team is happy to help.
SunGold Power 6kW 24VDC Off-Grid Solar Kit (SGK-PRO62) Specifications
|
| Kit Summary |
| Kit Model |
SGK-PRO62 |
| Inverter |
1 x 6000W 24V DC 120V/240V low frequency inverter charger (LFP6K24V240VSP) |
| Solar Charge Controller |
1 x 100A MPPT (SGC4825100A) |
| Battery Bank |
4 x 24V 100Ah LiFePO4 in parallel (10.24kWh) |
| Solar Array |
6 x 370W monocrystalline panels in series (2220W) |
| System Voltage |
24V DC |
| AC Output |
120V and 240V split phase |
| Solar Panel Certificates |
UL61730/CE/TUV |
| Inverter (LFP6K24V240VSP) |
| Continuous Output Power |
6000W |
| Surge Rating |
18000W (20 seconds) |
| AC Output |
AC 120V and AC 240V |
| AC Input |
240V |
| AC Input Range (Grid or Generator) |
140V-270VAC / 184V-253VAC (select by SW2) |
| Output Wave |
Pure sine wave |
| Typical Transfer Time |
10ms (max) |
| Nominal Efficiency |
>88% |
| Nominal Input Voltage |
24.0Vdc |
| Minimum Start Voltage |
20.0Vdc |
| Idle Consumption |
77W |
| Power Saver Mode Idle Consumption |
29W |
| Charger Rate |
90+/-5A, 3-step, adjustable off/0%-100% |
| Battery Type Settings |
9 |
| Other Features |
Automatic generator start, AC/battery priority selector, LCD display, remote control, BTS cable |
| Unit Size |
25.6 x 9.1 x 7.5 inch |
| Unit Weight |
76.7LB |
| Solar Charge Controller (SGC4825100A) |
| Rated Charge Current |
100A |
| System Voltage |
12V/24V/36V/48V auto-detect |
| Max PV Input Power |
2640W at 24V |
| Max PV Open-Circuit Voltage |
250V |
| MPPT Tracking Efficiency |
>99% |
| Self-Consumption |
0.54W |
| Communication |
Bluetooth 4.0 BLE, TTL/isolated RS485 |
| Protection Grade |
IP32 |
| Operating Temperature |
-35°C to +65°C |
| Product Size |
12.4 x 8.9 x 4.8 inch |
| Weight |
12.5 lb |
| Batteries (24V 100Ah LiFePO4, x4) |
| Nominal Voltage |
25.6V |
| Nominal Capacity |
100Ah |
| Energy |
2560Wh each |
| Recommended Connection |
In parallel |
| Voltage Window |
21.6-29.2V |
| Built-In BMS |
100A |
| Max Continuous Charge Current |
100A |
| Peak Discharge Current |
200A ±3A (10s) |
| Recommended Charge / Discharge Current |
50A / 50A |
| Cycle Life |
≥4000 (0.2C, 77°F, 80% DOD) |
| Operating Temperature |
Charge -4°F to 113°F, discharge -4°F to 131°F |
| Self-Heating |
On below 33.8°F (1°C), off at 42.8°F (6°C) |
| Monitoring |
LCD and Bluetooth |
| IP Rating |
IP65 |
| Dimensions |
20.7 x 9.4 x 8.7 inch |
| Weight |
45lb |
| Solar Panels (SG370WM, x6) |
| Peak Power |
370W |
| Max Power Voltage (Vmp) |
33.2V |
| Max Power Current (Imp) |
11.15A |
| Open Circuit Voltage (Voc) |
40.17V |
| Short Circuit Current (Isc) |
11.81A |
| Module Efficiency |
20.31% |
| Cells |
120 (6 x 20) mono 182mm half-cells |
| Max System Voltage |
1500V |
| Mechanical Load |
5400Pa snow, 2400Pa wind |
| Junction Box |
IP68 |
| Operating Temperature |
-40°F to 185°F (-40°C to +85°C) |
| Dimensions |
63.23 x 44.65 x 1.38 inch (1606 x 1134 x 35mm) |
| Weight |
41.8lbs (19.0kg) |
