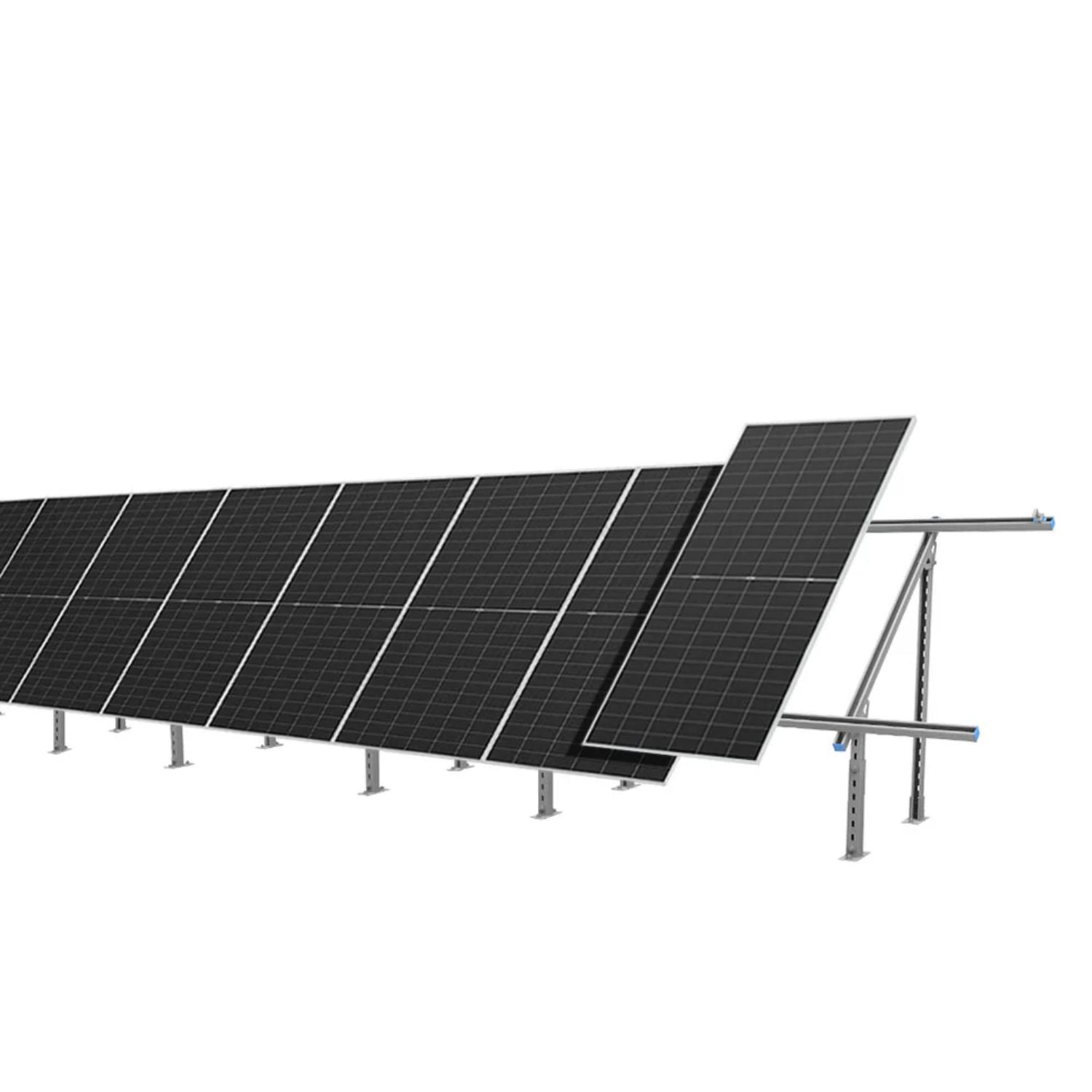

The SunGold Power Modular & Expandable Ground Mount Brackets Hold Two 400W–590W Solar Panels at an Adjustable 20° to 40° Tilt
The SunGold Power Modular & Expandable Ground Mount Brackets are a coated steel rack for two solar panels from 400W to 590W. The tilt adjusts from 20° to 40°, and the kit includes the rails, clamps, bolts and tools to build one two-panel array.
It is for homeowners, DIY builders and installers putting panels on the ground, a flat roof, a cabin or an off-grid shed. Two kits join to make a four-panel row, and more racks can connect as your array grows.
SunGold Power Modular & Expandable Ground Mount Brackets Features
Two Large Panels per Rack
Each rack holds two panels rated 400W to 590W. It fits panels 970 to 2279 mm long and 30 or 35 mm thick, and SunGold lists it for its own panels and most standard panels from other brands.

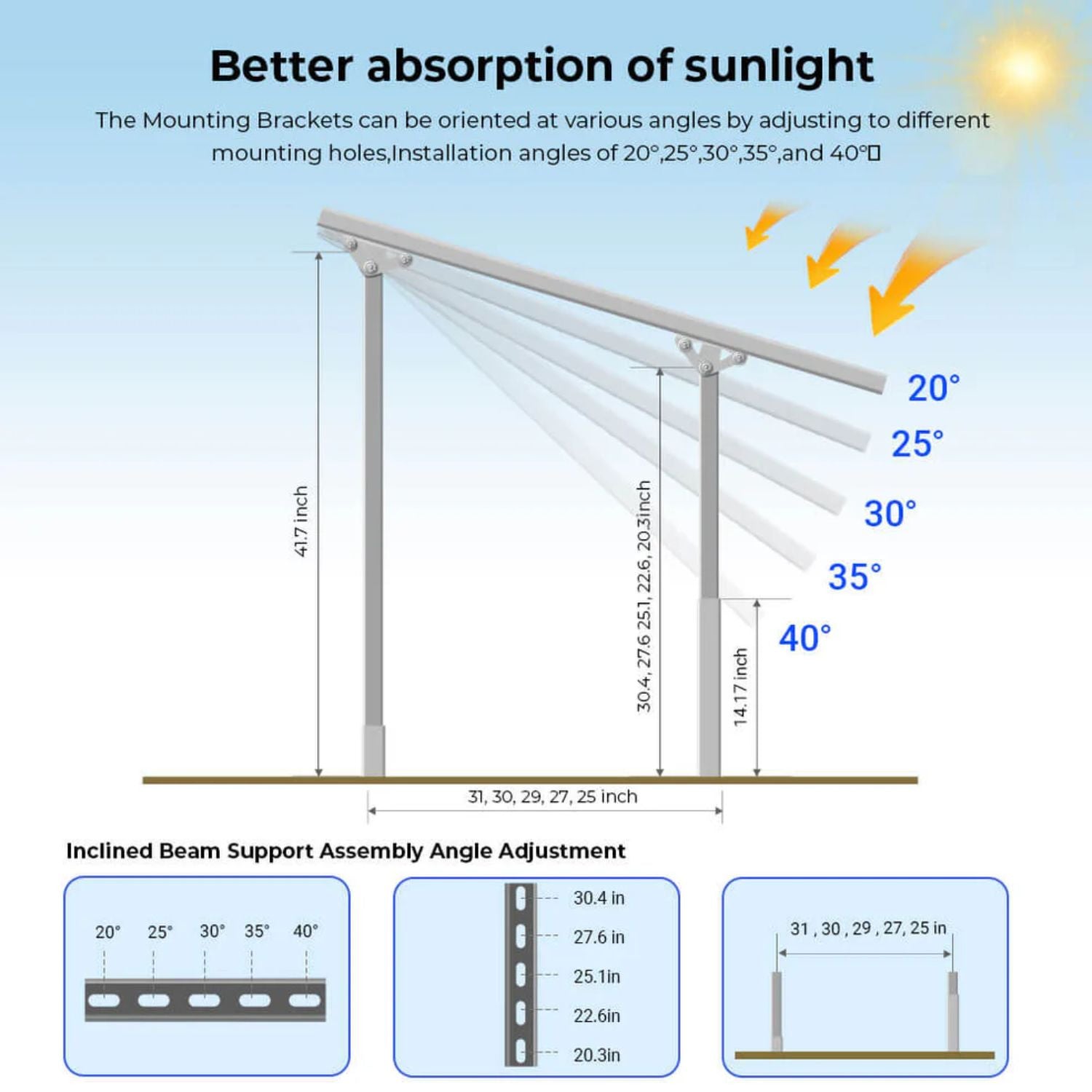

Adjustable 20° to 40° Tilt
Set the panels at 20°, 25°, 30°, 35° or 40° by adjusting the front column height and moving the front base. That lets you match the angle to your latitude and season.

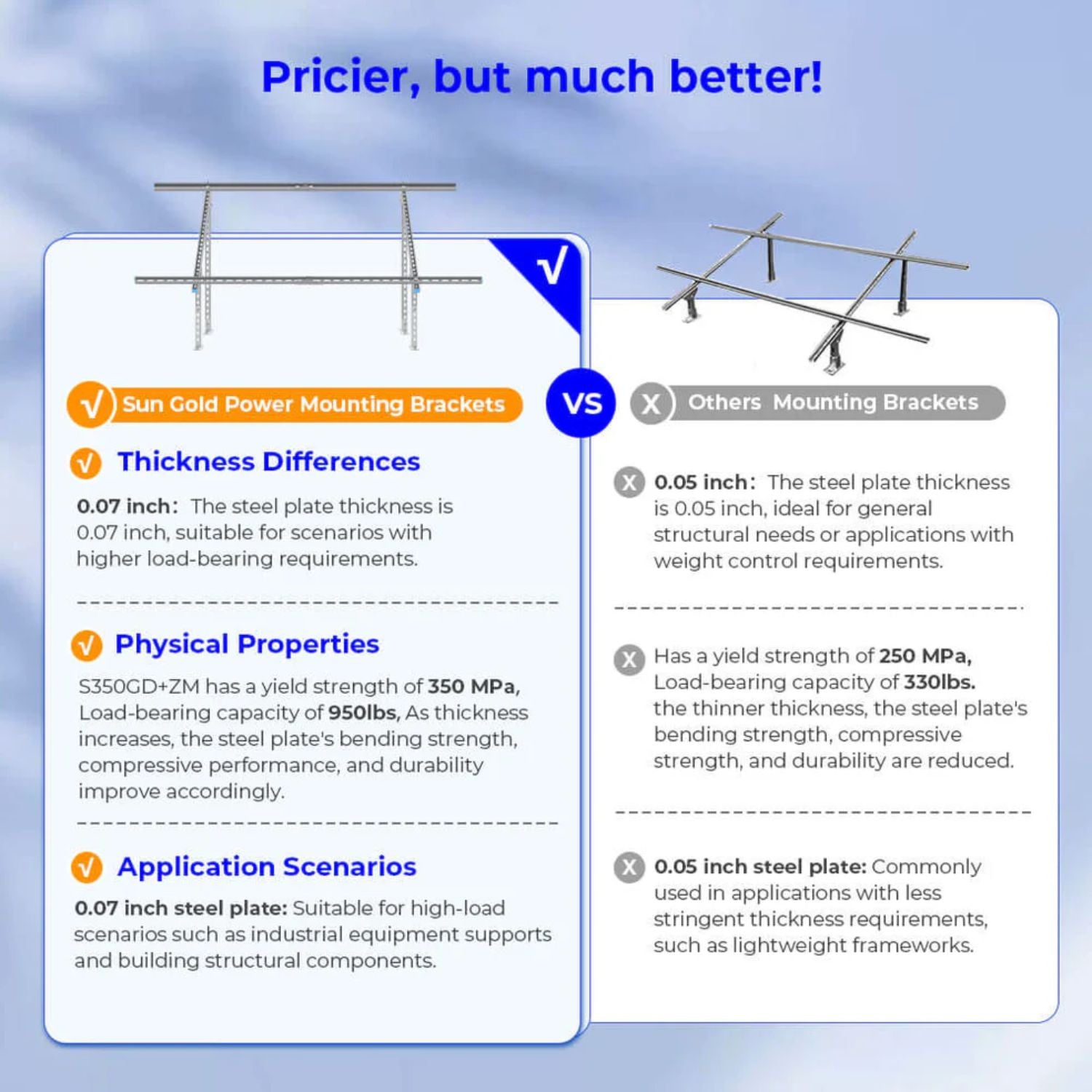

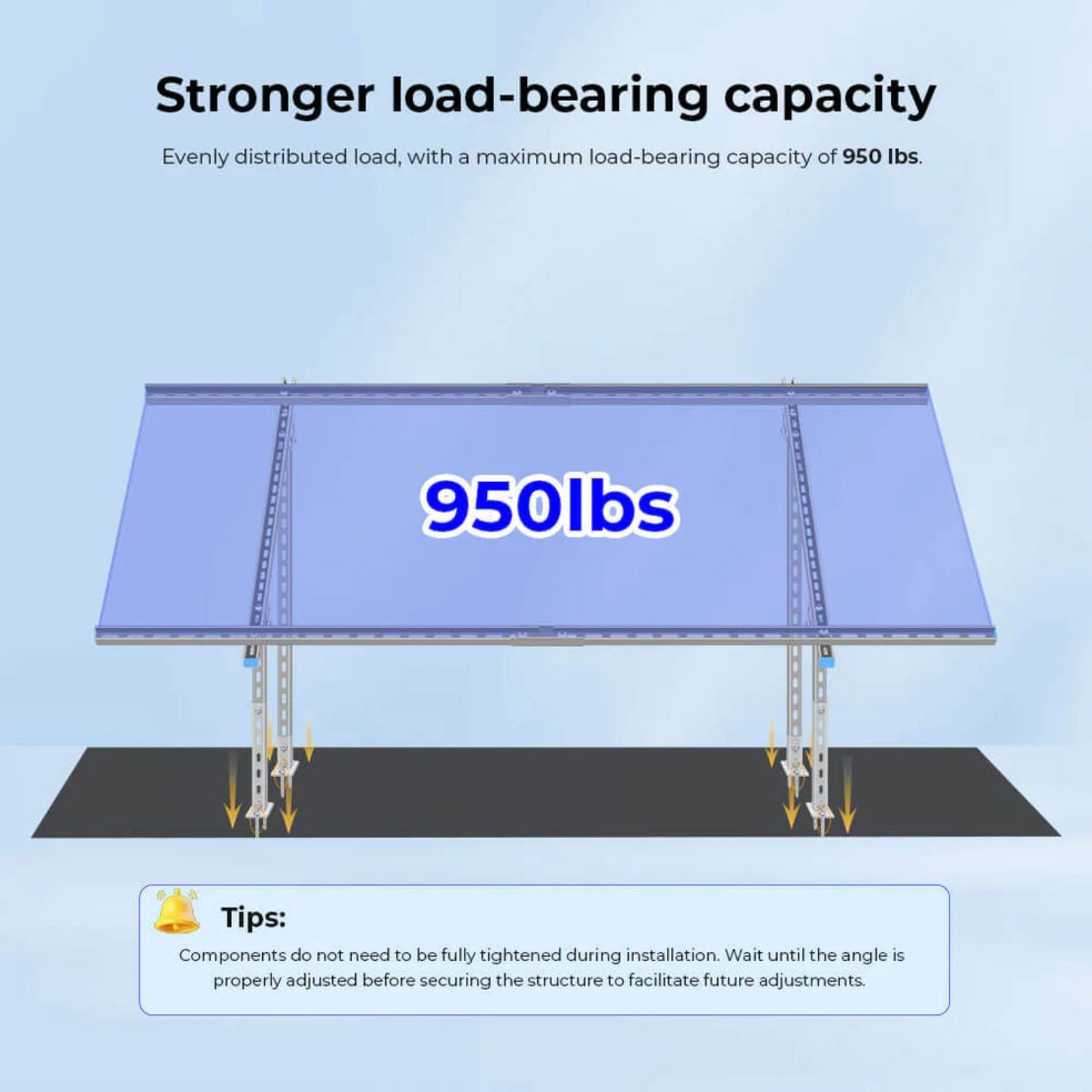

Coated Steel for Wind and Snow
The main structural parts are S350GD magnesium-aluminum-zinc coated steel, which offers high strength and corrosion resistance. SunGold designs the rack, with its reinforced load-bearing structure, for outdoor use with wind and snow loads.

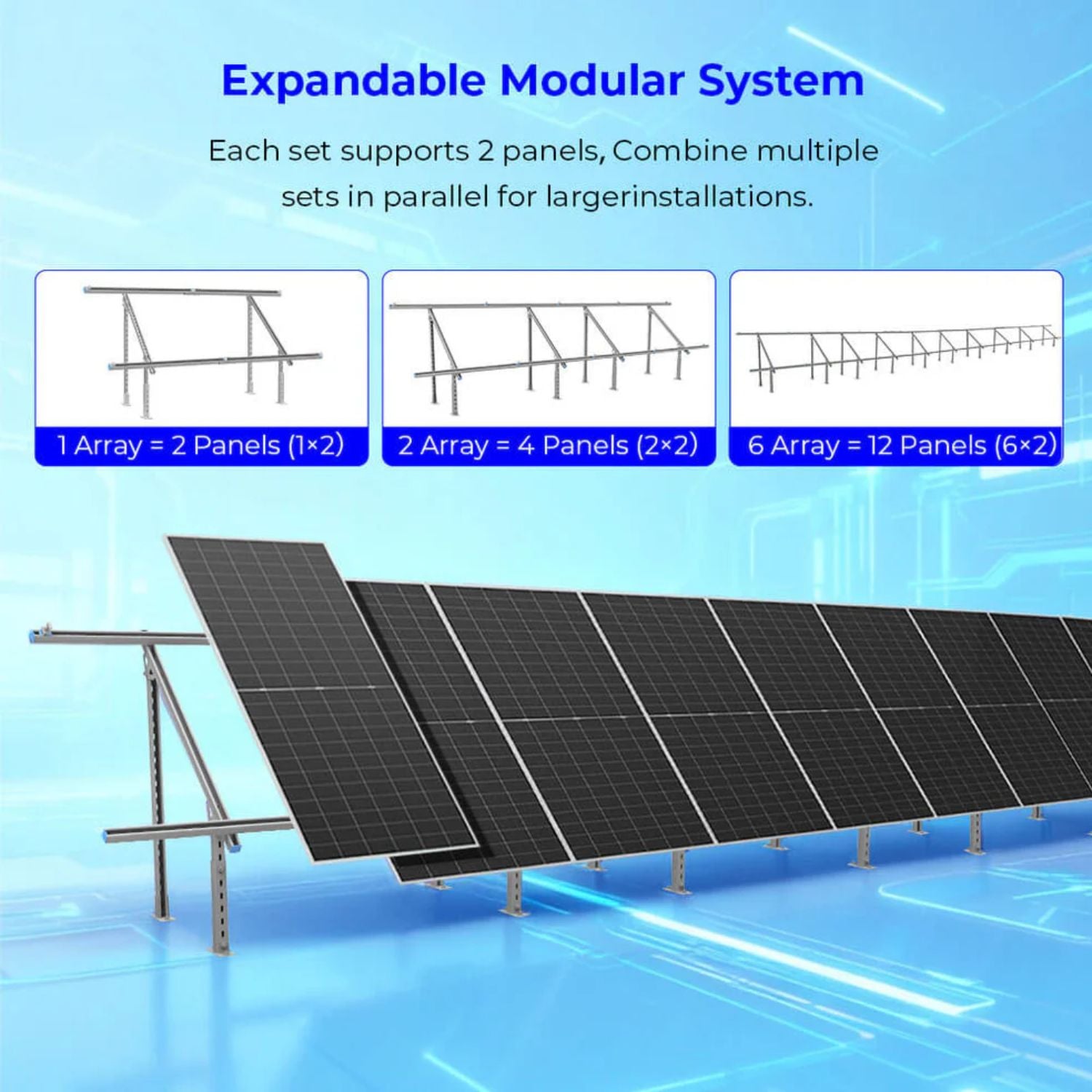

Modular and Expandable
The standard kit builds a 1x2 array. Two kits combine into a 1x4 array for four panels, and multiple racks can connect to scale the array as your power needs grow.
Pre-Drilled and Semi-Assembled
Pre-drilled holes and pre-installed triangular connectors cut the work on site. The kit also comes with 6mm and 8mm Allen wrenches and a 15-17mm hex wrench.

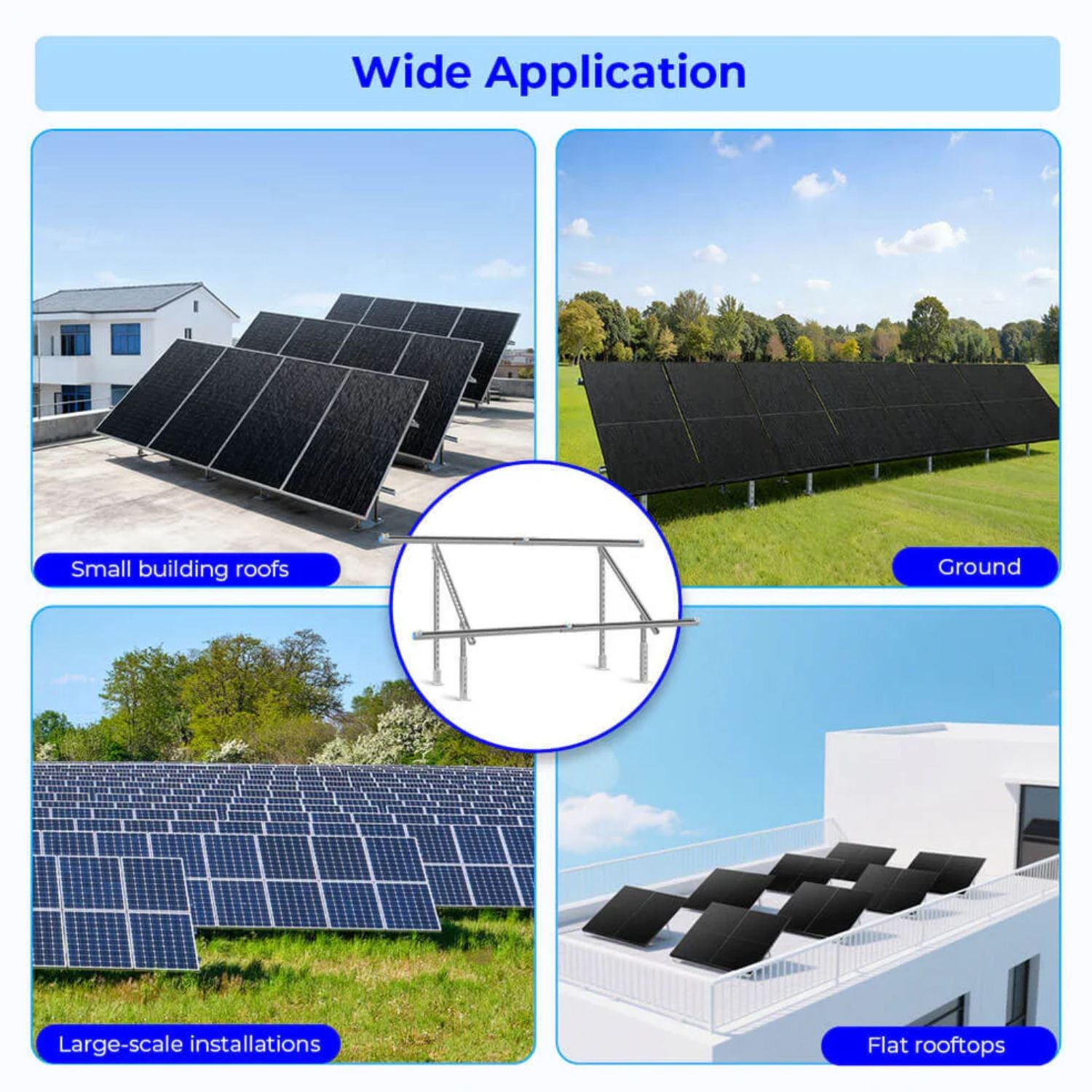

Real-World Applications
Backyard arrays. Set up two panels on the ground in your yard.
Flat roofs. Tilt panels toward the sun on a flat roof.
Cabins and sheds. Power an off-grid cabin or shed with its own array.
Growing systems. Start with two panels and add racks later.
How It Compares to Common Alternatives
Versus flush roof mounts. A flush mount holds panels flat against a sloped roof. This rack sets panels at 20° to 40° on the ground or a flat roof.
Versus fixed-angle racks. A fixed rack holds one angle. This one adjusts in five steps from 20° to 40°.
Versus building your own frame. A custom frame takes design, cutting and drilling. This kit comes pre-drilled with clamps, bolts and tools included.
Is This Ground Mount the Right Fit
Panel size. Panels rated 400W–590W, 970–2279 mm long, with a 30 or 35 mm frame thickness.
Space. The joined rails run 2400 mm (7.87 ft), the supports sit 1400 mm (4.59 ft) apart, and the inclined beams are 1200 mm (3.94 ft) long.
Anchoring. The feet secure with eight M10x100 expansion bolts, and the installation drawings show a concrete base. Plan a solid surface to anchor into.
Ratings. SunGold does not list a wind speed or snow load rating. Check local requirements before you build.
Upkeep. After assembly, tighten all bolts and clamps and mark them for regular inspection.
This may be a good fit if
You have two 400W–590W panels to mount
You want an adjustable tilt from 20° to 40°
You are mounting on the ground or a flat roof
You may add more panels later
Common Questions
How Many Panels Does One Kit Hold?
Two. Two kits make a 1x4 array for four panels, and more racks can connect after that.
What Tilt Angles Can I Set?
20°, 25°, 30°, 35° or 40°. The manual lists the front column height and foot spacing for each angle.
Will It Fit My Panels?
It fits panels rated 400W to 590W that are 970 to 2279 mm long and 30 or 35 mm thick. SunGold lists it for its own panels and most standard panels.
Are Tools and Anchors Included?
Yes. The kit includes eight M10x100 expansion bolts, 6mm and 8mm Allen wrenches and a 15-17mm hex wrench.

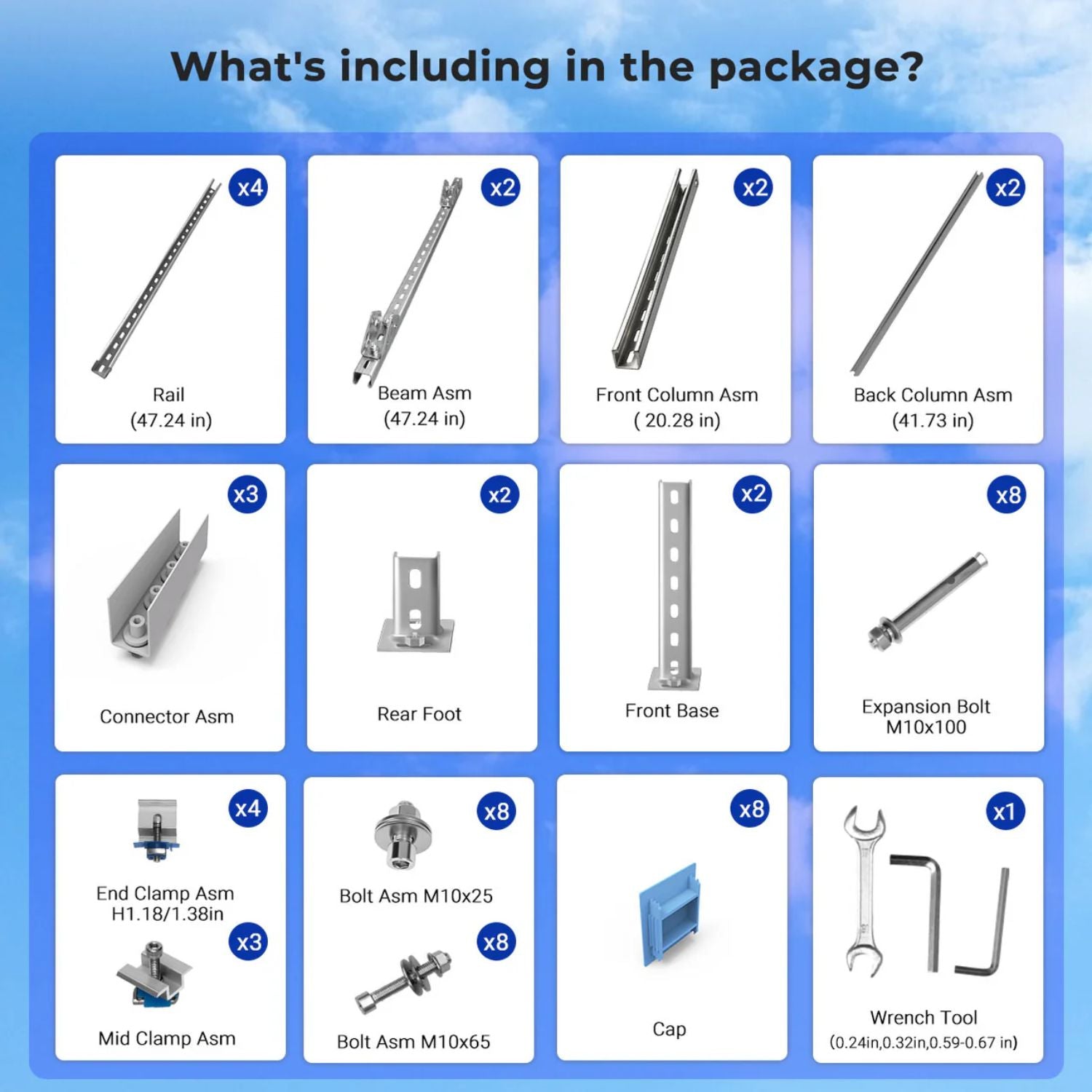

What's Included
4 x Rail (1200mm)
2 x Beam Assembly (1200mm)
2 x Front Column Assembly (515mm)
2 x Back Column Assembly (1060mm)
3 x Connector Assembly
2 x Rear Foot
2 x Front Base
4 x End Clamp Assembly (H30/35mm)
3 x Mid Clamp Assembly
8 x Cap
8 x Bolt Assembly (M10x25)
8 x Bolt Assembly (M10x65)
8 x Expansion Bolt (M10x100)
1 x Allen Wrench Tool (6mm)
1 x Allen Wrench Tool (8mm)
1 x Hex Wrench Tool (15-17mm)
An Adjustable Mount That Grows With Your Array
The SunGold Power Modular & Expandable Ground Mount Brackets give two 400W–590W panels a coated steel frame with a 20° to 40° tilt, and more racks can join as your array grows. At Outbound Power, we help customers plan panel layouts, mounts and wiring for ground and roof arrays. If you have questions, our team is happy to help.
SunGold Power Modular & Expandable Ground Mount Brackets Specification
Brand
SunGold Power
Model
SGP-GMB-2P
Product Type
Ground Mount Brackets (1x2 array)
Panel Compatibility
Panels per Kit
2
Panel Power
400W–590W
Panel Length
970–2279 mm
Panel Thickness
30 or 35 mm
Panel Width
Adjustable to the array configuration
Expansion
Two kits form a 1x4 array (4 panels); multiple racks can connect
