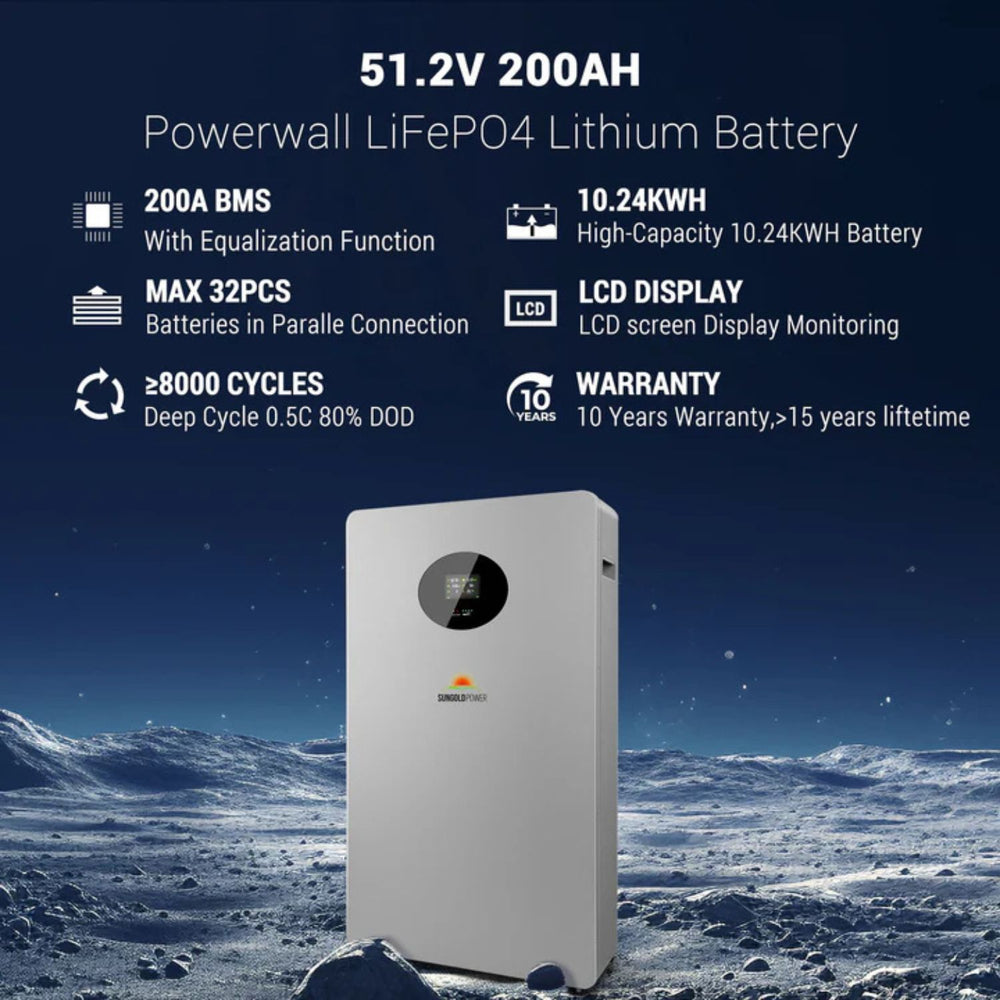

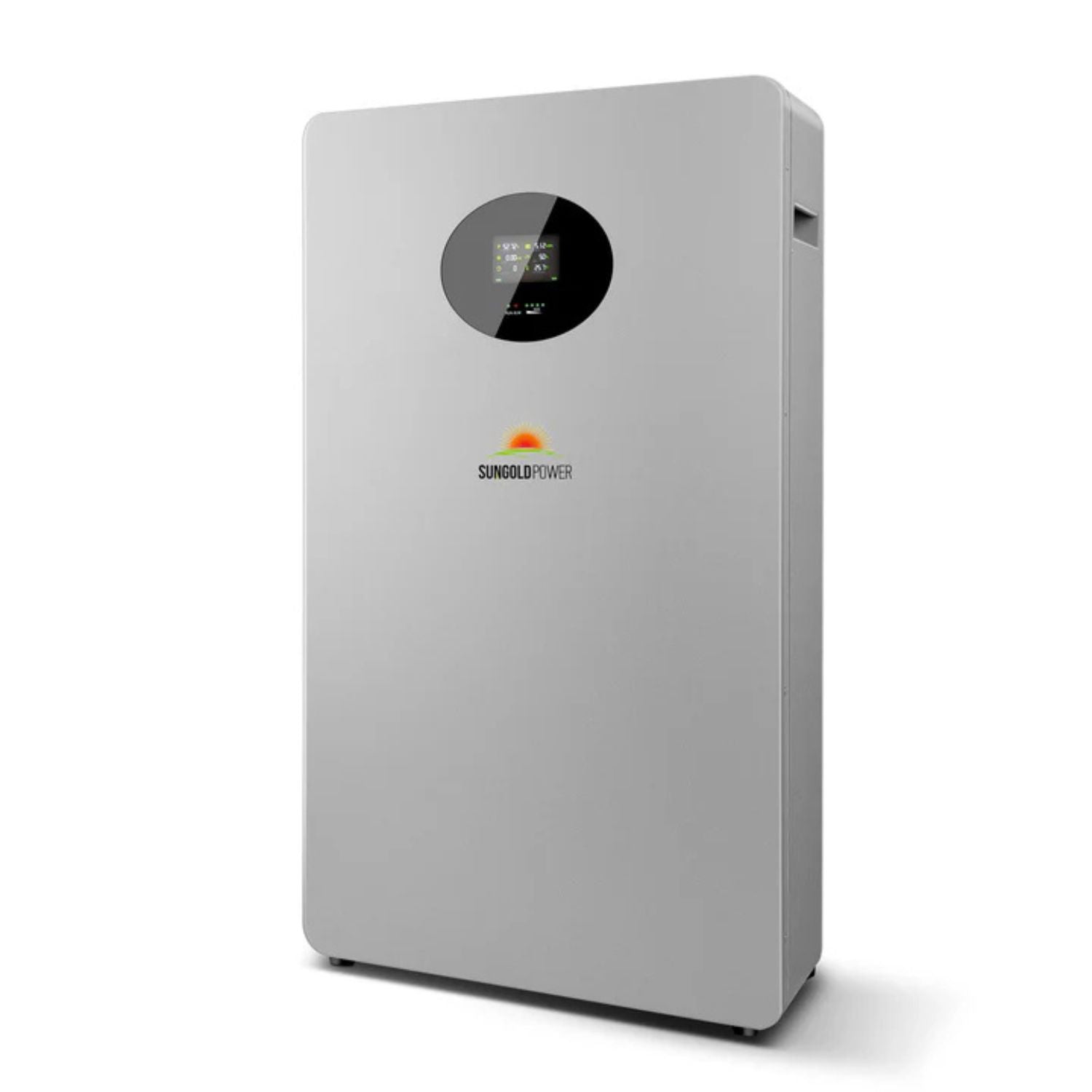

The SunGold Power Powerwall X 51.2V 200AH Lithium Battery Stores 10.24kWh in One UL1973 and UL9540A Certified Floor or Wall Unit
The SunGold Power Powerwall X 51.2V 200AH Lithium Battery (model SG48200T) is a 10.24kWh LiFePO4 battery for home and commercial energy storage. It charges from solar during the day and stores that energy for nights, blackouts and emergencies.
It is built for homeowners and installers who want a large block of storage in one cabinet. An LCD touch-screen panel shows battery status, the intelligent BMS protects the cells, and CAN and RS485 ports connect to most hybrid inverters. Up to 32 units can be connected in parallel for 328kWh.
SunGold Power Powerwall X 51.2V 200AH Lithium Battery Features
10.24kWh With 9.84kWh Usable
One battery stores 10.24kWh at 51.2V and 200Ah, with 9.84kWh usable. It supports up to 96% depth of discharge in off-grid and backup systems, so most of that energy reaches your loads.

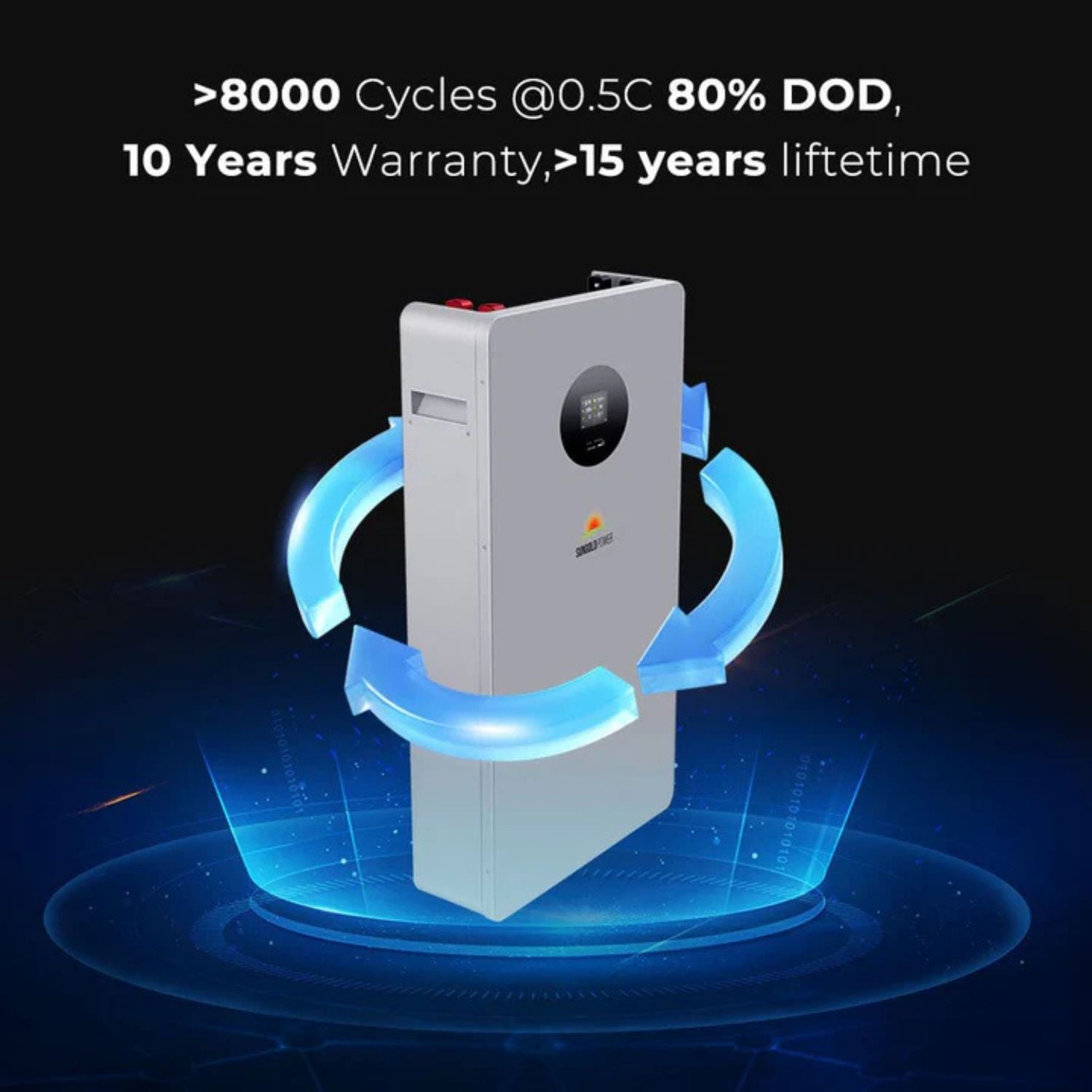

8000+ Cycles and a 10-Year Warranty
SunGold rates the battery for over 8000 deep cycles and a 15-year lifespan. It carries a 10-year warranty, with free technical support before and after purchase.
High Charge and Discharge Current
Standard charge and discharge current is up to 100A. Maximum charge current is 140A and maximum discharge current is 200A, with a peak of 240A to 300A for 15 seconds. That supports larger inverters from a single battery.
LCD Touch-Screen Panel
The touch-screen panel shows state of charge, current and voltage in real time. An IOT port connects the battery to cloud platforms, and Wi-Fi monitoring is available as an option.
Wide Inverter Compatibility
CAN and RS485 communication works with most inverters on the market, including Growatt, Deye, SunGoldPower, Luxpower, Victron Energy, Schneider, EG4, Sol-Ark, Mppsolar and Megarevo.

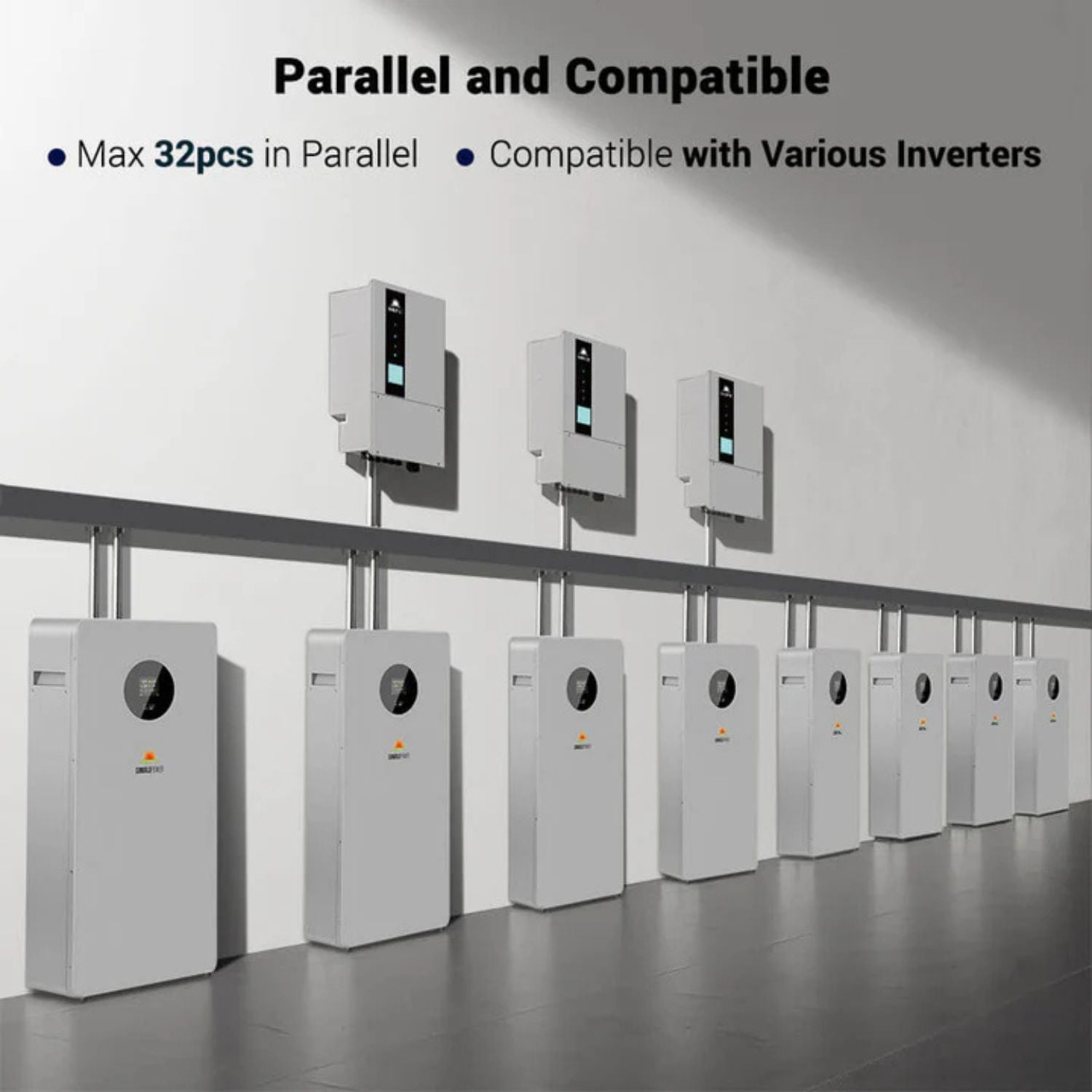

Expand to 32 Units
Up to 32 batteries can be connected in parallel. Automatic dynamic addressing sets up each battery in the chain, and a built-in pre-charge circuit limits rush current when the bank connects to an inverter.
Rapid Shutdown and UL Certifications
A rapid shutdown function is built in for the North American market. The battery holds UL1973 and UL9540A certifications.
Real-World Applications
Whole-home solar storage. Store solar energy during the day and use it at night.
Blackout backup. Keep your appliances powered during outages and emergencies with a compatible hybrid inverter.
Off-grid homes and cabins. Use up to 96% of capacity in off-grid systems, and add units as demand grows.
Commercial energy storage. Scale from one battery to 32 units for commercial and industrial-grade systems.
How It Compares to Common Alternatives
Versus two 5.12kWh batteries. One 10.24kWh battery gives you the same storage with one set of cables, one display and one unit to mount. Smaller batteries are lighter to handle, but you install and connect twice as many.
Versus a server rack battery. A rack battery needs a rack or cabinet. The SG48200T stands on the floor, anchored with the included floor-to-wall brackets, or hangs on the wall with the optional wall-mount kit.
Versus a lead-acid battery bank. This battery adds a built-in BMS, inverter communication and a touch-screen display, with over 8000 rated cycles.
Is This Lithium Battery the Right Fit
Inverter. Requires a 48V inverter. Battery communication needs a compatible CAN or RS485 protocol.
Weight. 198.4lb (90kg), so plan for a heavy lift during installation.
Size. 21.1 x 37.2 x 6.8 inches.
Location. Keep it out of direct sunlight, rain and snow. The maximum operating range is 14°F to 122°F.
Installer. Installation should be done by a qualified person.
This may be a good fit if
You want 10.24kWh in a single battery
You want UL1973 and UL9540A certification
You run a larger 48V hybrid inverter
You may expand to many batteries later
Common Questions
Can the Powerwall X Be Mounted on a Wall?
Yes. It ships with two floor-to-wall fixed brackets for standing installs. Hanging it on the wall uses the optional wall-mounted installation kit, which is not in the standard box.
How Much of the 10.24kWh Can I Use?
Usable energy is 9.84kWh. The battery supports up to 96% depth of discharge in off-grid and backup applications.
Does It Have Wi-Fi Monitoring?
Wi-Fi monitoring is optional. Every unit has the LCD touch screen for real-time status and an IOT port for cloud connection.
What Temperatures Can It Charge and Discharge In?
Charging runs from 32°F to 122°F, and discharging from 14°F to 122°F. Frequent exposure to harsh temperatures can shorten cycle life.

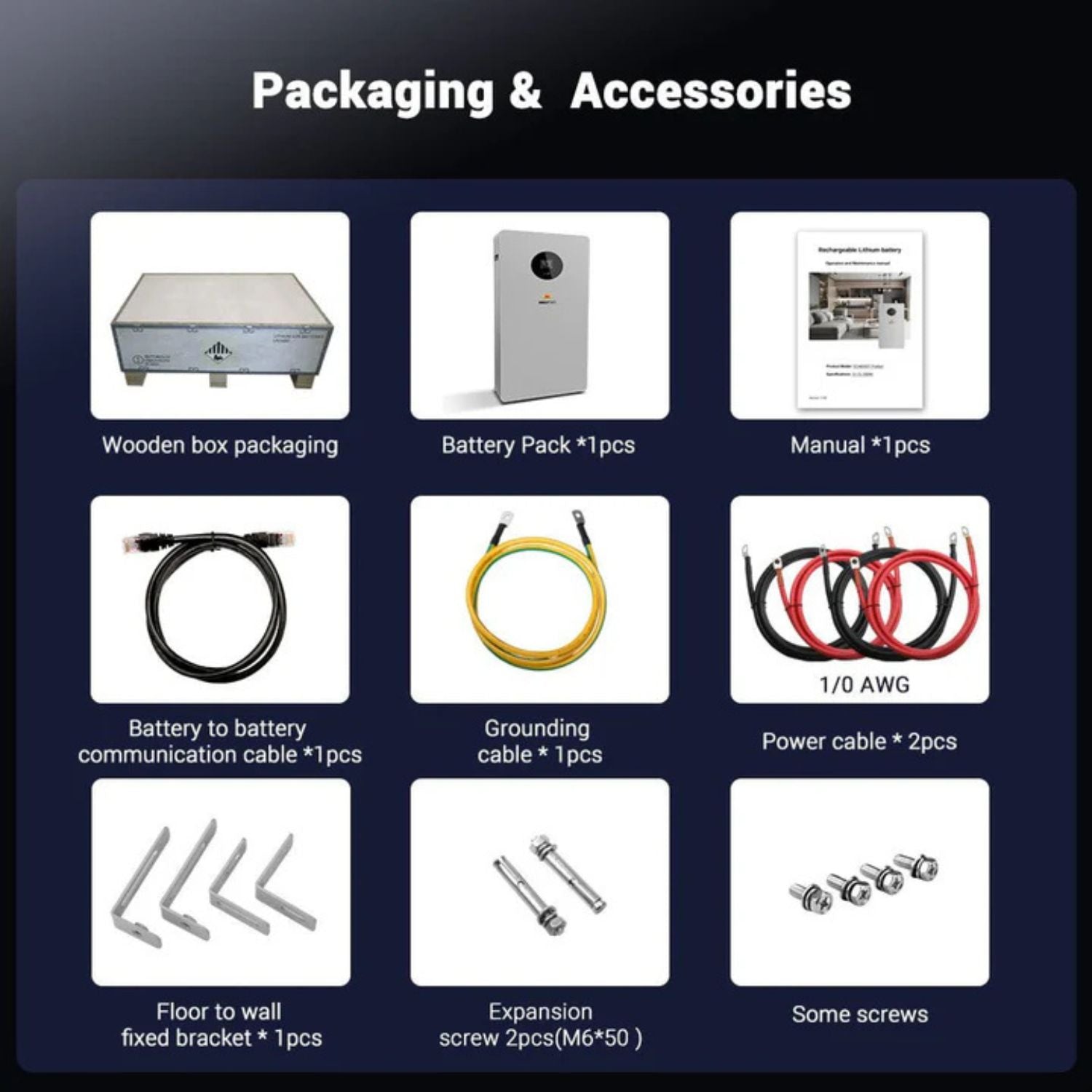

What's Included
1 x SG48200T Battery Pack
1 x Manual
2 x Power Cables (Red and Black, 1500mm)
1 x Grounding Cable
1 x Battery to Battery Communication Cable
2 x Floor to Wall Fixed Brackets
2 x M6 x 50 Expansion Screws
Large-Capacity Storage in One Cabinet
The SunGold Power Powerwall X 51.2V 200AH Lithium Battery gives a 48V system 10.24kWh of UL1973 and UL9540A certified storage in one unit, with over 8000 rated cycles and room to grow to 32 batteries. At Outbound Power, we help customers size battery banks and inverters for whole-home solar and backup. If you have questions, our team is happy to help.
SunGold Power Powerwall X 51.2V 200AH Lithium Battery Specifications
Electrical Characteristics
Product Model
SG48200T
Chemistry
LiFePO4
Rated Voltage
51.2V
Max. Voltage Range
44.8V~57.6V
Charge Voltage
56.0V
Float Charge Voltage
54.6V
Nominal Energy @0.5C
10.24kWh
Usable Energy @0.5C
9.84kWh
Nominal Capacity @0.5C
200Ah
Max. Depth of Discharge
96% (off-grid and backup)
Standard Charge Current
≤100A
Max. Charge Current
140A
Standard Discharge Current
≤100A
Max. Discharge Current
200A (initial temp. ≤86°F (30°C))
Peak Discharge Current
200~240A @ 5 mins, 240~300A @ 15s
Cycle Life
Over 8000 deep cycles
Lifespan
15 years
Communication and Expansion
Communication
RS485 / CAN, optional Wi-Fi
Display
LCD touch-screen panel
Max. Parallel Number
32 pcs (328kWh)
Temperature and Environment
Operation Temperature
Charge 32°F to 122°F (0 to 50°C), Discharge 14°F to 122°F (-10 to 50°C)
Optimum Operating Temperature
15°C to 30°C
Storage Temperature (Off Mode)
32°F (0°C) < T < 86°F (30°C) for under 6 months, 14°F (-10°C) < T < 113°F (45°C) for under 3 months
Recommended Storage Environment
59°F to 95°F (15~35°C), 5~75%RH
Relative Humidity
5%~90%, no condensation
Altitude
<3000m
Mechanical Characteristics
Installation
Floor standing with floor-to-wall brackets, or wall mounted with optional kit
Dimensions
21.1 x 37.2 x 6.8 inch (535 x 944 x 173mm)
Weight
198.4lb (90kg)
Certification and Warranty
Certificates
UL1973, UL9540A
Warranty
10 years
SunGold Power SG48200T Manual
SunGold Power SG48200T Data Sheet
SunGold Power SG48200T UL 1973 Certificate
