The SunGold PowerMax Energy Storage Battery Stores 16.07kWh in an IP65 Enclosure You Can Install Indoors or Outdoors

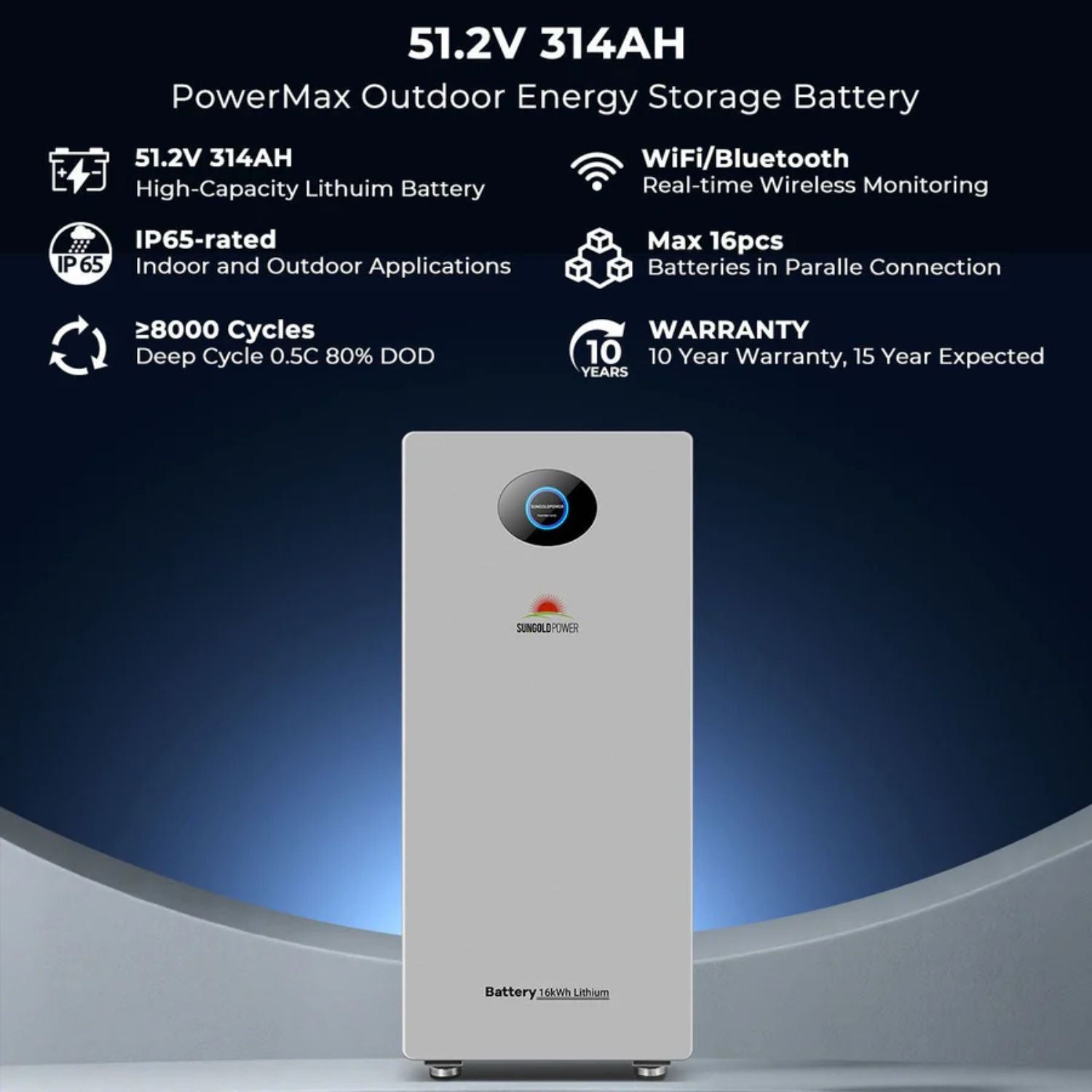

The SunGold PowerMax Energy Storage Battery (model PowerMax 314 Outdoor) is a 51.2V, 314Ah lithium iron phosphate battery that stores 16.07kWh. Its IP65-rated enclosure is built for indoor and outdoor installation, and it holds UL1973 and UL9540A certifications.
It is designed for homes and businesses that want a large amount of storage in one unit. It stores solar energy during the day for use at night, during power outages or in emergencies. Up to 16 units can be connected in parallel for 257kWh.
SunGold PowerMax Energy Storage Battery Features
16.07kWh With 15.42kWh Usable
One battery holds 16.07kWh, with 15.42kWh usable and a maximum depth of discharge above 96%. Rated DC power and maximum continuous discharge rate are both 7.68kW.
IP65 Indoor and Outdoor Enclosure
The enclosure is rated IP65 for both indoor and outdoor use, with natural cooling. You can place it outside the house when indoor space is limited.
8000 Cycles and a 10-Year Warranty
SunGold rates the battery for 8000 cycles at 80% depth of discharge, 0.5C and 25°C, and a 15-year life span. It is backed by a 10-year warranty and technical support before and after the sale.
High Current Capability
Standard charge and discharge current is 150A, maximum current is 190A, and the peak is 220A for 3 seconds. The built-in breaker is rated at 240A.
Touch Screen and App Monitoring
The LCD touch screen shows state of charge, voltage, current, cell voltages, warnings and the estimated remaining discharge time. Wi-Fi and Bluetooth connect the battery to the mobile app, and a USB port connects to a PC.
Broad Inverter Protocol Support

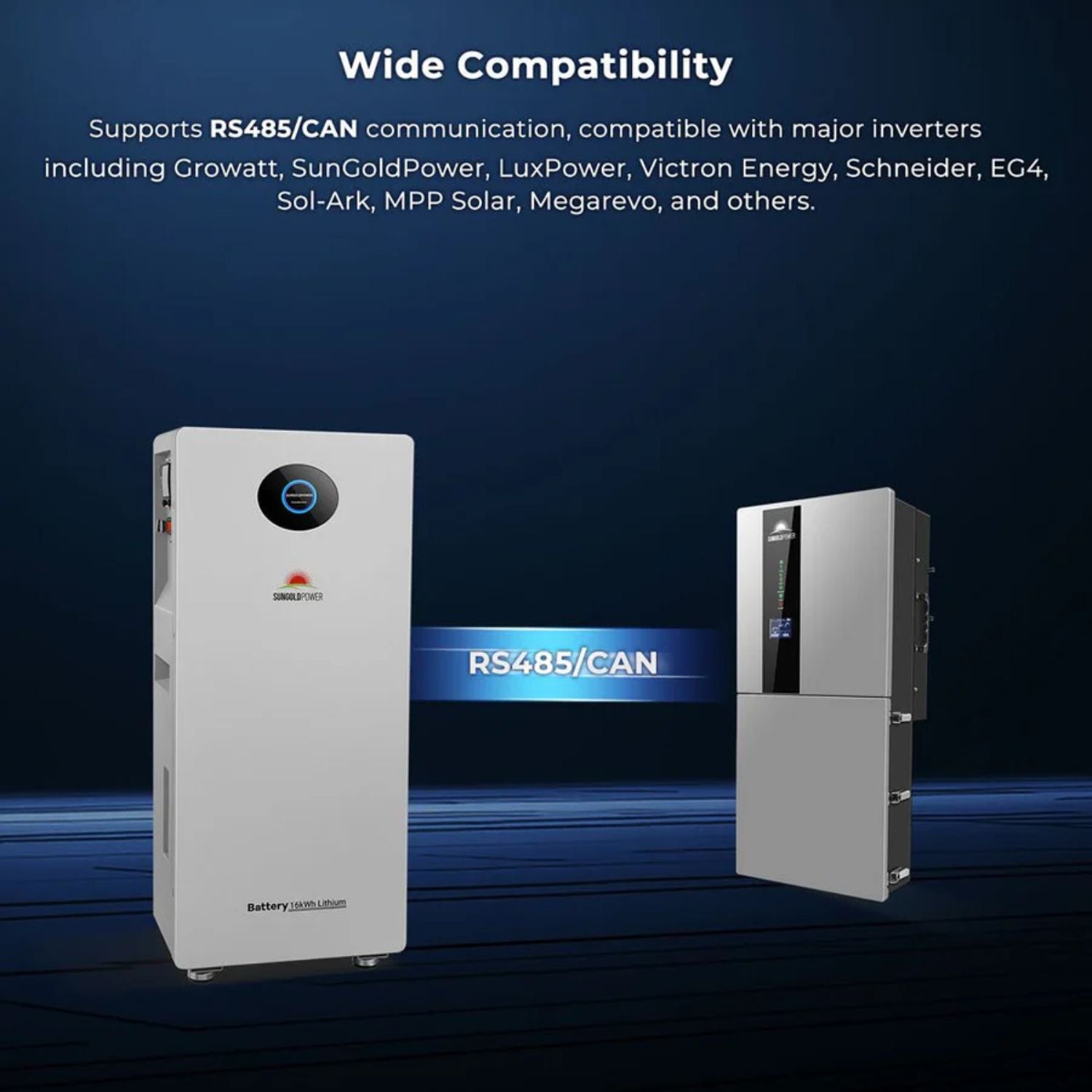

CAN and RS485 communication supports protocols from Pylon, SunGoldPower, Growatt, Victron, Goodwe, Solis, Luxpower, Sofar, KStar, SMA, Megarevo, Afore, Solark, Voltronic and others.
Wall or Floor Mounting Hardware Included

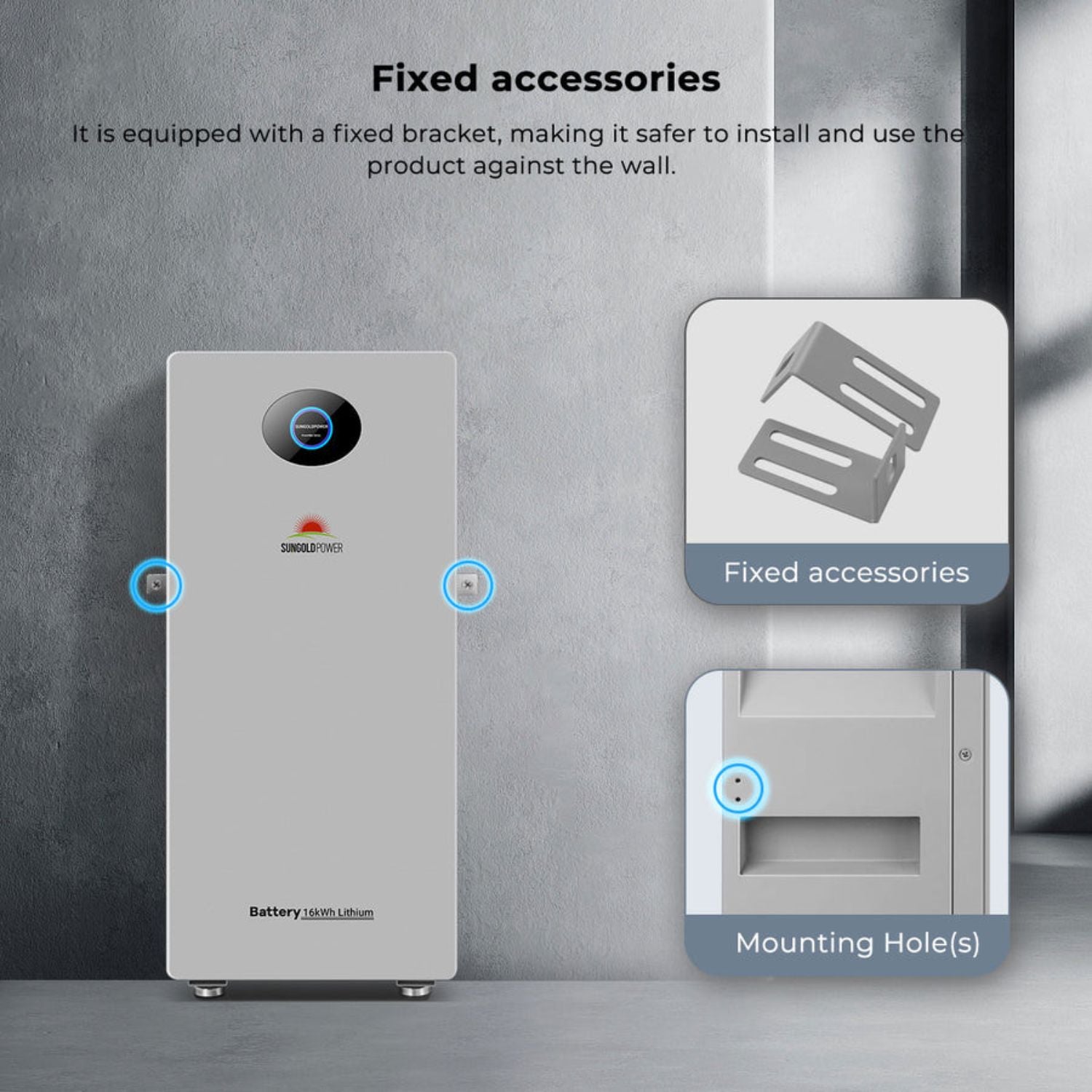

The box includes three mounting frames, expansion bolts, side fasteners and an installation template board, so you can hang the battery on a solid wall or set it on a firm floor.
Real-World Applications
Outdoor home storage. Install the battery outside next to the house and keep indoor space free.
Whole-home backup. Pair it with a compatible hybrid inverter to carry household loads through power outages.
Solar self-consumption. Store daytime solar energy for evening and night use.
Off-grid systems. Combine it with an inverter to build an off-grid solar system for sites without grid power.
Commercial storage. Scale to 16 batteries in parallel for residential and commercial applications.
How It Compares to Common Alternatives
Versus several smaller batteries. One 16.07kWh unit means one enclosure, one set of power cables and one screen to manage. Smaller batteries are easier to lift, but you install and connect more of them.
Versus an indoor-only battery. An indoor-only battery needs space inside the home. The PowerMax enclosure is IP65 rated for indoor and outdoor use.
Versus a lead-acid battery bank. This battery adds a BMS, inverter communication and app monitoring, and SunGold rates it for 8000 cycles.
Is This Outdoor Battery the Right Fit
-
Weight. 271.17lbs (123kg). Installation requires multiple people.
-
Temperature. Do not install or use it where the temperature is below -10°C or above 50°C.
-
Coastal sites. Do not install it outdoors within 500m of the shore or where sea breezes reach.
-
Wall mounting. Needs a solid wall thicker than 80mm, with the battery 200mm above the ground.
-
Altitude. Maximum 2,000m (6561ft).
This may be a good fit if
- You want to install storage outdoors
- You want about 16kWh in one unit
- You want UL1973 and UL9540A certification
- You use a 48V hybrid or off-grid inverter
Common Questions
Can PowerMax Batteries Be Connected in Series?
No. They can only be connected in parallel, up to 16 units. Each battery needs a unique address, and the one connected to the inverter must be set to address 0.
Do I Need a Bus Bar for Multiple Batteries?
SunGold says a bus bar is required when multiple batteries are used in parallel. A parallel connection cable only expands capacity, not power, and cannot be used when the inverter current exceeds the battery's rated current.
What Wi-Fi Network Does It Need?
The Wi-Fi module only supports the 2.4G band. Make sure your router's 2.4G band is turned on before you connect the app.
Why Did the Screen Turn Off?
If the battery is neither charging nor discharging for a while, it goes into sleep mode and turns off the LCD and Wi-Fi to save power. Turn the power button off and on again to wake it.

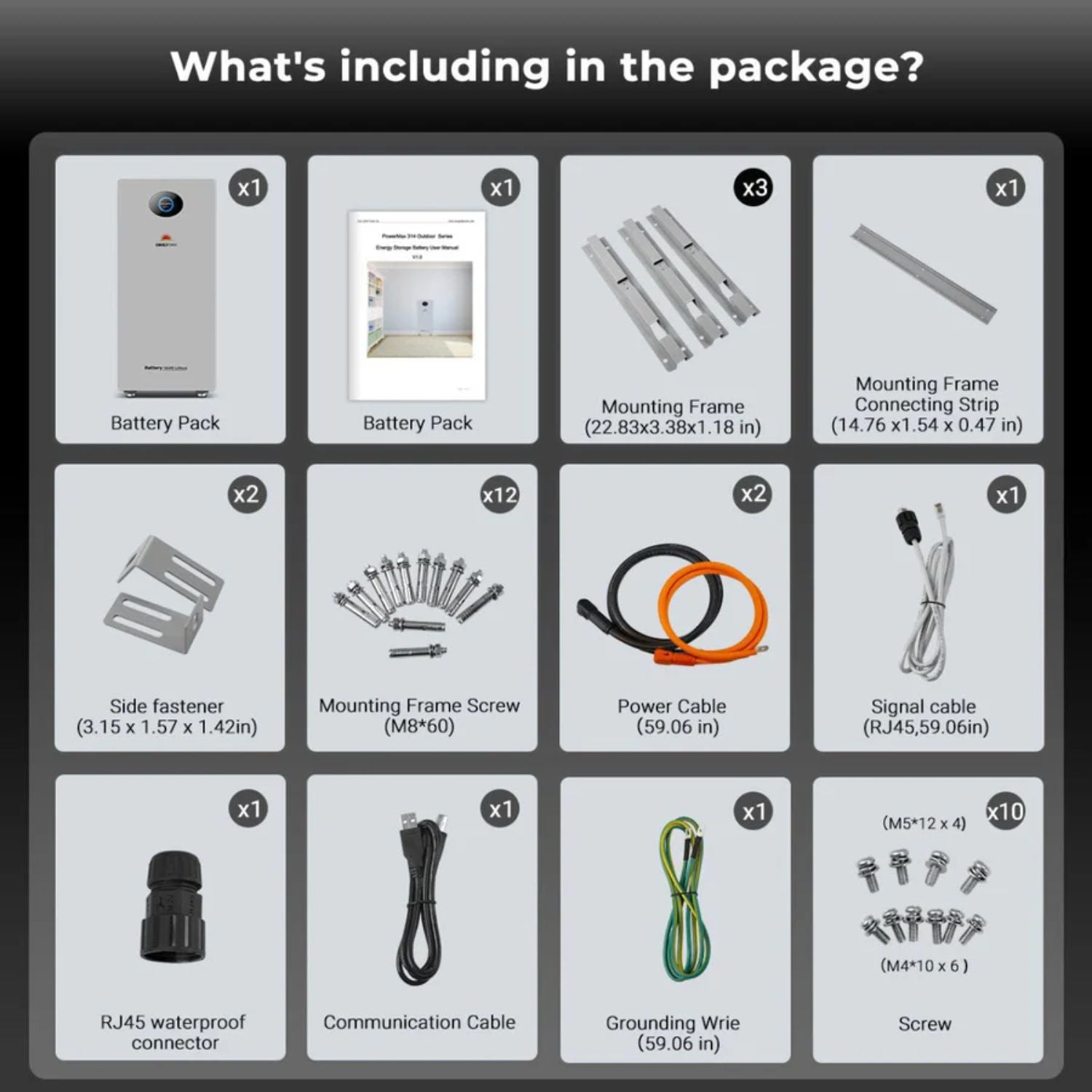

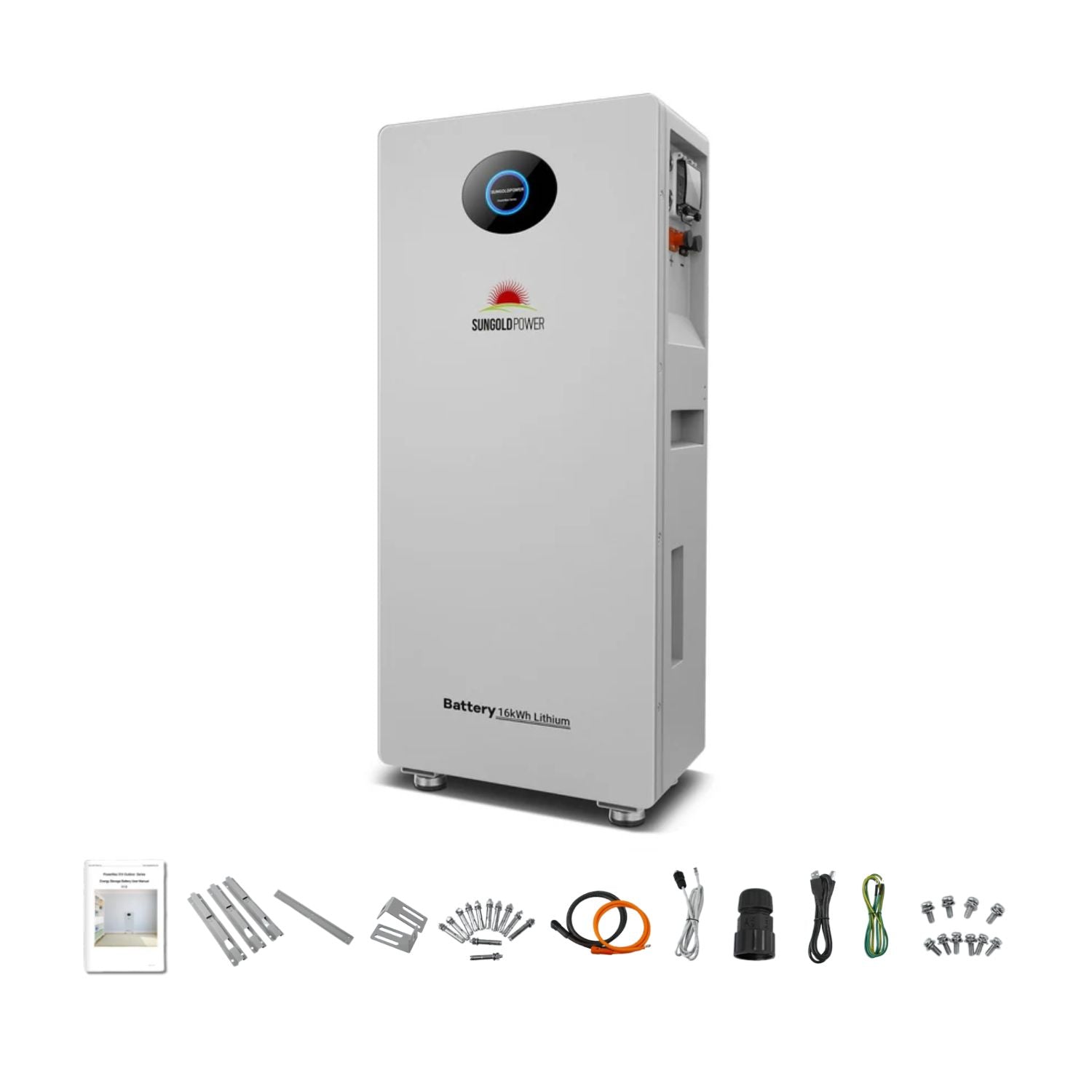

What's Included
- 1 x PowerMax 314 Outdoor Battery Pack (16.07kWh)
- 3 x Mounting Frames
- 1 x Mounting Frame Connecting Strip
- 6 x M4 x 10 Screws
- 12 x M8 x 60 Mounting Frame Expansion Bolts
- 2 x Side Fasteners
- 4 x M5 x 12 Screws
- 2 x Power Cables (1.5m)
- 1 x RJ45 Signal Cable (1.5m)
- 1 x RJ45 Waterproof Connector
- 1 x Installation Auxiliary Board
- 1 x Grounding Wire (1.5m)
Large Outdoor-Rated Storage in One Unit
The SunGold PowerMax Energy Storage Battery gives a 48V system 16.07kWh of UL1973 and UL9540A certified storage in an IP65 enclosure, with 8000 rated cycles and room for 16 units. At Outbound Power, we help customers plan battery storage and inverters for whole-home backup and solar. If you have questions, our team is happy to help.
SunGold PowerMax Energy Storage Battery Specifications
|
| Electrical Characteristics |
| Product Model |
PowerMax 314 Outdoor |
| Battery Type |
LFP (lithium iron phosphate) |
| Rated Voltage |
51.2V |
| Voltage Range |
44.8~57.6Vdc |
| Rated Capacity |
314Ah |
| Rated Energy |
16.07kWh |
| Usable Energy |
15.42kWh |
| Max. Depth of Discharge |
>96% |
| Rated DC Power |
7.68kW |
| Standard Charge / Discharge Current |
150A / 150A |
| Max. Charging / Discharging Current |
190A / 190A |
| Peak Charging Current |
220A (3S) |
| Peak Discharging Current |
220A (3S) |
| Breaker Current |
240A |
| Max. Charging Voltage |
57.6V |
| Over Discharge Voltage |
44.8V |
| Life Cycle (80% DOD, 0.5C, 25°C) |
8000 cycles |
| Communication and Expansion |
| Communication Interfaces |
CAN / RS485 / USB / Wi-Fi / Bluetooth |
| Wi-Fi Band |
2.4G only |
| Screen |
LCD touch screen |
| Max. Number in Parallel |
16 (257kWh) |
| Connection |
Parallel only, not series |
| Operating Conditions |
| Charging Temperature Range |
32°F to 131°F (0~55°C) |
| Discharging Temperature Range |
14°F to 131°F (-10~55°C) |
| Installation Environment |
-10°C to 50°C |
| Storage Time / Temperature |
6 months @25°C (77°F), 3 months @35°C (95°F), 1 month @45°C (113°F) |
| Max. Installation Altitude |
2,000m (6561ft) |
| Cooling Method |
Natural cooling |
| Enclosure Protection Rating |
IP65 |
| Operation Environment |
Indoor and outdoor |
| Mechanical Characteristics |
| Installation |
Wall mount or floor mount |
| Dimensions (L x W x H) |
41.26 x 18.11 x 10.67 inch (1048 x 460 x 271mm) |
| Weight |
271.17lbs (123kg) |
| Package Dimensions |
1170 x 600 x 510mm |
| Certification and Warranty |
| Lithium Battery Standard |
UL1973, UL9540A, UN38.3, MSDS |
| Warranty |
10 years |
