Wagan Tech ProLine 10,000 Watt 12 Volt Power Inverter

|
SKU: 3748
Original Price $1,729.95
Current Price $1,295.00

Early Black Friday Price Drop Guarantee

  • Buy now, and if our price drops by Black Friday, we'll refund the difference.
  • Found it lower elsewhere? We'll beat it.
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 10 left!

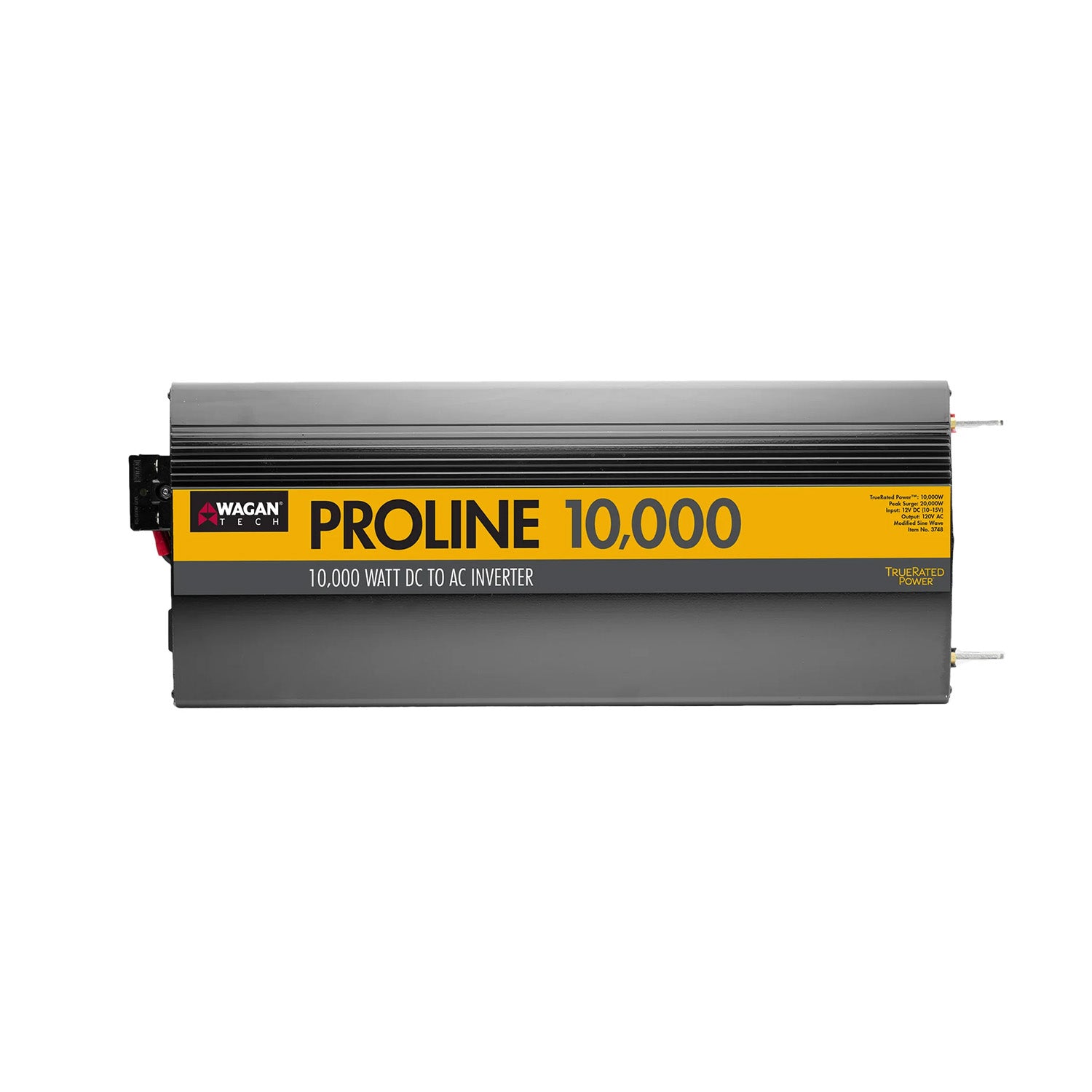

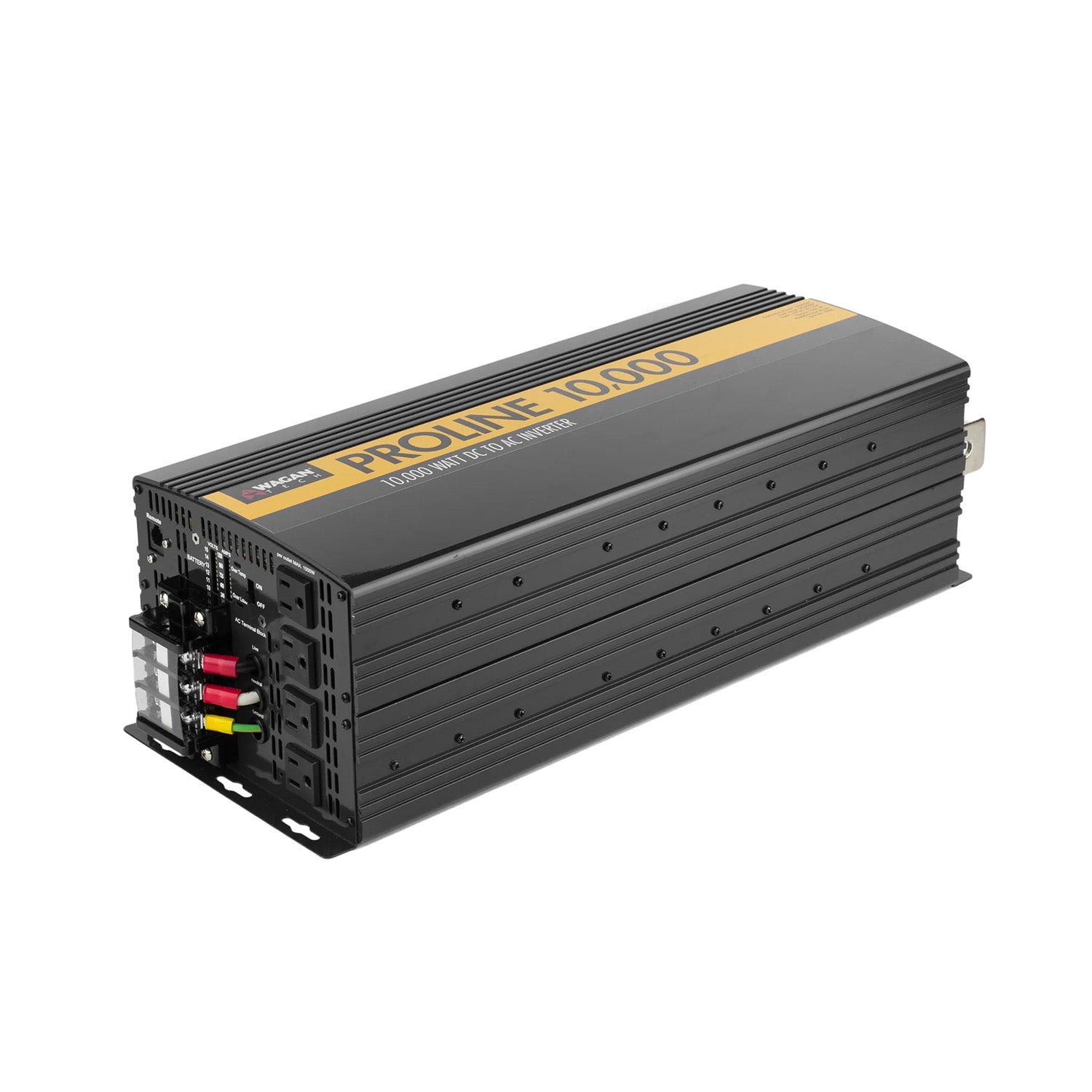

Wagan ProLine 10,000 power inverter with a long black case, yellow label, four AC outlets and wired terminal block

The Wagan ProLine 10,000 Watt Inverter Delivers 10,000 Watts of Continuous 12V AC Power With a 20,000 Watt Surge for Large Off-Grid and Mobile Systems

The Wagan ProLine 10,000 Watt Inverter (Wagan item 3748) converts power from a 12V battery bank into 115V modified sine wave AC. It is rated for 10,000 watts continuous and 20,000 watts of surge, and it gives you four grounded AC outlets, an AC terminal block for direct wiring, volt and amp displays and an included remote on/off switch with a 16 foot cord.

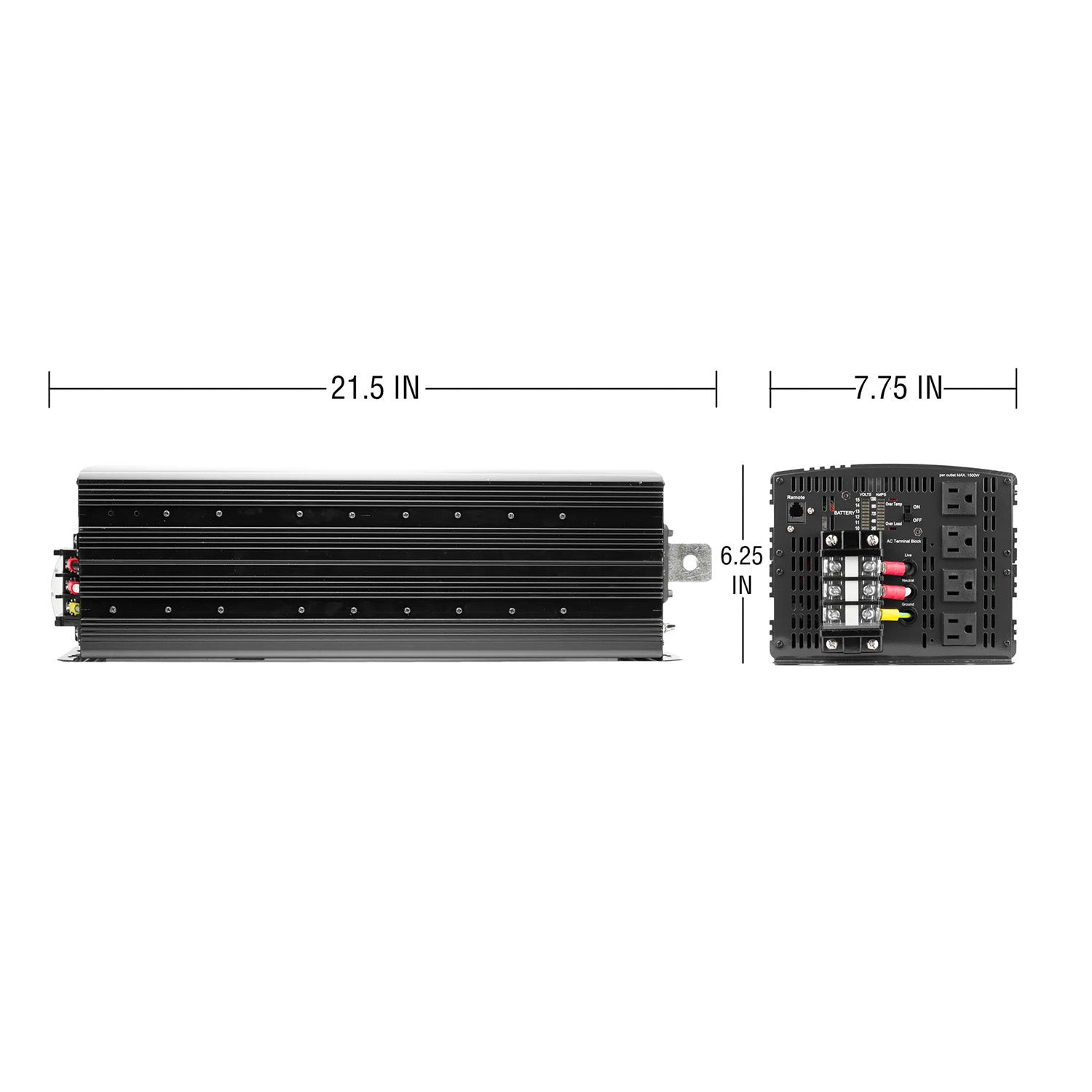

It's built for RVs, boats, campers, off-grid setups, work trucks and job sites where you need high output away from a standard outlet. The case measures 21.5 x 7.8 x 6.3 inches and weighs 21.5 pounds, and it needs a battery bank and cabling sized for its current draw.


Wagan ProLine 10,000 Watt Inverter Features

10,000 Watts Continuous, 20,000 Watts Surge

Motors draw a short starting load before settling to their running load. For many appliances it's about twice the running load, and for some it reaches eight times. The 20,000 watt surge rating covers those startups, and an overload makes the inverter shut down automatically, so there's no danger of damaging the inverter or your equipment.

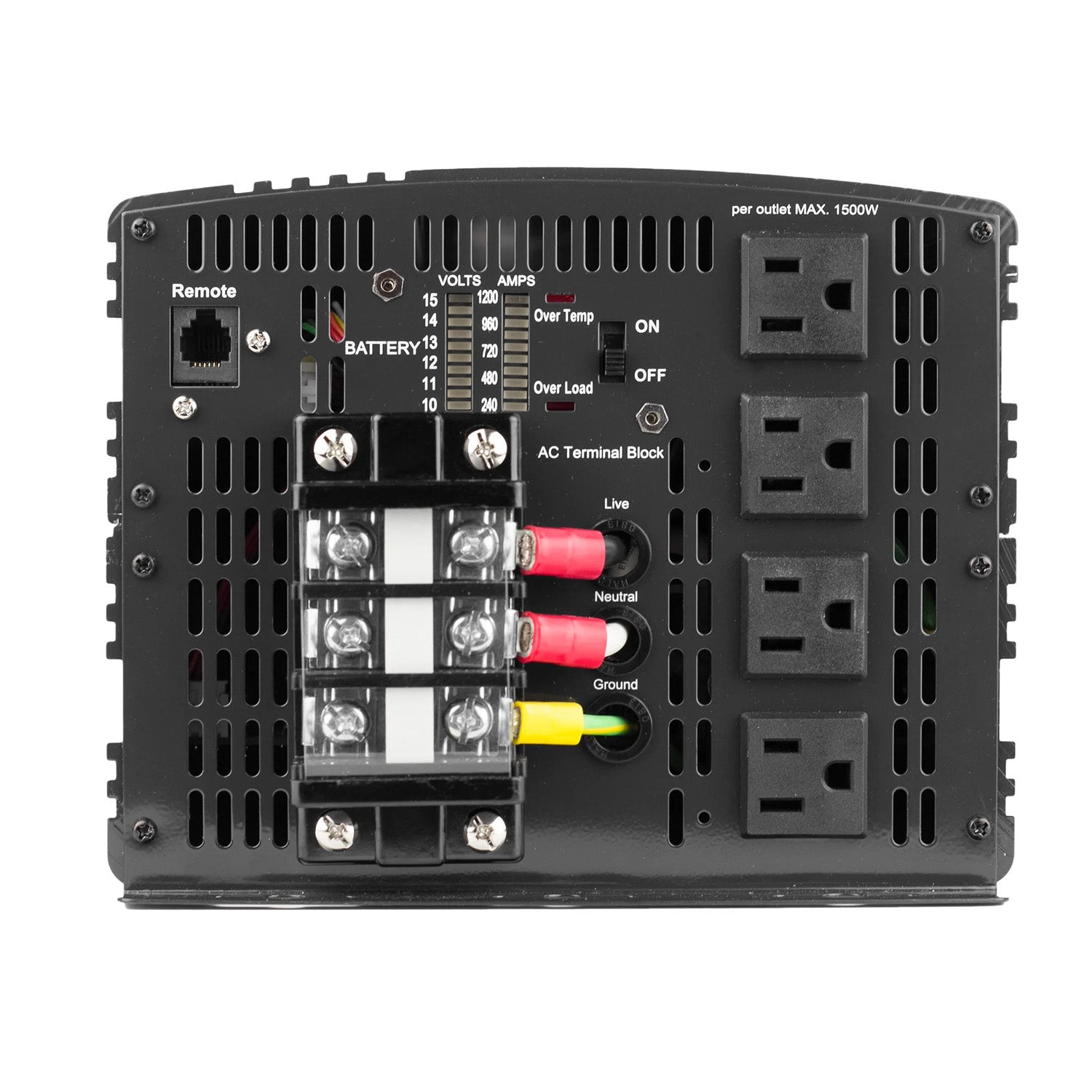

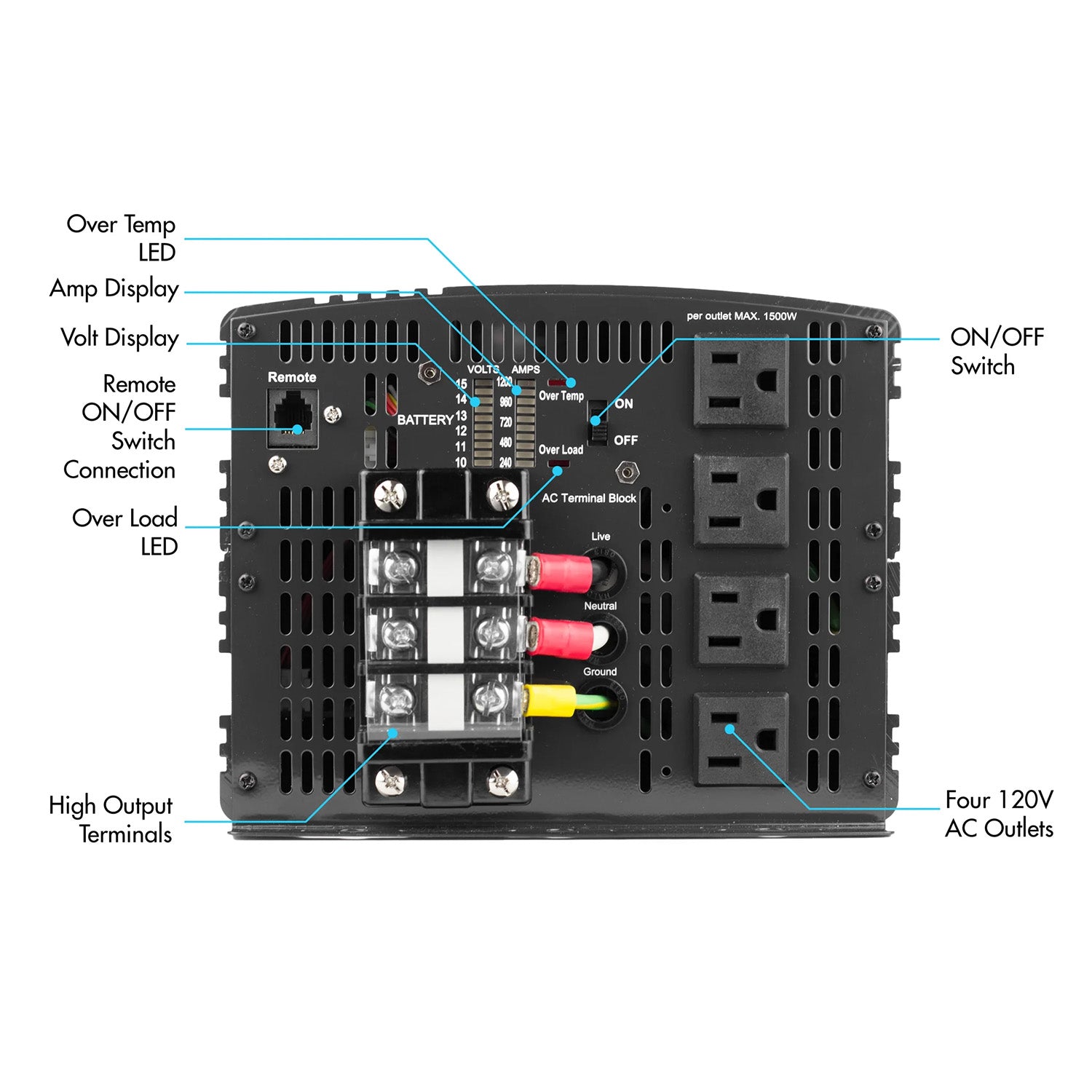

Four Outlets and a Hardwire Terminal Block

Four NEMA 5-15 outlets each supply up to 15 amps at 115V, and the panel is marked for 1,500 watts maximum per outlet. For equipment that needs more than 15 amps, or for distributed wiring with multiple outlets, the terminal block has Live (black), Neutral (white) and Ground (green) terminals for 10 gauge or larger wire. Neutral and ground are bonded inside to meet the National Electric Code.

DC Volt and Amp Displays

Bar graph displays show the DC voltage at the inverter's terminals and the DC amps drawn from the battery bank, so you can see how the system is performing and diagnose problems. Over Temp and Overload LEDs turn red when the inverter shuts down for heat or excess load.

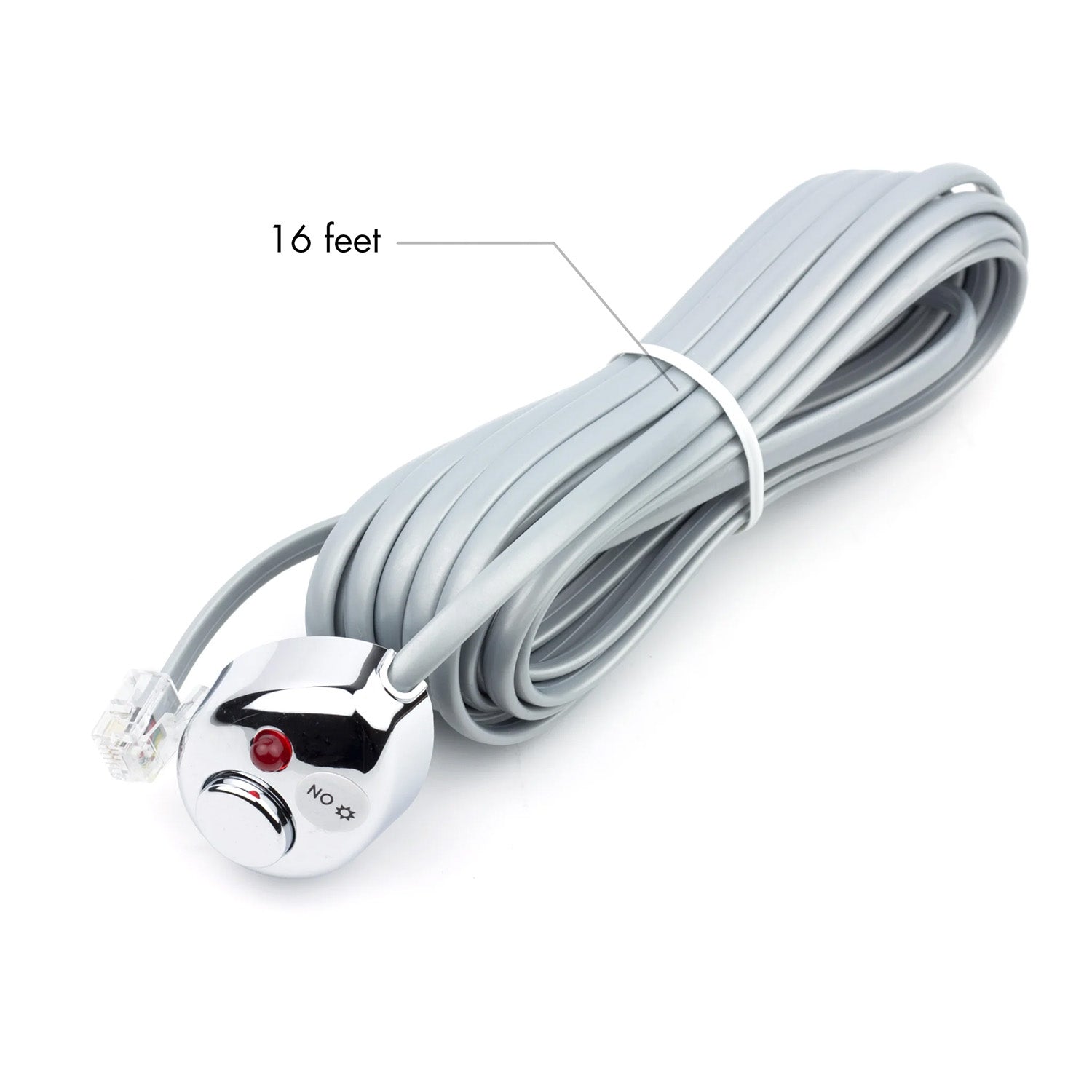

Included Remote On/Off Switch

A remote switch on a 16 foot cord plugs into the front panel, so you can turn the inverter on and off from a convenient location.

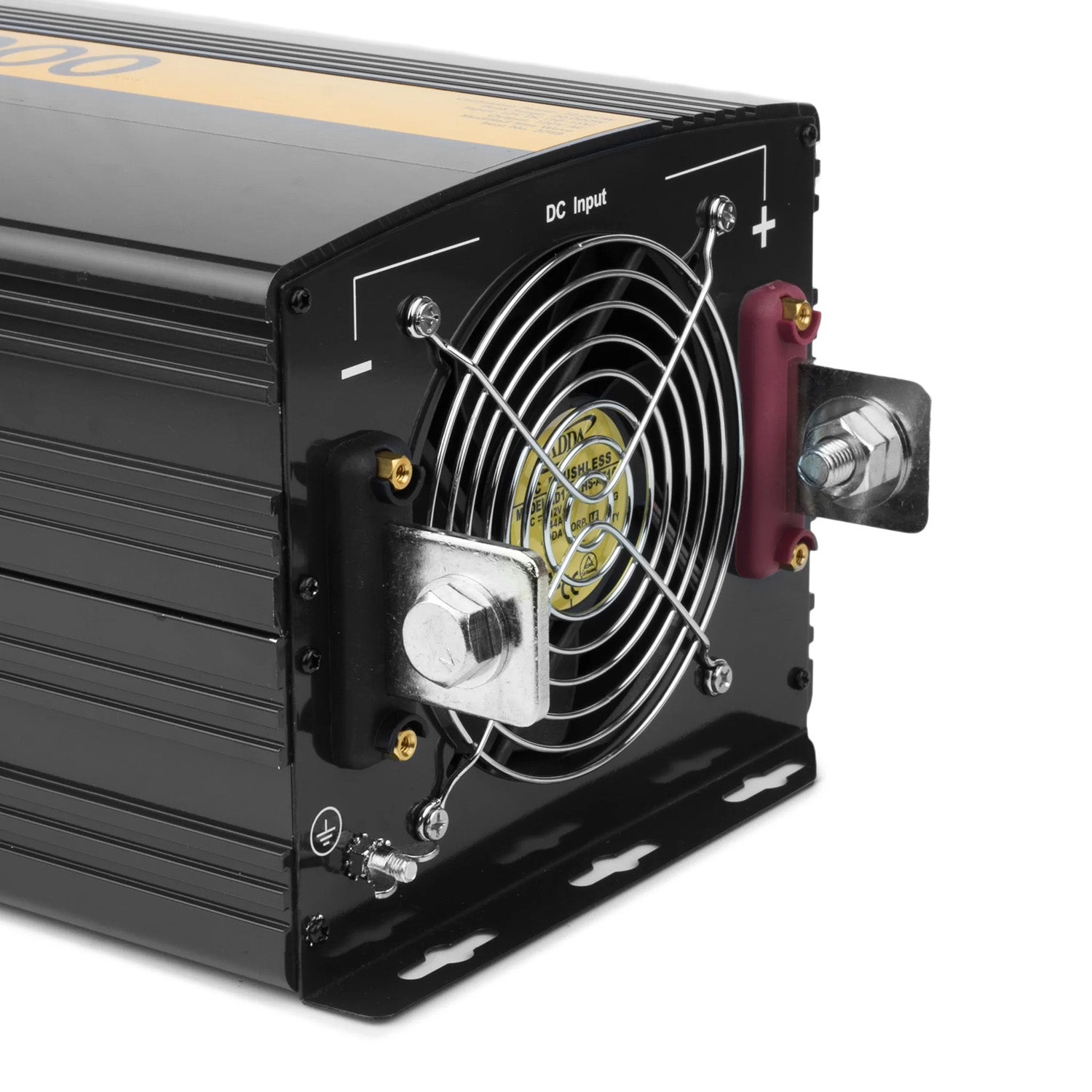

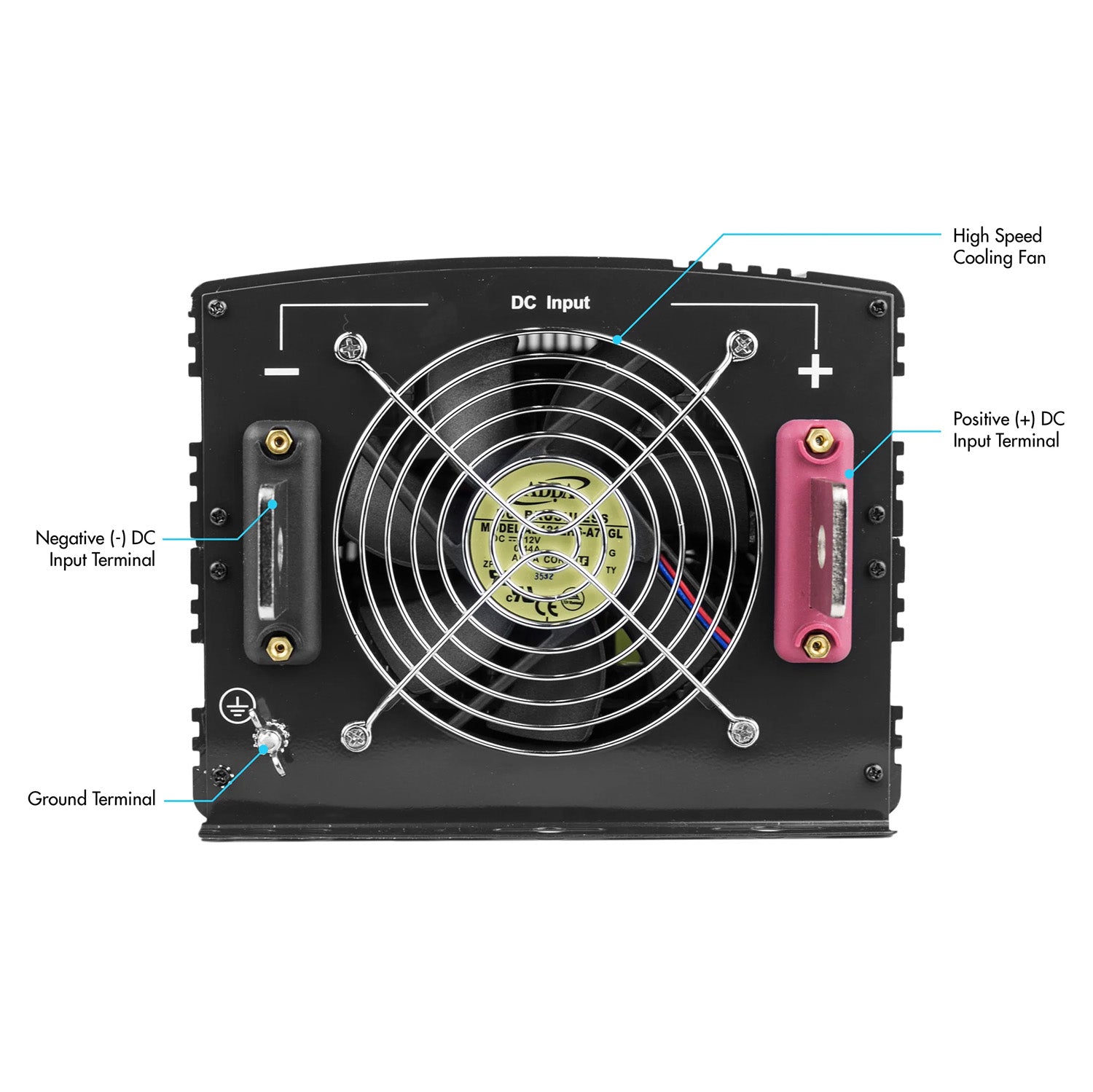

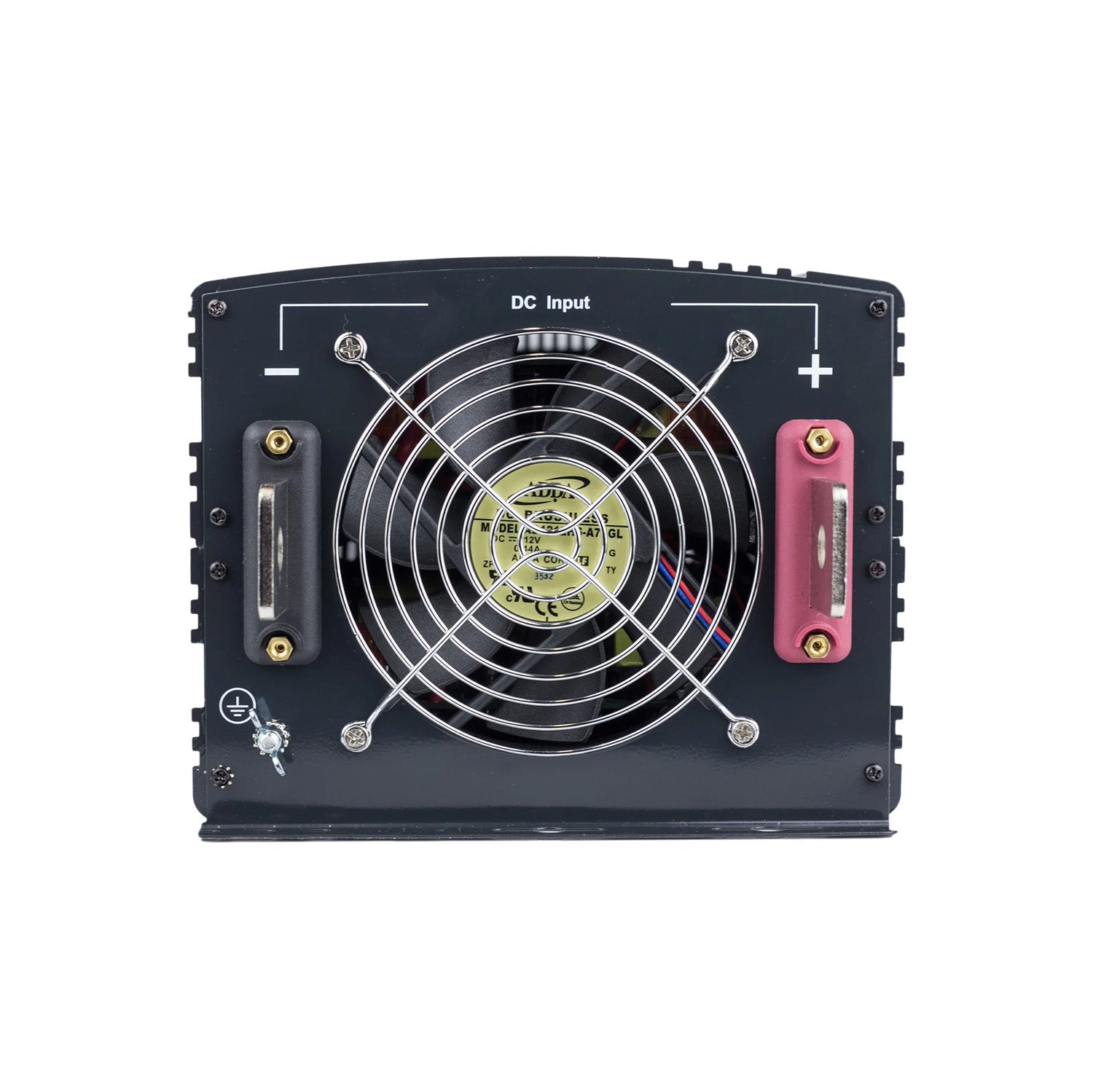

Solid Mount Blade Terminals

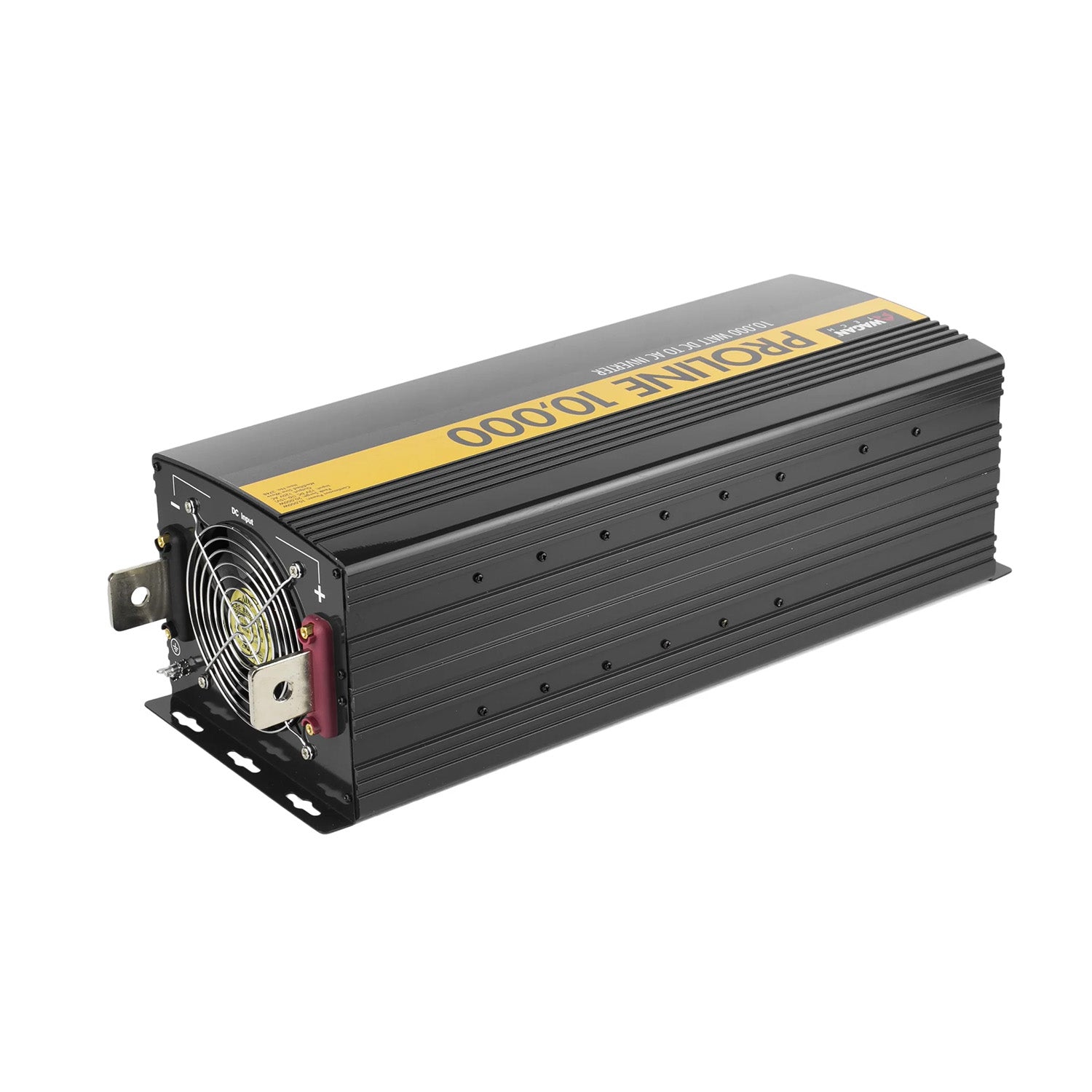

Extra-large positive and negative blade terminals come straight out of the rear of the case with room for the multiple DC cables this model's cable guide calls for. They accept 1/4 to 3/8 inch bolts, and a separate ground terminal takes a 6 gauge insulated safety ground wire.

Protection and Cooling

Automatic shutdowns cover overload, overheating and input above 15V. A low battery alarm sounds at 10.5V ± 0.5V and the inverter shuts off at 9.5V ± 0.5V, then restarts automatically after a low voltage shutdown. An internal non-replaceable fuse covers short circuits and reverse polarity, and a temperature-controlled high-speed fan handles cooling.


Real-World Applications

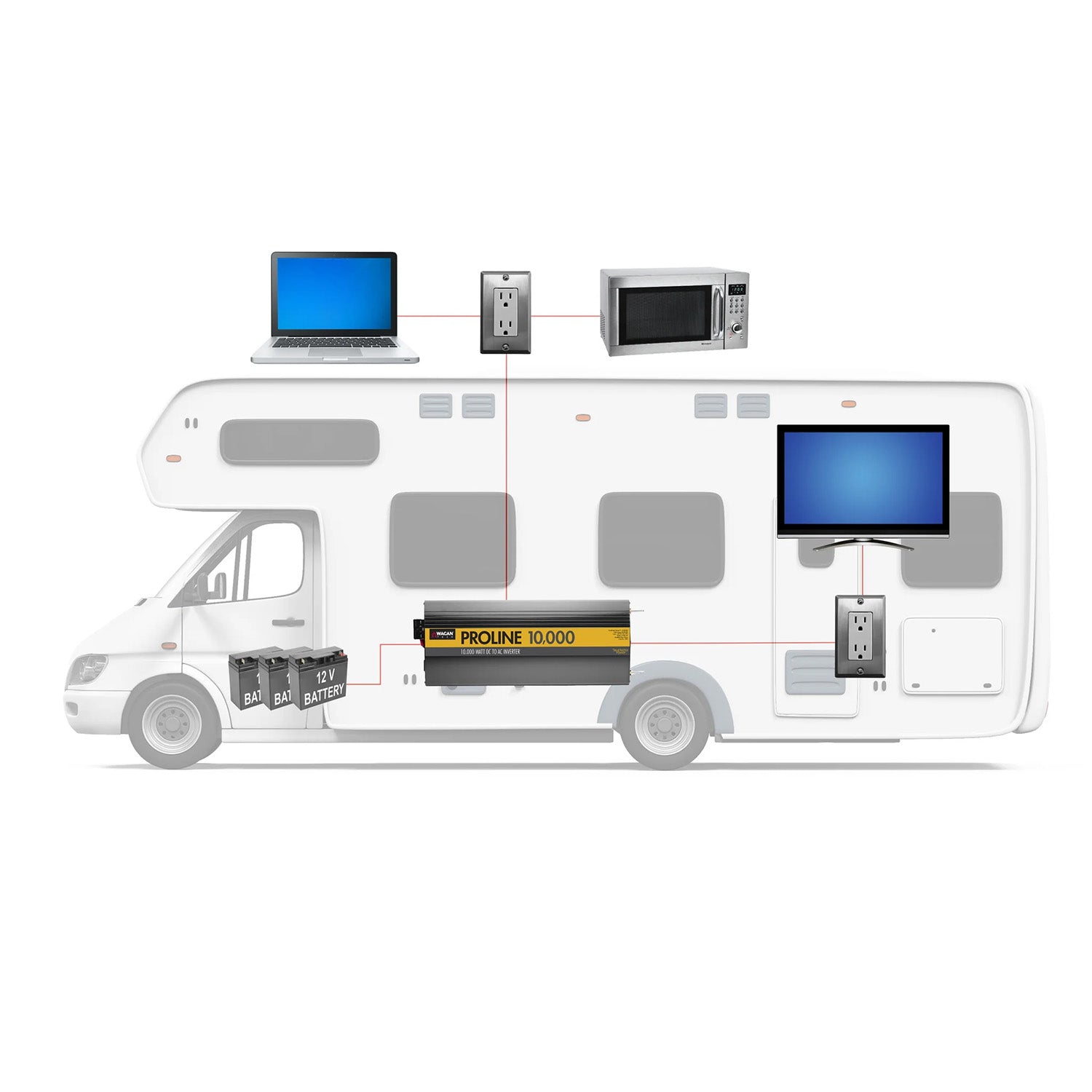

Large RVs. Power appliances such as a microwave oven, refrigerator or small air conditioner from a large 12V battery bank.

Job sites. Run compatible tools from a work truck battery bank, with each tool on an outlet within the 1,500 watt limit or heavier loads wired to the terminal block.

Boats. Mount it in a dry, cool, dust-free compartment, fuse the battery bank within 8 inches of its positive terminal and recharge from shore power whenever possible.

Off-grid and backup systems. Feed a multi-outlet circuit through the terminal block and add solar or wind charging, which keeps working during power outages and reduces recharge time.


Practical Comparison

ProLine 10,000 Versus a Pure Sine Wave Inverter

Modified sine wave power runs many standard appliances and tools. Wagan cautions that modified sine wave inverters may not properly operate some appliances with speed control or dimmer features, and some appliance GFCI power cords may not work properly. Some sensitive electronics may require pure sine wave power, and inexpensive audio systems may buzz. Test your equipment, and use a pure sine wave inverter for anything that requires it.

Plug-In Outlets Versus the AC Terminal Block

The outlets suit plug-in loads up to 15 amps each. Keep extension cords to 50 feet or less, rated for the load, and never use them as permanent wiring. For a permanent install, connect NEC compliant wiring and outlets to the high output terminals.


Buyer Guidance

Plan for 1,000 Amps of Battery Current

At 10,000 watts continuous, this inverter needs a 12V battery bank that can supply 1,000 amps for the entire run time. To estimate current for smaller loads, divide AC watts by 10, then multiply amps by hours of use for amp-hours. Add capacity on top of that, since heavy discharge rates, cold temperatures and battery age all reduce what a bank can deliver. Recharging typically takes about 130% of the energy used.

Fuse, Cable and Installation

Install an ANL 1,000 amp fuse within one foot of the positive battery terminal, or within 8 inches on a boat. By round trip length, Wagan's 12V cable guide calls for two 000 AWG cables at 6 feet, three 00 AWG at 8 feet, four 00 AWG at 10 feet, four 000 AWG at 12 feet, three 0000 AWG at 14 feet and four 0000 AWG at 16 feet, with nothing listed past 16 feet. Mount the inverter horizontally in a dry, cool, dust-free spot away from flooded battery fumes, and ground the case with 6 gauge wire to the vehicle chassis or an earth ground, never to the inverter's negative terminal.

This May Be A Good Fit If

  • Your 12V battery bank can deliver around 1,000 amps
  • You need four outlets plus hardwire terminals
  • You want a remote switch included
  • Your loads run on modified sine wave power

Common Questions

Is the Remote Switch Included?

Yes. A remote on/off switch and a 16 foot remote switch cord come with the ProLine 10,000.

What Battery Voltage Should I See at Startup?

Between 11 and 15 volts DC. If the reading is outside that range, check that the cable connections are tight and check the voltage of your power source.

Why Does the Volt Display Read Lower Than My Battery?

The display reads voltage at the inverter's DC terminals, not at the battery. Under heavy load the cables cause some drop, which should stay within 0.25 to 0.5 volts to avoid cutting run time.

How Much Does It Draw With No Load?

Less than 2.5A when switched on and less than 0.2A when switched off.


What's Included

  • 1 x ProLine 10,000W Modified Sine Wave Power Inverter
  • 1 x Remote On/Off Switch
  • 1 x 16 Ft Remote Switch Cord

Full-Size Power for Full-Size Systems

The Wagan ProLine 10,000 Watt Inverter gives a large 12V battery system 10,000 watts of continuous power, a 20,000 watt surge, four outlets, hardwire terminals and an included remote switch. If you'd like help sizing the battery bank, cables or fuse, the Outbound Power team is happy to help.


Wagan Tech ProLine 10,000 Watt 12 Volt Power Inverter Specifications

Model 3748
Output
Continuous Power 10,000W
Surge Power 20,000W
Output Waveform Modified sine wave
AC Output Voltage 115V
Frequency 60Hz
Maximum Efficiency 90%
No Load Current Draw, Switched On Less than 2.5A
No Load Current Draw, Switched Off Less than 0.2A
DC Input
DC Input 12V DC
Input Range 11-15V DC
Low Battery Alarm 10.5V ± 0.5V DC
Low Battery Automatic Shutdown 9.5V ± 0.5V DC
High Voltage Shutdown Above 15.0V DC
Battery Current at Full Continuous Output 1,000A at 12V
DC Terminals Heavy-duty solid mount blade terminals, red positive and black negative
Terminal Bolt Size 1/4 to 3/8 in
Battery Fuse ANL 1,000A, within 1 ft of battery positive (8 in on boats)
Cable Gauge, 6 ft Round Trip 2 x 000 AWG
Cable Gauge, 8 ft Round Trip 3 x 00 AWG
Cable Gauge, 10 ft Round Trip 4 x 00 AWG
Cable Gauge, 12 ft Round Trip 4 x 000 AWG
Cable Gauge, 14 ft Round Trip 3 x 0000 AWG
Cable Gauge, 16 ft Round Trip 4 x 0000 AWG
Outlets and Ports
AC Outlets 4 x NEMA 5-15 (U.S. three-prong)
Outlet Capacity 15A at 115V each, 1,500W max per outlet
High Output AC Terminals Live (black), Neutral (white), Ground (green)
High Output Terminal Wiring 10 gauge or larger
Displays DC volts and DC amps bar graphs
Warning Lights Over Temp LED, Overload LED
Remote On/Off Switch Included
Remote Switch Cord Length 16 ft
Protection
Overload Protection Automatic shutdown
Overheating Protection Thermal cooling fan with automatic shutdown
Automatic Restart After Low Voltage Shutdown Yes
Short Circuit and Reverse Polarity Internal non-replaceable fuse
Cooling Fan Temperature controlled, high speed
Grounding True ground, neutral and ground bonded inside
Ground Terminal For 6 gauge insulated safety ground wire
Physical
Dimensions (L x W x H) 21.5 x 7.8 x 6.3 in (54.6 x 19.8 x 16.0 cm)
Net Weight 21.5 lb (9.8 kg)
Operating Temperature Up to 149°F (65°C)
Certifications and Warranty
Certifications CE and RoHS
