Wagan Tech ProLine 5000 Watt 12 Volt Power Inverter

Wagan Tech ProLine 5000 Watt 12 Volt Power Inverter For High-Output Battery Power

Unlike a small plug-in inverter intended for a few lightweight electronics, the ProLine 5000 is built around a much larger power system. The 12V model requires a battery bank capable of delivering significant DC current, making proper battery sizing, cabling, fuse protection, and installation important parts of the overall setup. At full 5,000-watt output, the manual specifies approximately 500 amps at 12V, so this is a serious power-system component rather than a casual accessory.

Wagan Tech ProLine 5000 Watt 12 Volt Power Inverter Features

5,000 Watts Of Continuous Power So You Can Run Larger AC Loads

The ProLine 5000 provides 5,000 watts of continuous AC output, giving a properly designed 12V battery system the ability to operate substantially larger electrical loads than typical low-wattage inverters. The manual specifically lists televisions, DVD players, microwave ovens, refrigerators, and small air conditioners among example loads. Actual suitability depends on each appliance's continuous and starting wattage.

10,000-Watt Surge Capacity For Starting Demanding Equipment

Motor-driven appliances and equipment can require considerably more power when starting than they consume during normal operation. The ProLine 5000 has a 10,000-watt surge rating, while Wagan explains that some motorized loads may have starting requirements several times higher than their continuous consumption. Always check the equipment's starting requirements before connecting it.

Modified Sine Wave Output For A Wide Range Of AC Equipment

The inverter produces 115V AC using a modified sine wave output. This waveform can operate many ordinary AC loads, but it is not appropriate to assume that every appliance will work correctly. Wagan notes that some equipment with speed controls, dimmers, or certain GFCI power cords may not operate properly with modified sine wave inverters. Testing the intended equipment is recommended when compatibility is uncertain.

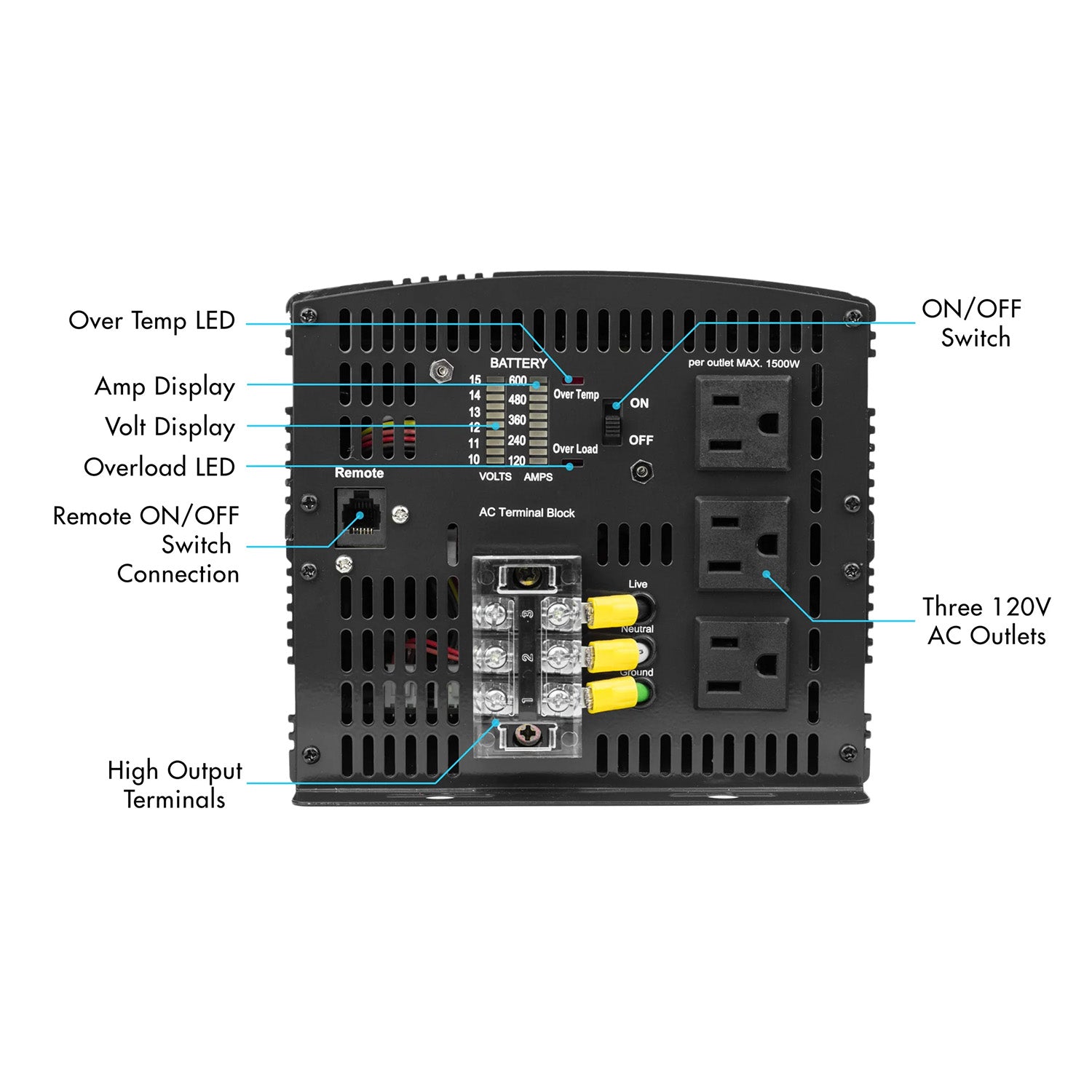

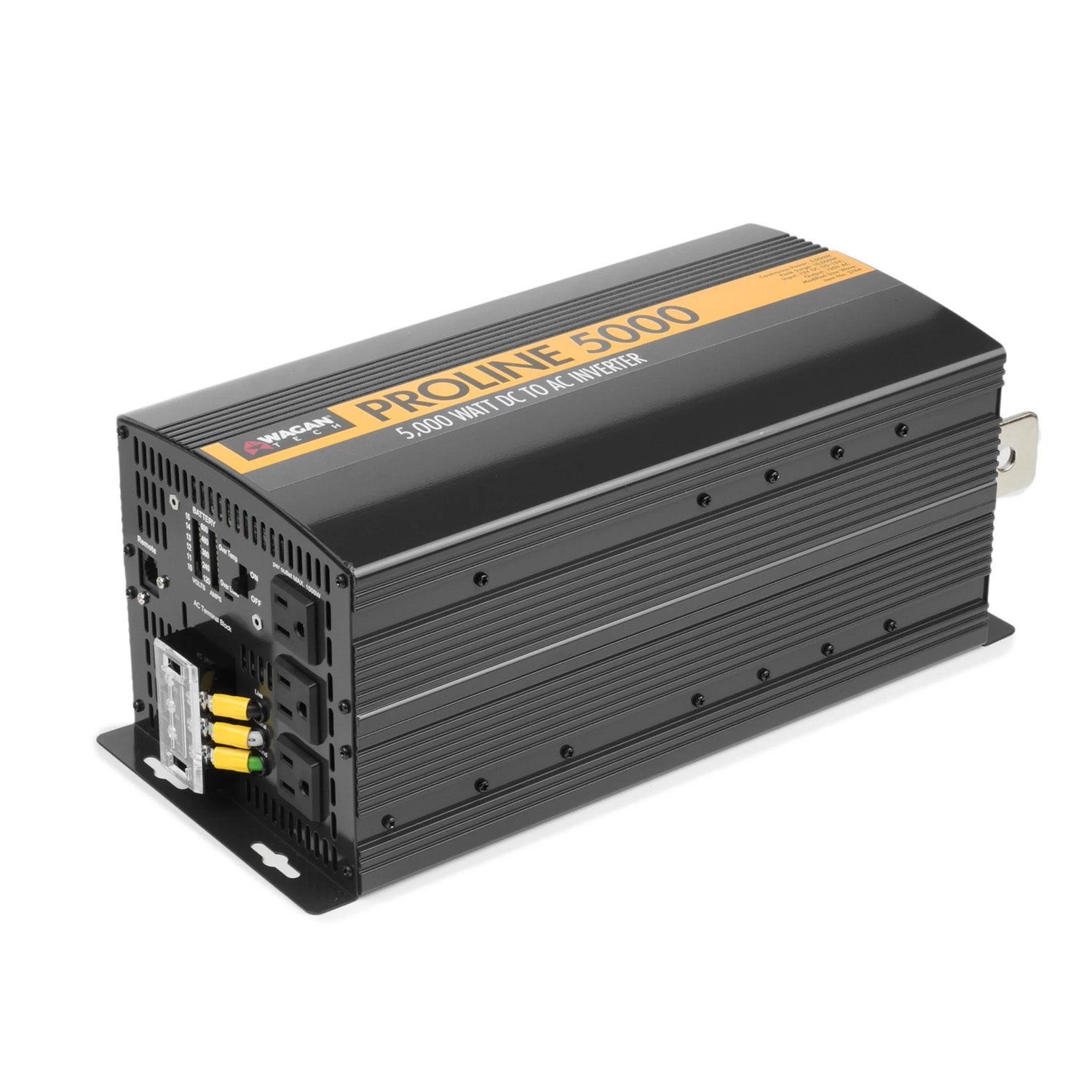

Three AC Outlets Give You Convenient Access To Household-Style Power

The front panel includes three NEMA 5-15 USA AC outlets for connecting standard compatible plugs. Each outlet is rated for up to 15 amps at 115V AC, and the manual warns that more than 1,650 watts of continuous power from an individual outlet may cause damage. This makes the outlets convenient for everyday connections while the high-output terminals handle larger requirements.

High-Output AC Terminals So You Can Connect Larger Loads

For AC devices that require more than 15 amps, the inverter provides dedicated high-output AC terminals. These terminals can also be used for distributed wiring with multiple AC outlets when installed using appropriate wiring and techniques. Wagan specifies that directly connected wiring must be 10 gauge or larger, so larger AC connections should be planned as part of the installation rather than improvised.

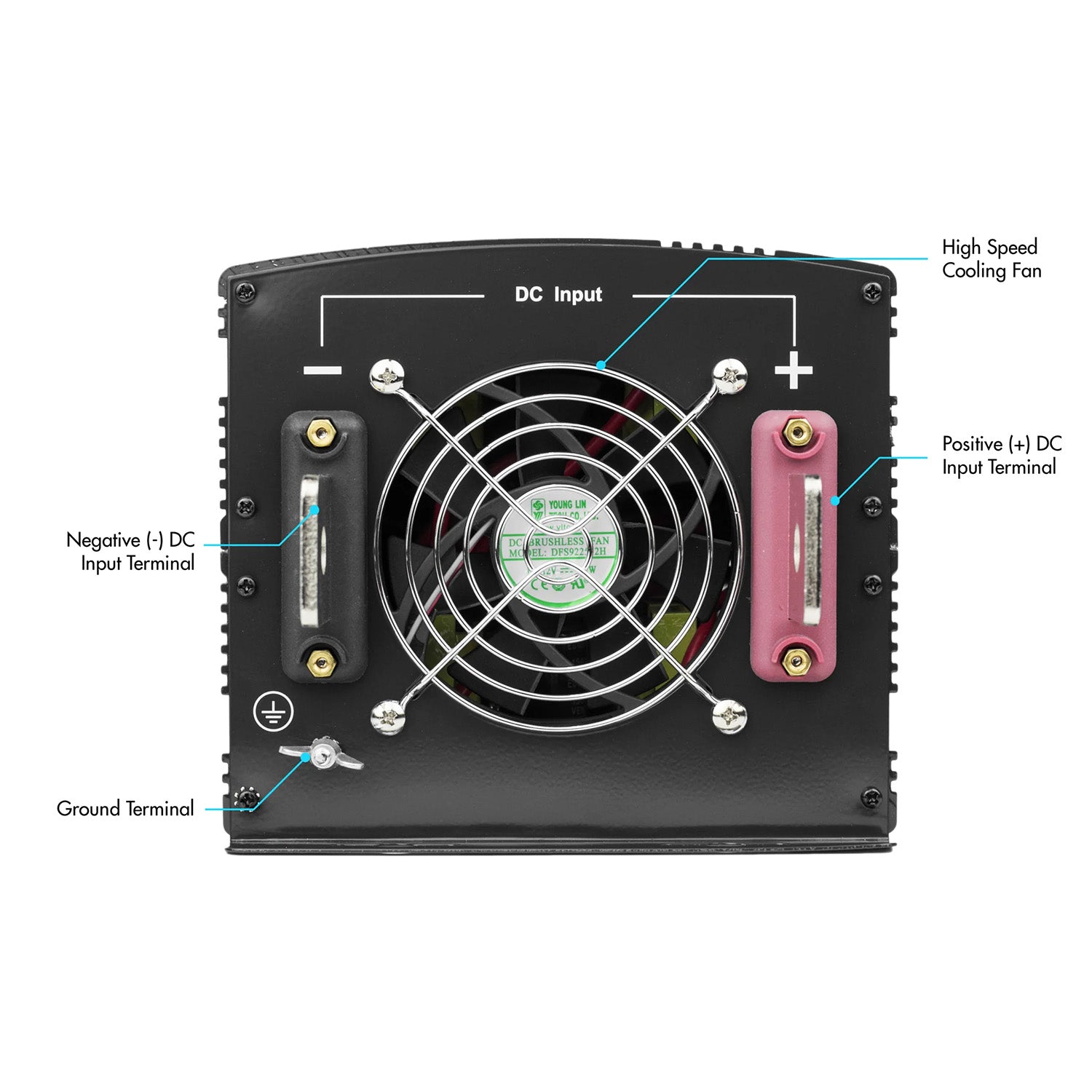

Automatic Cooling Helps Manage Heat During Heavy Operation

The ProLine 5000 uses high-speed cooling fans that automatically operate when cooling is required. A dedicated Over Temp indicator alerts the user if the inverter shuts down because of excessive temperature. Adequate ventilation is essential because the inverter generates heat during operation, and the manual specifically instructs users not to block the vents.

Built-In Monitoring Helps You Keep An Eye On DC Input Conditions

Two bar-graph displays monitor the inverter's DC input conditions, showing voltage at the inverter's DC terminals and the DC amperage being drawn from the battery bank. The 12V model operates within an 11V to 15V DC input range, sounds a low-voltage alarm at approximately 10.5V, and shuts down below approximately 9.5V or above 15V.

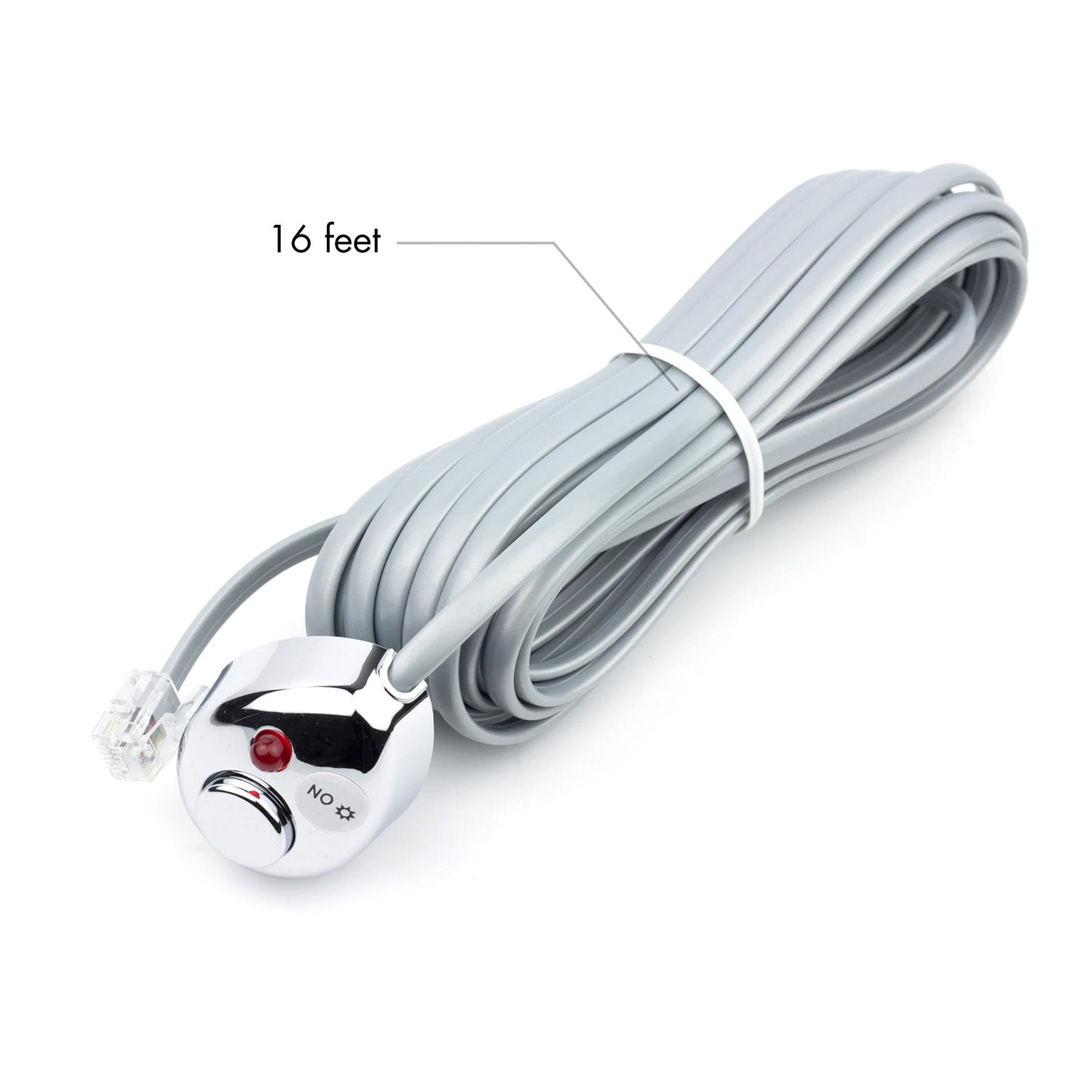

Remote On And Off Control Gives You More Convenient Operation

A supplied cable and remote switch assembly provide a convenient remote On/Off function. This can be useful when the inverter is installed in a location where reaching the main front-panel switch is inconvenient. The inverter also includes a standard front-panel On/Off switch for direct control.

Real-World Uses For The ProLine 5000 12V Inverter

The ProLine 5000 makes the most sense where a substantial battery bank is already part of the power plan. Because it converts stored DC energy into 115V AC power, it can serve as the AC power conversion component in a larger battery-based system.

• Home Backup Power — It can provide AC power from a properly sized 12V battery bank during a power outage. The overall system still requires suitable battery capacity and a charging strategy.

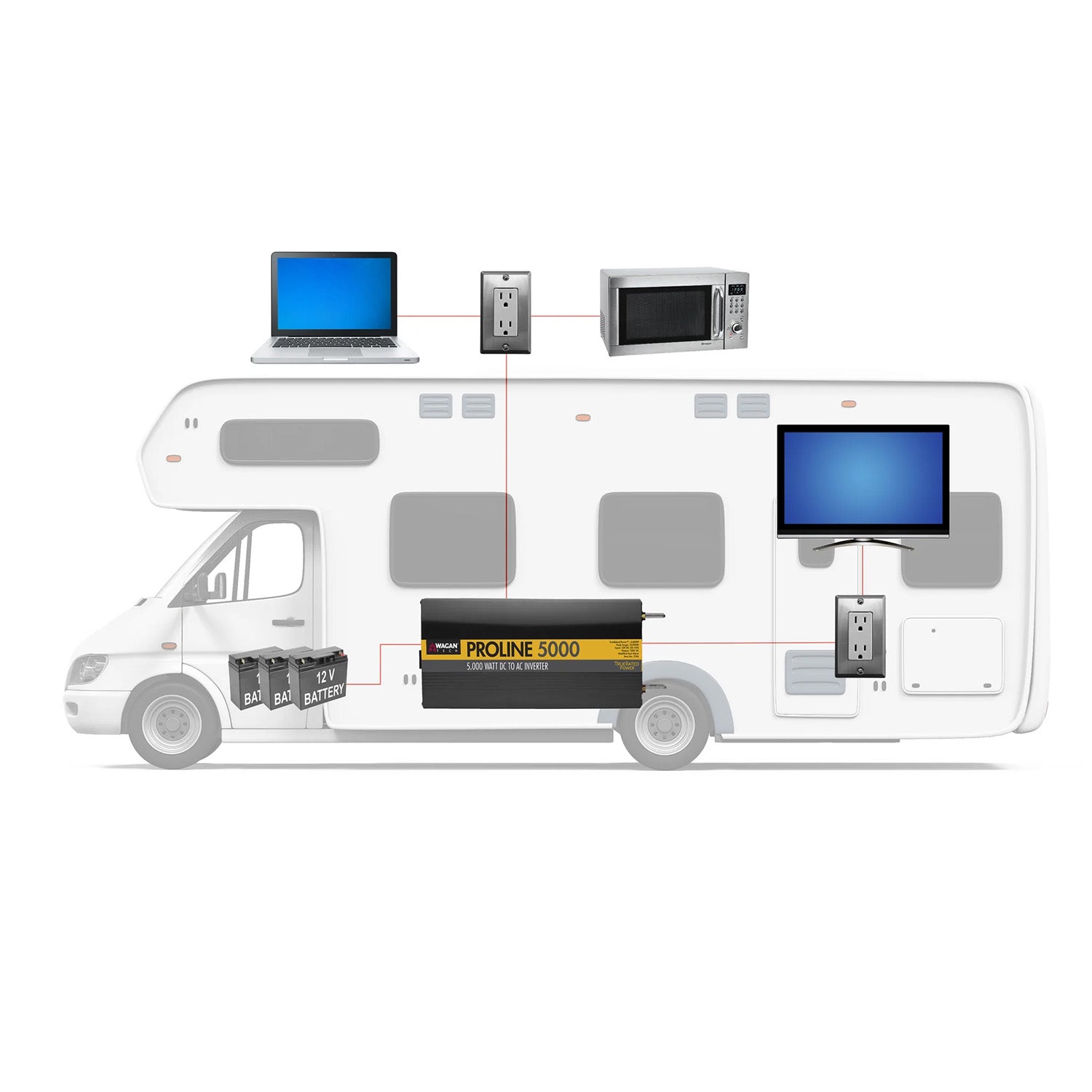

• RV And Vehicle Power — The manual specifically discusses vehicle installations and recommends grounding the inverter to the vehicle chassis where appropriate. Its high output can support larger AC loads when the battery and charging system are designed accordingly.
• Marine Applications — Wagan's manual includes vessel installation guidance and discusses battery charging aboard a vessel, making the inverter relevant to appropriately designed marine power systems.
• Off-Grid Power Systems — The inverter can form part of a battery-based AC system where stored DC energy needs to be converted to household-style AC power.
• Remote Worksites — Where a properly sized battery bank is available, the 5,000-watt continuous rating can support substantial AC loads without relying directly on a conventional utility connection.

How The ProLine 5000 Compares To Smaller Inverters

The key difference is scale. A smaller inverter may be easier to integrate into a compact battery system, but it may not provide enough continuous or surge capacity for larger appliances and equipment. The ProLine 5000 moves into a different category, with 5,000 watts of continuous output and 10,000 watts of surge capacity. That capability also means the supporting battery bank, DC cables, fuse, grounding, and charging equipment need to be sized accordingly.

It is also important to distinguish this inverter from a complete portable power station. The ProLine 5000 is an inverter that operates from a DC power source; the manual does not identify an internal battery, solar charge controller, or integrated fuel-powered generator. Customers building a complete backup system should therefore plan the compatible battery bank and charging equipment separately.

Battery And Installation Planning For 5000 Watts

A 5,000-watt 12V inverter places substantial demands on the battery system. Wagan specifies that the 12V model can require 500 amps at 12V when delivering its full continuous output. Battery capacity should therefore be selected according to the desired load and operating time rather than simply choosing a battery based on nominal voltage. The manual also explains that cable length, cable losses, battery condition, temperature, DC loads, and other factors affect actual operating time.

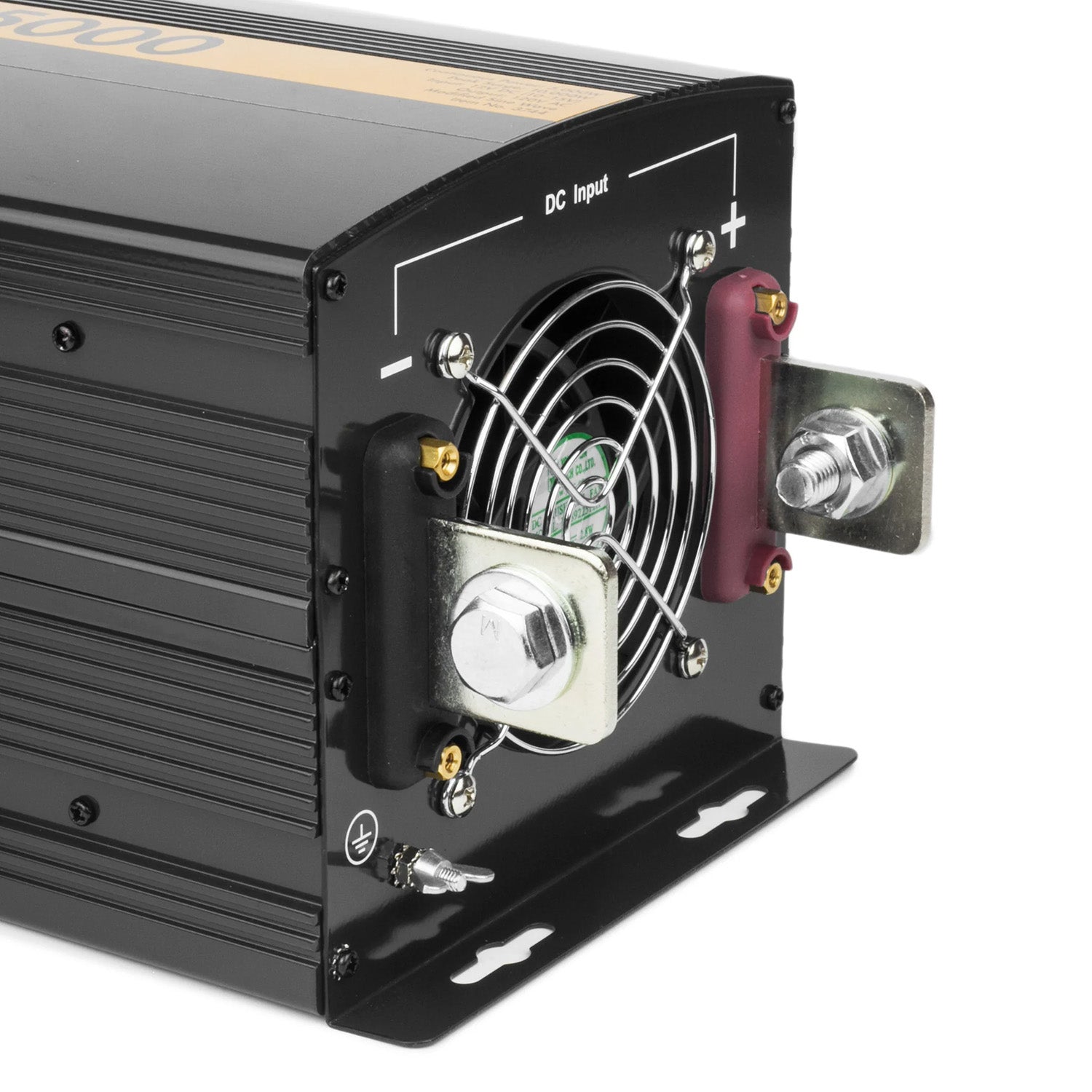

Proper protection is equally important. For the 12V model, Wagan specifies a 500-amp ANL fuse installed close to the battery bank's positive terminal. The manual also provides cable gauge recommendations based on total cable length and calls for appropriate insulated stranded copper cable. Because this is a high-current installation, customers should follow the manufacturer's installation instructions and use appropriately qualified expertise where necessary.

Is The Wagan Tech ProLine 5000 Right For You

The ProLine 5000 is best suited to customers who need substantial AC output and are prepared to build or already have a capable 12V battery system. It is a strong candidate when the project calls for more power than a small vehicle inverter can provide, but the supporting electrical system should be treated as an equally important part of the purchase decision.

This May Be A Good Fit If:

• You need up to 5,000 watts of continuous AC output from a 12V battery system.
• Your equipment requires substantial startup power and falls within the inverter's 10,000-watt surge rating.
• You need both standard AC outlets and high-output AC connection terminals.
• You are planning a vehicle, vessel, backup, or off-grid battery-based AC system.
• You are prepared to size the battery bank, cables, fuse protection, grounding, and charging system appropriately.

Important Consideration: The ProLine 5000 produces modified sine wave AC. Customers should confirm that their specific appliances and equipment are compatible, particularly when using devices with speed controls, dimmers, or certain GFCI power cords.

Wagan Tech ProLine 5000 Watt 12 Volt Power Inverter Specifications

• DC Input: 11V–15V DC for Item No. 3744
• AC Output: 115V AC
• Output Waveform: Modified Sine Waveform
• Continuous Power: 5,000 watts
• Surge Power: 10,000 watts
• Efficiency: 90%
• AC Outlets: 3 x NEMA 5-15 USA

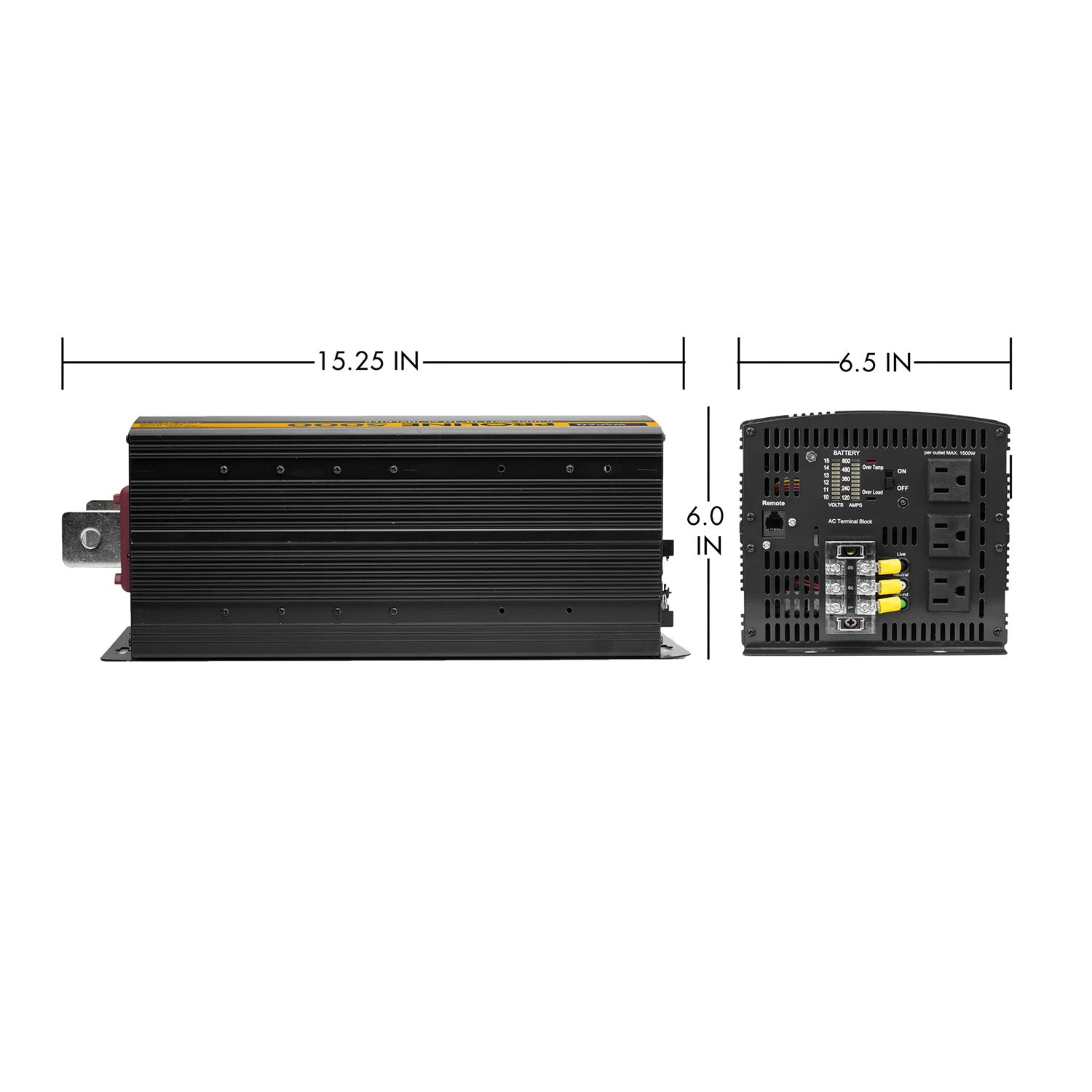

• Dimensions: 15.3 x 6.5 x 6.0 inches
• Net Weight: 11.1 lbs
• Low Battery Alarm: 10.5V ± 0.5V DC
• Low Battery Shutdown: 9.5V ± 0.5V DC

These specifications are for the 12V version identified as Item No. 3744. Wagan also lists ProLine 5000 variants for 24V and 48V input, so customers should verify the exact model before purchase.

Common Questions About The ProLine 5000

What Can The Wagan Tech ProLine 5000 Power

The manual lists televisions, DVD players, microwave ovens, refrigerators, and small air conditioners as examples. Whether a particular appliance will operate depends on its continuous and startup power requirements.

Does The ProLine 5000 Produce Pure Sine Wave Power

No. The ProLine 5000 produces 115V AC modified sine wave output. Customers should confirm compatibility with sensitive or waveform-dependent equipment before purchase.

What Battery System Does The 12V Model Require

The 12V model operates from an 11V–15V DC input range and can draw approximately 500 amps at full 5,000-watt continuous output. The required battery capacity depends on the intended loads and desired operating time.

Does It Have A Remote Switch

Yes. The manual states that a supplied cable and Remote Switch assembly provide a remote On/Off function.

What Warranty Information Is Provided

The manufacturer's manual states that the WAGAN Corporation warranty applies to products sold only in the United States and covers the original purchaser, but the warranty duration is not specified in the provided manual text. Customers outside the United States should confirm applicable warranty coverage before purchase.

Build Your Power System With Confidence

The Wagan Tech ProLine 5000 Watt 12 Volt Power Inverter is designed for customers who need serious AC output from a properly engineered 12V battery system. With 5,000 watts of continuous power, 10,000 watts of surge capacity, multiple AC connection options, automatic cooling, input monitoring, and remote On/Off control, it provides a capable foundation for larger battery-powered AC applications. The important part is matching the inverter to the battery bank, cabling, protection, loads, and charging plan. Outbound Power can help you approach that selection practically, so you can build a power system around the equipment you actually need to run not simply the biggest number on the box.
