Wagan Tech ProLine 8000 Watt 12 Volt Power Inverter

|
SKU: 3746
Original Price $1,380.95
Current Price $1,061.90

Early Black Friday Price Drop Guarantee

  • Buy now, and if our price drops by Black Friday, we'll refund the difference.
  • Found it lower elsewhere? We'll beat it.
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 10 left!

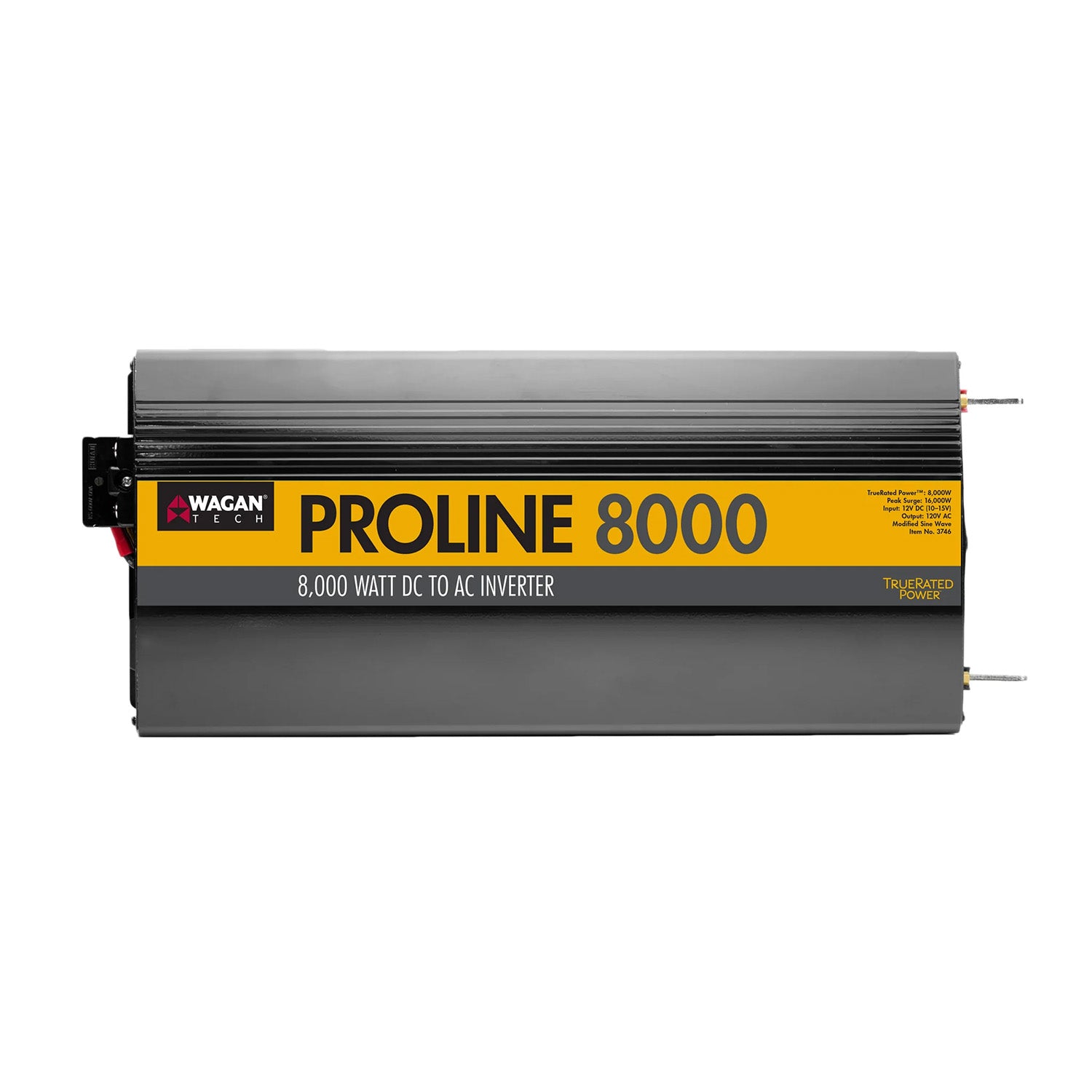

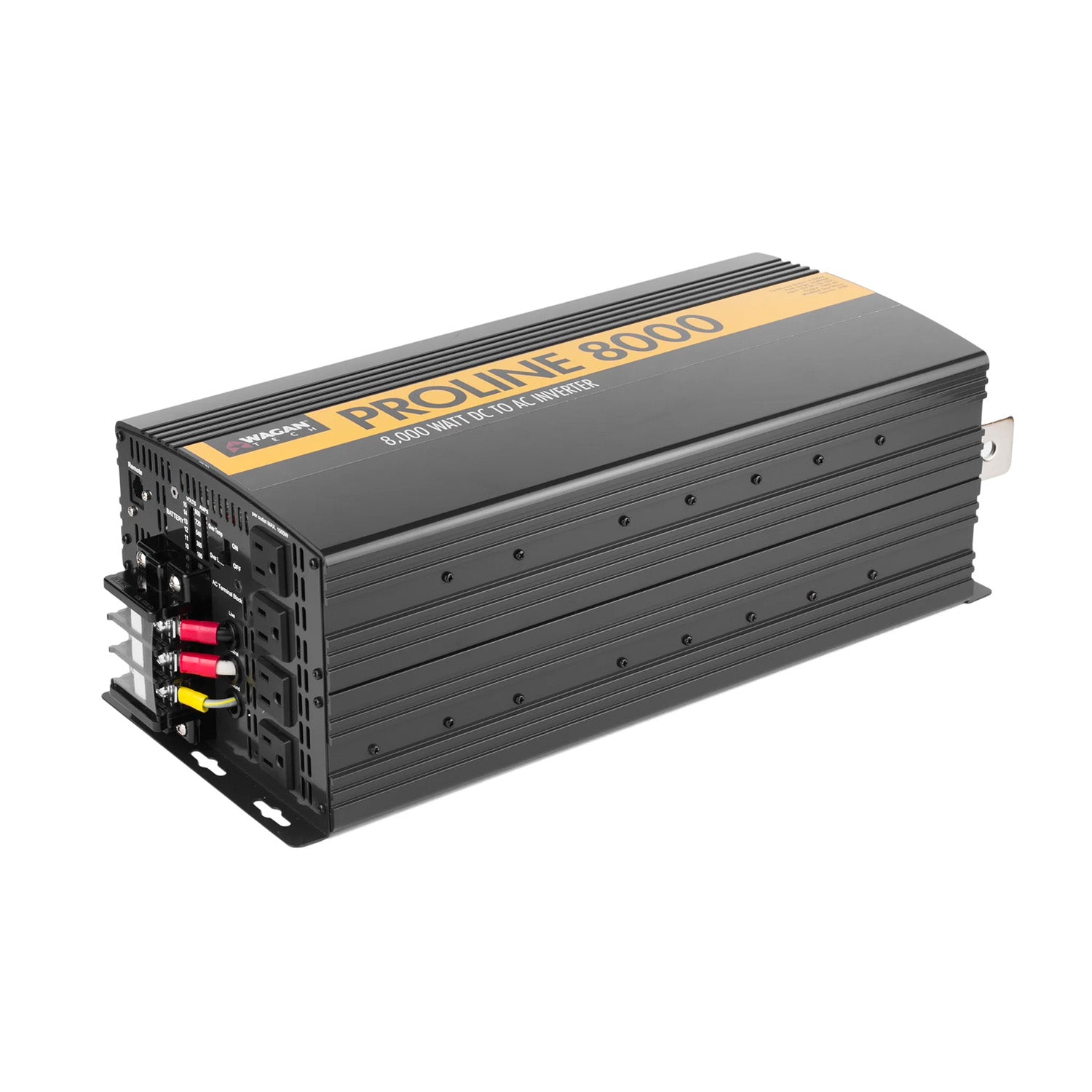

Wagan ProLine 8000 power inverter in black with a yellow-orange label, four AC outlets and a wired AC terminal block

The Wagan ProLine 8000 Watt Inverter Brings 8,000 Watts of Continuous 12V AC Power, Four Outlets and Hardwire Terminals to Large Battery Systems

The Wagan ProLine 8000 Watt Inverter (Wagan item 3746) converts power from a 12V battery bank into 115V modified sine wave AC. It is rated for 8,000 watts continuous and 16,000 watts of surge, with four grounded AC outlets, an AC terminal block for direct wiring, volt and amp displays and an included remote on/off switch with a 16 foot cord.

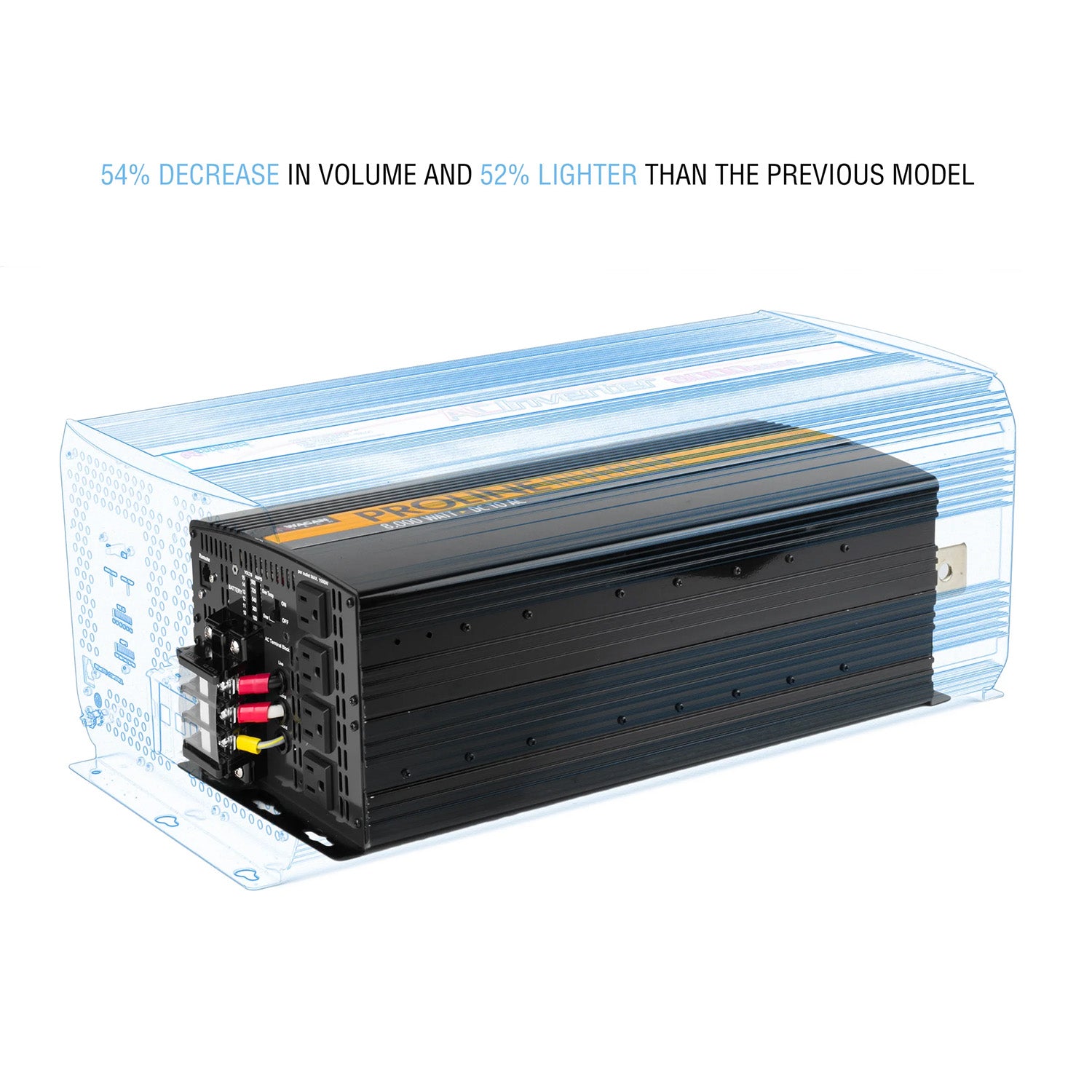

Wagan designs the ProLine 8000 for RVs, boats, campers, off-grid setups, work trucks and job sites that need high output away from a standard outlet. The case measures 19.5 x 7.8 x 6.3 inches and weighs 18.8 pounds.


Wagan ProLine 8000 Watt Inverter Features

8,000 Watts Continuous With a 16,000 Watt Surge

A motor needs a momentary surge, called the starting load, before it settles to its running load. For many appliances the starting load is about twice the running load, and for some it can be eight times higher. The 16,000 watt surge rating covers that startup, and an overload shuts the inverter down automatically so neither it nor your equipment is damaged.

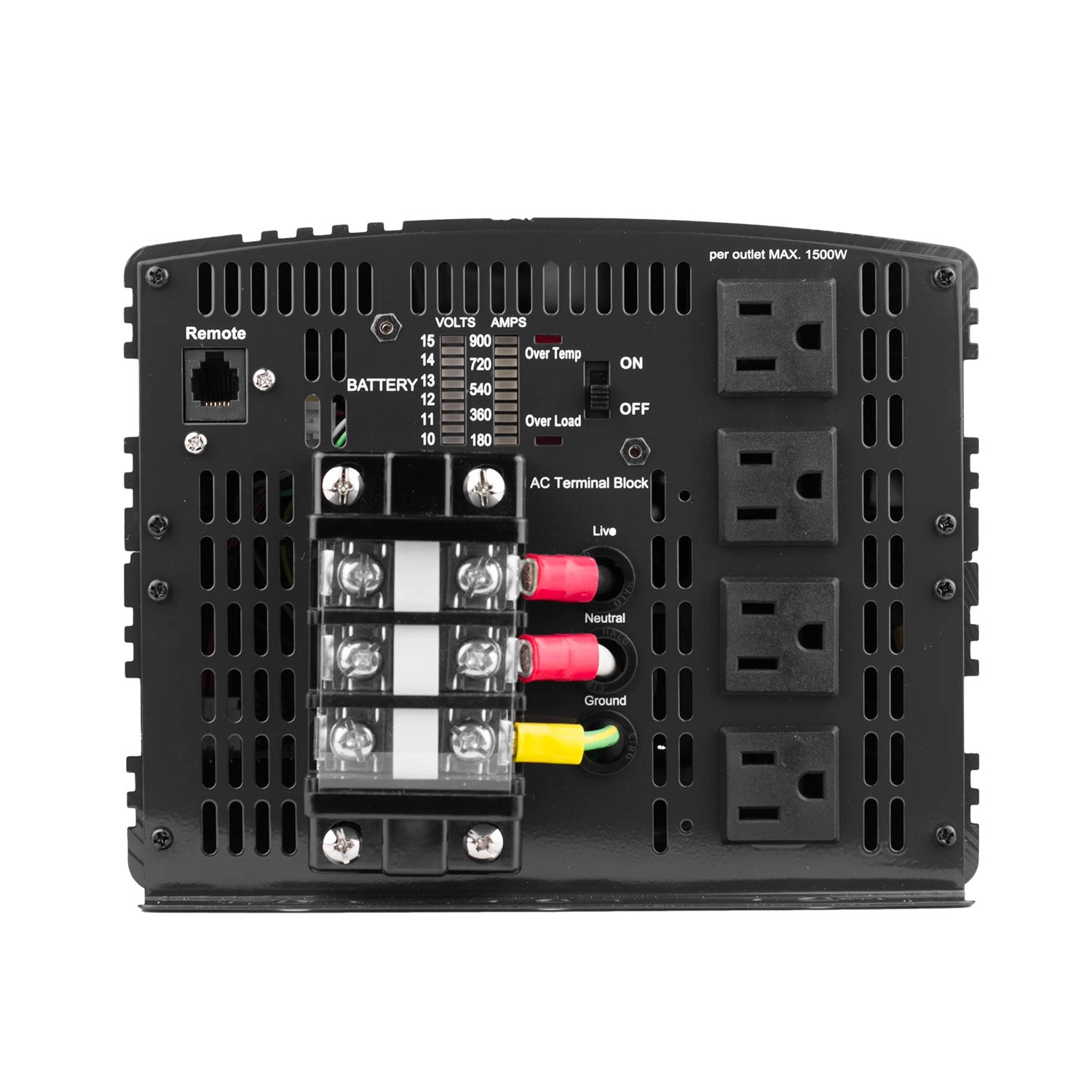

Four Outlets and an AC Terminal Block

Four NEMA 5-15 outlets each supply up to 15 amps at 115V, and the panel marks a 1,500 watt maximum per outlet. Loads that need more than 15 amps, or distributed wiring with several outlets, connect to the terminal block's Live (black), Neutral (white) and Ground (green) terminals with 10 gauge or larger wire. Neutral and ground are bonded inside the inverter, as the National Electric Code requires for an AC source.

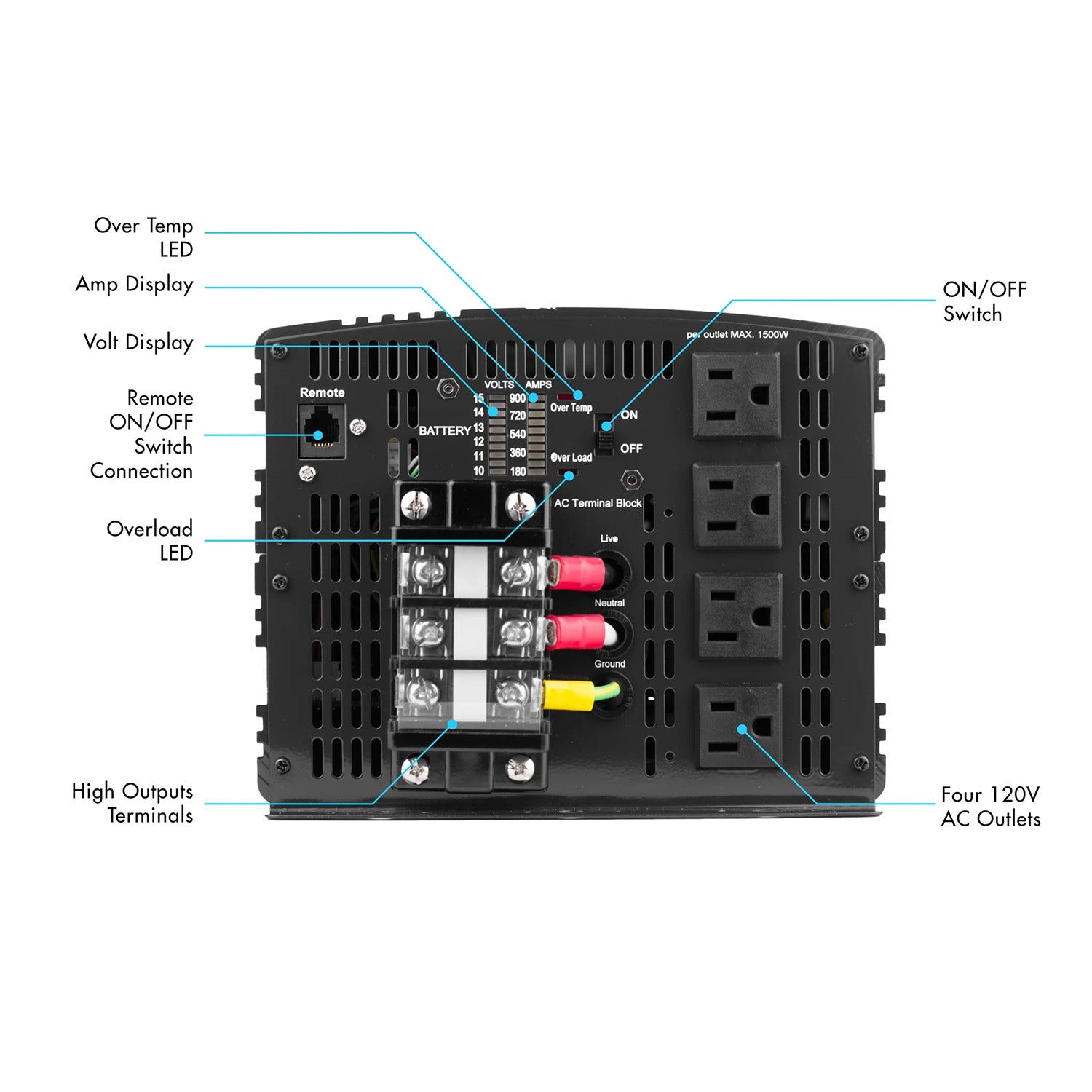

Volt and Amp Displays With Fault Lights

Two bar graph displays track the DC voltage at the inverter's terminals and the DC current drawn from your battery bank. Over Temp and Overload LEDs turn red when the inverter shuts down for heat or excessive load.

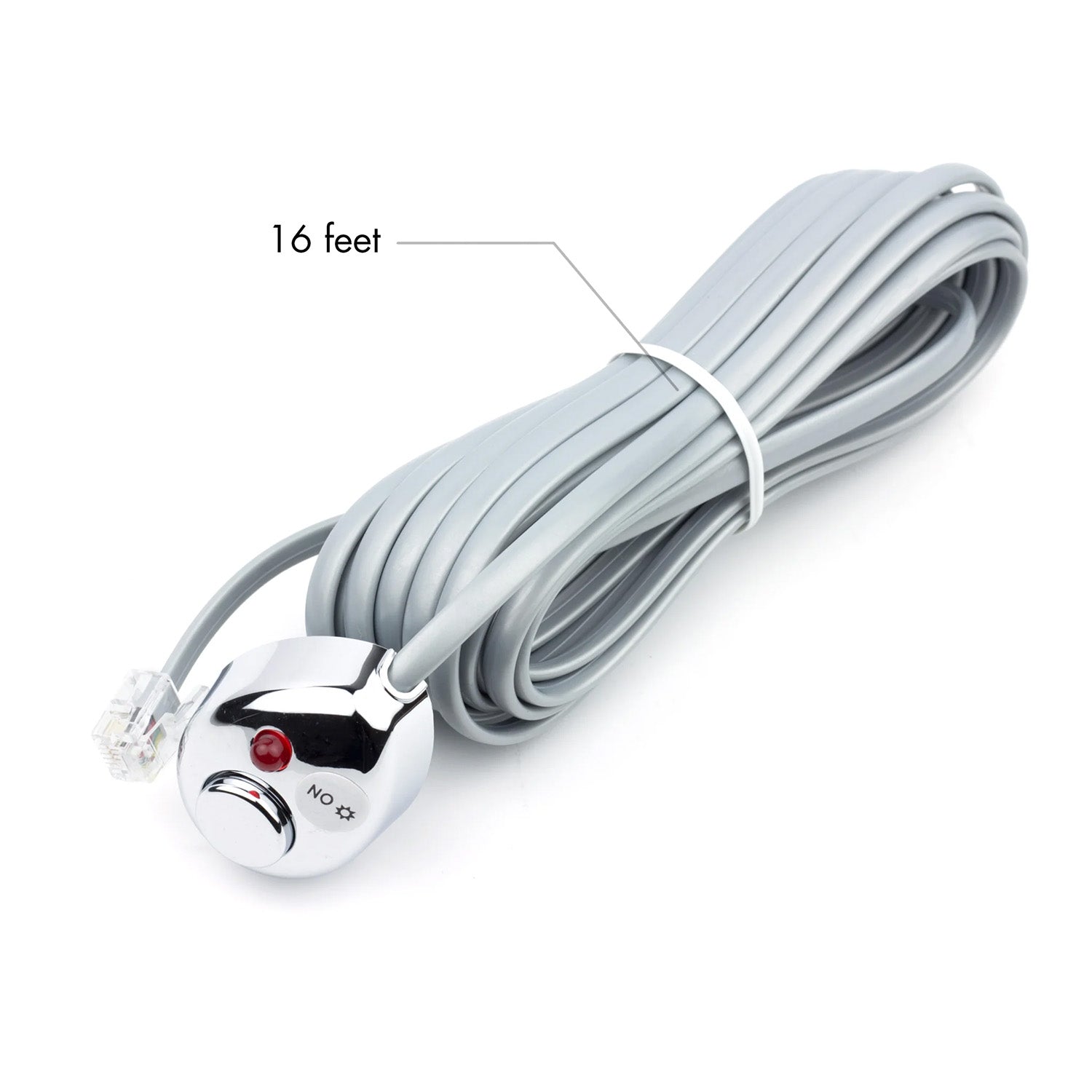

Remote Switch With a 16 Foot Cord

The included remote on/off switch plugs into the front panel, so you can control the inverter from a convenient spot up to 16 feet away.

Heavy-Duty Solid Mount Terminals

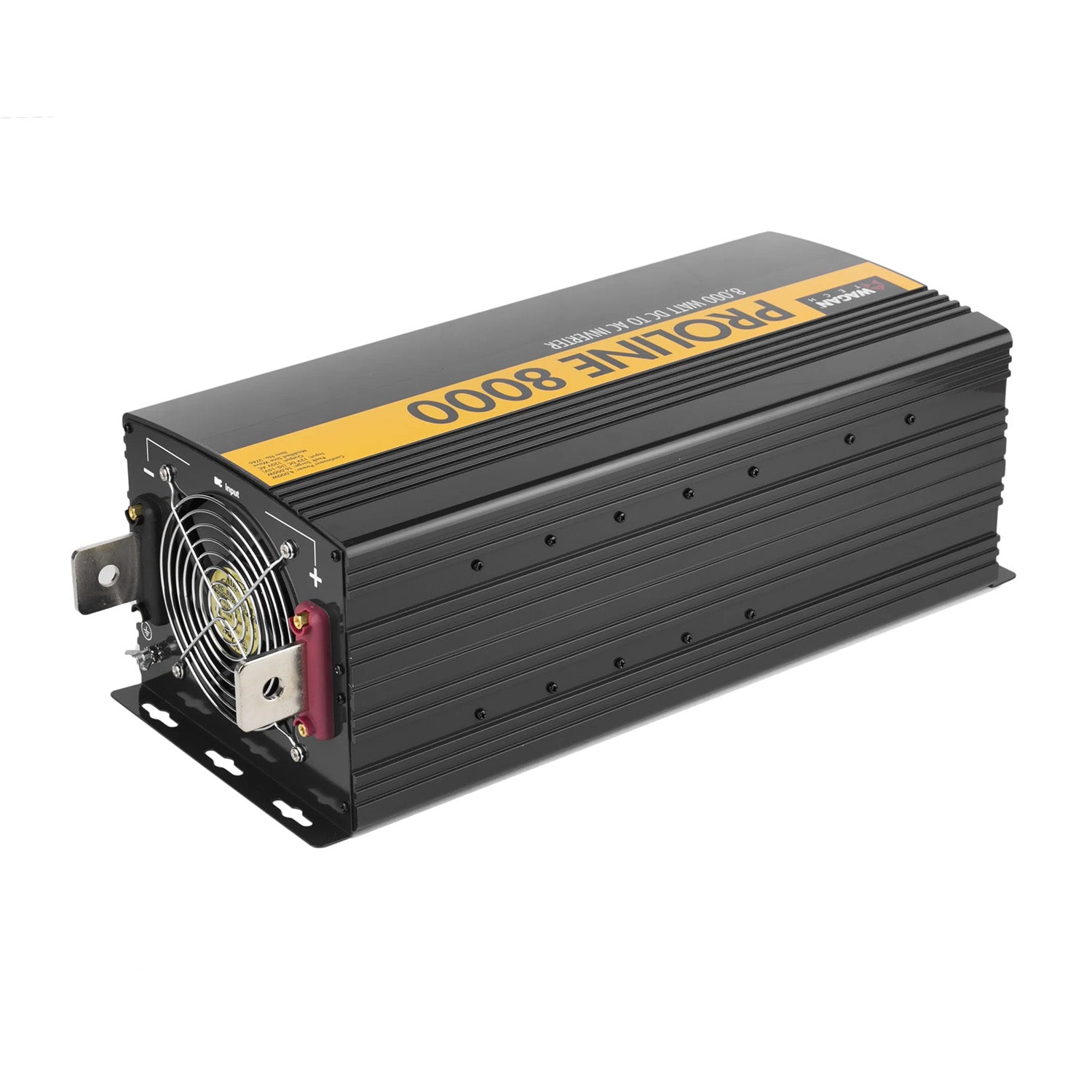

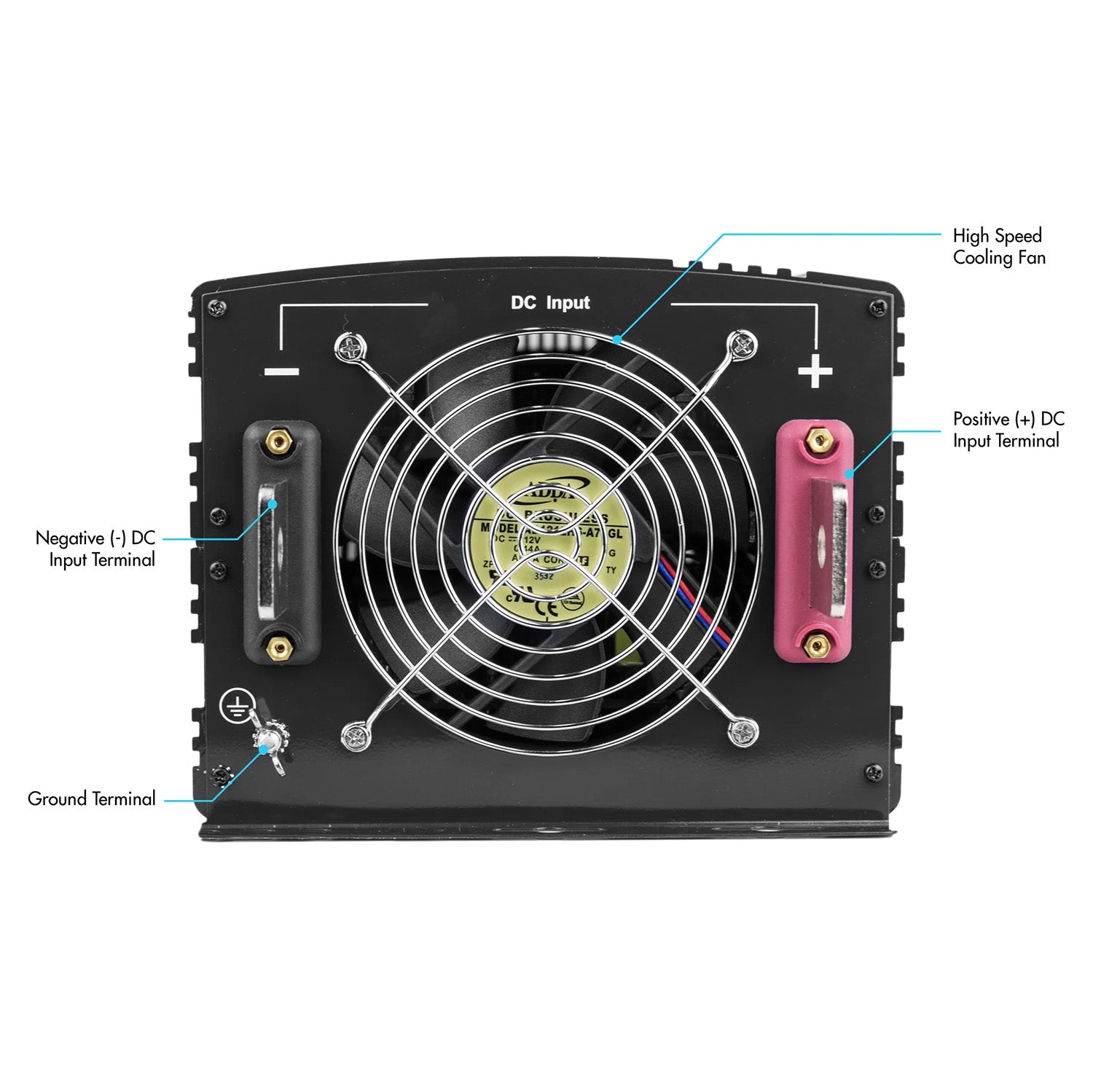

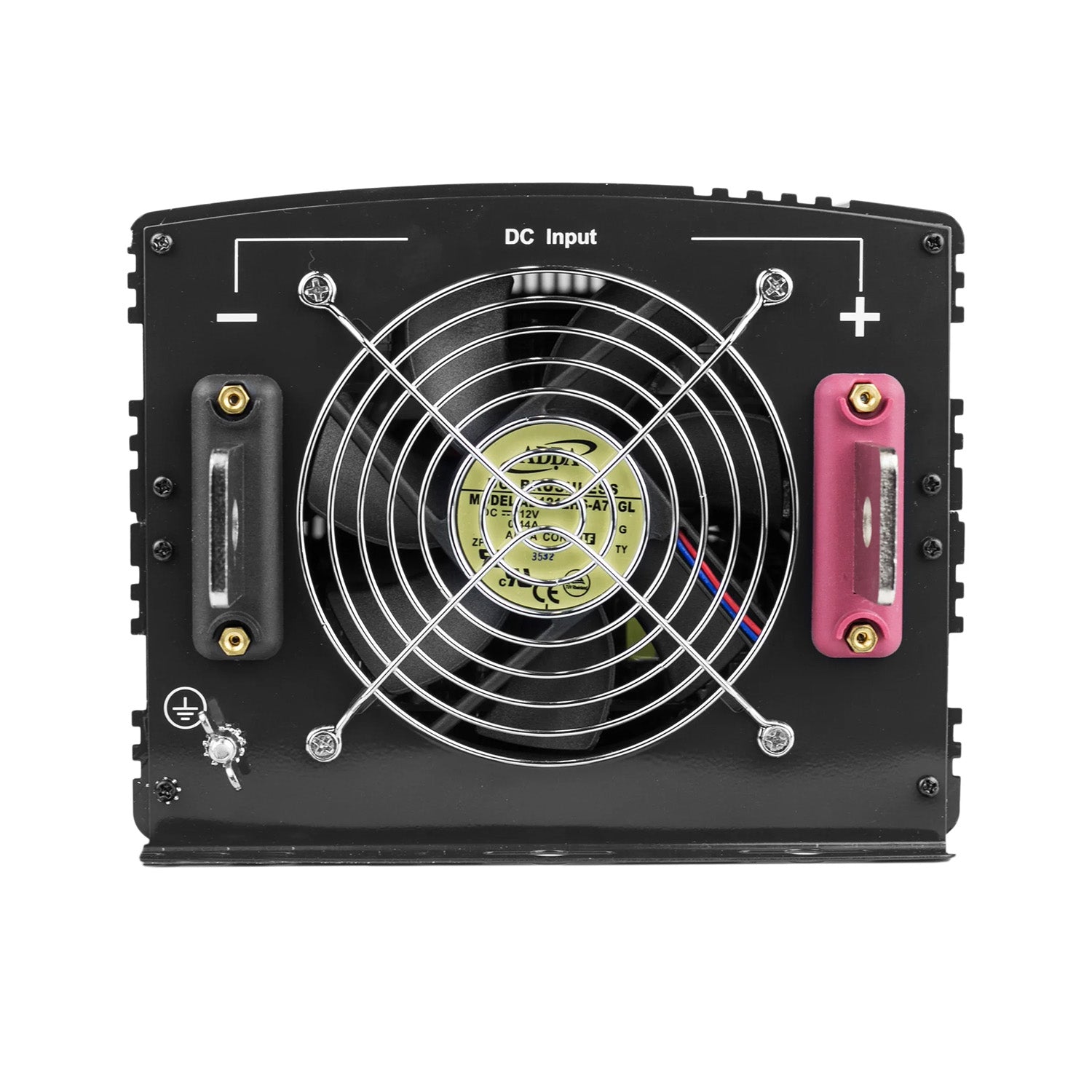

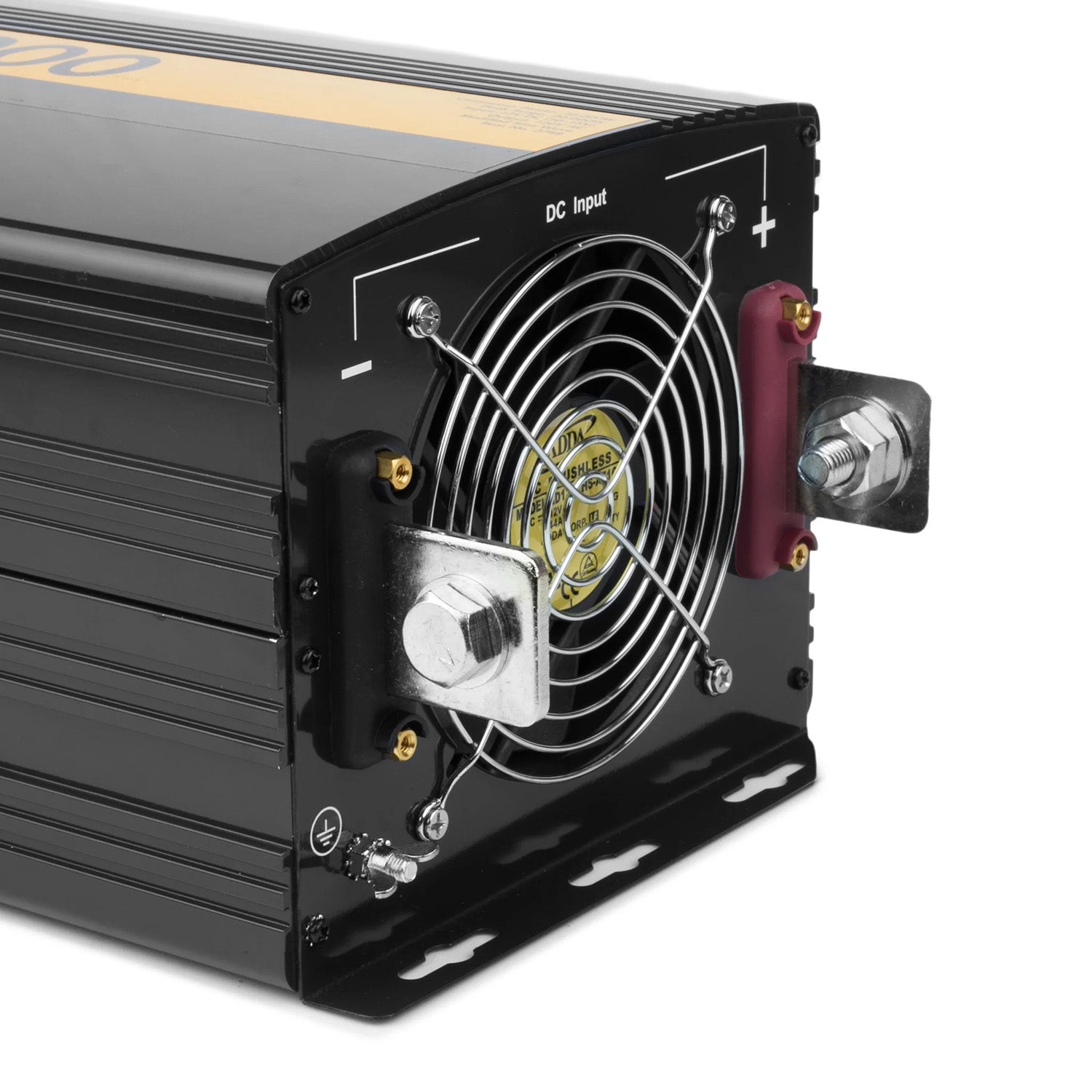

Extra-large positive and negative blade terminals extend from the rear of the case with room for multiple DC cables. They accept 1/4 to 3/8 inch bolts, and a rear ground terminal takes a 6 gauge insulated safety ground wire.

Automatic Shutdowns and Cooling

The inverter shuts down for overload, overheating and input above 15V. A low battery alarm sounds at 10.5V ± 0.5V, it shuts off at 9.5V ± 0.5V, and it restarts automatically after a low voltage shutdown. A temperature-controlled high-speed fan cools it whenever the internal temperature calls for it.


Real-World Applications

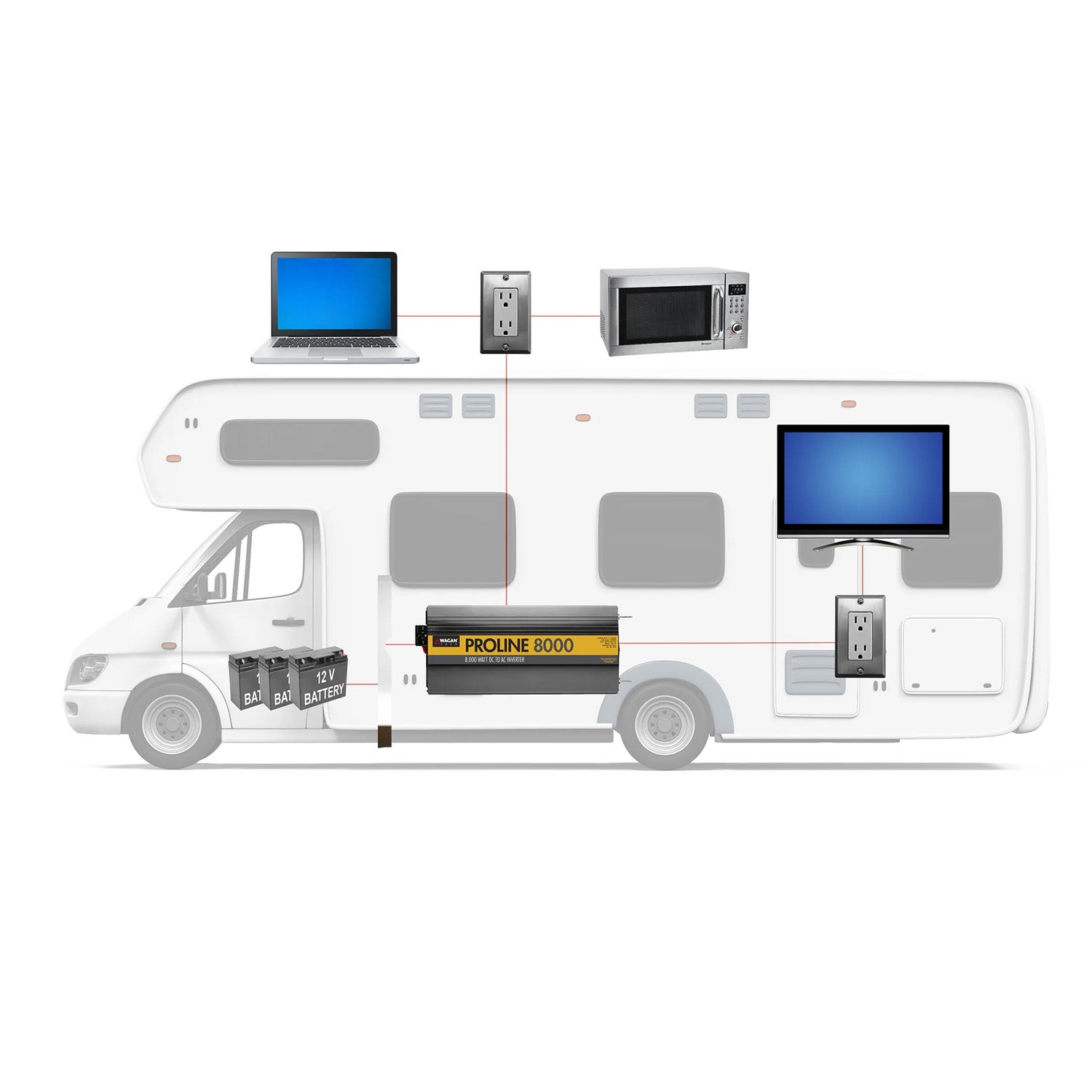

Large RVs. Power appliances such as a microwave oven, refrigerator or small air conditioner from a battery bank sized for the load.

Job sites. Power compatible tools from a work truck battery bank, spread across four outlets within the 1,500 watt per outlet limit.

Boats. Install it in a dry, cool, dust-free space, fuse the battery bank within 8 inches of its positive terminal and recharge from shore power whenever possible.

Off-grid and backup systems. Wire a multi-outlet circuit to the terminal block and add solar or wind charging, which keeps working during power outages and shortens recharge time.


Practical Comparison

ProLine 8000 Versus a Pure Sine Wave Inverter

Modified sine wave power works with many standard appliances and tools, but Wagan notes it may not properly operate some appliances with speed control or dimmer features, and some appliance GFCI power cords may not work properly. Some sensitive electronics may require pure sine wave power, and inexpensive audio systems may buzz. Trial operation tells you for sure, and anything that needs pure sine wave belongs on a pure sine wave inverter.

Four Outlets Versus the High Output Terminals

The four outlets handle plug-in loads up to 15 amps each. Extension cords should be 50 feet or shorter, rated for the load and never used as permanent wiring. For a permanent install or loads over 15 amps, use the high output terminals with NEC compliant wiring, outlets and installation methods.


Buyer Guidance

Size a Battery Bank for 800 Amps

At 8,000 watts continuous, the ProLine 8000 needs a 12V battery bank that can supply 800 amps for the whole run time. For lighter loads, divide AC watts by 10 to estimate amps, then multiply by hours of use to get amp-hours. Add extra capacity, since heavy discharge rates reduce usable capacity and batteries lose capacity as they age. Recharging typically takes about 130% of the energy used.

Fuse, Cable and Installation

Install an ANL 800 amp fuse within one foot of the positive battery terminal, or within 8 inches on a boat. By round trip length, Wagan's 12V cable guide calls for two 00 AWG cables at 6 feet, two 000 AWG at 8 feet, three 00 AWG at 10 to 12 feet, four 00 AWG at 14 feet and four 000 AWG at 16 feet, with nothing listed past 16 feet. Mount the inverter horizontally in a dry, cool, dust-free spot away from flooded battery fumes. Ground it with 6 gauge wire to the vehicle chassis or an earth ground, never to the negative terminal, and double-check polarity, since a reversed connection can blow the inverter's internal fuses and permanently damage it.

This May Be A Good Fit If

  • Your 12V battery bank can deliver around 800 amps
  • You need four outlets plus a hardwire terminal block
  • You want remote on/off control in the box
  • Your loads run on modified sine wave power

Common Questions

Is the Remote Switch Included?

Yes. The ProLine 8000 comes with a remote on/off switch and a 16 foot remote switch cord.

Can Charging Voltage Affect the Inverter?

Yes. While a generator, solar panel or AC charger is charging the batteries, their voltage runs higher than at rest. The inverter shuts down above 15V, and input voltage above the allowed range can damage it.

Can I Use It With a Transfer Switch?

Yes. Never connect the inverter directly to another AC source, and allow a seven second delay before an AC load transfer switch moves the load to the inverter.

How Much Does It Draw With No Load?

Less than 1.5A when switched on and less than 0.2A when switched off.


What's Included

  • 1 x ProLine 8000W Modified Sine Wave Power Inverter
  • 1 x Remote On/Off Switch
  • 1 x 16 Ft Remote Switch Cord

High Output for Big Battery Banks

The Wagan ProLine 8000 Watt Inverter gives a large 12V system 8,000 watts of continuous power, a 16,000 watt surge, four outlets, a hardwire terminal block and an included remote switch. If you'd like help sizing the battery bank, cables or fuse for it, the Outbound Power team is happy to help.


Wagan Tech ProLine 8000 Watt 12 Volt Power Inverter Specifications

Model 3746
Output
Continuous Power 8,000W
Surge Power 16,000W
Output Waveform Modified sine wave
AC Output Voltage 115V
Frequency 60Hz
Maximum Efficiency 90%
No Load Current Draw, Switched On Less than 1.5A
No Load Current Draw, Switched Off Less than 0.2A
DC Input
DC Input 12V DC
Input Range 11-15V DC
Low Battery Alarm 10.5V ± 0.5V DC
Low Battery Automatic Shutdown 9.5V ± 0.5V DC
High Voltage Shutdown Above 15.0V DC
Battery Current at Full Continuous Output 800A at 12V
DC Terminals Heavy-duty solid mount blade terminals, red positive and black negative
Terminal Bolt Size 1/4 to 3/8 in
Battery Fuse ANL 800A, within 1 ft of battery positive (8 in on boats)
Cable Gauge, 6 ft Round Trip 2 x 00 AWG
Cable Gauge, 8 ft Round Trip 2 x 000 AWG
Cable Gauge, 10 to 12 ft Round Trip 3 x 00 AWG
Cable Gauge, 14 ft Round Trip 4 x 00 AWG
Cable Gauge, 16 ft Round Trip 4 x 000 AWG
Outlets and Ports
AC Outlets 4 x NEMA 5-15 (U.S. grounded)
Outlet Capacity 15A at 115V each, 1,500W max per outlet
High Output AC Terminals Live (black), Neutral (white), Ground (green)
High Output Terminal Wiring 10 gauge or larger
Displays DC volts and DC amps bar graphs
Warning Lights Over Temp LED, Overload LED
Remote On/Off Switch Included
Remote Switch Cord Length 16 ft
Protection
Overload Protection Automatic shutdown
Overheating Protection Thermal cooling fan with automatic shutdown
Automatic Restart After Low Voltage Shutdown Yes
Cooling Fan Temperature controlled, high speed
Grounding True ground, neutral and ground bonded inside
Ground Terminal For 6 gauge insulated safety ground wire
Physical

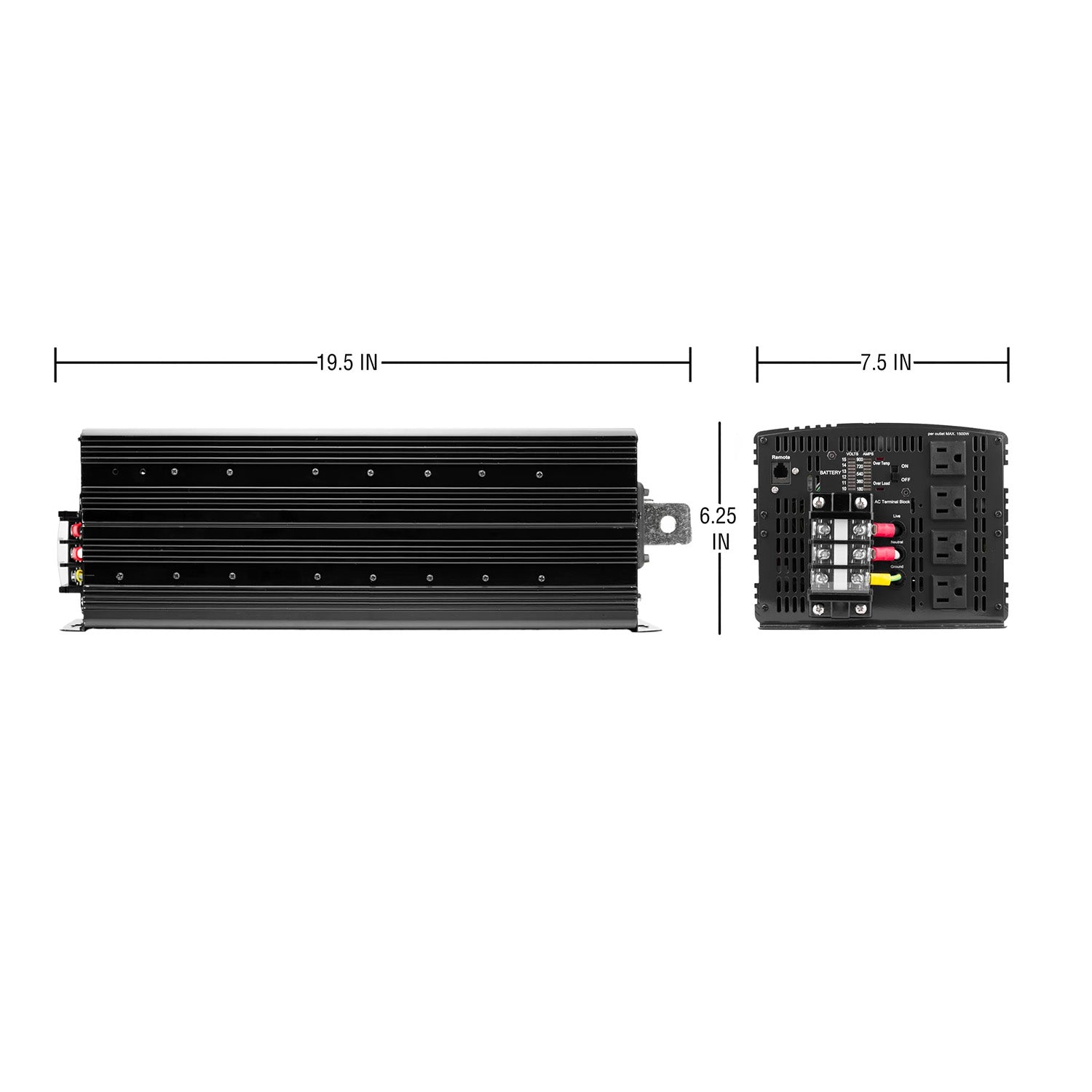

Dimensions (L x W x H) 19.5 x 7.8 x 6.3 in (49.5 x 19.8 x 16.0 cm)
Net Weight 18.8 lb (8.5 kg)
Operating Temperature Up to 149°F (65°C)
Certifications and Warranty
Certifications CE and RoHS compliant
