Wagan Tech Pure Line 2000W Pure Sine Inverter (ETL) | 12V

|
SKU: 3808
Original Price $709.95
Current Price $549.90

Early Black Friday Price Drop Guarantee

  • Buy now, and if our price drops by Black Friday, we'll refund the difference.
  • Found it lower elsewhere? We'll beat it.
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 10 left!

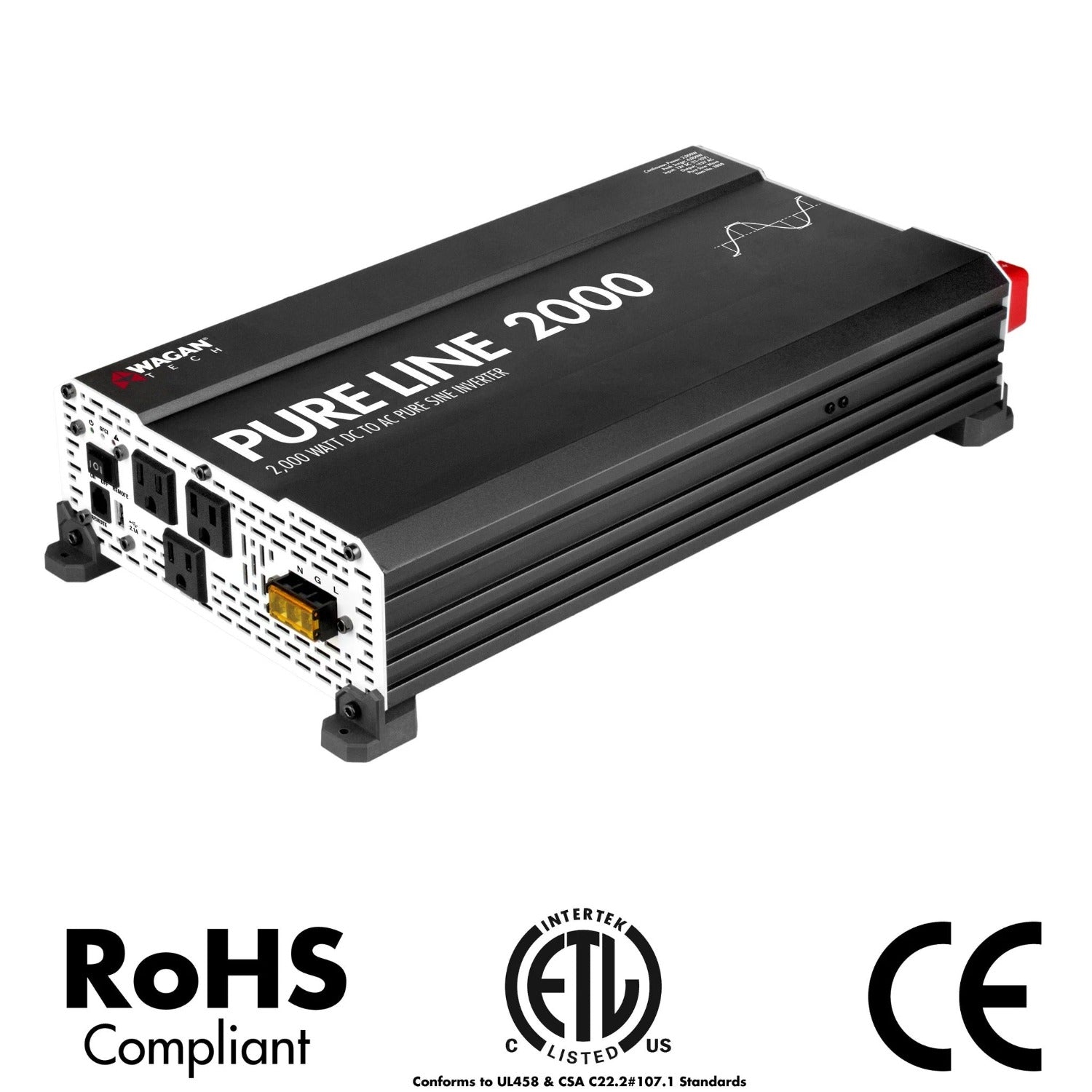

Wagan Pure Line 2000W pure sine inverter with three AC outlets and solid mounting feet, shown above RoHS, ETL and CE marks

The Wagan Pure Line 2000W Pure Sine Inverter Powers Appliances, Tools and Sensitive Electronics From Your 12V Battery Bank

The Wagan Pure Line 2000W Pure Sine Inverter turns 12 volt DC battery power into 115 volt, 60 Hz pure sine wave AC. It's rated for 2,000 watts continuous with a 4,000 watt surge, and it gives you three grounded AC outlets, a 2.1A USB port and high output terminals for hard-wired loads.

Wagan builds it for RVs, trucks, boats, campers and off-grid systems that run household-style appliances and electronics. It's ETL certified to UL 458 and CSA C22.2 No. 107.1 standards, RoHS compliant and CE approved.


Wagan Pure Line 2000W Pure Sine Inverter Features

True Sine Wave Power Like a Wall Outlet

The inverter produces a true AC sine wave like commercial power, with total harmonic distortion under 3%. Wagan designed it so sensitive gear such as audio and video systems, computers and communications equipment works properly, and so appliances with motors run cooler, quieter and more efficiently.

2,000 Watts TrueRated With a 4,000 Watt Surge

Wagan's TrueRated label means the inverter is tested at its full 2,000 watt load and holds that load continuously for 24 hours. The 4,000 watt momentary surge gives motorized appliances room to start. Startup loads are often about twice the running load and can reach eight times, so compare your appliance's startup draw with the surge rating.

Three Outlets Plus High Output Terminals

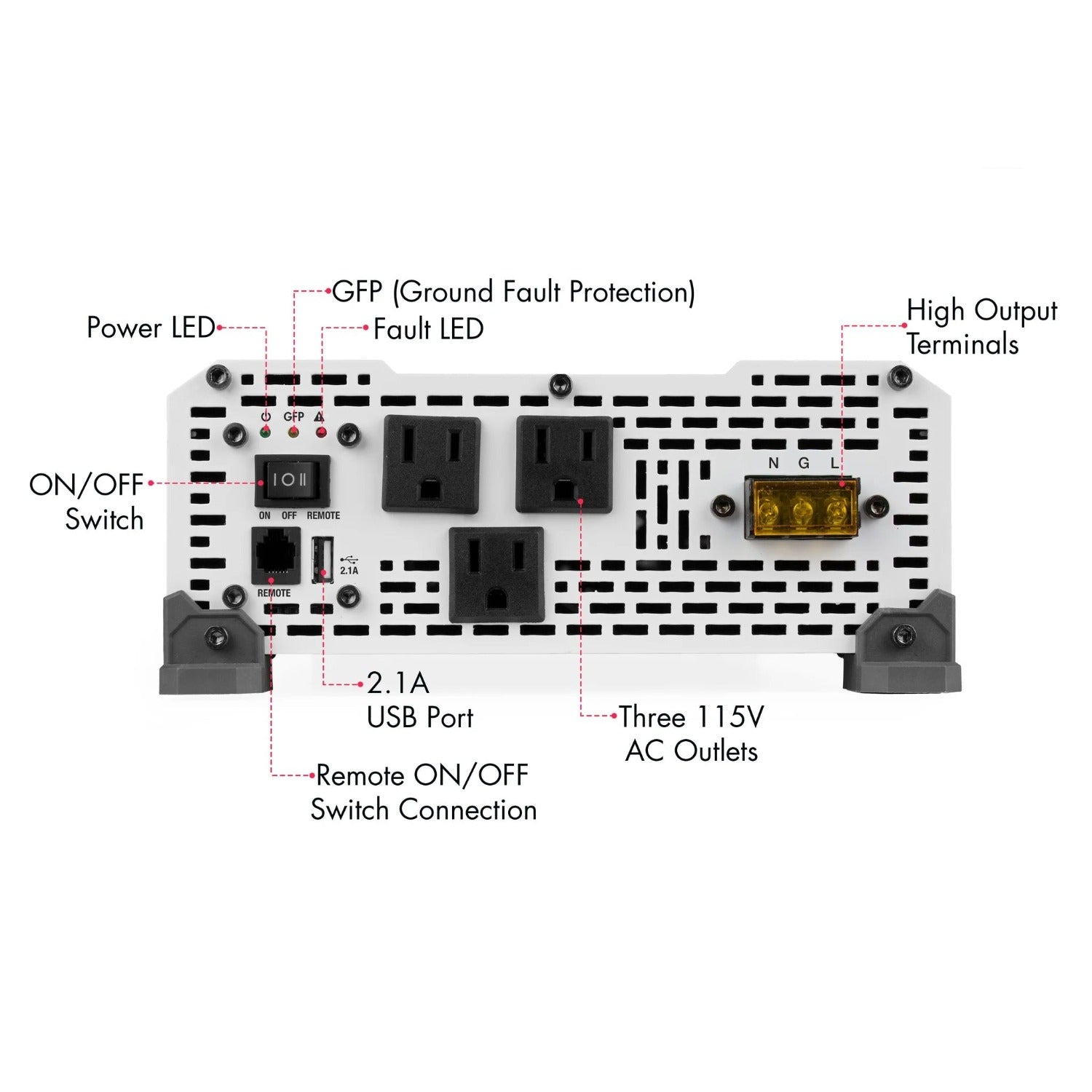

Three grounded, ground fault protected NEMA 5-15 outlets supply up to 15 amps at 115V AC. A 115V device that needs more than 15 amps, or distributed wiring with several outlets, connects to three insulated high output terminals (neutral, ground and live) under a screw-down cover, wired to National Electric Code gauge recommendations. A 5V, 2.1A USB port charges phones and tablets.

LED Status and Automatic Shutdowns

Green means normal operation, yellow means the ground fault circuit has tripped, and red means the inverter has shut down for overheating, overload, low voltage or high voltage. A buzzer sounds at 10.5V as the battery runs low, and the inverter shuts off at 10.0V or above 16.5V. Twin load and temperature controlled cooling fans manage heat.

Covered Terminals and a True Ground

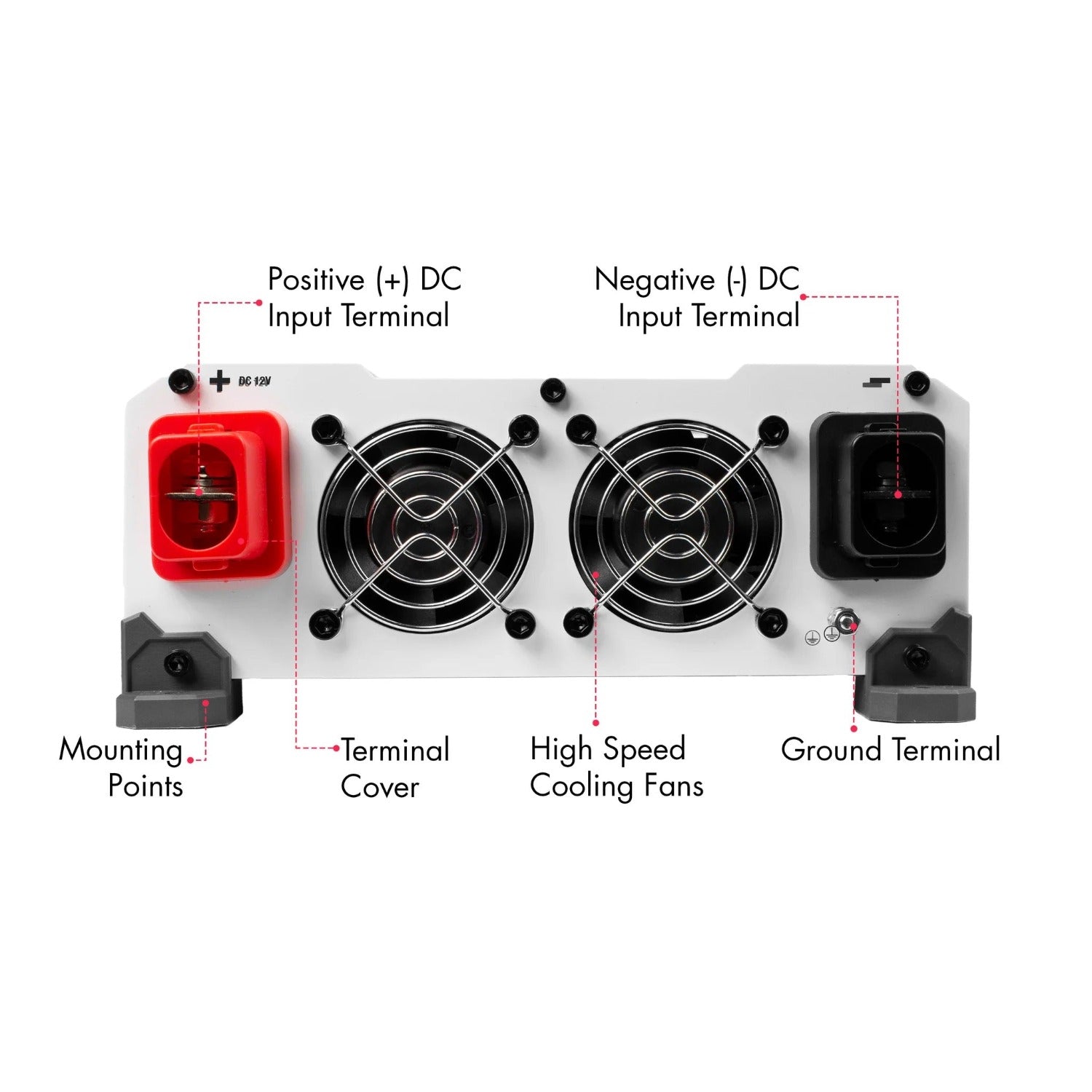

Removable safety covers over the solid mount DC terminals reduce the risk of an accidental short during installation. A separate ground terminal bonds the case to a vehicle chassis or boat grounding system and helps reduce conversion noise around radio frequency devices. Neutral and ground are bonded inside, like utility power. The enclosure vents are kept small to reduce the risk of pests getting in, and the circuit board has a conformal coating.

Remote Switch Ready

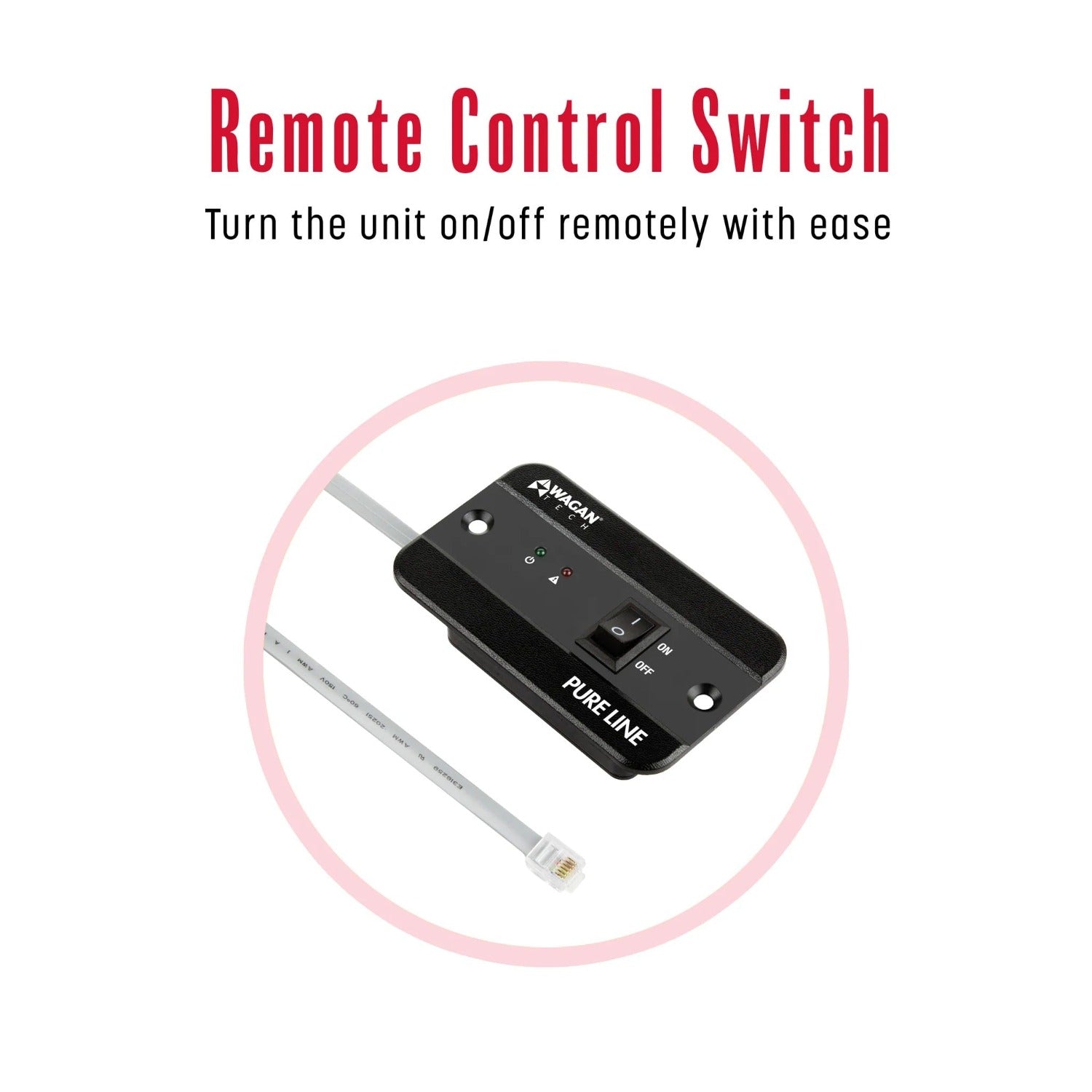

Set the On, Off, Remote switch to Remote and plug Wagan's optional Pure Line Inverter Remote (item 5603, sold separately) into the front-panel connection to turn the inverter on and off from another location.


Real-World Applications

RVs and campers. Run kitchen appliances such as a coffee maker or blender from the house battery bank.

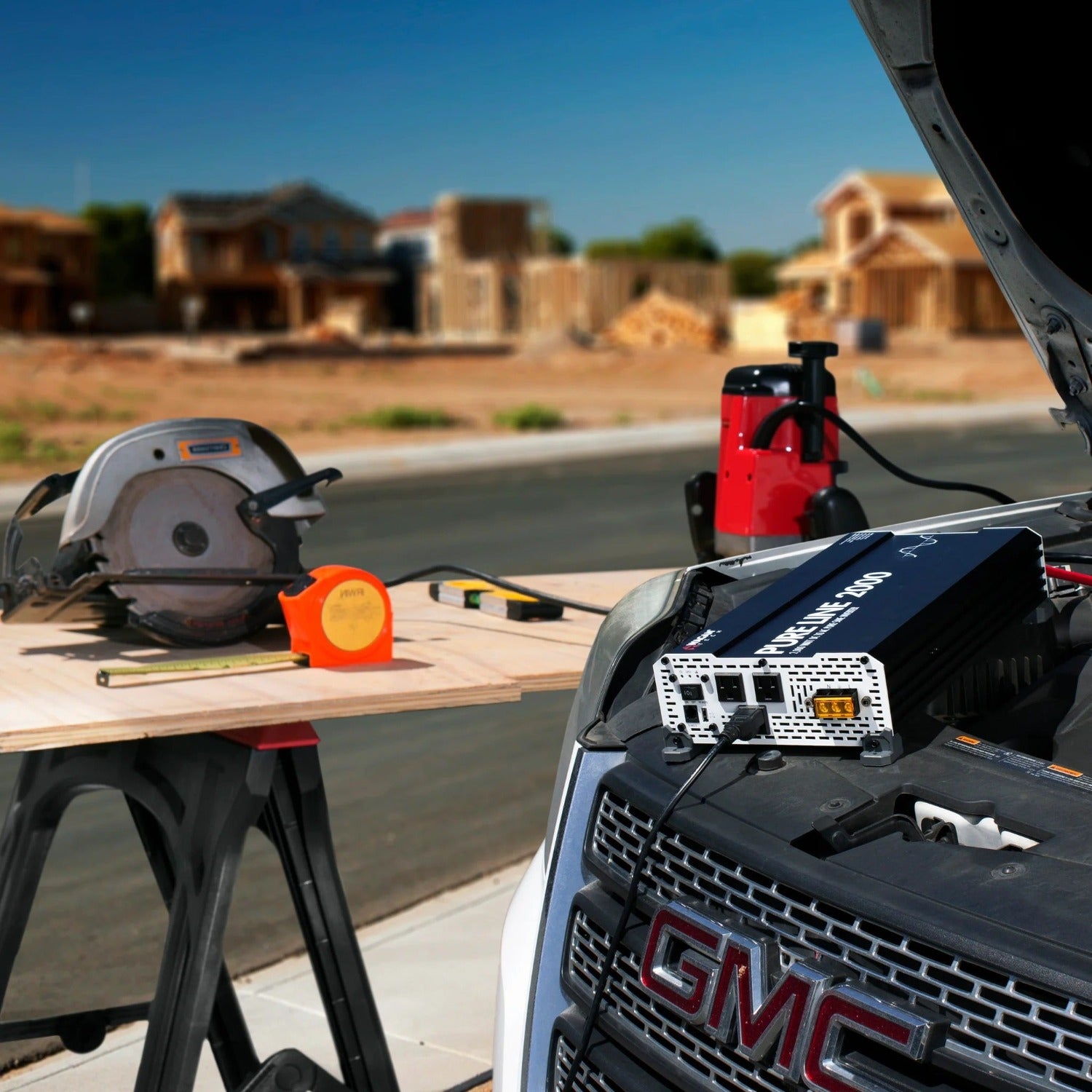

Work trucks. Power corded tools such as a drill or circular saw within the 2,000 watt rating.

Boats. Ground the case to the boat's grounding system and power onboard electronics.

Off-grid systems. Feed hard-wired outlets through the high output terminals, installed to code.


Practical Comparison

Pure Line 2000W Versus a Modified Sine Inverter

A modified sine inverter does not reproduce the true sine wave of utility power. This one does, and Wagan built it for sensitive electronics such as audio and video equipment, computers and communications gear, as well as motorized appliances. If those are part of your load, a pure sine inverter is the type to choose.

Three Outlets Versus the High Output Terminals

Use the outlets for plug-in loads up to 15 amps. Use the high output terminals for a single 115V device that needs more current, or to supply hard-wired outlets. Either way, the total AC load stays within 2,000 watts continuous.


Buyer Guidance

Battery, Fuse and Cable Planning

Wagan's rule of thumb is to divide AC watts by 10 to estimate DC amps at 12 volts, so size the battery bank and cabling for heavy current. Use deep-cycle, sealed lead acid batteries indoors or inside a vehicle or vessel, and plan extra capacity for heavy discharge. Install a 200 amp ANL fuse in the positive cable within 1 foot of the battery. The supplied 3 foot cables cover round trips up to 5 feet in a vehicle with the engine running. For longer round trips, Wagan lists 0 AWG at 6 to 8 feet, 00 AWG at 10 feet, 000 AWG at 12 to 14 feet and 0000 AWG at 16 feet. Reversed battery polarity damages the inverter and voids the warranty, so confirm red to positive and black to negative.

Mounting and Grounding

Choose a dry, secure location away from heat sources and combustibles, with free airflow at the front and rear. Wall mounting must be horizontal. Run insulated 10 gauge copper wire from the ground terminal to the vehicle chassis, the boat's grounding system or the battery's negative terminal, not to the inverter's own negative terminal. Operating temperature is -4°F to 104°F (-20°C to 40°C).

This May Be A Good Fit If

  • Your AC loads add up to 2,000 watts or less
  • You want three outlets plus a hard-wire option
  • You power sensitive electronics or motorized appliances
  • Your battery bank and cabling can support a high-current inverter

Common Questions

What Fuse Should I Use?

Wagan specifies a 200 amp ANL fuse and fuse holder in the positive battery cable, within 1 foot of the battery's positive terminal.

Why Is the Inverter Buzzing?

A continuous buzz means input voltage is below 10.5 volts. Recharge or replace the battery, tighten any loose connections, and use heavier gauge, shorter DC cables if voltage drop is the cause.

What Does the Yellow Light Mean?

The ground fault circuit has tripped. Disconnect your appliances, then turn the switch off and back on to reset it.

How Long Can an Extension Cord Be?

Up to 100 feet for temporary use, with a safety-approved cord of 14 AWG or heavier.

What Warranty Does It Carry?

Wagan warrants it to the original purchaser for two years from the purchase date against defects in material and workmanship.


What's Included

  • 1 x Pure Line 2000W Pure Sine Wave Inverter
  • 1 x Set of 3 Ft DC Power Cables
  • 1 x Instruction Manual

Pure Sine Power Sized for Bigger Loads

The Wagan Pure Line 2000W Pure Sine Inverter brings 2,000 watts of TrueRated pure sine power, three outlets, USB charging and hard-wire terminals to your 12V system, with ground fault protection and remote control capability. If you'd like help planning the battery bank, fuse or cable runs, the Outbound Power team is happy to help.


Wagan Tech Pure Line 2000W Pure Sine Inverter (ETL) 12V Specifications

Model 3808
Output
Continuous Power (TrueRated) 2,000W, 24-hour continuous
Surge Power 4,000W
Output Waveform Pure sine wave
AC Output Voltage 115V AC
Frequency 60Hz
Total Harmonic Distortion Less than 3%
Efficiency Up to 90%
No Load Current Draw Less than 2.0A
DC Input
Input Voltage 12V DC
Operating Input Range 11V to 15V DC
Low Battery Alarm 10.5V ± 0.5V DC
Low Battery Shutdown 10.0V ± 0.5V DC
Over Voltage Shutdown 16.5V ± 0.5V DC
DC Terminals Solid mount positive and negative, removable safety covers

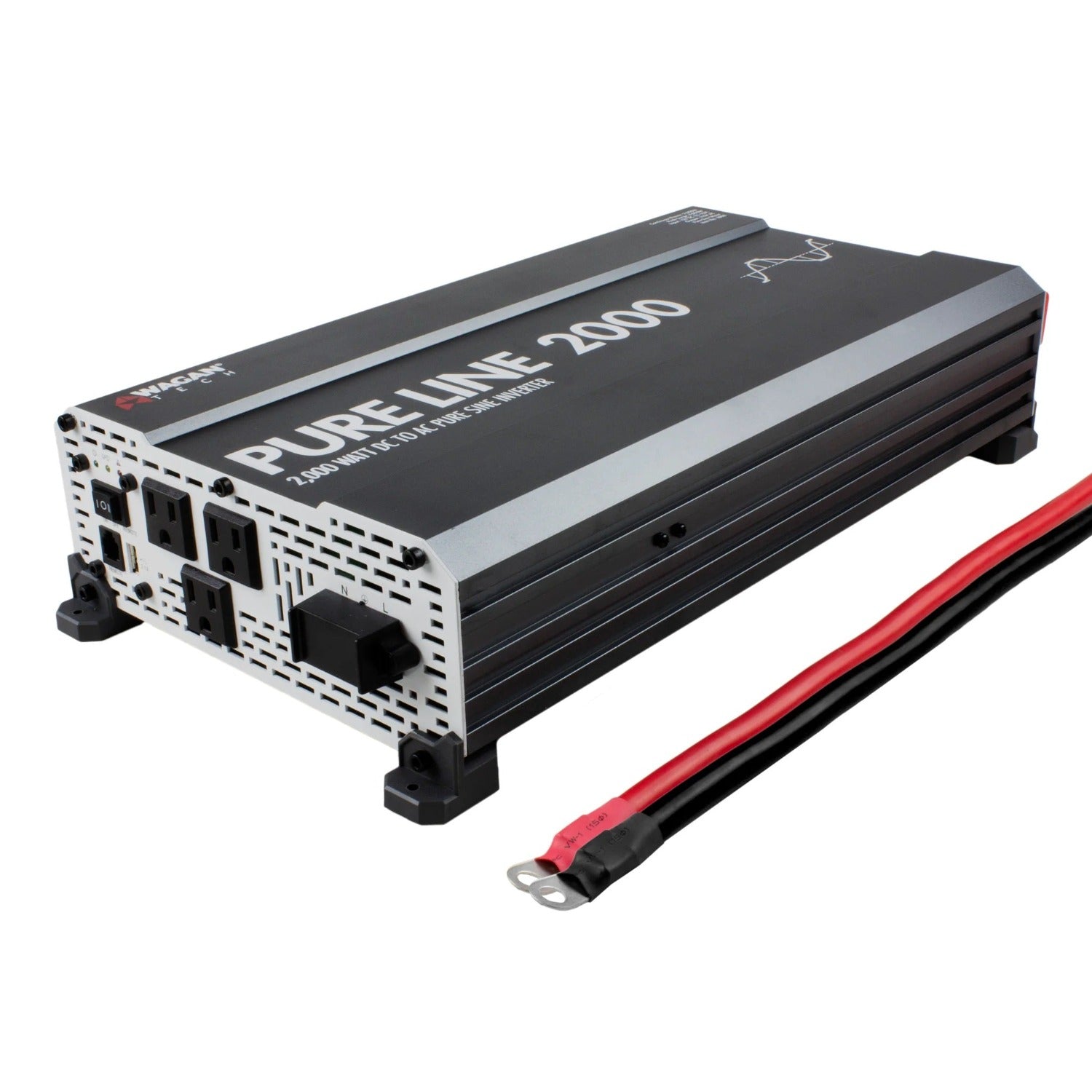

Included DC Cables 36 in. (3 ft), 2 AWG, ring connectors
Outlets and Ports
AC Outlets 3 grounded NEMA 5-15, ground fault protected
AC Outlet Current Up to 15A at 115V AC
High Output AC Terminals 3 insulated (neutral, ground, live), for loads over 15A
USB Power Port 5V, 2.1A
Power Switch On, Off, Remote
Remote Switch Connection Yes, wired remote item 5603 sold separately
Indicators Power LED (green), ground fault LED (yellow), fault LED (red)
Protection
Overload Automatic shutdown
Overheating Cooling fans with automatic shutdown
Short Circuit Internal fuses
Ground Fault Ground fault protected outlets
Low Battery Audible alarm and automatic shutdown
Neutral to Ground Bond Yes
Grounding Separate ground terminal (true ground)
Cooling Twin fans, load and temperature controlled
Circuit Board Conformal coating
Installation
Recommended Battery Fuse 200A ANL
Fuse Location Within 1 ft of battery positive terminal
Supplied Cables Round trip up to 5 ft, vehicle engine running
Cable Gauge, 6 to 8 ft Round Trip 0 AWG
Cable Gauge, 10 ft Round Trip 00 AWG
Cable Gauge, 12 to 14 ft Round Trip 000 AWG
Cable Gauge, 16 ft Round Trip 0000 AWG
Battery Type Deep-cycle sealed lead acid
Battery Current Estimate AC load in watts divided by 10 = DC amps at 12V
Ground Wire Insulated 10 gauge copper
Wall Mounting Horizontal
Extension Cord 100 ft max, 14 AWG or heavier
Physical

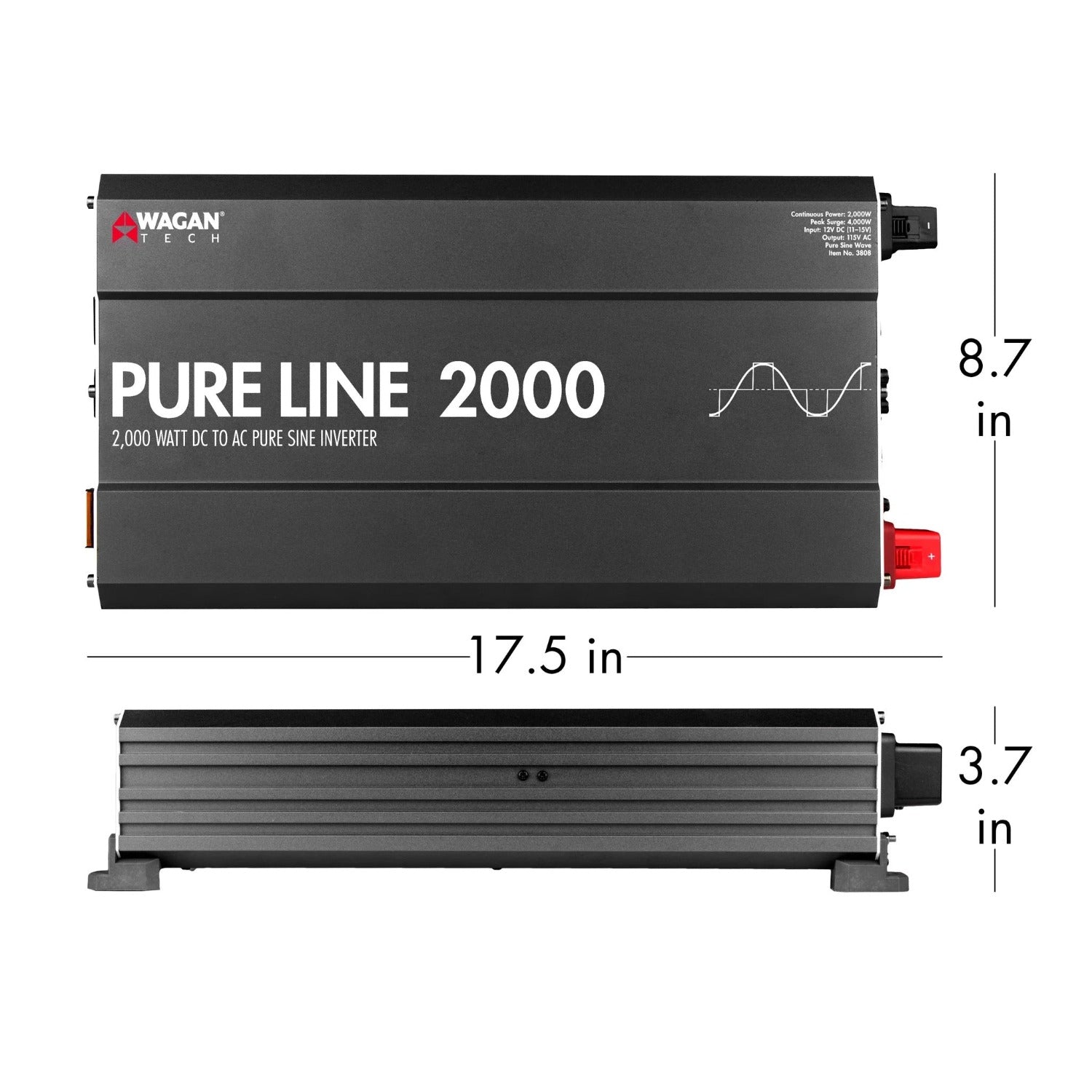

Dimensions 17.5 x 8.7 x 3.7 in
Net Weight 11.7 lb
Operating Temperature -4°F to 104°F (-20°C to 40°C)
Certifications and Warranty
Certifications ETL certified to UL 458 and CSA C22.2 No. 107.1, RoHS compliant, CE approved
Warranty 2 years, original purchaser
