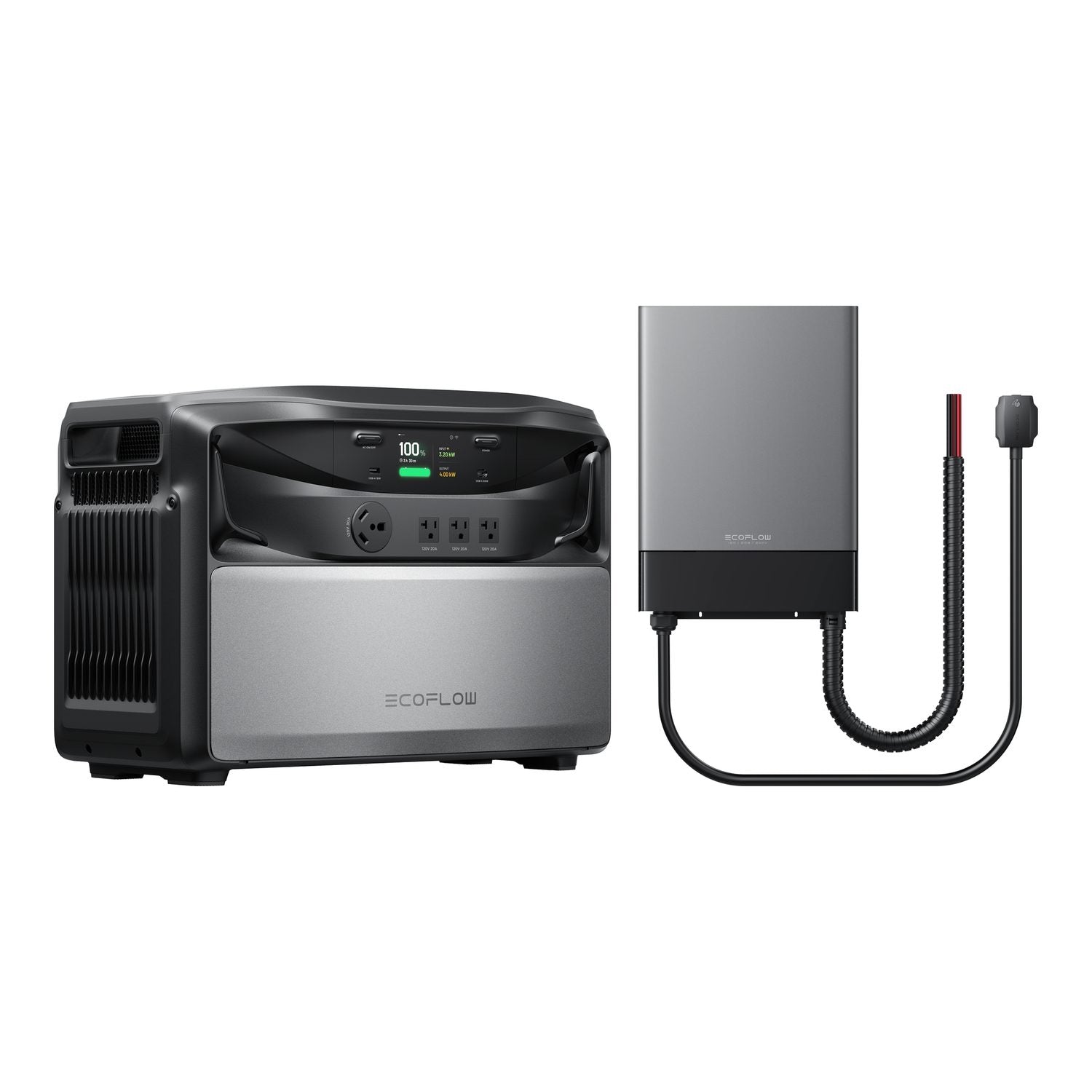

The EcoFlow Smart Home Panel 10 links an EcoFlow TITAN home battery to up to 10 selected household circuits. When the grid goes down, those circuits switch to TITAN power in 20 milliseconds or less, so the lights, Wi-Fi and refrigerator keep running.
It comes in two versions. The 240V panel pairs with the TITAN 5000 Plus and TITAN 5000, and the 120V panel pairs with the TITAN 5000 Classic. Without a panel, TITAN can still power appliances plugged straight into its outlets.
Choose the circuits that matter most, and the Smart Home Panel 10 keeps them powered when the grid drops. EcoFlow rates the switchover at 20 ms or less, fast enough that lights and Wi-Fi keep running through an outage.

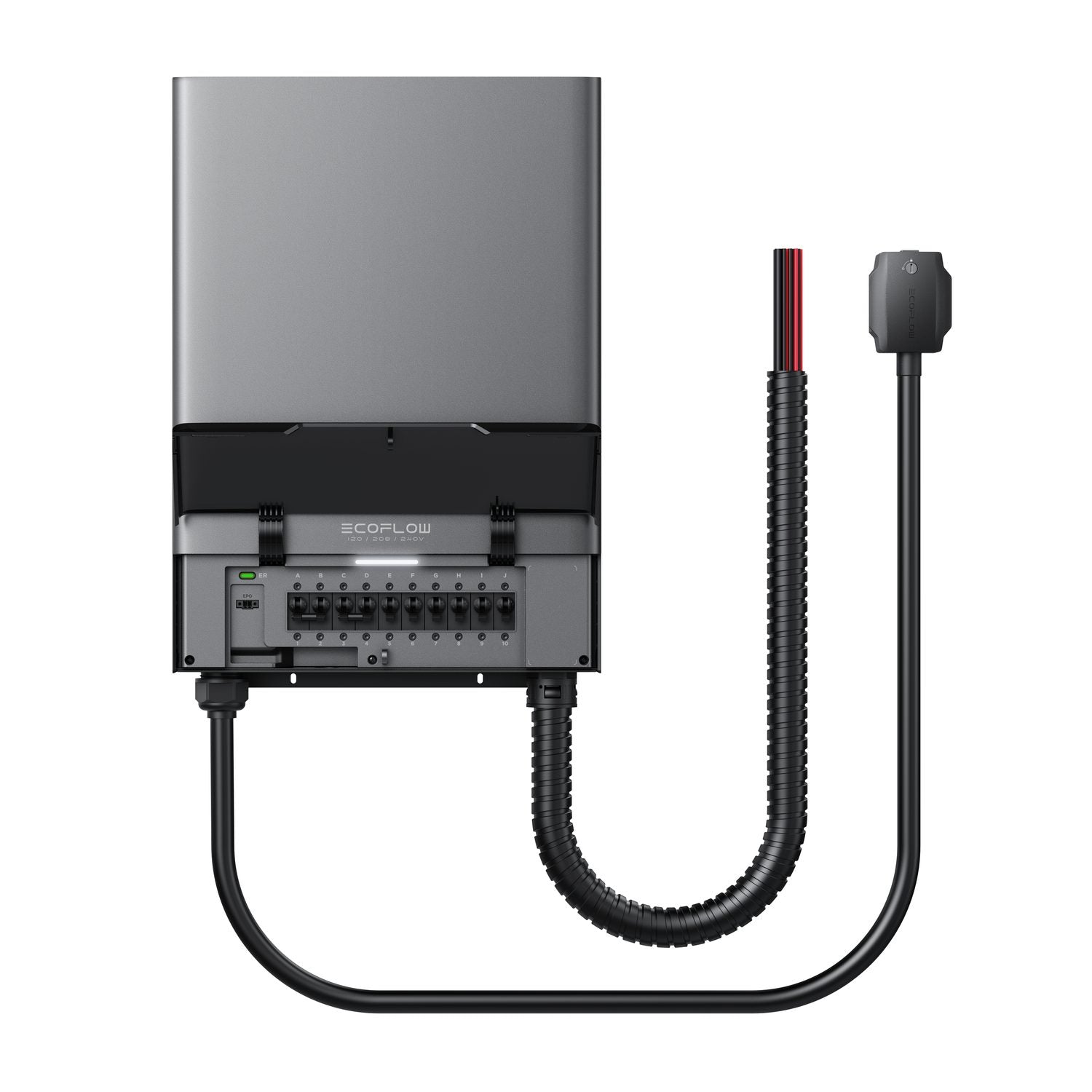

EcoFlow builds the circuit breakers, monitoring and connections into the panel and pre-wires it at the factory. Your electrician has fewer parts to source and less wiring to prepare on site. Installation into your home's electrical system still requires a qualified, licensed electrician.
EcoFlow's OASIS 3.0 energy manager works through the panel to manage your backed-up circuits.
Some OASIS features are subscription features in the EcoFlow app.
The 240V panel comes with 2 CT clamps for self-consumption and no-export control. With the 240V panel, the TITAN 5000 and TITAN 5000 Plus can work with compatible rooftop solar through AC coupling, storing surplus daytime solar with no export to the grid. Your installer confirms inverter compatibility. The 120V panel for the TITAN 5000 Classic has no CT clamps and doesn't support AC coupling.
The panel connects over Wi-Fi and Bluetooth 5.0, so you can see and manage your backed-up circuits in the EcoFlow app.
The panel mounts on the wall, measures 14.2 x 20.3 x 4.0 in and weighs 22.49 lb (240V) or 20.7 lb (120V). It carries a 5-year warranty under EcoFlow's warranty policy.
Actual savings depend on your rate plan, solar production and energy use.
Pick the 240V version for a TITAN 5000 Plus or TITAN 5000, and the 120V version for a TITAN 5000 Classic.
List the circuits you cannot go without, such as the refrigerator, lighting and Wi-Fi. Everything running at once still has to fit within your TITAN's output: 7,200W on the TITAN 5000 and 5000 Plus, and 4,000W on the Classic.
The panel must be installed by a qualified, licensed electrician. Our home backup installer directory can help you find one, and our free backup plan can help you choose your circuits first.
The 240V version works with the TITAN 5000 Plus and TITAN 5000. The 120V version works with the TITAN 5000 Classic.
No. You can plug appliances directly into TITAN. You need the panel for automatic backup of your home's circuits.
No. EcoFlow says installing and wiring the Smart Home Panel 10 into your home's electrical system requires a qualified, licensed electrician.
With the 240V panel, the TITAN 5000 and TITAN 5000 Plus can work alongside compatible rooftop solar through AC coupling. Contact us and we will confirm what your system needs.
The Smart Home Panel 10 carries a 5-year warranty under EcoFlow's warranty policy.
EcoFlow Smart Home Panel 10 Specifications |
|
|---|---|
| Model | EcoFlow Smart Home Panel 10 |
| General | |
| Dimensions | 14.2 x 20.3 x 4.0 in (360 x 515 x 102 mm) (W x H x D) |
| Net Weight | 240V: 22.49 lb (10.2 kg). 120V: 20.7 lb (9.4 kg) |
| Installation | Wall-Mounted |
| Warranty | 5 years |
| Versions | |
| 240V Version | For TITAN 5000 Plus and TITAN 5000. 120V / 240V AC, 60 Hz (split-phase) |
| 120V Version | For TITAN 5000 Classic |
| Performance | |
| Supported Circuits | 10 |
| Switchover Time | ≤20 ms |
| Energy Management | |
| Connectivity | Wi-Fi & Bluetooth 5.0 |
| Intelligent Management | EcoFlow OASIS 3.0 |
| CT Sensor | 240V version only: 2 CT clamps included (for self-consumption and no-export control). The 120V version has no CT sensor. |
| Environment | |
| Operating Temperature | 14°F–113°F / -10°C–45°C |
| Storage Temperature | -22°F–158°F / -30°C–70°C |
| Operating Altitude | <9,842 ft (3,000 m) |
| IP Rating | IP20 |
The right backup system is the one sized for your home, your outages and your utility bill. Pair the Smart Home Panel 10 with the TITAN you own, or add it to a new TITAN system. Choose your version above, or reach out and we will help you plan your circuits.
