The EcoFlow TITAN 5000 Plus Backs Up Your Most Important Circuits And Puts Your Solar To Work

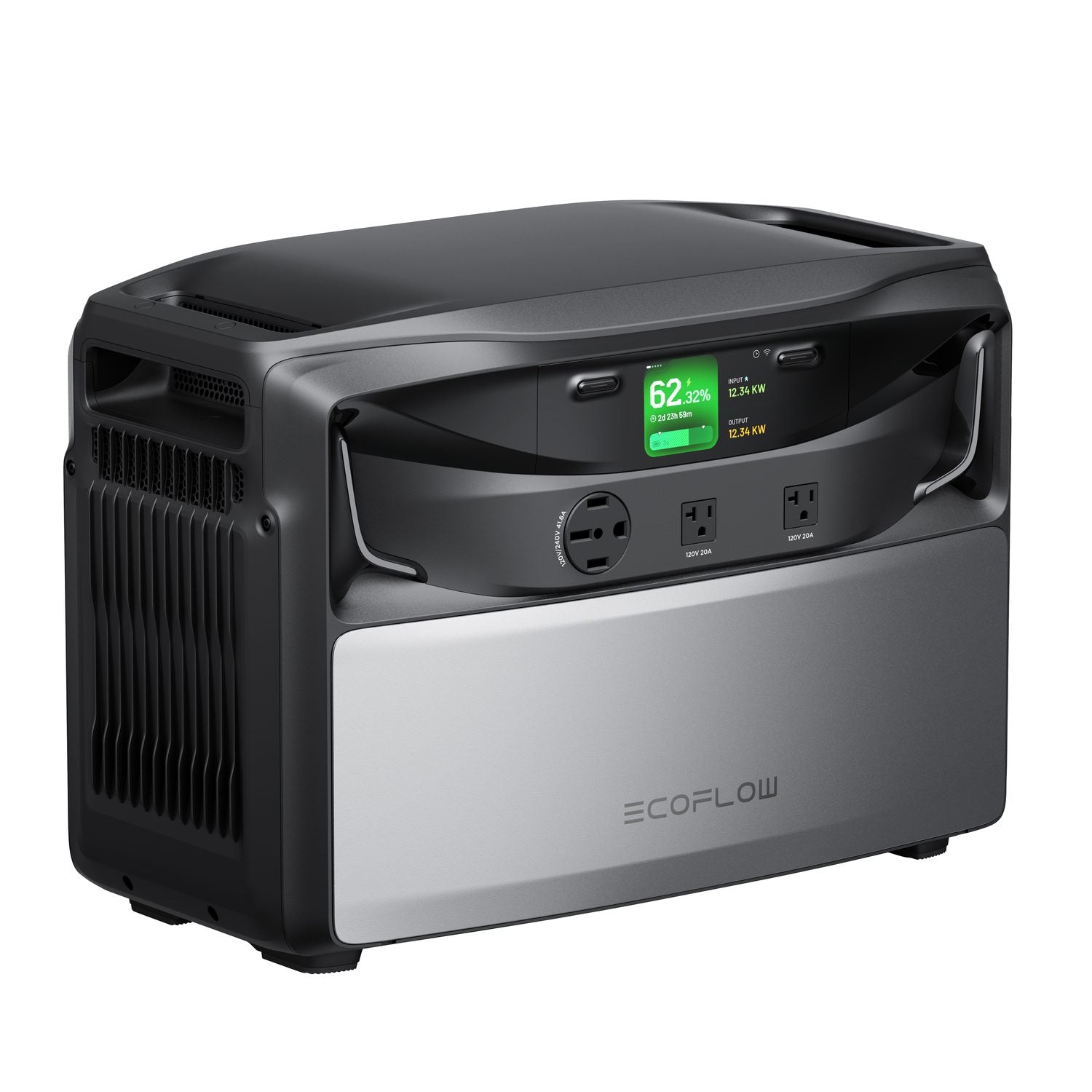

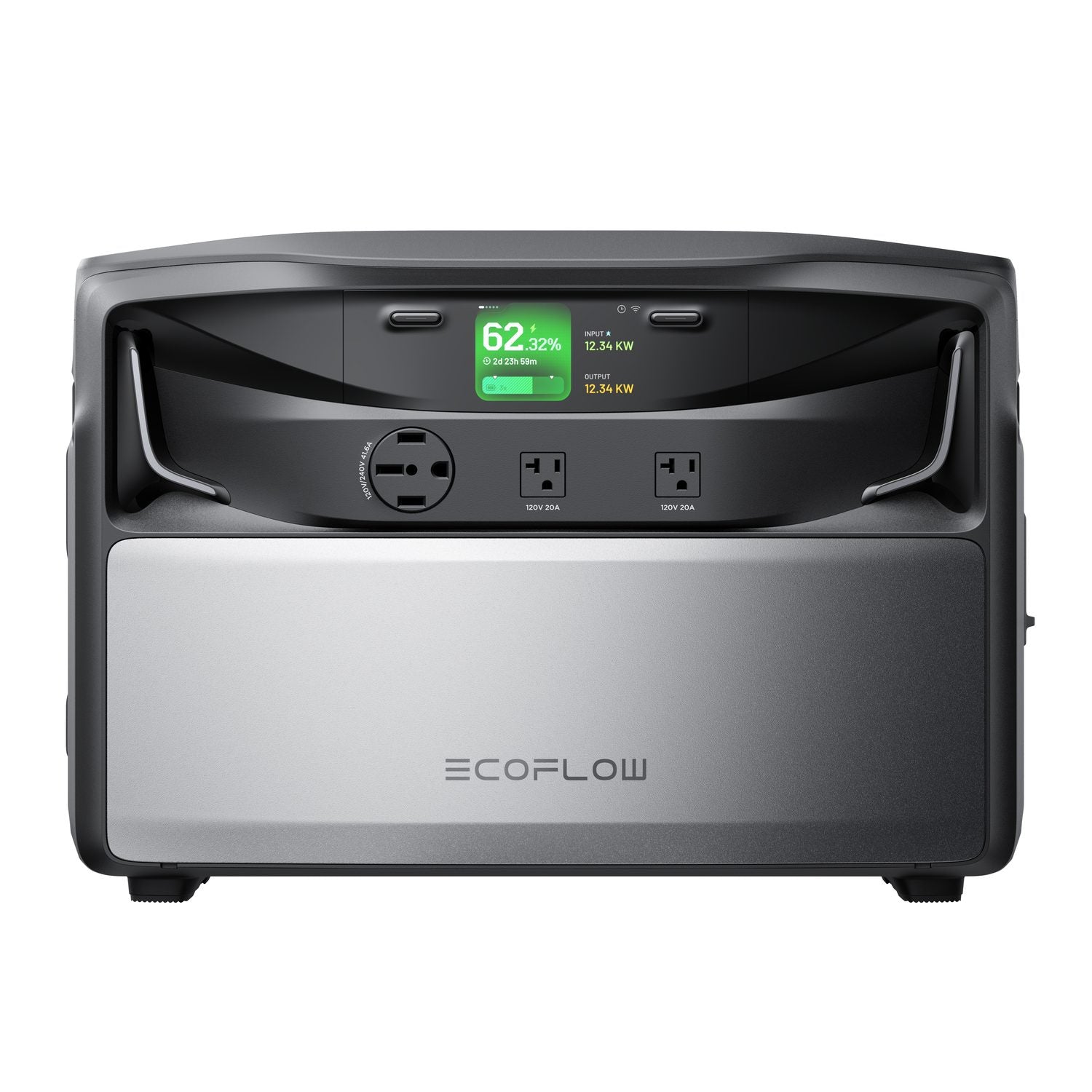

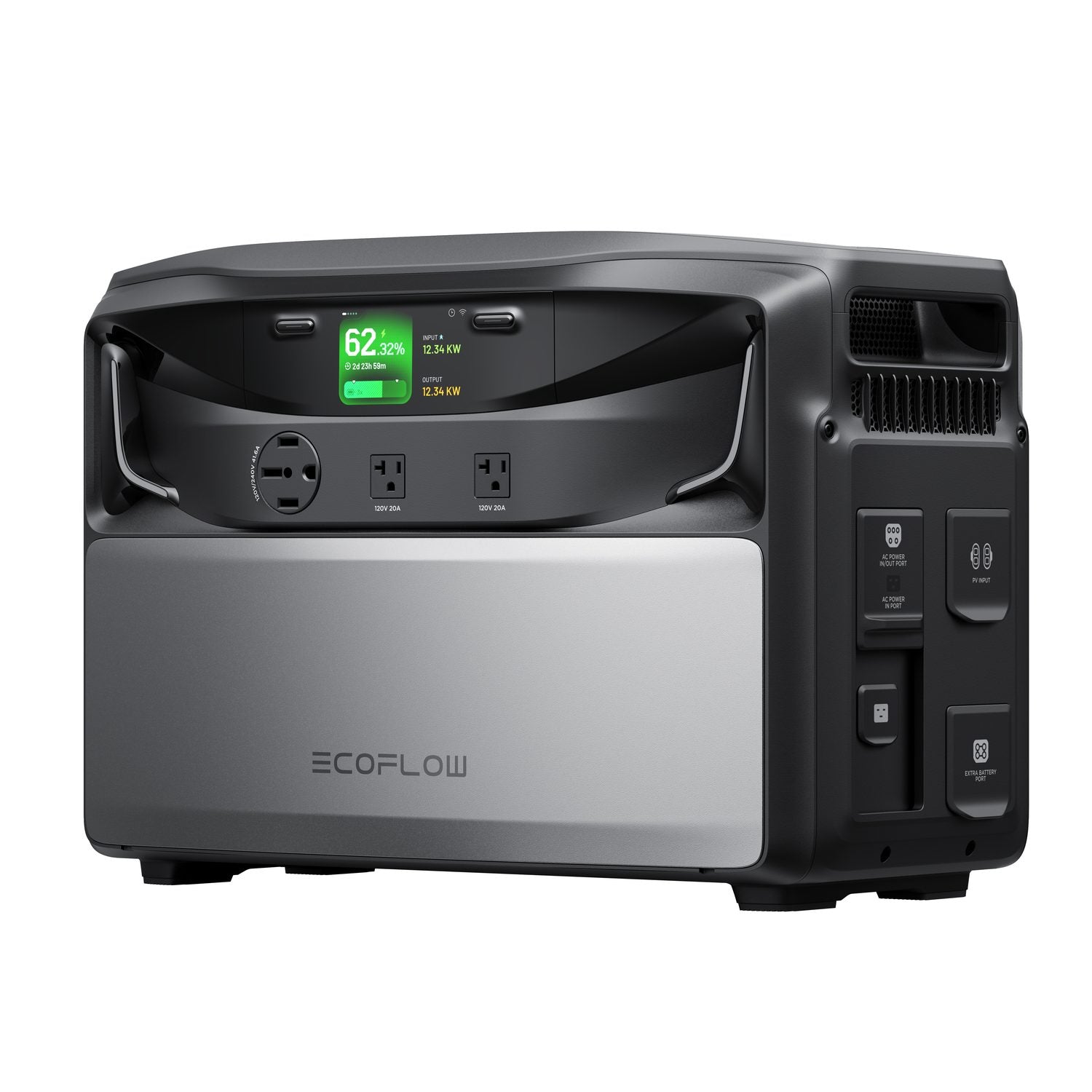

The EcoFlow TITAN 5000 Plus is a 5kWh home battery and inverter in one floor-standing unit. It is built for homeowners who want serious outage protection with less installation work than a traditional hardwired home battery.
It delivers 7,200W of 120V/240V split-phase power from the battery alone and up to 10,000W when solar is feeding the system. Grow it from one battery to six for 30kWh of storage. It is the flagship of the new EcoFlow TITAN series, and the model to choose when solar savings matter as much as backup.
EcoFlow TITAN 5000 Plus Features

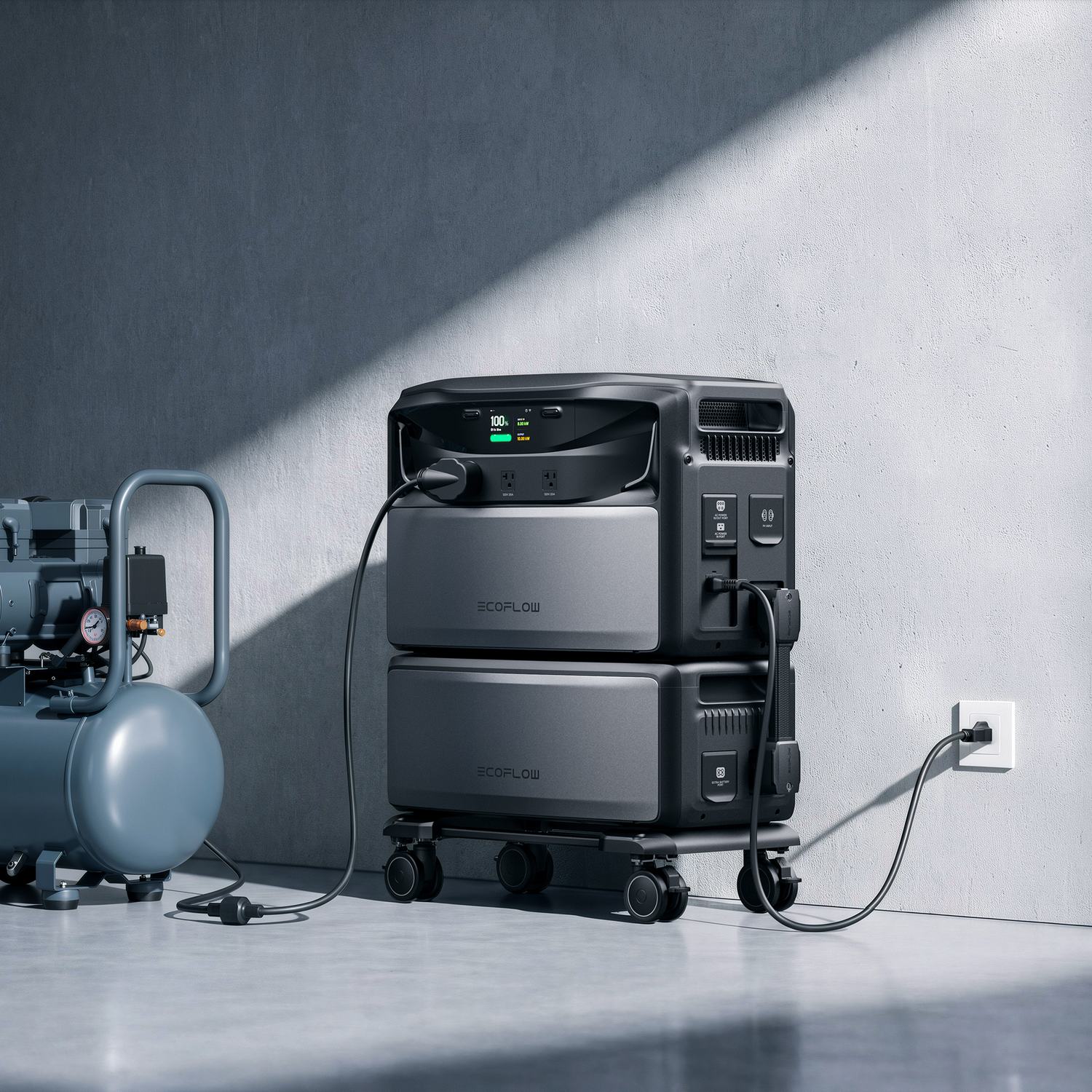

7,200W Split-Phase Output So Central Air And Daily Appliances Can Run Together
The TITAN 5000 Plus supplies a steady 7,200W at 120V and 240V. EcoFlow says it can start and run a compatible 3-ton central air conditioner without an added soft starter, as long as the AC's startup demand stays within TITAN's limits.
X-Boost 2.0 lets either 120V leg deliver up to 5kW, so more appliances can run together without careful load balancing.
Up To 10kW Of Output When The Sun Is Helping
X-Fusion 2.0 combines solar and battery power for up to 10,000W of output, and TITAN keeps delivering its full 7,200W while it charges. Sunny afternoons become the time to run the dryer, not the time to ration.

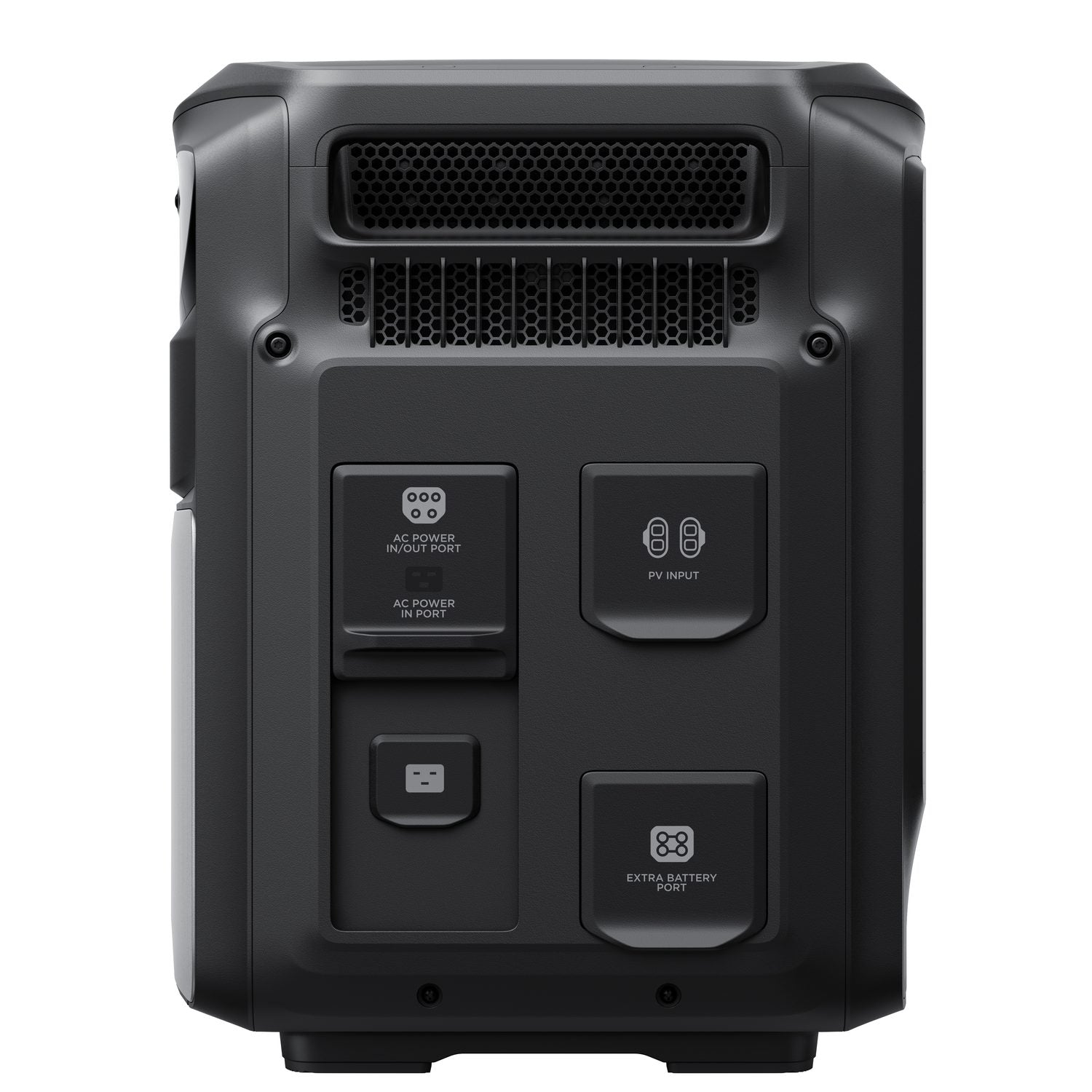

8,000W Of Solar Input Across Two Independent Inputs
Two solar inputs each accept 40–450V, up to 16A and up to 4,000W. Each has its own MPPT tracker, so arrays facing different directions do not hold each other back.
Ten 400W panels in series fill one input with a full 4,000W
Two strings of ten 400W panels use the full 8,000W across both inputs
One To Six Batteries So You Can Start Small
The main unit holds the first battery, 5,017.6Wh of LFP capacity. Add up to five TITAN Battery 5kWh packs as your needs grow, for six batteries and 30kWh total. Each pack comes with its own connection cable. For safety, EcoFlow recommends no more than three packs under the main unit, so 5- and 6-battery systems stand as two stacks joined by a multi-stack cable, which our 5- and 6-battery options include. More batteries mean longer runtime. They do not raise the 7,200W output rating.

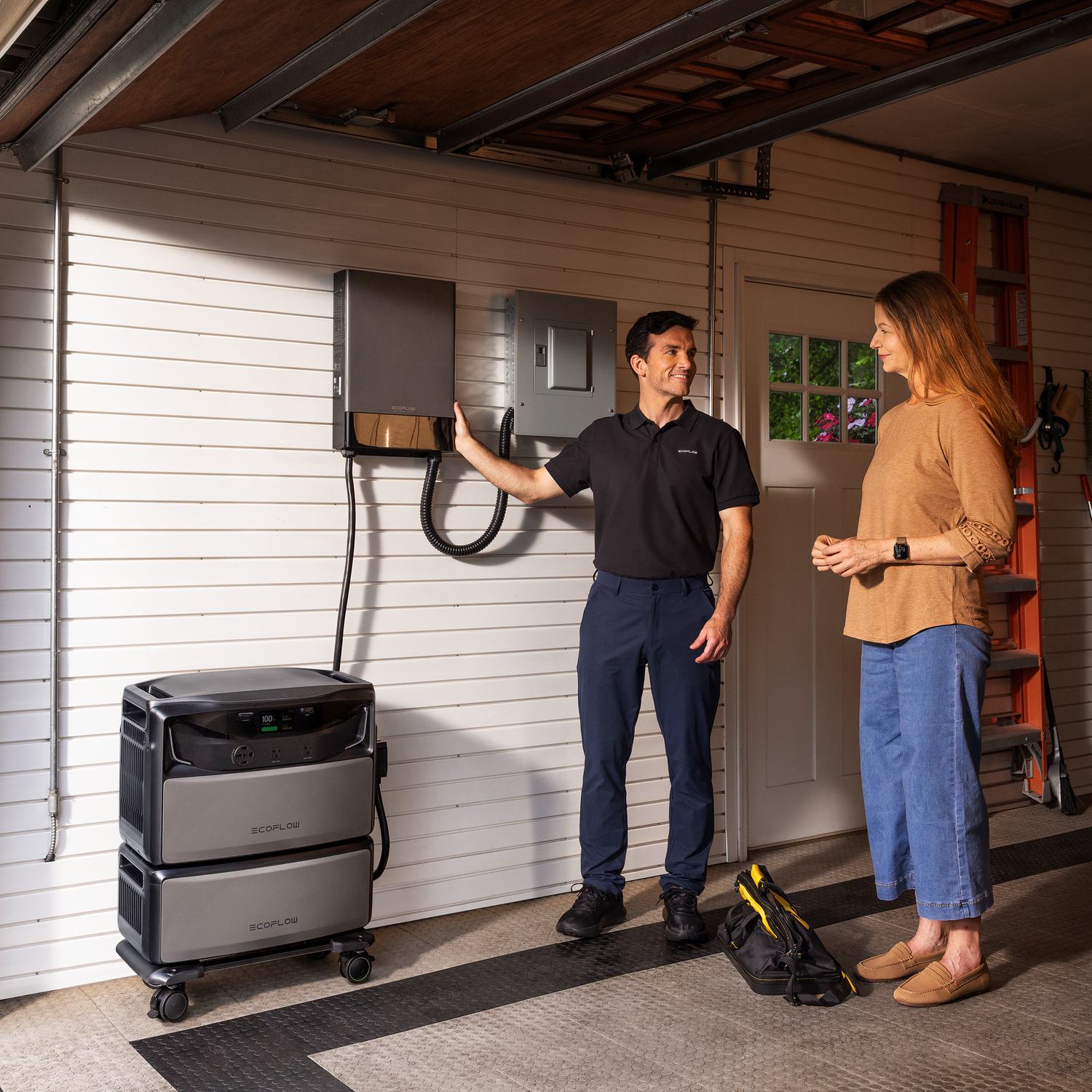

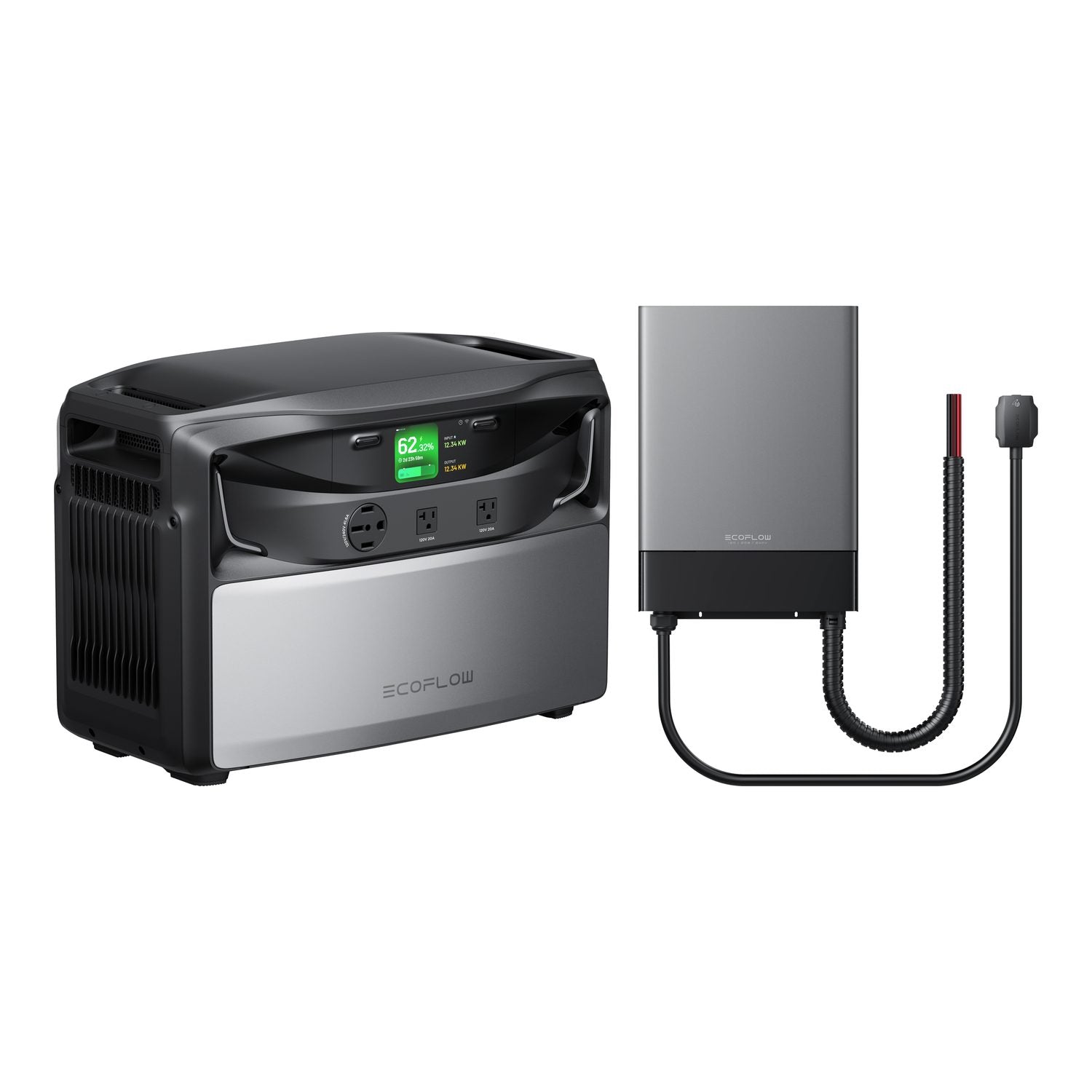

Smart Home Panel 10 Integration For Automatic Circuit Backup
The optional Smart Home Panel 10 (240V) connects TITAN to up to 10 household circuits. When the grid drops, those circuits switch to battery in under 20 milliseconds. Lights and Wi-Fi keep running.
Its included CT sensor also lets TITAN work alongside compatible rooftop solar through AC coupling, storing surplus daytime solar with no export to the grid.
OASIS 3.0 Energy Management That Plans Around Your Utility Rates
Learns your household's energy habits
Forecasts solar production up to 3 days ahead
Charges off-peak and powers your home when rates rise
Sets priorities for each of the 10 backed-up circuits
Storm Mode charges TITAN to 100% before severe weather
Some OASIS features are subscription features in the EcoFlow app.
LFP Cells And UL Certifications For Indoor Installation
TITAN uses lithium iron phosphate (LFP) cells, known for thermal stability, with 24/7 battery management monitoring. The main unit is UL 9540, UL 1973 and UL 2743 certified and tested to UL 9540A. In EcoFlow's testing it stays below 39 dB at 5,000W from about 3 feet away.
EcoFlow TITAN 5000 Plus Real-World Applications
Up To $3,100Estimated Savings Per Year
As Little As 3 YearsEstimated Payback
8,000WSolar Input
EcoFlow's estimate for a 15kWh TITAN 5000 Plus system (the main unit plus two TITAN Battery 5kWh packs) with the Smart Home Panel 10, 8kW of solar, about 16.5kWh of daily household use, optimized solar self-consumption and SDG&E TOU-DR2 rates in San Diego, CA. Payback is based on launch prices and compares with 10+ years for the traditional systems EcoFlow compared. Actual savings and payback vary by home, solar production, rate plan and system use.
How The TITAN 5000 Plus Lowers Your Electric Bill
Store Your Solar Instead Of Exporting ItIf your utility pays little for exported solar, as under California's NEM 3.0, the TITAN 5000 Plus stores midday surplus and powers your home with it in the evening.
Run On Battery When Rates PeakOASIS 3.0 charges TITAN when electricity costs less and powers your home during peak-rate hours. It works with or without solar, so you can add panels later.
Use More Of Your Own SolarUp to 8,000W of solar input, and up to 10,000W of output when solar is producing, means more of what your home uses comes from your own panels.
Lower Upfront And Installation CostEcoFlow rates TITAN at about 30% of a traditional system's cost over its lifecycle, from purchase and installation to long-term use, citing its 200V design, high-rate LFP cells and pre-wired Smart Home Panel 10.
Backup When The Grid Goes Down
Storm And Outage BackupWith the Smart Home Panel 10, circuits like the refrigerator, lights, Wi-Fi and compatible central air switch to TITAN automatically.
Longer OutagesGrid-tied rooftop solar shuts down during an outage. Panels wired directly to TITAN keep charging it, and a generator can recharge it through the included AC charging cable.
EcoFlow TITAN Comparison Table
Feature
TITAN 5000 Classic
TITAN 5000
TITAN 5000 Plus
Output
4,000W
7,200W
7,200W, up to 10,000W with solar
Voltage
120V
120V/240V split-phase
120V/240V split-phase
Compatible 3-Ton Central Air
No
Yes
Yes
Solar Input
3,200W, 1 input (30–250V)
4,000W, 1 input (40–450V)
8,000W, 2 inputs (40–450V)
AC Outlets
3 x NEMA 5-20R, 1 x TT-30R
3 x NEMA 5-20R, 1 x L14-30R
2 x NEMA 5-20R, 1 x L14-50R
USB Ports
1 x USB-C, 1 x USB-A
1 x USB-C, 1 x USB-A
None
Batteries
1 to 6 (5–30kWh)
1 to 6 (5–30kWh)
1 to 6 (5–30kWh)
Smart Home Panel 10
120V version
240V version
240V version
Weight
102.5 lb
119 lb
121.3 lb
Choose the TITAN 5000 for the same 7,200W split-phase output with one 4,000W solar input. Choose the TITAN 5000 Classic if your backup needs are 120V only.
Our Full Comparison
Comparing TITAN With The DELTA Pro Ultra X?
See how all three TITAN models stack up against EcoFlow's flagship DELTA Pro Ultra X on power, storage, solar, smart panels and complete system cost.
List what you need to run and for how many hours. Each battery adds 5kWh, from one battery in the main unit up to six in total, and our team can help turn your list into a battery count.
Battery Cables Come In The Box
Every TITAN Battery 5kWh comes with its own 0.292m (11.5 in) single-stack connection cable, so packs stacked under the main unit connect out of the box.
Up To Three Packs Per Stack
For safety, EcoFlow recommends stacking no more than three TITAN Battery 5kWh packs under the main unit. With four or five packs, place the extra packs in a second stack beside the first and join the two stacks with EcoFlow's 1.5m multi-stack cable. Our 5- and 6-battery options include that cable, so the whole system connects out of the box.
Planning The Home Connection
Automatic circuit backup and AC coupling require the Smart Home Panel 10 (240V), installed by a qualified, licensed electrician. Our home backup installer directory can help you find one. With existing rooftop solar, your installer confirms inverter compatibility.
Placement And Weight
TITAN is rated IP20 and needs a dry, ventilated indoor spot such as a garage. The main unit weighs 121.3 lb and each battery 82.7 lb. It charges at 32°F to 113°F and discharges at 14°F to 113°F.
Sizing Solar For Two Inputs
Our solar kits are sized string by string to TITAN's inputs. Ten Rich Solar 400W panels fill one 4,000W input exactly, and twenty fill both. Two strings of seven SunGold 550W panels deliver 7,700W with fewer panels. Every kit string stays under the 450V input limit, even at -40°F.
TITAN comes with one Solar To HP500 Charging Cable, which connects one panel string to one solar input. To use the second input, add a second cable. Our 7,700W and 8,000W kits include it.
Mounting hardware is not included, because it depends on your roof or ground site. Plan for racking and installation to local electrical code.
Charging From A Generator
A generator can recharge the TITAN 5000 Plus through the included AC charging cable. The TITAN 5000 Plus also works with the EcoFlow FlowMaster Generator Rectifier, sold separately. It converts your generator's AC power to DC and feeds TITAN's solar inputs through the Solar To HP500 Charging Cable. One cable comes in the box, so feeding both solar inputs takes a second cable. With a generator running through the rectifier, the TITAN 5000 Plus can deliver up to 10kW of output.
EcoFlow says its Smart Generator 4000 is not directly compatible with TITAN. It can still charge the TITAN 5000 Plus from its AC output, including through the rectifier, but its auto start and stop will not work.
This May Be A Good Fit If
You want automatic backup for up to 10 circuits, including compatible central air
You have rooftop solar, or plan to add up to 8,000W of panels
You are on time-of-use rates and want to buy less peak-rate power
You want to start with one battery and add more later
Common Questions
Can The EcoFlow TITAN 5000 Plus Run My Central Air Conditioner?
EcoFlow says it can start and run a compatible 3-ton central AC without a soft starter, if the AC's startup requirements are within TITAN's capabilities. Everything running at once also has to fit within its output.
Do I Need The Smart Home Panel 10?
Not to get started, since you can plug appliances directly into TITAN. You need it for automatic backup of home circuits and for AC coupling with rooftop solar.
Will It Work With The Rooftop Solar I Already Have?
Yes, if your system is compatible. With the Smart Home Panel 10, TITAN works alongside existing rooftop solar without replacing your panels or inverter.
Can I Add Batteries Later?
Yes. The main unit includes the first battery and supports up to five TITAN Battery 5kWh packs, for six batteries and 30kWh total.
What Warranty Comes With The System?
The TITAN 5000 Plus, TITAN Battery 5kWh and Smart Home Panel 10 each carry a 5-year warranty under EcoFlow's warranty policy.
What's Included
In The Box
With Every TITAN 5000 Plus
1 x EcoFlow TITAN 5000 Plus (Includes Battery 1)
1 x EcoFlow Solar To HP500 Charging Cable
1 x EcoFlow AC Charging Cable‑C20
1 x Quick Start Guide
Each Added Battery
2 To 6 Battery Options
1 x EcoFlow TITAN Battery 5kWh
1 x EcoFlow TITAN Single-Stack Battery Cable (0.292m)
Also With 5 Or 6 Batteries
1 x EcoFlow TITAN Multi-Stack Battery Cable (1.5m)
Smart Home Panel 10
Optional, 240V
1 x EcoFlow Smart Home Panel 10 (240V)
1 x Mark-Off Template
4 x Screws With Wall Anchors
1 x Circuit Directory
2 x CT Clamps
2 x Handle Ties
Solar Kits (Optional, Choose One)
Kit
Includes
800W
2 x EcoFlow 400W Portable Solar Panels
3,600W
8 x SunGold Power 450W Solar Panels 1 x Cable Set
4,000W
10 x Rich Solar MEGA 400W Solar Panels 1 x Cable Set
7,700W
14 x SunGold Power 550W Solar Panels 2 x Cable Sets 1 x Second Solar To HP500 Charging Cable
8,000W
20 x Rich Solar MEGA 400W Solar Panels 2 x Cable Sets 1 x Second Solar To HP500 Charging Cable
Cable Set: Rich Solar 50-Foot 10AWG Red And Black Solar Extension Cable Set.
EcoFlow TITAN 5000 Plus Specifications
Model
EcoFlow TITAN 5000 Plus
General
Dimensions
24.5 x 13.2 x 16.9 in (623 x 336 x 428 mm) (W x H x D)
Net Weight
121.3 lb (55 kg)
Warranty
5 years
Battery
Battery Chemistry
LFP
Capacity Per Unit
5kWh (5,017.6Wh)
Expandable Capacity
Up to 30kWh (1 unit + 5 Extra Batteries)
Output
Rated Output Voltage & Frequency
120V / 240V AC, 60Hz (split-phase)
Rated Output Power
7,200W. Up to 10,000W with solar (PV + AC combined)

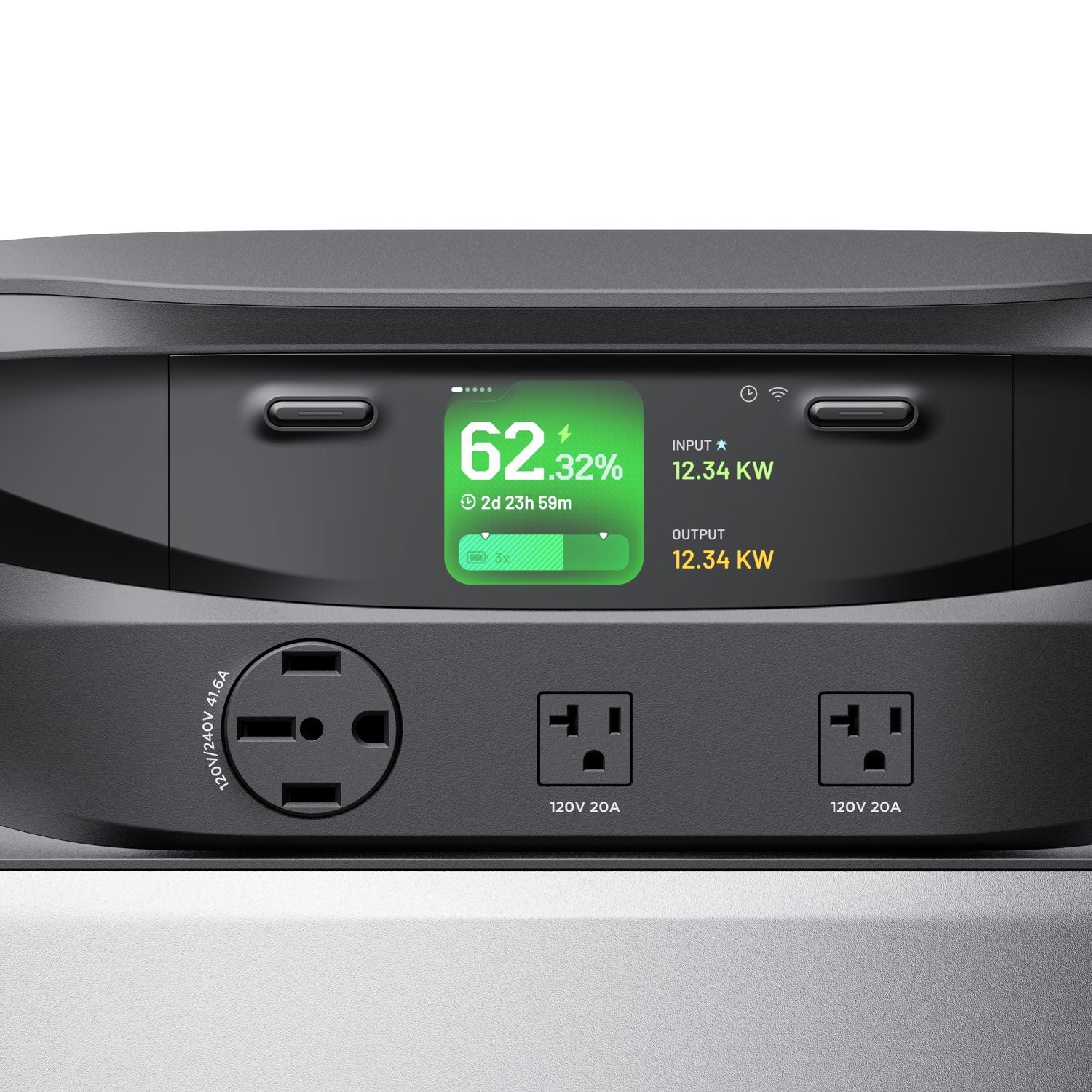

AC Outlets
2 x NEMA 5-20R, 1 x NEMA L14-50R
UPS Switchover
<20 ms with Smart Home Panel 10
Input
Max PV Input
8,000W total, 2 ports (40–450V, 16A, 4,000W each)
Max AC Input
7,660W (10,000W max. with solar)
Generator Rectifier
Compatible with the EcoFlow FlowMaster Generator Rectifier (sold separately), connected with the Solar To HP500 Charging Cable
Solar Charging Cable
1 x Solar To HP500 Charging Cable (0.3m) included. A second cable is needed to use both solar inputs.
Energy Management
Connectivity
Wi-Fi & Bluetooth 5.0
Intelligent Management
EcoFlow OASIS 3.0
Grid Connection
Supported with Smart Home Panel 10 (No Export)
Environment
Charging Temperature
32°F–113°F / 0°C–45°C
Discharging Temperature
14°F–113°F / -10°C–45°C
Operating Altitude
<9,842 ft (3,000 m)
IP Rating
IP20

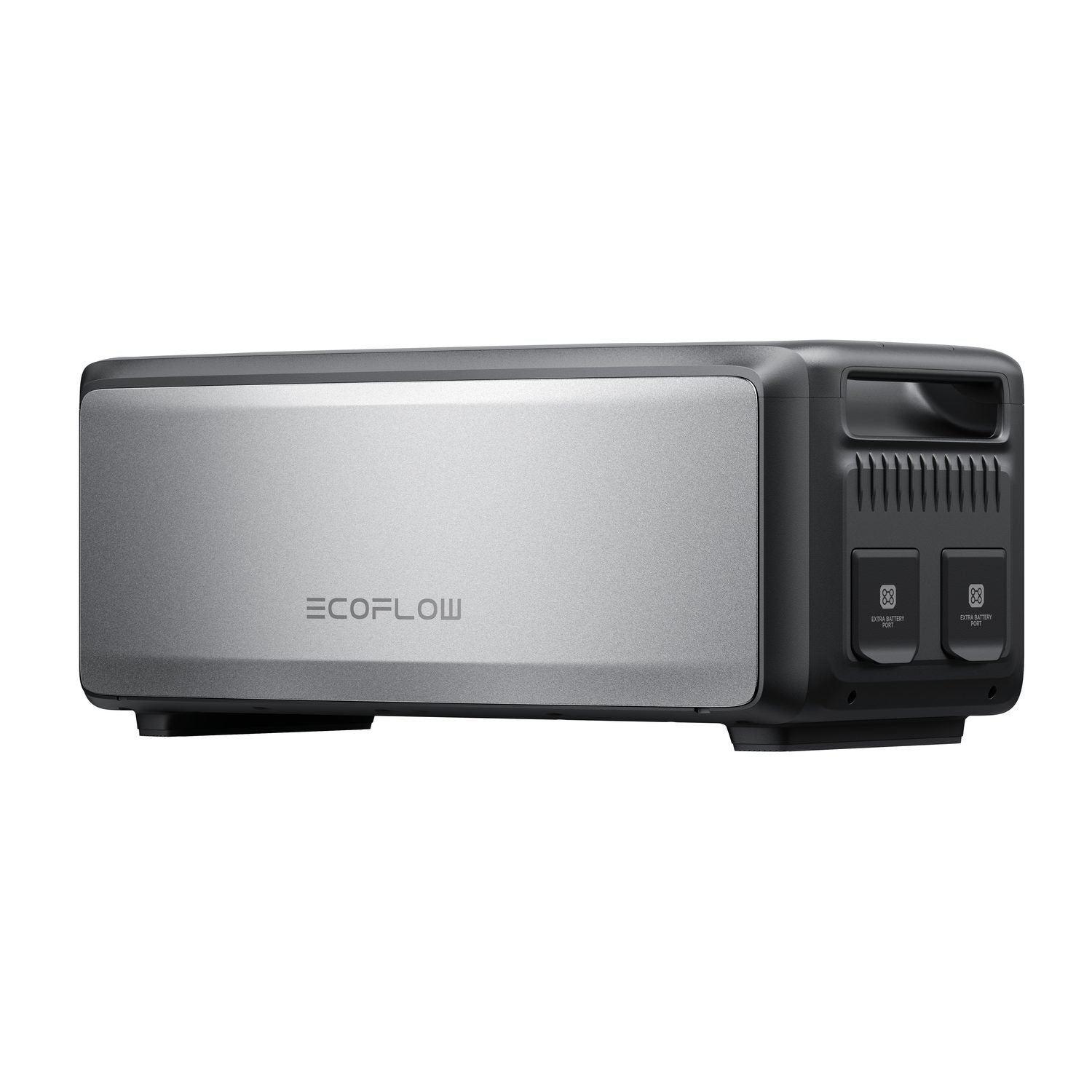

TITAN Battery 5kWh (Optional Expansion)
Dimensions
24.4 x 13.3 x 10.1 in (621 x 337 x 256 mm) (W x H x D)
Net Weight
82.7 lb (37.5 kg)
Warranty
5 years
Battery Chemistry
LFP (LiFePO₄)
Capacity Per Unit
5kWh (5,017.6Wh)
Max Units per System
5 (30kWh total)
Max Per Stack
3 under the main unit. 4 or 5 packs need a second stack and the multi-stack cable.
Charging Temperature
32°F–113°F / 0°C–45°C
Discharging Temperature
14°F–113°F / -10°C–45°C
Operating Altitude
<9,842 ft (3,000 m)
IP Rating
IP20

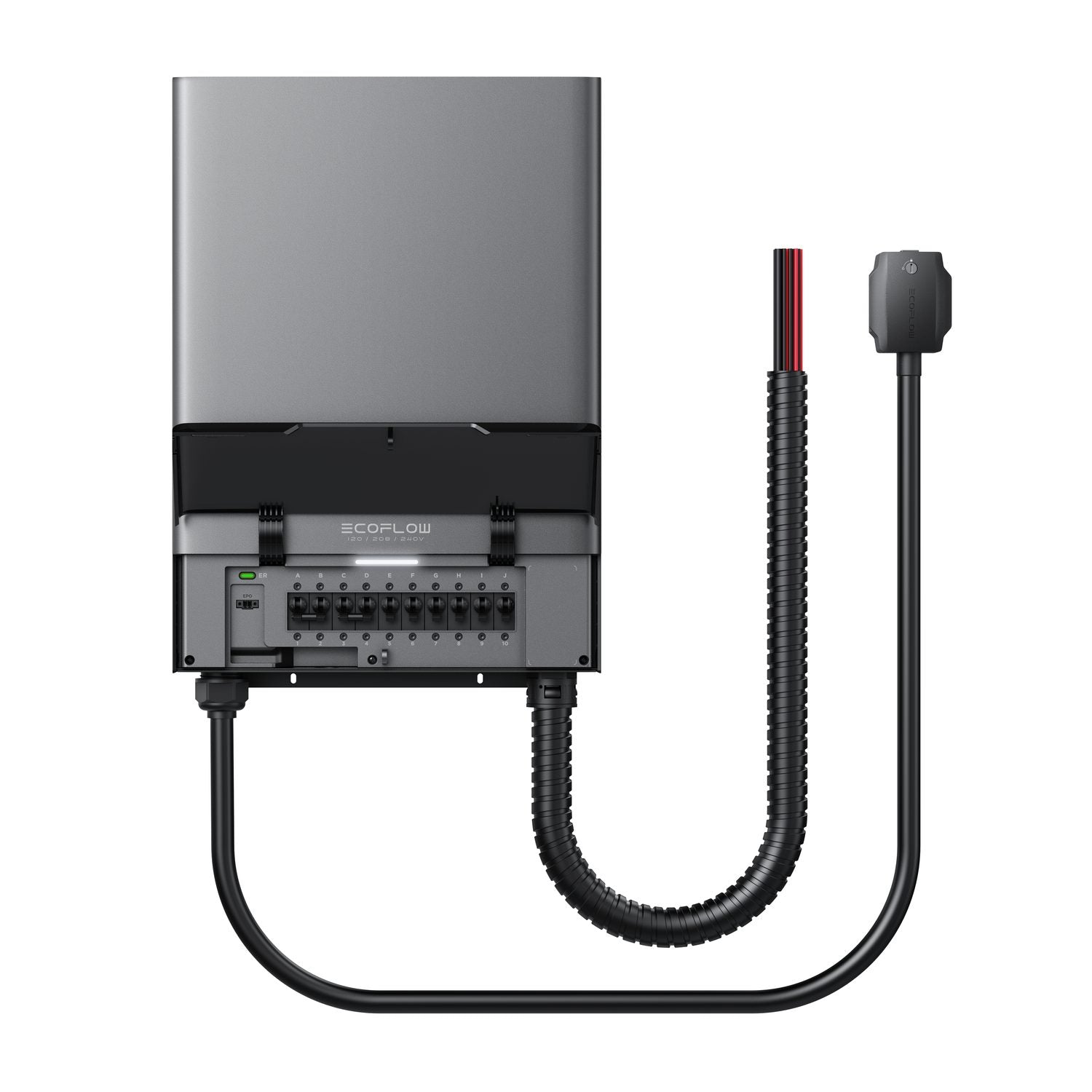

Smart Home Panel 10 (240V) (Optional)
Dimensions
14.2 x 20.3 x 4.0 in (360 x 515 x 102 mm) (W x H x D)
Net Weight
22.49 lb (10.2 kg)
Installation
Wall-Mounted
Warranty
5 years
Rated Output Voltage & Frequency
120V / 240V AC, 60 Hz (split-phase)
Switchover Time
≤20 ms
Supported Circuits
10
Connectivity
Wi-Fi & Bluetooth 5.0
Intelligent Management
EcoFlow OASIS 3.0
CT Sensor
Included (for self-consumption and no-export control), with 2 CT clamps in the box
Build Your TITAN System With Outbound Power
The right backup system is the one sized for your home, your outages and your utility bill. The EcoFlow TITAN 5000 Plus gives you a strong starting point that grows with you, from one battery today to six later. Choose your configuration above, or reach out and we will help you build a TITAN system that fits.
