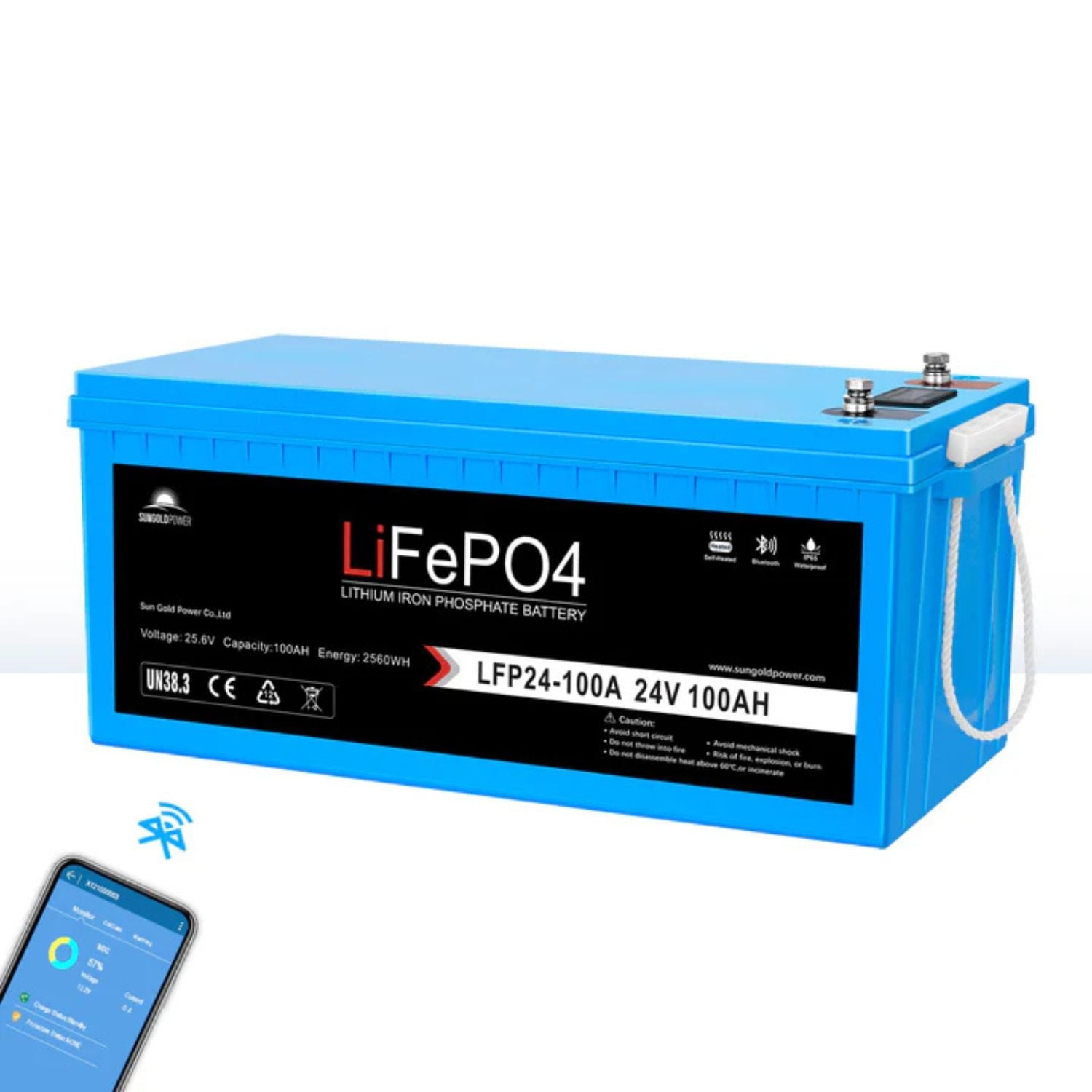

SunGold Power 24V 100Ah LiFePO4 Deep Cycle Lithium Battery | Bluetooth | Self-Heating | IP65

The SunGold Power 24V 100Ah LiFePO4 Deep Cycle Lithium Battery Gives 24V Systems 2560Wh From One Self-Heating Battery

The SunGold Power 24V 100Ah LiFePO4 Deep Cycle Lithium Battery is a 25.6V lithium iron phosphate battery that stores 2560Wh. It is built for 24V systems, so you get the right voltage from one battery instead of wiring two 12V batteries in series.

It is made for 24V RVs, boats, solar systems and off-grid setups. A built-in 100A BMS, Bluetooth monitoring, an LCD display and automatic self-heating come standard, inside an IP65-rated case. Add more batteries in parallel when you need more capacity.

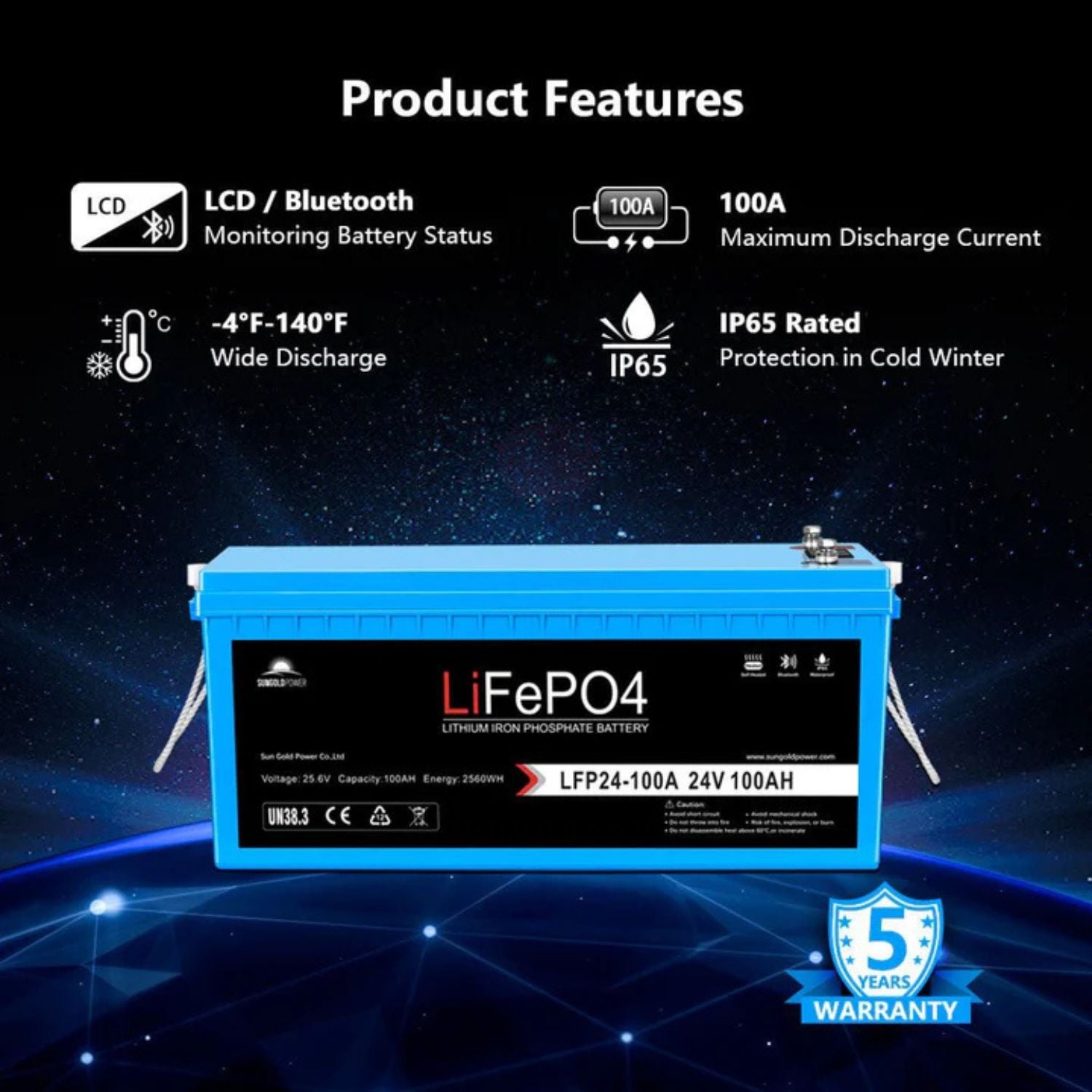

SunGold Power 24V 100Ah LiFePO4 Deep Cycle Lithium Battery Features

Native 24V Design

The battery runs at 25.6V nominal with a 21.6-29.2V operating window. Because it is a single 24V unit, there is no series balancing between batteries to manage.

2560Wh of Stored Energy

At 25.6V and 100Ah, the battery holds 2560Wh. That is the same energy as SunGold's 12V 200Ah battery, delivered at the voltage a 24V inverter or charger expects.

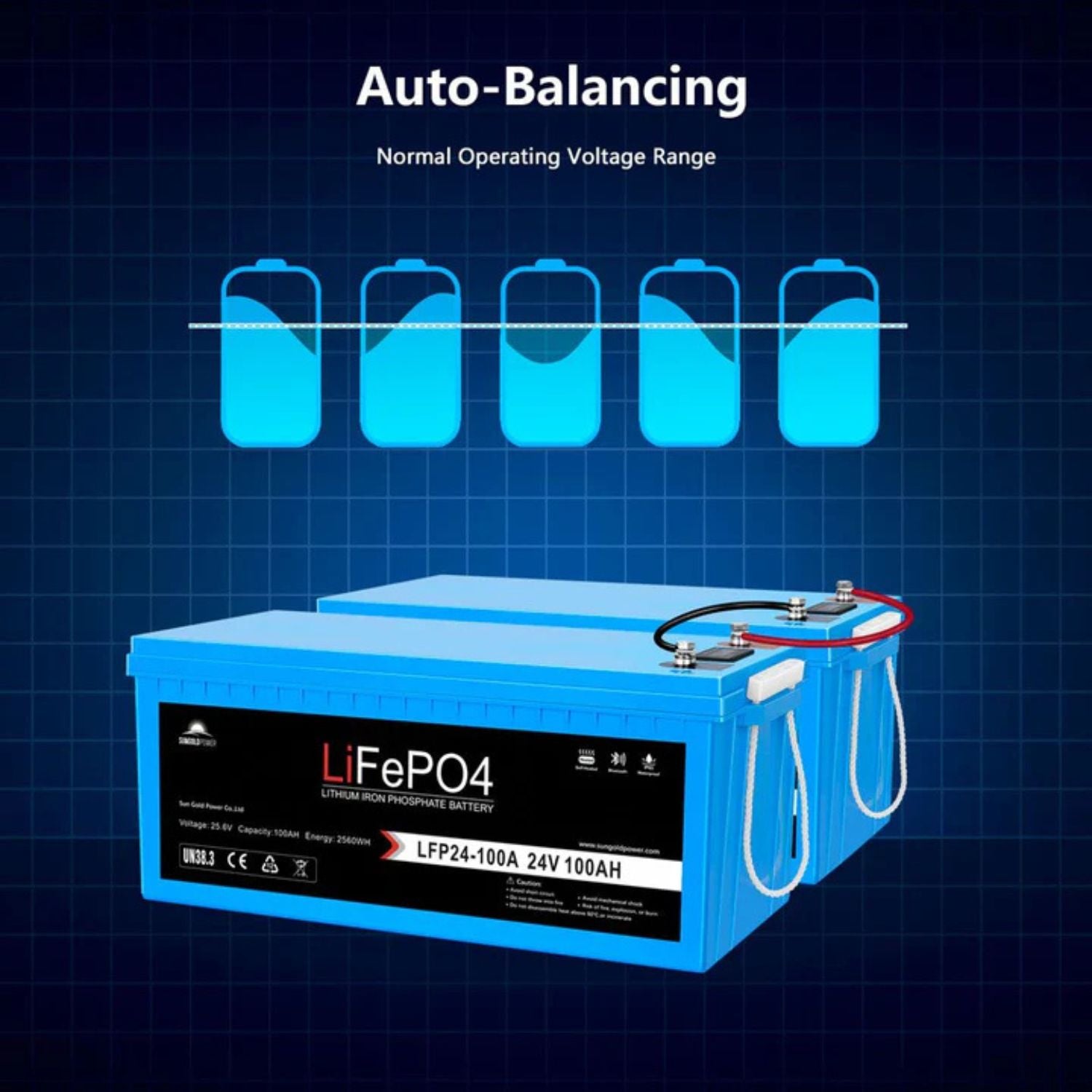

Parallel Expansion

SunGold recommends parallel connection for this model. Each added battery raises total capacity while the system stays at 24V. Fully charge each battery on its own first so their voltages are within 0.1V before you connect them.

100A BMS With Full Protection

The BMS protects against overcharge and over-discharge, over-current, short circuits and high temperature. The battery accepts 100A of continuous charge current and supplies a 200A peak for about 10 seconds. SunGold recommends 50A for everyday charging and discharging.

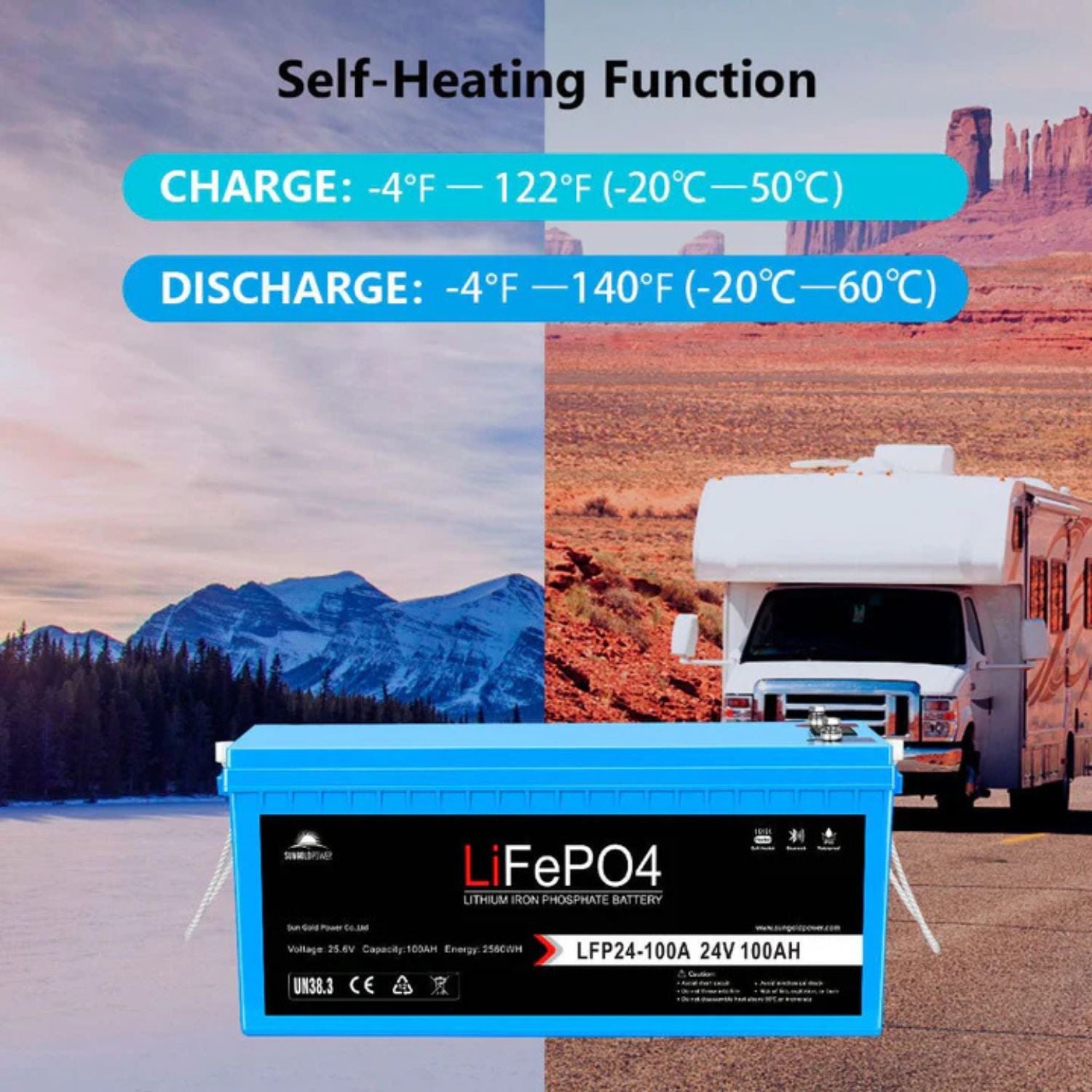

Self-Heating for Winter Charging

While charging, the heater starts when the core temperature drops below 33.8°F (1°C) and stops at 42.8°F (6°C). The battery can keep charging through cold winters.

Bluetooth App and LCD

Press the LCD button to see voltage and state of charge. The SGP Battery app for iOS and Android shows real-time data, cell voltages and warnings on your phone.

4000+ Cycles and 5 Year Warranty

Grade A, automotive-grade cells are rated for 4000 or more cycles at 0.2C, 77°F and 80% depth of discharge. SunGold quotes more than 10 years of lifetime and a 5 year warranty.

Real-World Applications

24V RVs and campers. Power the house system of a 24V rig and check charge levels from your phone.

Marine systems. Run 24V electronics and equipment on a boat. The case is IP65 rated.

Solar energy storage. Store solar power in off-grid systems, RVs or home energy setups that run on a 24V bank.

Growing off-grid systems. Start with one battery and add more in parallel as your loads grow.

How It Compares to Common Alternatives

Versus two 12V 100Ah batteries in series. Two 12V batteries in series also make about 24V and 2560Wh. You then manage two batteries and must match their voltages within 0.1V before wiring. The 24V battery gives you one case, one BMS and one Bluetooth connection.

Versus the 12V 200Ah model. Both store 2560Wh. The 12V 200Ah suits 12V systems and accepts 150A of charge current. The 24V model suits 24V systems and weighs 45LB, compared with 48.5LB.

Versus a lead-acid battery bank. This battery adds a built-in BMS, Bluetooth monitoring and self-heating, and SunGold rates it for at least 4000 cycles.

Is This 24V Lithium Battery the Right Fit

• System voltage. Your inverter, charger and loads must be 24V.
• Charger. Use a LiFePO4 charger. SunGold recommends 28.8V to 29.2V at 0.2C to 0.5C.
• Connection. Recommended in parallel only. Don't mix it with other brands, other battery types, or older batteries.
• Size and weight. 20.7 x 9.4 x 8.7 inches and 45LB.
• Care. It ships half charged. Charge it fully before use, and recharge within 6 days after a full discharge.

This may be a good fit if

• You have a 24V inverter or charger
• You want 2560Wh without series wiring
• You charge in cold weather
• You plan to add batteries in parallel

Common Questions

How Much Energy Does a 24V 100Ah Lithium Battery Store?

This battery is rated at 25.6V and 100Ah, for 2560Wh. Usable energy depends on how deeply you discharge it. The cycle rating is based on 80% depth of discharge.

Can I Use It With Solar Panels?

Yes. It works in off-grid solar systems, RVs and home energy storage, paired with a 24V solar charge controller or inverter that supports LiFePO4 charging.

What Are the Advantages of a 24V Lithium Battery?

A 24V lithium battery offers long life, fast charging, high efficiency, low self-discharge and BMS protection. This model adds self-heating and Bluetooth monitoring, with efficiency rated at 99.5% or better.

What Do the 2 and 4 Unit Options Include?

Each option is that number of the same 24V 100Ah battery, ready to connect in parallel.

What's Included

1 Unit

• 1 x SunGold Power 24V 100Ah LiFePO4 Deep Cycle Lithium Battery (LFP24-100A)

2 Units

• 2 x SunGold Power 24V 100Ah LiFePO4 Deep Cycle Lithium Battery (LFP24-100A)

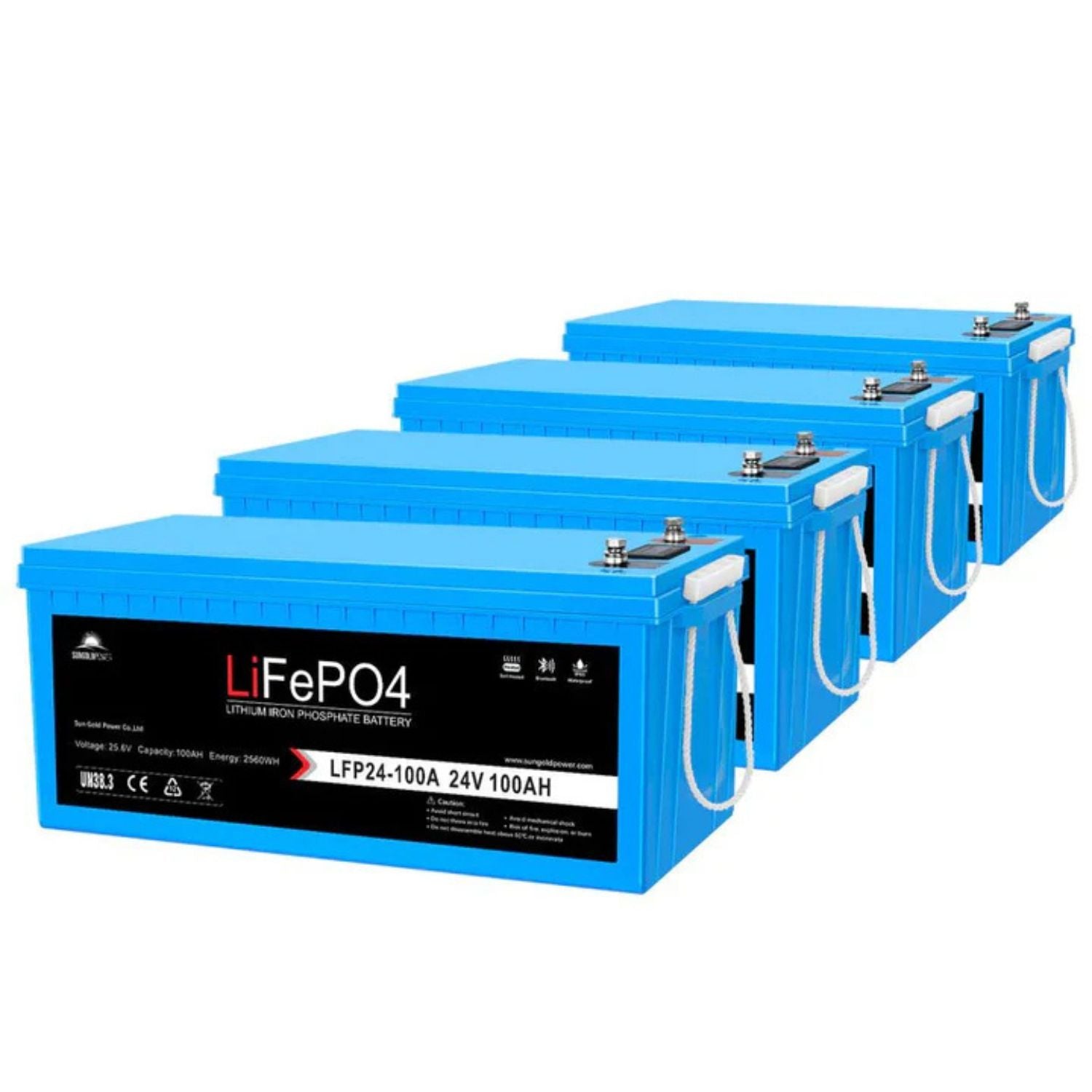

4 Units

• 4 x SunGold Power 24V 100Ah LiFePO4 Deep Cycle Lithium Battery (LFP24-100A)

One Battery for a Complete 24V Bank

The SunGold Power 24V 100Ah LiFePO4 Deep Cycle Lithium Battery gives a 24V system 2560Wh, a 100A BMS, Bluetooth monitoring and self-heating in one IP65 case. At Outbound Power, we help customers size 24V battery banks, inverters and charge controllers for RVs, boats and off-grid solar. If you have questions, our team is happy to help.
