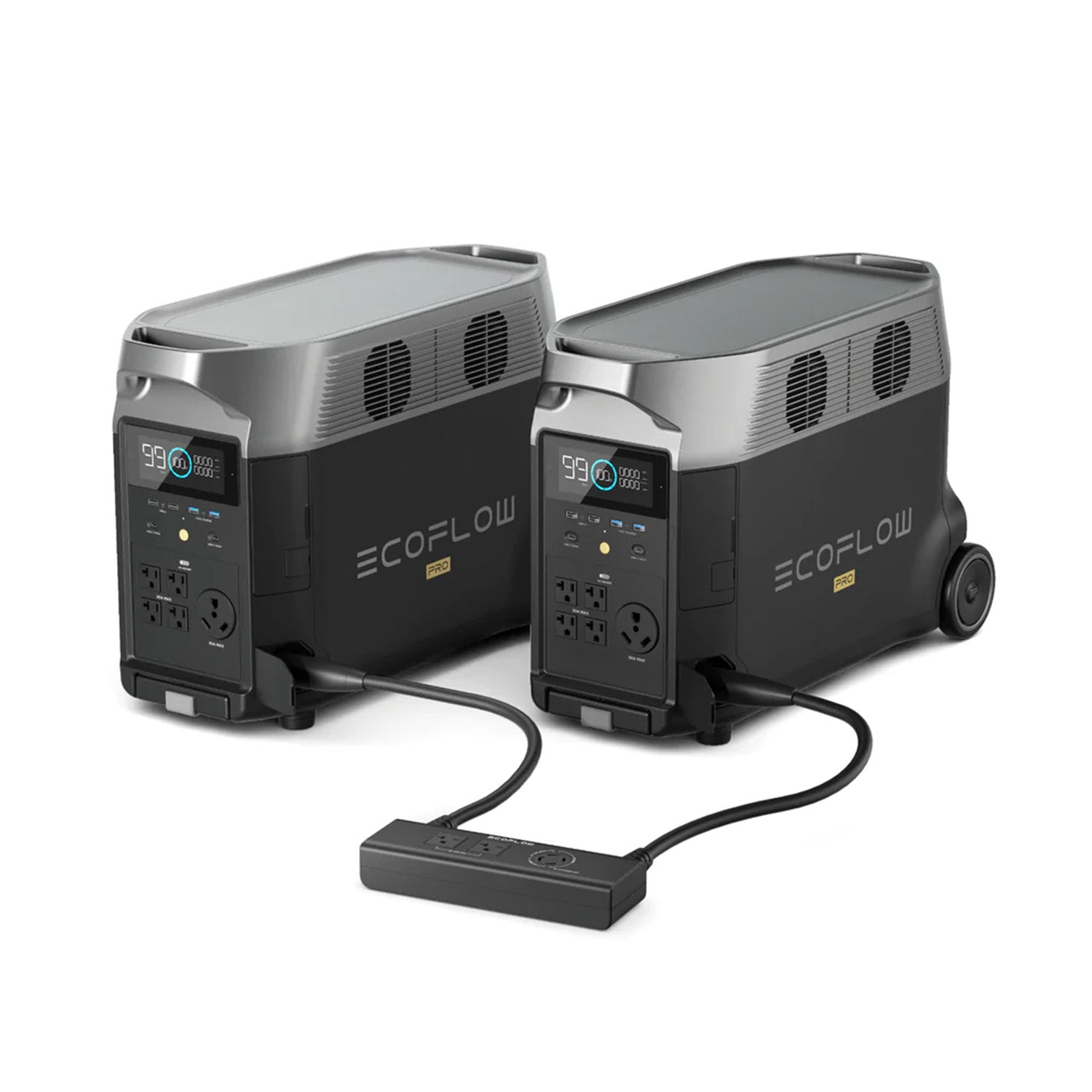

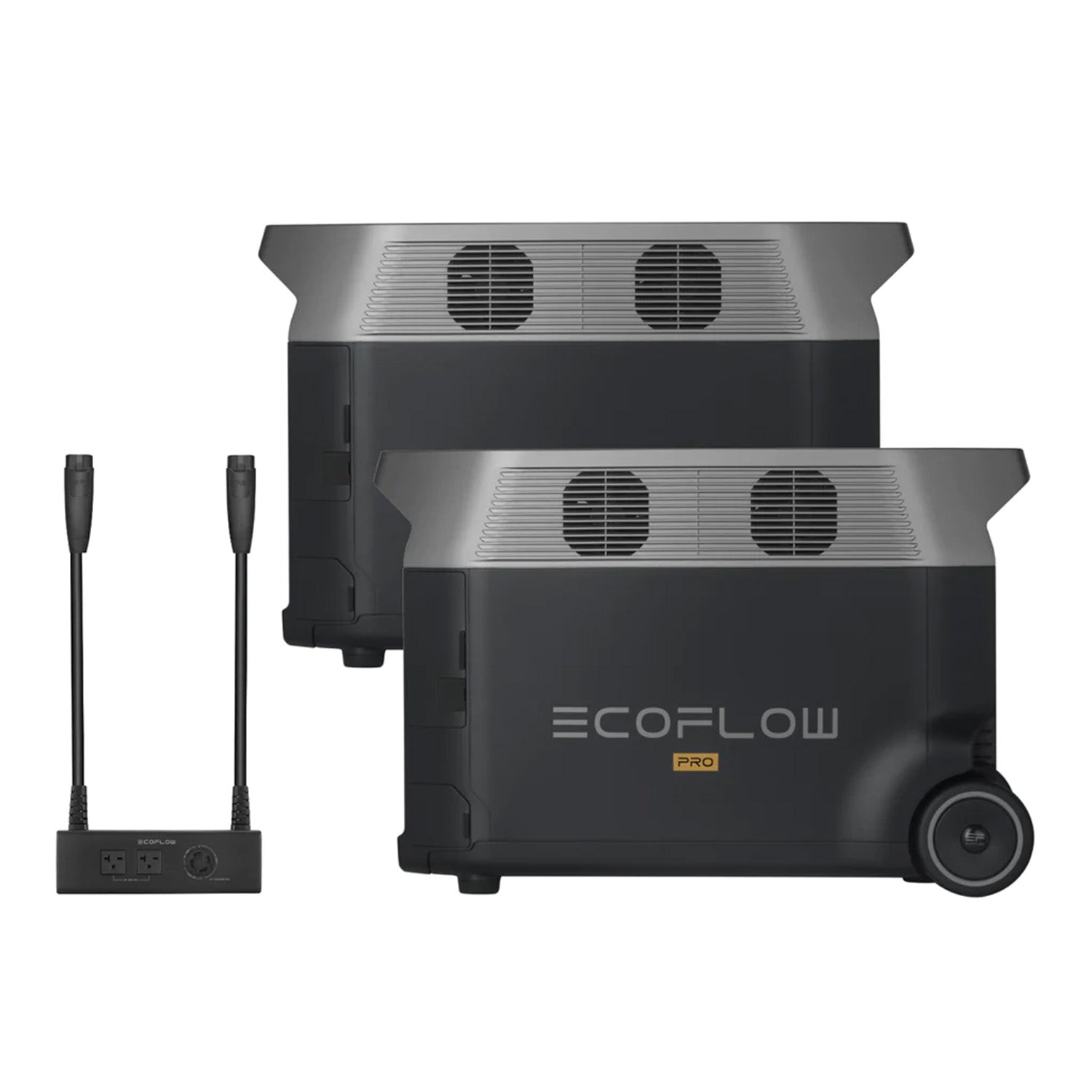

The EcoFlow DELTA Pro x 2 + Double Voltage Hub Links Two 3600Wh Power Stations for 7200W at 240V
This bundle pairs two EcoFlow DELTA Pro portable power stations with the EcoFlow Double Voltage Hub. Each DELTA Pro has a 3600Wh LFP battery and 3600W of AC output at 120V. Linked through the hub, the two units output 7200W at 240V, and their battery management systems distribute capacity evenly to anything plugged into the hub.
It suits homeowners who want 240V power for heavy appliances and anyone ready to replace a gas generator. The hub adds two NEMA 6-20 outlets for 20-amp equipment and tools and a NEMA L14-30 outlet.
EcoFlow DELTA Pro x 2 + Double Voltage Hub Features
7200W at 240V From Two Units
The hub's two AC expansion terminals plug into the Infinity Port on each DELTA Pro. The hub is rated for 120V, 60Hz input and 240V, 60Hz output at up to 7200W and 30A. Each DELTA Pro can still be used normally after it is connected.
Three More Outlets
The hub has two NEMA 6-20 outlets that power 20-amp equipment and tools, plus a NEMA L14-30 outlet that makes it easier to switch out an old gas generator. Check each appliance's voltage range before use so it isn't damaged by overvoltage.

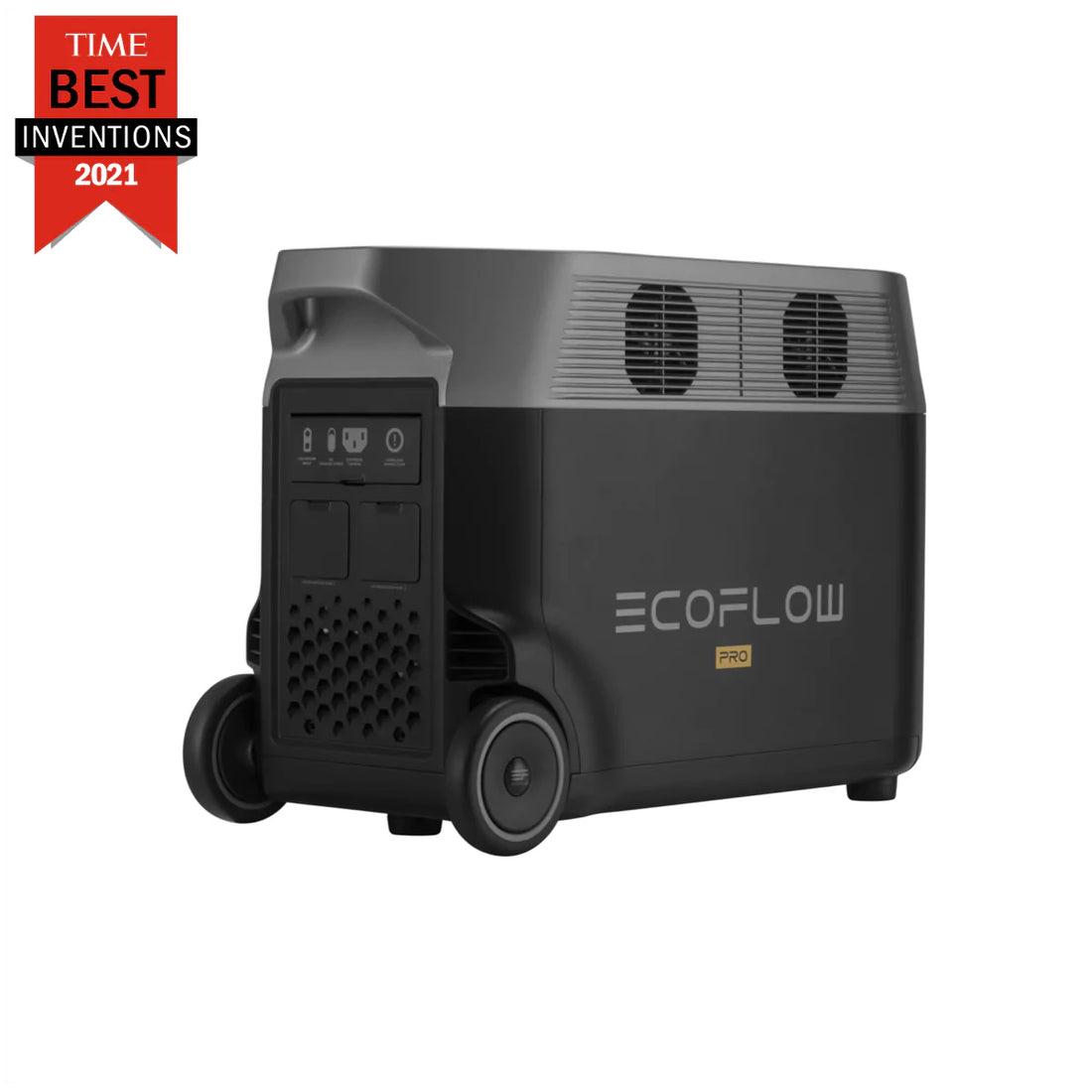

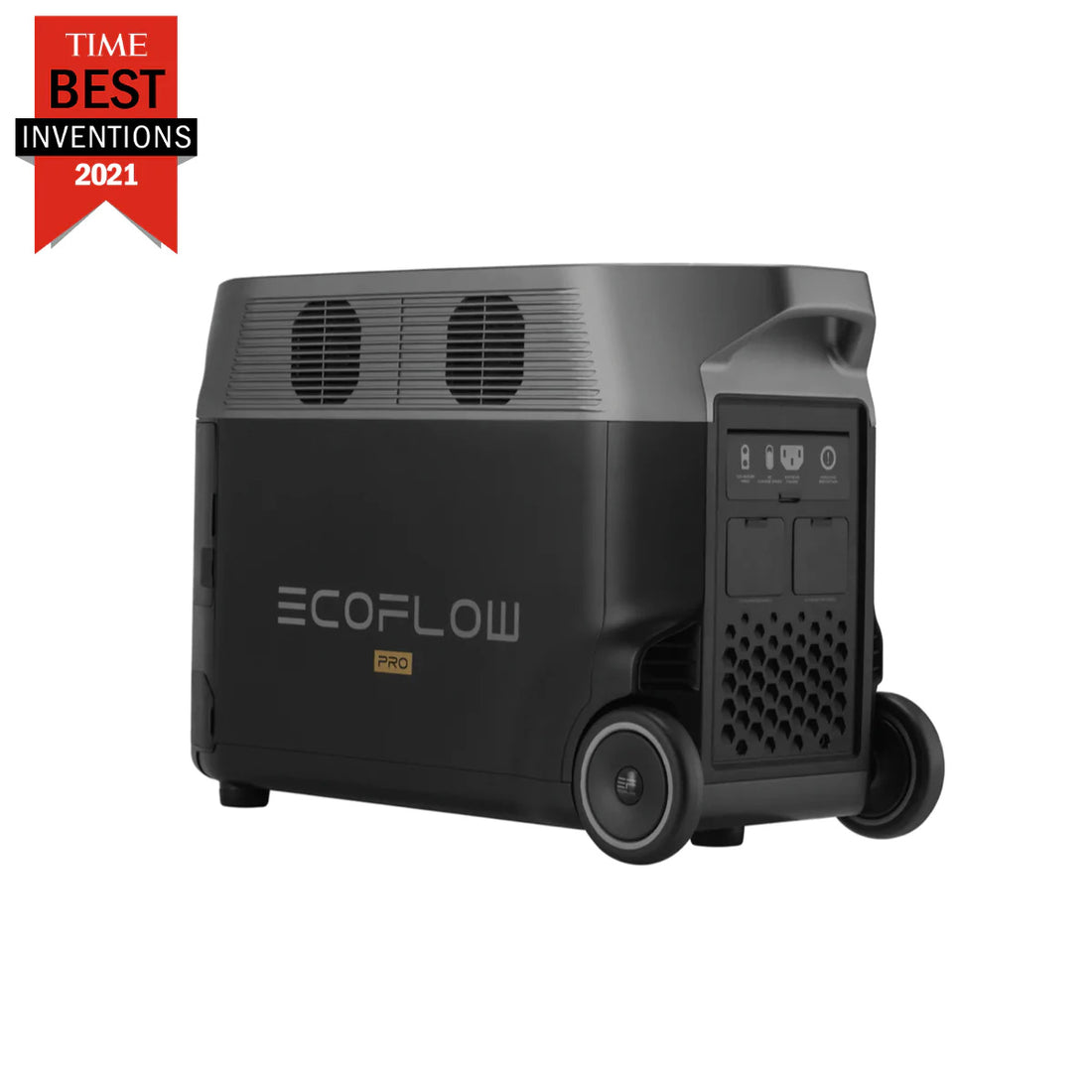

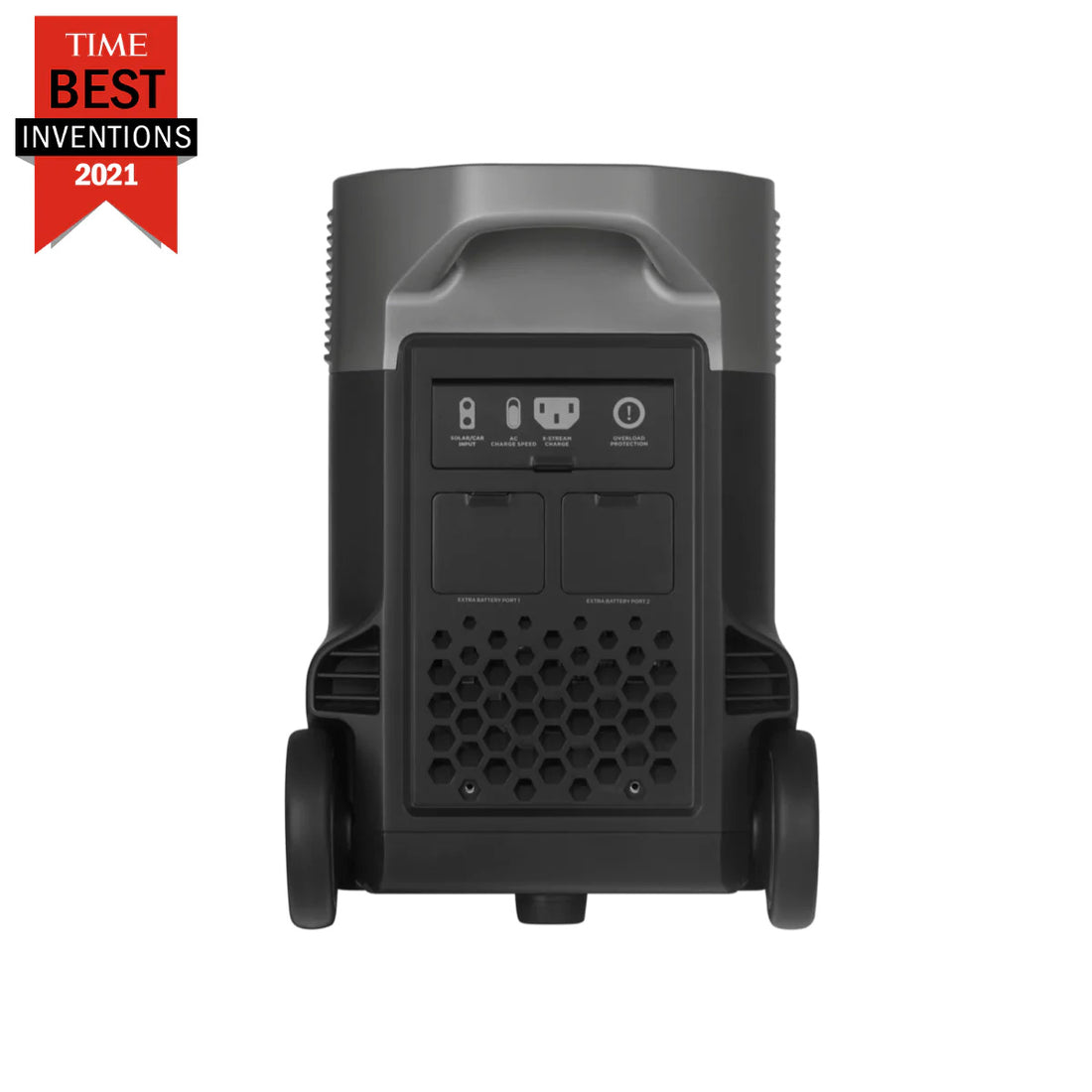

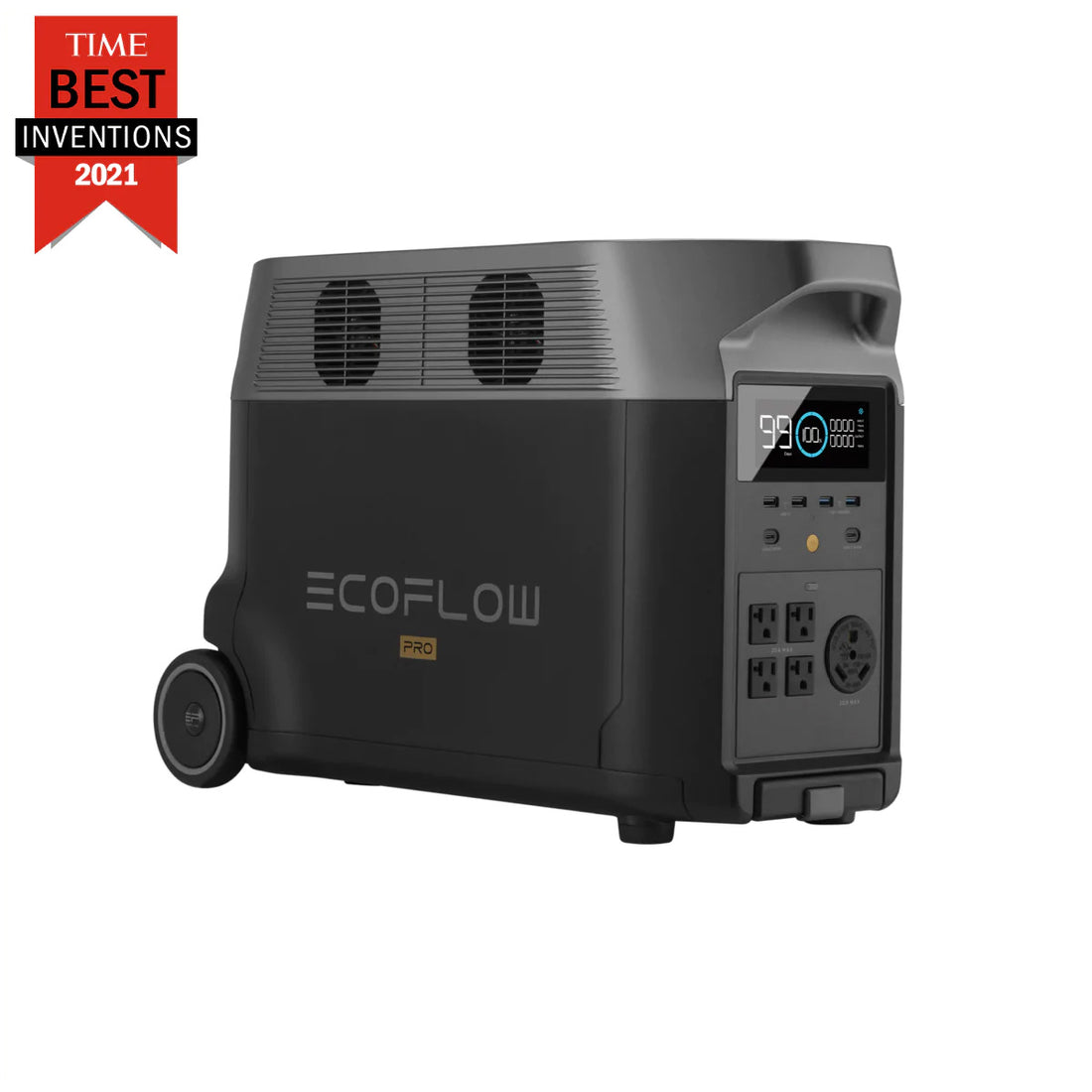

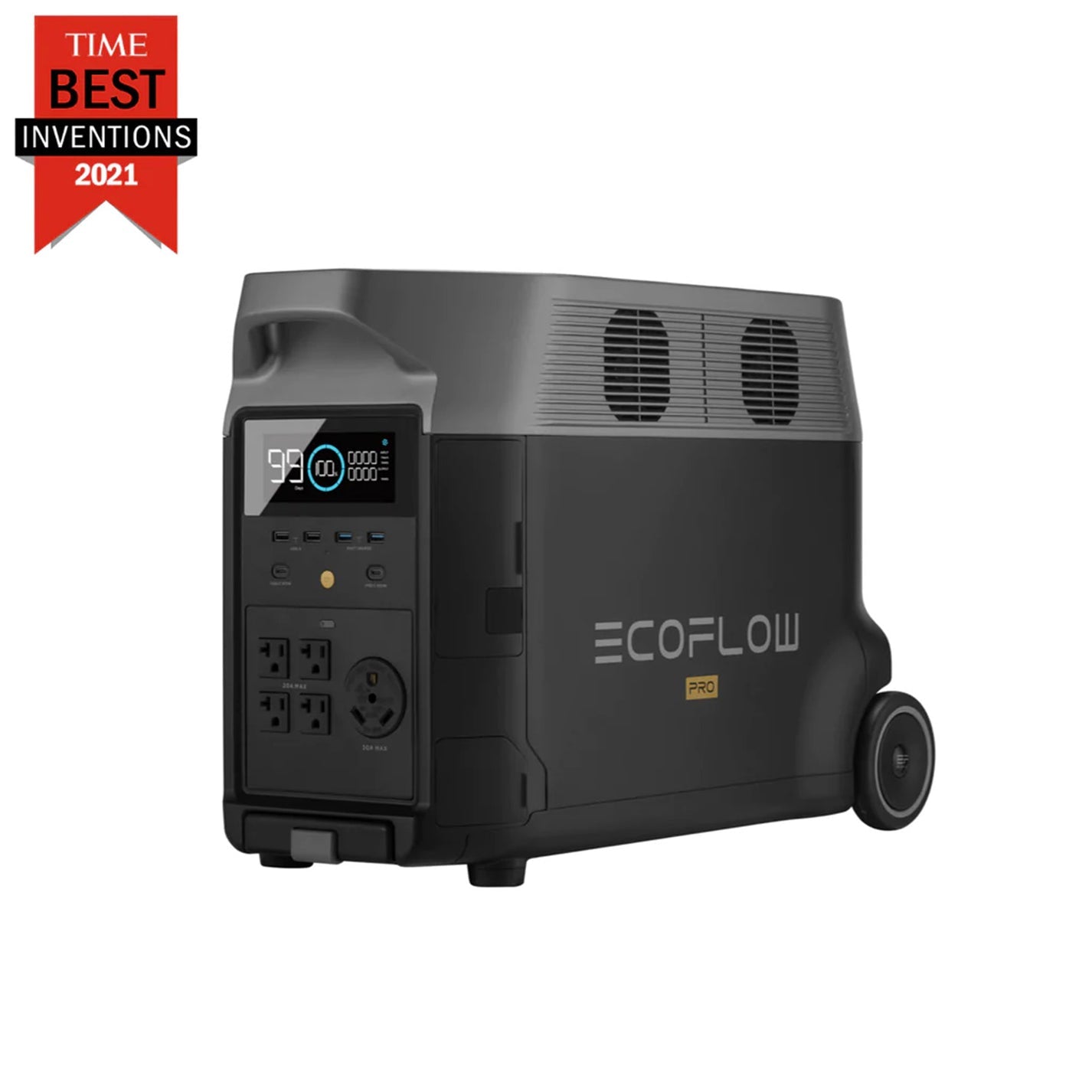

3600W and 3600Wh in Each DELTA Pro

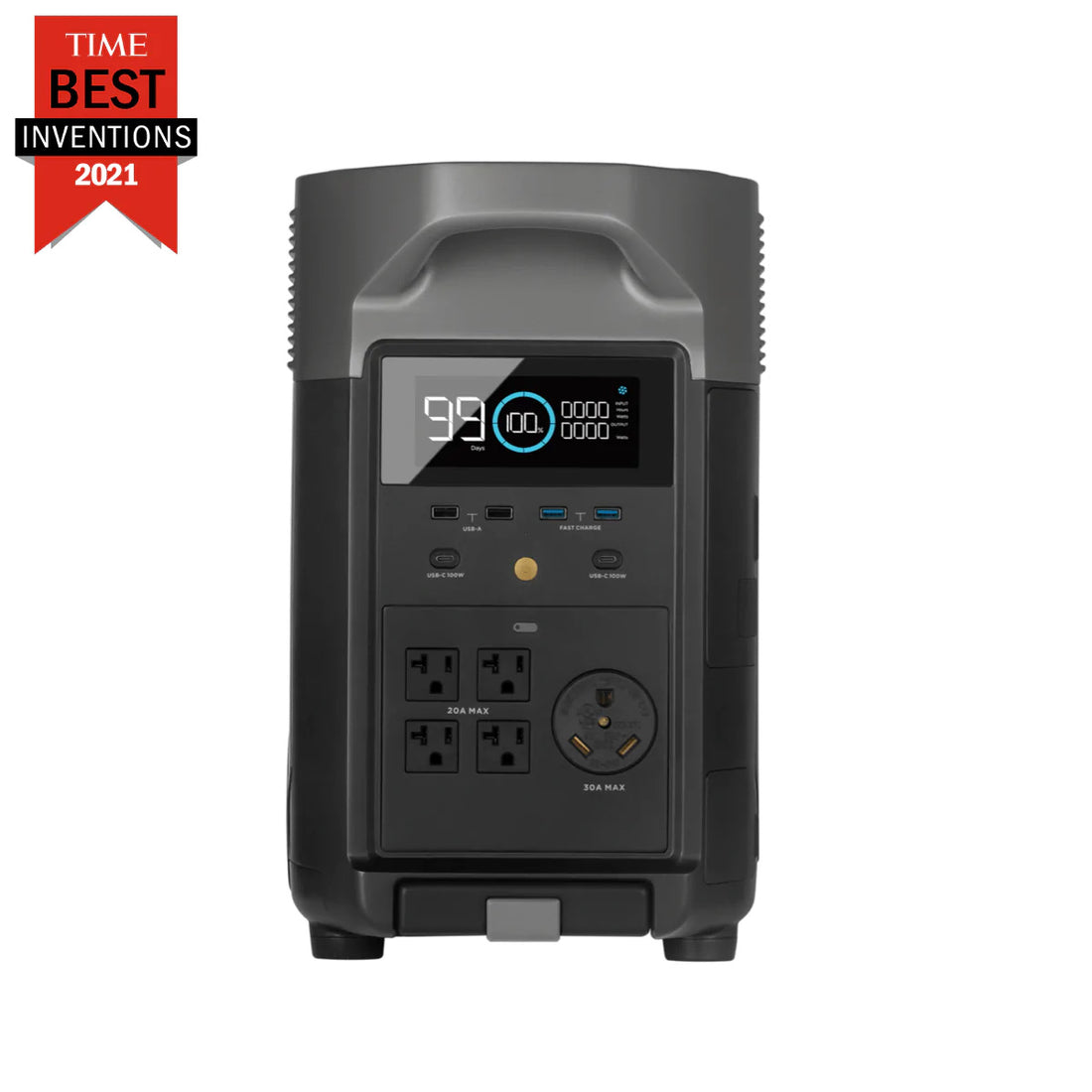

On its own, each DELTA Pro has five AC outlets that share 3600W at 120V with 7200W of surge, and X-Boost runs a device of up to 4500W. EcoFlow says X-Boost suits heating devices and doesn't support devices with voltage protection. Each unit also has two 100W USB-C ports, four USB-A ports, a car outlet, two DC5521 ports and an Anderson port.
Six Ways to Charge Each Unit
Each DELTA Pro charges at up to 1800W from a wall outlet, which EcoFlow rates at about 2.7 hours for a full charge, and accepts up to 1600W of solar at 11–150V. It also charges from a 12V or 24V car outlet, an EcoFlow Smart Generator, the Smart Home Panel, or an AC Level 2 EV station with the EV X-Stream Adapter. These add-ons are sold separately.
Room to Expand
Each DELTA Pro links with up to two DELTA Pro Smart Extra Batteries. EcoFlow lists DELTA Pro capacity as expandable up to 25kWh by adding another unit, extra batteries and Smart Generators, and confirms that a DELTA Pro connected to the hub can still connect to an EcoFlow Smart Generator for more capacity.
Simple Setup With a Status Light
The hub's power indicator flashes when an AC expansion terminal is plugged into a DELTA Pro's Infinity Port. When both are plugged in, the DELTA Pro shows the connection icon and the indicator goes out. Then press the hub's power button. Align and lock the connectors before use.
LFP Batteries With App Control
Each DELTA Pro uses an LFP battery rated for 3,500 cycles to 80% or more capacity, with a battery management system that regulates voltage, current and temperature in real time. The EcoFlow app connects over Wi-Fi to monitor each unit and turn outputs on and off.
Real-World Applications
Home backup. Keep heavy-duty appliances and household essentials running through an outage with two batteries working together.
Replacing a gas generator. Use the NEMA L14-30 outlet where you would have used a gas generator, without fuel, maintenance or engine noise.
Workshops and tools. Plug 20-amp equipment and tools into the two NEMA 6-20 outlets.
Large off-grid needs. Link the two units when you plan to use a lot of energy off-grid, then recharge each one from solar panels.
How It Compares to Common Alternatives
Versus a single DELTA Pro. One DELTA Pro gives 3600W at 120V from its own outlets. This pair, linked by the hub, gives 7200W at 240V and three more outlets, with a 3600Wh battery in each unit.
Versus the Smart Home Panel. EcoFlow's Smart Home Panel can also link two DELTA Pro units for 7200W at 240V, and it integrates them with your home circuits. The Double Voltage Hub is portable and gives you plug-in outlets instead.
Versus a gas generator. A gas generator needs fuel and maintenance and runs outdoors. The DELTA Pro pair stores energy from the wall, the sun or an EV station without fuel or emissions.
Is This Power Station Bundle the Right Fit
Two units to move. Each DELTA Pro weighs about 99 lbs (45 kg) and measures 25 x 11 x 16 in, with a luggage-like handle and wheels.
Keep it dry. Keep the hub and both power stations away from liquid, and don't use them in rain or humid conditions.
Temperature. The hub operates at 14°F to 113°F (-10°C to 45°C). Each DELTA Pro charges at 32°F to 113°F (0°C to 45°C).
Appliance voltage. Confirm each appliance's voltage range before plugging it into the hub.
Medical equipment. EcoFlow does not recommend the DELTA Pro for medical emergency equipment such as ventilators.
This may be a good fit if
You want 7200W at 240V without a gas generator
You need NEMA 6-20 or L14-30 outlets
You want two 3600Wh batteries you can also use separately
You plan to add extra batteries or a Smart Generator later
Common Questions
Can I Still Use Each DELTA Pro Normally After Connecting?
Yes. EcoFlow confirms that the DELTA Pro can be used normally after it is connected to the Double Voltage Hub.
Can I Add a Smart Generator to This Setup?
Yes. After connecting the hub, the DELTA Pro and an EcoFlow Smart Generator (sold separately) can be connected for capacity expansion.
How Do I Know the Hub Is Connected?
The hub's power indicator flashes when a terminal is plugged into a DELTA Pro. Once both are plugged in, the DELTA Pro displays the connection icon and the hub's indicator goes out.
How Should I Store the Power Stations?
Store them in a dry, ventilated place. Every three months, discharge each to 0%, fully recharge it, then discharge it to 60%. The warranty does not cover a unit left uncharged or unused for more than 6 months.

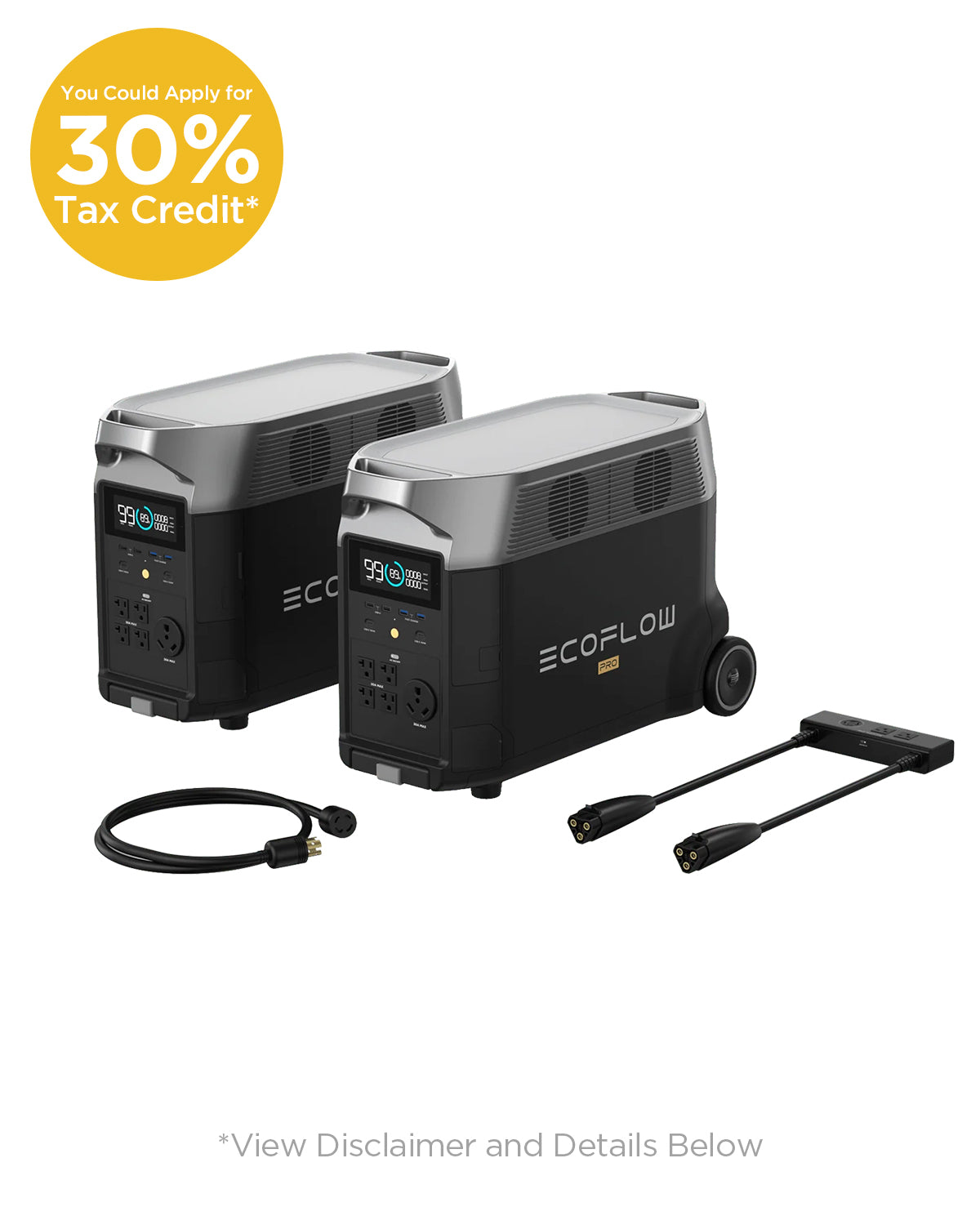

What's Included
2 x EcoFlow DELTA Pro Portable Power Station
2 x AC Charging Cable
2 x Car Charging Cable
2 x DC5521 to DC5525 Cable
2 x Handle Cover
2 x User Manual and Warranty Card
1 x EcoFlow Double Voltage Hub
Two DELTA Pro Units Working Together
The EcoFlow DELTA Pro x 2 + Double Voltage Hub links two 3600Wh, 3600W power stations for 7200W at 240V, with NEMA 6-20 and L14-30 outlets on the hub. If you have questions about setting it up for your home, shop or off-grid site, the Outbound Power team is happy to help.
EcoFlow DELTA Pro x 2 + Double Voltage Hub Specifications
Double Voltage Hub
Model
EFD500-PR
Input Voltage
120V, 60Hz
Output Voltage
240V, 60Hz
Max Input/Output Power
7200W max, 30A max
Outlets
2 x NEMA 6-20, 1 x NEMA L14-30
Connection
AC expansion terminal
Connects To
Each DELTA Pro's Infinity Port
Operating Temperature
14°F to 113°F (-10°C to 45°C)
Requires
Two EcoFlow DELTA Pro units (both included)
Capacity and Battery (Each DELTA Pro)
Rated Capacity
3600Wh, 48V
Cell Chemistry
LFP
Cycle Life
3,500 cycles to 80%+ capacity
Smart Extra Batteries
Up to two per DELTA Pro (sold separately)
Voltage Protection
Over voltage, low voltage
Current Protection
Overload, overcurrent, short circuit
Temperature Protection
Over temperature, low temperature
AC Output (Each DELTA Pro)
AC Outlets
5, pure sine wave
Rated AC Output
3600W total, 120V~ (60Hz)
Surge Output
7200W
Max Current
20A per outlet; one 30A outlet
X-Boost
Devices up to 4500W (not in bypass mode)
EPS Switchover
Within 30ms
DC and USB Output (Each DELTA Pro)
USB-A (x2)
5V 2.4A, 12W max per port, 24W total
USB-A Fast Charging (x2)
5V 2.4A, 9V 2A, 12V 1.5A
USB-A Max Per Port
18W
USB-A Total
36W
USB-C (x2)
5/9/12/15/20V 5A, 100W max per port, 200W total
Car Outlet
12.6V 10A, 126W max
DC5521 Output (x2)
12.6V 3A, 38W max per port
Shared DC Output
Car outlet and DC5521 ports share 126W max
Anderson Output
12.6V 30A, 378W max
Charging Input (Each DELTA Pro)
AC Charge
120V~ 1800W max; 240V~ 3000W max
AC Input Voltage
100-120V~ 15A, 220-240V~ 12.5A, 50/60Hz
AC Charging Power
Adjustable 200-1800W (400W default)
AC Charge Time
About 2.7 hours to full at 1800W (X-Stream)
Solar Input
11-150V, 15A max, 1600W max
Car Charging
12V/24V battery, 8A default
Other Charging
Smart Generator
Other Charging
Smart Home Panel
Other Charging
AC Level 2 EV station
EV Station Adapter
EV X-Stream Adapter
Other Charging Condition
Sold separately
Size and Weight (Each DELTA Pro)
Dimensions
25 x 11 x 16 in (635 x 285 x 416 mm)
Net Weight
About 99 lbs (45 kg)
Environment (Each DELTA Pro)
Optimal Operating Temperature
68°F to 86°F (20°C to 30°C)
Discharge Temperature
14°F to 113°F (-10°C to 45°C)
Charge Temperature
32°F to 113°F (0°C to 45°C)
Storage Temperature
14°F to 113°F (-10°C to 45°C)
Connectivity (Each DELTA Pro)
Wi-Fi Frequency
2412-2462MHz
Bluetooth Frequency
2402-2480MHz
App
EcoFlow app
EcoFlow DELTA Pro x 2 + Double Voltage Hub Manuals
EcoFlow DELTA Pro Double Voltage Hub Manual
EcoFlow DELTA Pro Portable Power Station Manual
